DP16H1212A20F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> DP16H1212A20F

DP16H1212A20F: DescriptionDP16 HOR 12P 12DET 20F M9*5MM; CategoryPassive components; File Size155KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

DP16H1212A20F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DP16H1212A20F	-	-	View	Buy Now

DP16H1212A20F Overview

DP16 HOR 12P 12DET 20F M9*5MM

DP16H1212A20F Parametric

Parameter Name	Attribute value
Rotation type	continuous
Encoder type	Terminal encoder
Includes switch	no
seal	no
part	one
Adjustment type	Spindle
Number of pulses	12
Adjust position	side
Number of brakes	12
Shaft type	flat
Termination type	A printed circuit board
installation angle	level
Installation method	surface mount
Dimensions (mm)	17.3 x 16 x 7.5
Operating Speed (Max) (RPM)	60

Preview

Download Datasheet

View All

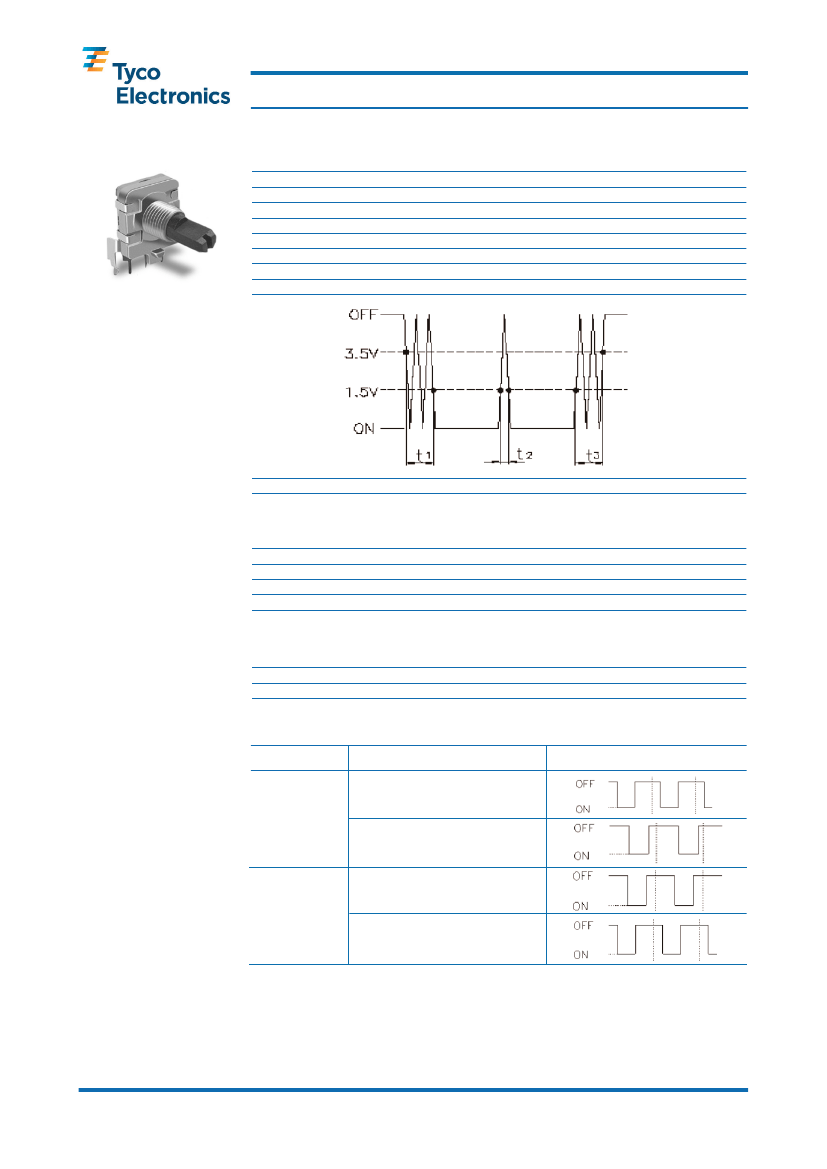

16mm Rotary Encoder

Type DP16 Series

Characteristics -

Electrical

Pulses:

Contact Rating:

Dielectric Strength:

Insulation Resistance (min):

Operating Speed (RPM):

Electrical Travel:

Rotational Noise:

Chattering:

16mm Rotary incremental encoder for

use in electronic equipment.

Can be supplied with customisation to

standard options

12 & 24

5VDC @ 5mA

50VAC / 1mA, 1 minute

10M ohms at 50VDC

60 RPM

Continuous

t2 = 2.0 ms max (see below)

t1 & t3 = 3.0 ms max (see below)

Key Features

■

16mm Rotary Encoder

Incremental Type

Various Shaft Lengths

Pulse Options

Detent Options

Code Off area V = 3.5V or more. Code on area V=1.5V or less

Characteristics -

Mechanical

Total Mechanical Travel:

Detents:

Shaft Type:

Shaft Length (from Mounting Surface):

Continuous

0, 12, 24

F – Flatted

15, 20, 25

Characteristics -

Environmental

Operating Temperature

Rotational Life

-10 ~ +70 degrees C

15,000 Cycles

Output Signal Format

Shaft Rotational

Direction

Signal

Format

A (Terminal A-C)

Clockwise

B (Terminal B-C)

A (Terminal A-C)

Anticlockwise

B (Terminal B-C)

Literature No. 1-1773449-1

Issued: 02-08

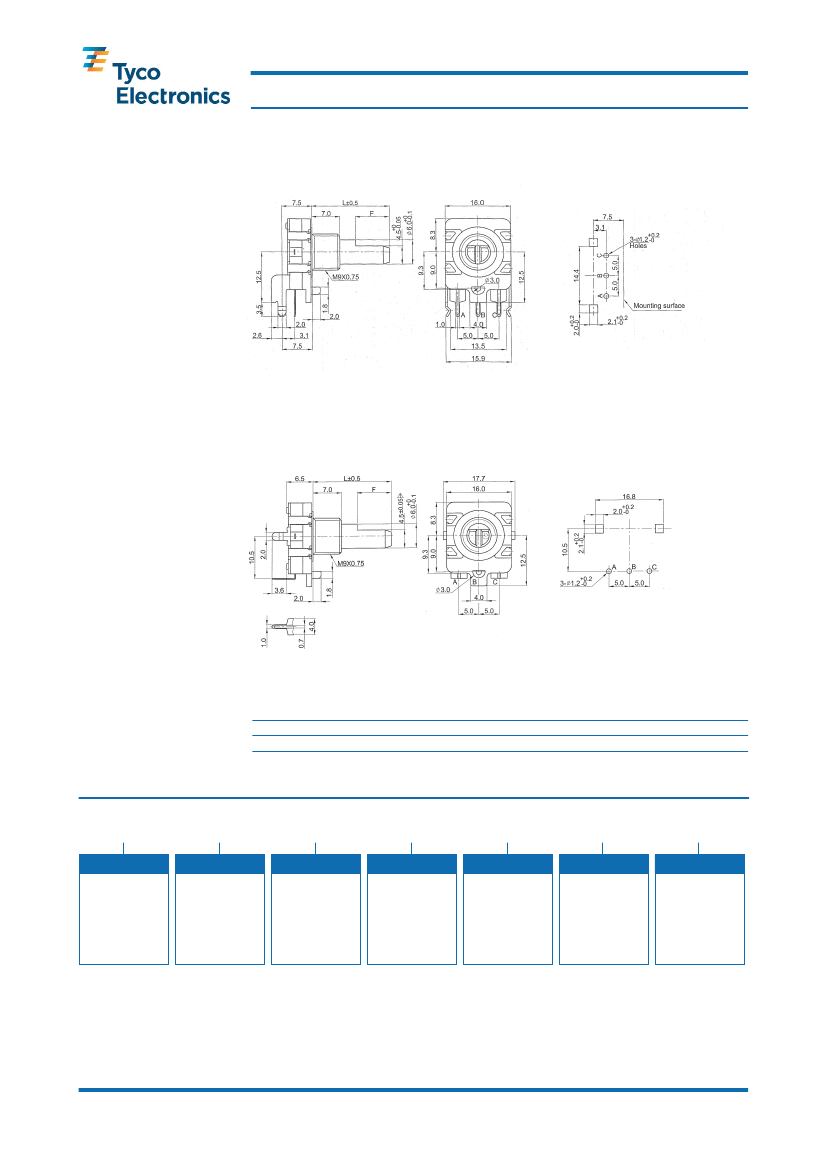

Dimensions are shown for

reference purposes only.

Dimensions are in

millimetres unless

otherwise specified.

Specifications subject to

change.

tycoelectronics.com

passives.tycoelectronics.com
