12mm Rotary Encoder
Type DP12 Series
Type DP12 Series

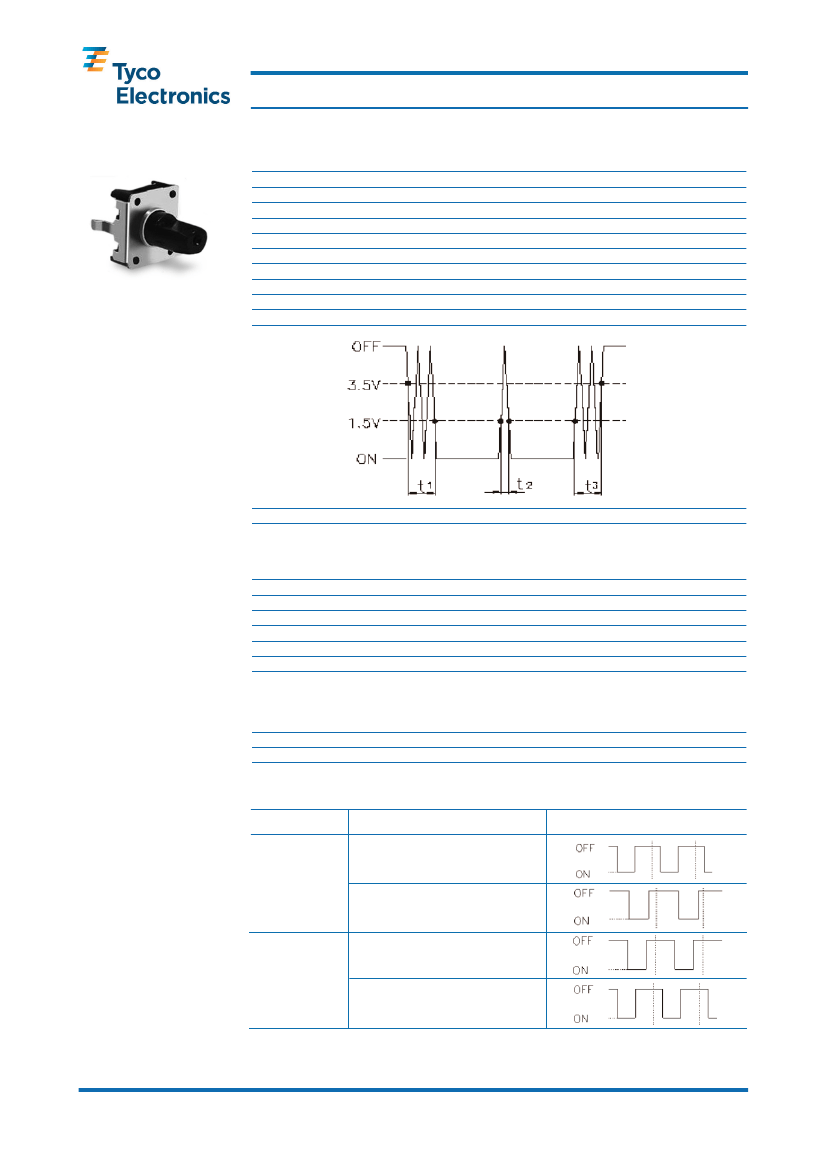

Characteristics -
Electrical
Pulses:
Contact Rating:
Dielectric Strength:
Insulation Resistance (min):
Operating Speed (RPM):
Switch Power Rating (where fitted):
Switch Contact Resistance:
Electrical Travel:
Rotational Noise:
Chattering:
12 & 24
0.5mA 5VDC
300VAC / 1mA, 1 minute
100M ohms at 250VAC
60 RPM
5VDC, 10mA (1mA Min)
100m ohm Max
Continuous
t2 = 2.0 ms max (see below)
t1 & t3 = 3.0 ms max (see below)
12mm Rotary incremental encoder for
use in electronic equipment. Can be
supplied with or without switch with
customisation to standard options.
Key Features
■
■
■
■
■
■
12mm Rotary Encoder
Incremental Type
Push on Switch Option
Various Shaft Lengths
Pulse Options
Detent Options
Code Off area V = 3.5V or more. Code on area V=1.5V or less
Characteristics -
Mechanical
Total Mechanical Travel:
Detents:
Switch Operating Force:
Switch Travel:
Shaft Type:
Shaft Length (from Mounting Surface):
Continuous
0, 12, 24
500+/- 100gf
0.5mm
F – Flatted
17.5, 20, 22.5, 25
Characteristics -
Environmental
Operating Temperature
Rotational Life
-30 ~ +70 degrees C
15,000 Cycles
Output Signal Format
Shaft Rotational
Direction
Signal
Format
A (Terminal A-C)
Clockwise
B (Terminal B-C)
A (Terminal A-C)
Anticlockwise
B (Terminal B-C)
Literature No. 1773449-9
Issued: 02-08

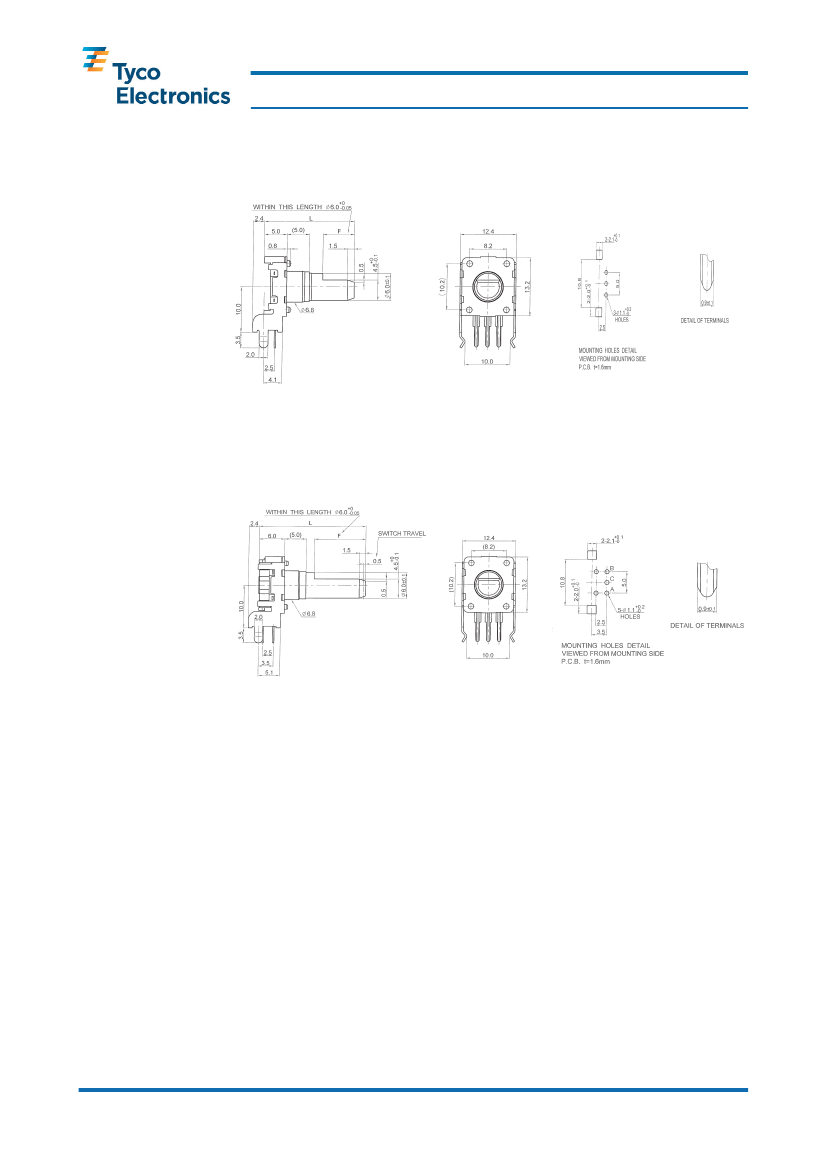

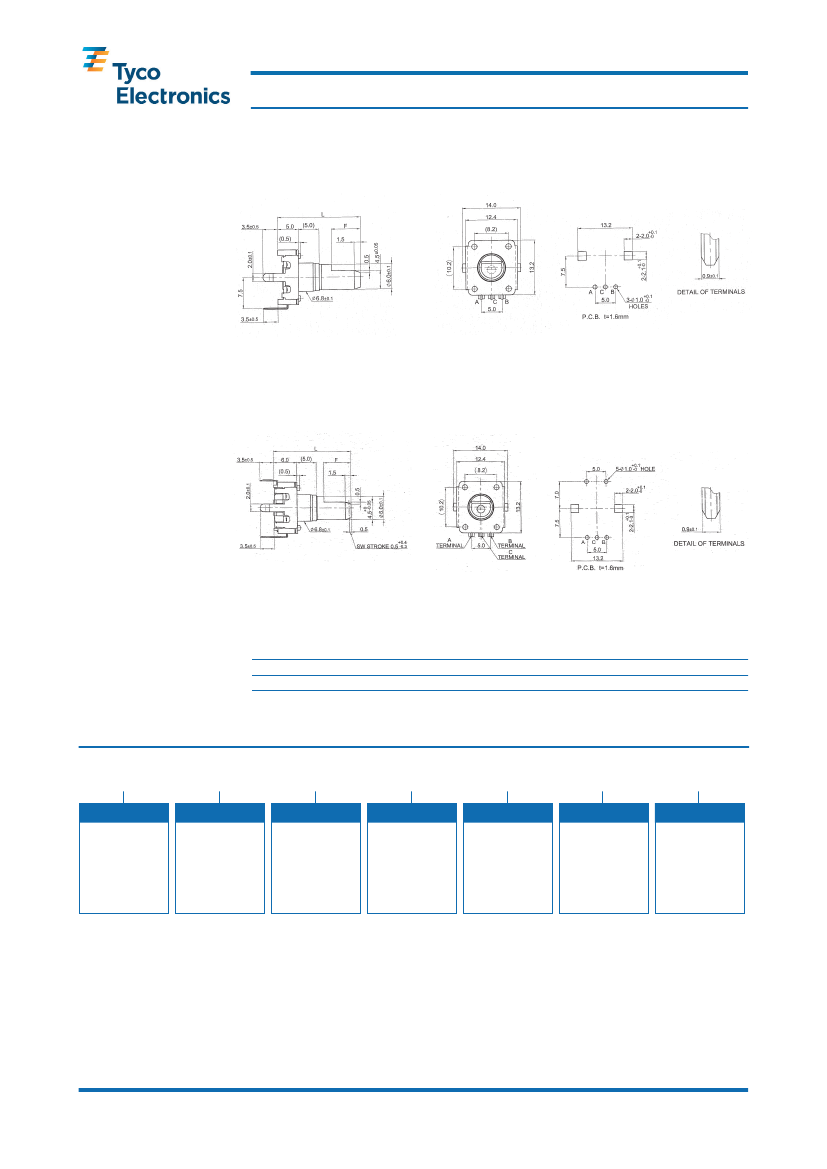

Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
Analogue and Mixed Signal
