T81N5D312-24

Description
T81N5D312-24
CategoryMechanical and electronic products    relay
File Size573KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

T81N5D312-24 Online Shopping

Suppliers Part Number Price MOQ In stock
T81N5D312-24 - - View Buy Now

T81N5D312-24 Overview

T81N5D312-24

T81N5D312-24 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
body width10.9 mm
body height11.7 mm
Body length or diameter15.9 mm
Maximum coil current (DC)0.019 A
Coil operating voltage (DC)16.8 V
Coil power450 mW
Coil release voltage (DC)1.2 V
Coil resistance2800 Ω
Maximum coil voltage (DC)24 V
Nominal coil voltage24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load60VA@120VAC
Contact (AC) maximum rated R load1A@120VAC
Maximum contact current (AC)1 A
Maximum contact current (DC)1 A
Contact (DC) maximum rated power R load24W@60VDC
Contact (DC) maximum rated R load1A@24VDC
Contact resistance50 mΩ
Maximum contact voltage (AC)120 V
Maximum contact voltage (DC)24 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1000 Vrms
Dielectric strength between breaking contacts500 Vrms
Electrical life100000 Cycle(s)
End contact materialSilver Palladium
End contact platingGOLD
Input switching control typeRandom
Insulation resistance100000000 Ω
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
Number of terminals5
operating hours5 ms
Maximum operating temperature55 °C
Minimum operating temperature-40 °C
PCB hole count5
physical size15.9mm x 10.9mm x 11.7mm
GuidelineCSA; UL
Relay actionMOMENTARY
Relay style1 FORM C
Relay functionSPDT
Relay typePOWER/SIGNAL RELAY
release time2 ms
sealPLASTIC SEALED
surface mountNO
Terminal length0.003 inch
Termination typeSOLDER
weight4 g
Base Number Matches1

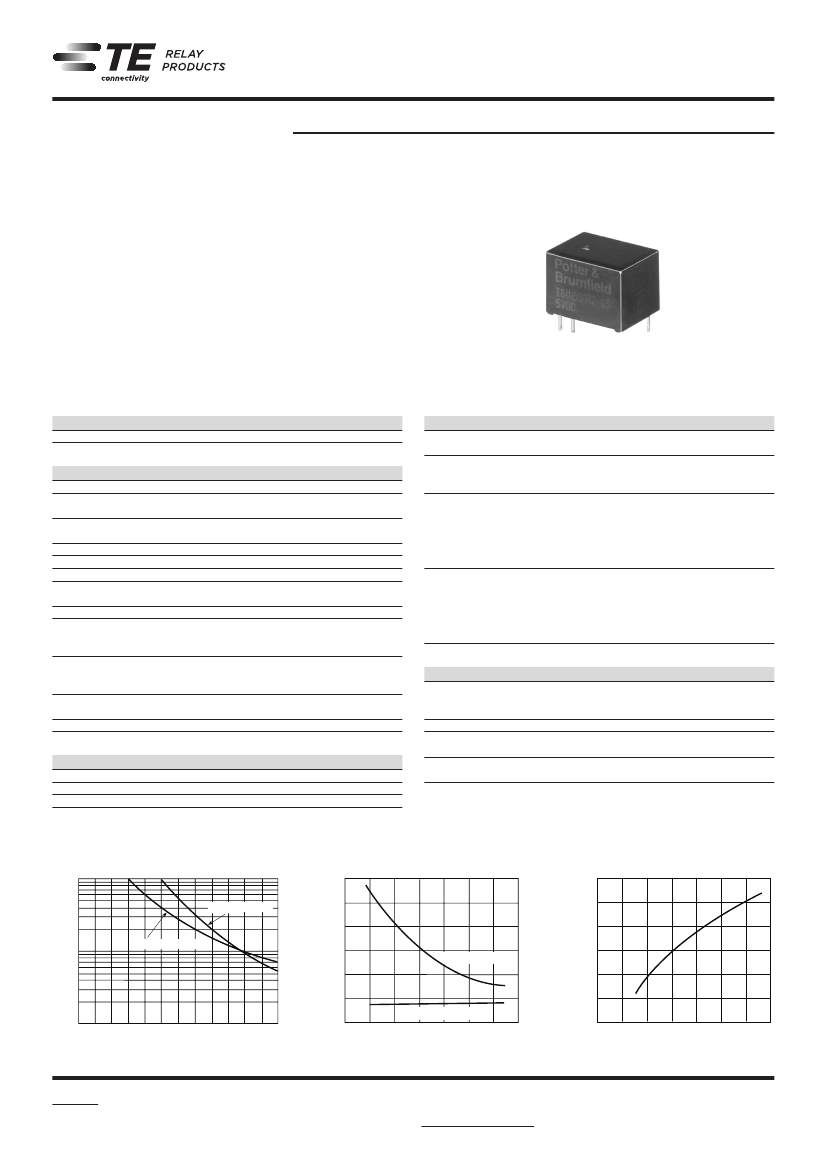

Signal Relays
T81 Series Signal PCB Relay
n
n
n
n
n
n
Potter & Brumfield
Au clad contacts in a 1 Form C (CO) arrangement
Standard 0.1” (2.54mm) grid spacing in a DIP configuration
Standard or sensitive DC coils through 24 volts
High dielectric strength
Wash tight case
Quiet operation for security applications
Typical applications
Audio communications circuits, logic and process control, vending
machines, thermostats, office automation
UC
Coil Data
(continued)
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
Standard coil, 450mW
05
5
3.5
06
6
4.2
09
9
6.3
12
12
8.4
24
24
16.8
Sensitive coil, 200mW
05
5
3.75
06
6
4.5
09
9
6.75
12
12
9.0
24
24
18.0
Release
voltage
VDC
0.25
0.3
0.45
0.6
1.2
0.5
0.6
0.9
1.2
2.4
Coil
resistance
Ω±10%
55
80
180
320
1280
125
180
400
700
2800
Rated coil
power
mW
450
450
450
450
450
200
200
200
200
200
Approvals
UL E29244, CSA LR48471
Technical data of approved types on request
Contact Data
Contact arrangement
Rated voltage
Max. switching voltage
Rated current
Limiting continuous current
Switching power
Contact material
Contact style
Min. recommended contact load
Initial contact resistance
Frequency of operation
Operate/release time max.
standard coil
sensitive coil
Electrical endurance
1A, 120VAC, resistive
1A, 24VDC, resistive
Contact ratings
Mechanical endurance
1 form C (CO)
24VDC, 120VAC
60VDC, 125VAC
1A
2A
120VA, 30W
Au overlay AgPd alloy
single contact
1mA at 1VDC
50mΩ at 100mA, 6VDC
72000 ops/h
5/7ms
10/7ms
100x10
3
ops.
100x10
3
ops.
1A, 120VAC/24VDC, resistive
2A, 125VAC/30VDC, resistive (NO)
10x10
6
ops.
All figures are given for coil without preenergization, at ambient temperature +23°C.
Insulation Data
Coil Data
Magnetic system
Coil voltage range
Max. coil temperature
neutral
5 to 24VDC
105°C
Initial dielectric strength
between open contacts
between contact and coil
Initial surge withstand voltage
Initial insulation resistance
between insulated elements
Clearance/creepage
between contact and coil
500V
rms
1000V
rms
1500Vrms (10/160μs)
10
9
1.5/1.76mm
Electrical endurance
100
24VDC Resistive
Operate time
12
10
Coil temperature rise
60
50
Operation (x 10
4
)
10
120VAC Resistive
Temp. Rise (°C)
8
40
30
20
10
Time (msec)
6
4
2
Operate Time
1
Release Time
0.2
0.4
0.6
0.8
Contact Current (A)
1.0
1.2
0.1
0.2
0.3
0.4
0.5
Coil Powe r (W)
0.6
0.7
0.1
0.2
0.3
0.4
0.5
Coil Powe r (W)
0.6
0.7
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1

T81N5D312-24 Related Products

T81N5D312-24 T81H5D312-24 T81N5D312-05
Description T81N5D312-24 T81H5D312-24 T81N5D312-05
Is it Rohs certified? conform to conform to conform to
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
body width 10.9 mm 10.9 mm 10.9 mm
body height 11.7 mm 11.7 mm 11.7 mm
Body length or diameter 15.9 mm 15.9 mm 15.9 mm
Maximum coil current (DC) 0.019 A 0.008 A 0.09 A
Coil operating voltage (DC) 16.8 V 16.8 V 3.5 V
Coil power 450 mW 200 mW 450 mW
Coil release voltage (DC) 1.2 V 1.2 V 0.25 V
Coil resistance 2800 Ω 1280 Ω 125 Ω
Maximum coil voltage (DC) 24 V 24 V 5 V
Coil/Input Power Type DC DC DC
Contact (AC) maximum rated R load 1A@120VAC 1A@120VAC 1A@120VAC
Maximum contact current (AC) 1 A 1 A 1 A
Maximum contact current (DC) 1 A 1 A 1 A
Contact (DC) maximum rated R load 1A@24VDC 1A@24VDC 1A@24VDC
Maximum contact voltage (AC) 120 V 120 V 120 V
Maximum contact voltage (DC) 24 V 24 V 24 V
Contact/Output Power Type AC/DC AC/DC AC/DC
Electrical life 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s)
Installation features THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT THROUGH HOLE-STRAIGHT MOUNT
operating hours 5 ms 5 ms 5 ms
Maximum operating temperature 55 °C 75 °C 55 °C
Minimum operating temperature -40 °C -40 °C -40 °C
physical size 15.9mm x 10.9mm x 11.7mm 15.9mm x 10.9mm x 11.7mm 15.9mm x 10.9mm x 11.7mm
Guideline CSA; UL CSA; UL CSA; UL
Relay action MOMENTARY MOMENTARY MOMENTARY
Relay function SPDT SPDT SPDT
Relay type POWER/SIGNAL RELAY POWER/SIGNAL RELAY POWER/SIGNAL RELAY
release time 2 ms 2 ms 2 ms
surface mount NO NO NO
Termination type SOLDER SOLDER SOLDER
Base Number Matches 1 1 1
Nominal coil voltage 24 V - 5 V
Contact (AC) maximum rated power R load 60VA@120VAC - 120VA@125VAC
Contact (DC) maximum rated power R load 24W@60VDC - 30W@60VDC
Contact resistance 50 mΩ - 50 mΩ
Dielectric strength between coil and contacts 1000 Vrms - 1000 Vrms
Dielectric strength between breaking contacts 500 Vrms - 500 Vrms
End contact material Silver Palladium - Silver Palladium
End contact plating GOLD - GOLD
Input switching control type Random - Random
Insulation resistance 100000000 Ω - 1000000000 Ω
Number of terminals 5 - 5
PCB hole count 5 - 5
Relay style 1 FORM C - 1 FORM C
Terminal length 0.003 inch - 0.0031 inch
weight 4 g - 3.5 g
Maker - TE Connectivity TE Connectivity
Factory Lead Time - 20 weeks 13 weeks
