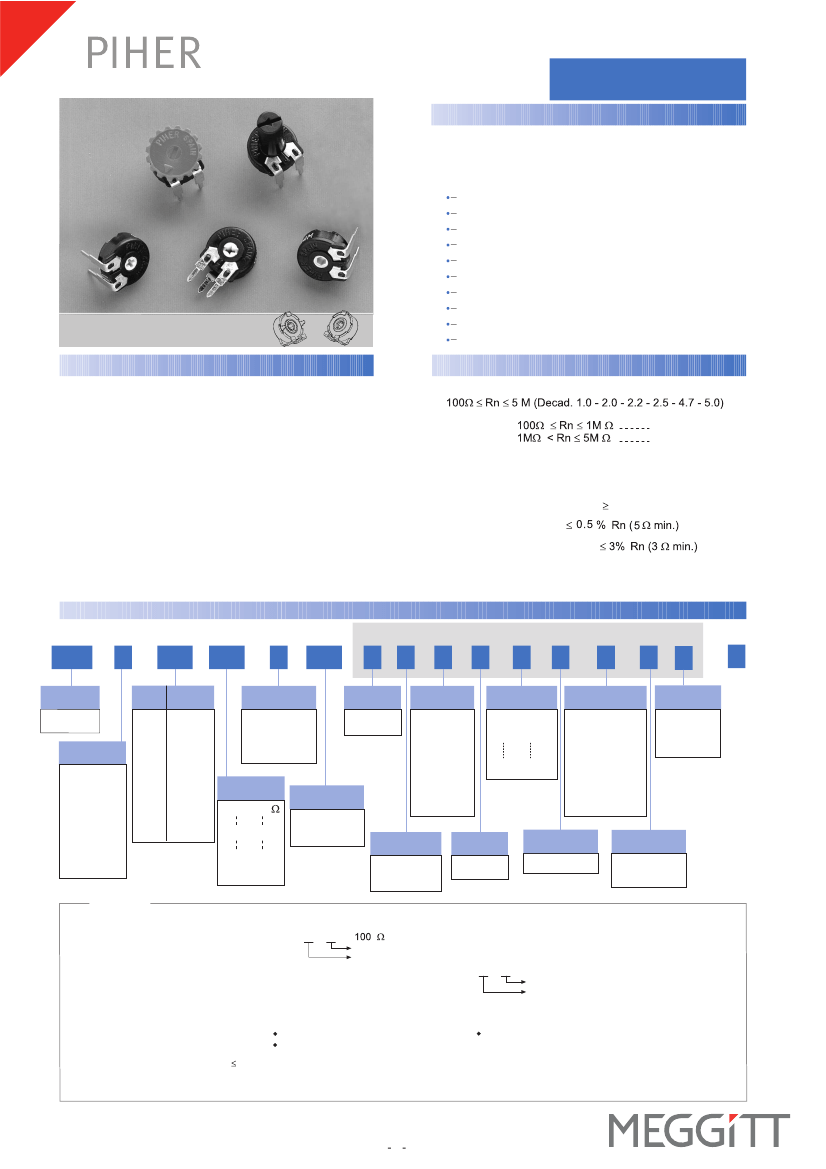

PT-10
FEATURES
10 mm Carbon
Potentiometer
SMD versión available (PS-10)
Carbon resistive element
IP54 protection according to IEC 60529
Polyester substrate
Also upon request:
Wiper positioned at 50% or fully clockwise.
Supplied in magazines for automatic insertion.
Long life model for low cost control potentiometer applications
Self extinguishable plastic UL 94V-0
Cut track option
Special tapers
Mechanical detents
Low torque version
Special switch option
3% Linearity and 100K cycles mechanical life

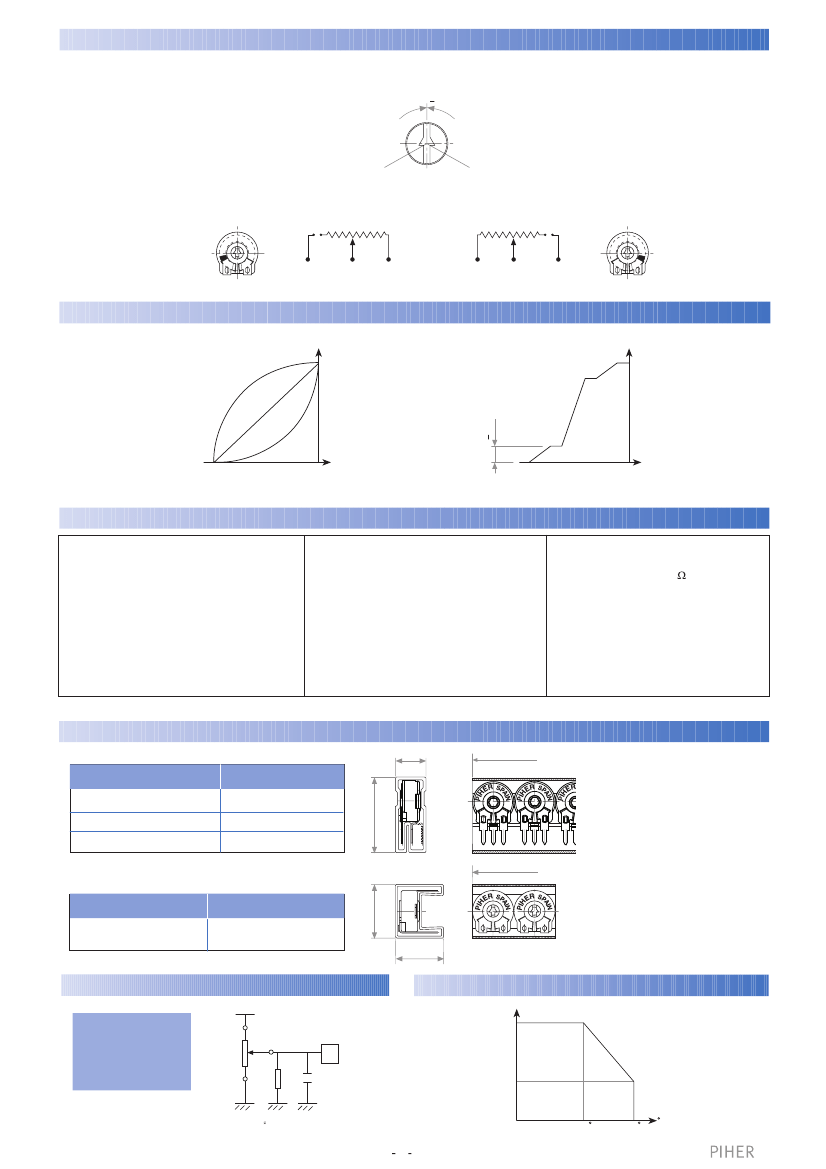

MECHANICAL SPECIFICATIONS
Mechanical rotation angle:
Electrical rotation angle:
Torque:
Stop torque:
Life*:
235° ± 5°
220° ± 20°
0.4 to 2 Ncm.
(0.6 to 2.7 in-oz)
> 5 Ncm. ( >7 in-oz)
Up to 10.000 cycles
ELECTRICAL SPECIFICATIONS
Range of values (*)
Tolerance (*):
± 20%
± 30%
Max. Voltage: 200 VDC (lin) 100 VDC (no lin)
Nominal Power 50°C (122°F) (see power rating curve)
0.15 W (lin) 0.07 W (no lin)
Taper (*) (Log. & Alog. only Rn 1K) Lin ; Log; Alog.
Residual resistance(*):
Equivalent Noise Resistance:
Operating temperature**: -25°C + 70°C (-13°F + 158°F)
(*) Others upon request
** Up to 85°C depending on application
* Others upon request

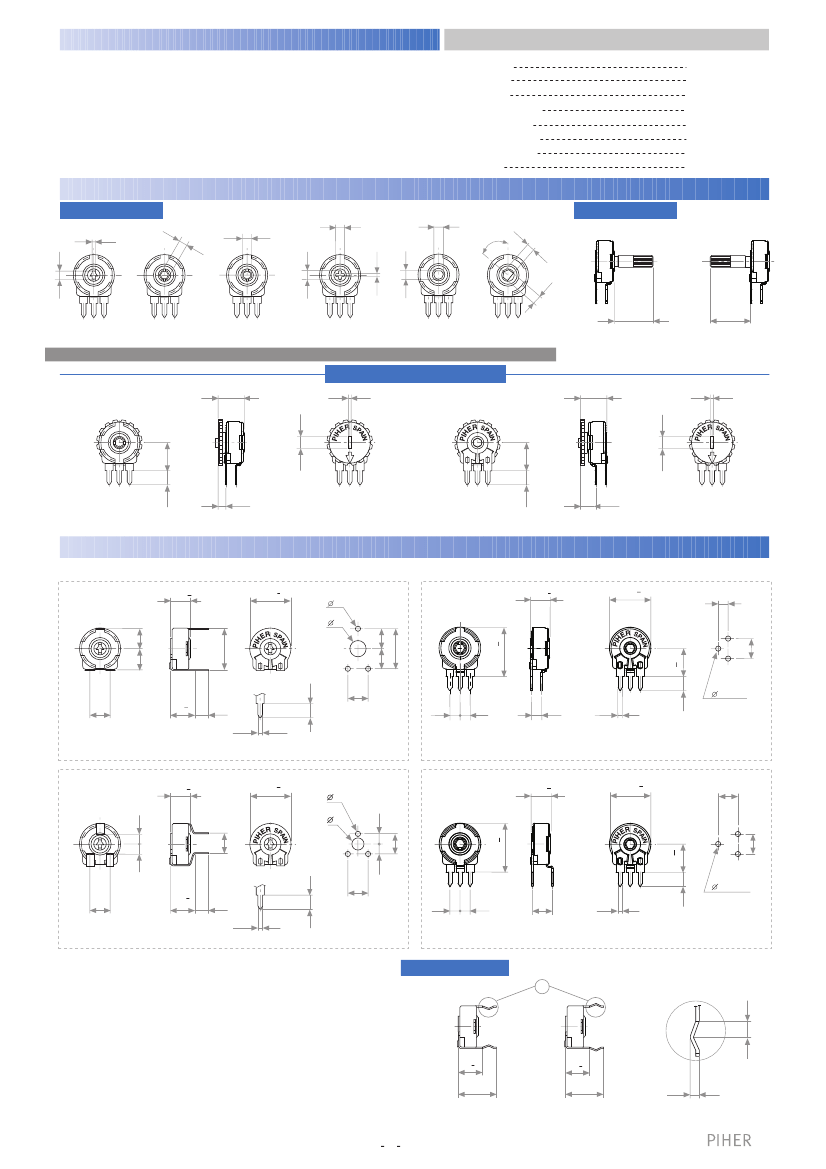

HOW TO ORDER
OPTIONAL EXTRAS
PT 10
Series
PT-10
L
H01
Code Mounting
Method
H01
H05
H02
H10
V05
V10
V11
V13
H2.5
H5
H2.5P
H5P
V5
V
VP
VJ
101
A
Taper
A = Lin.
B = Log.
C = Alog.
2020
Life
E= Long life
(See note 5)
S
Detents
PAI
PAM
PAF
P1I
P1F
P02
.
.
.
P16

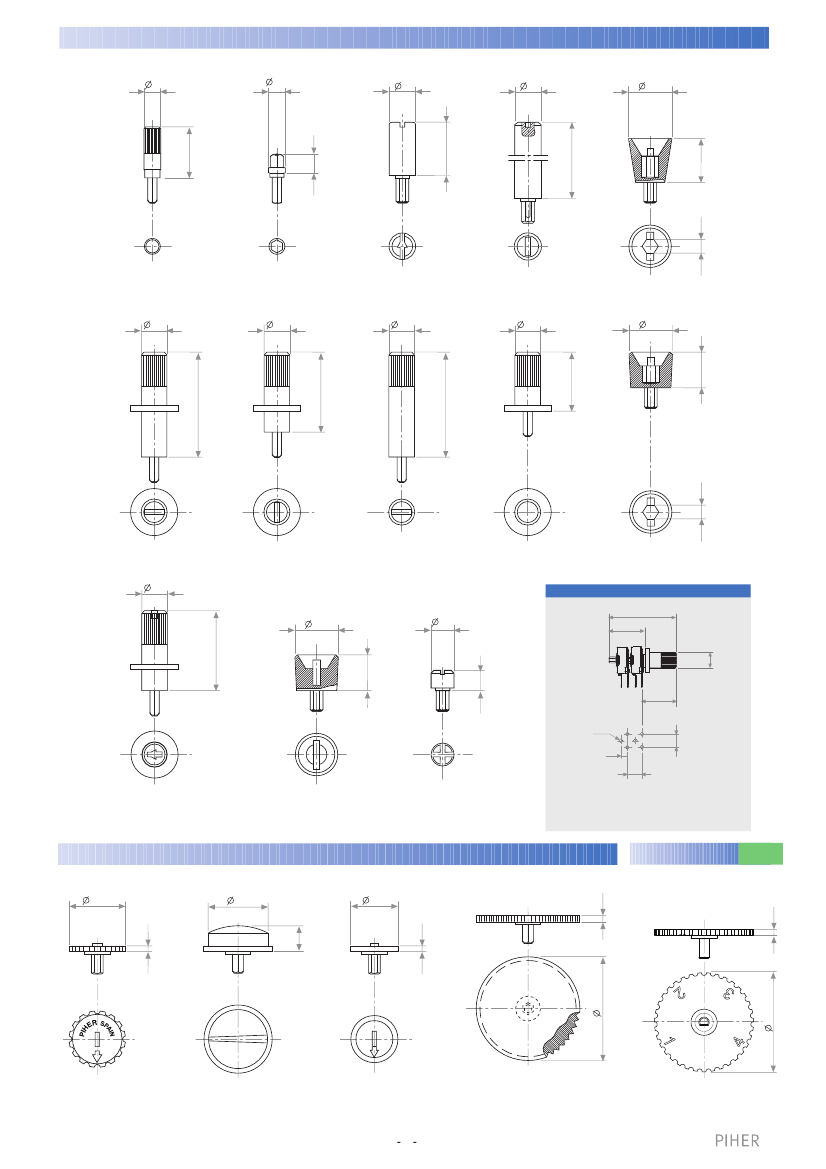

Shaft/Thum. Shaft/rotor colour
01 = Fig. 1
02 = Fig. 2
17 = Fig. 17
(See note
10)
Torque
= Standard
L= Low Torque
(See note
9)
Rotors
B
G
K
L
M
R
W
X
Y
Z
(See note 1)
Value
101 = 100
504 = 500 K
505 = 5 M
000 = CM
(See note 3)
Tolerance
2020 = ± 20%
3030 = ± 30%
(See note 4)
RO = Red
NE = Black
VE = Green
AM = Yellow
AZ = Blue
MA = Brown
GR = Grey
NA = Orange
CR = Cream
(See note 8)
(See note 2 /
SMD
version
available: see
product PS-10)
Cut track
PCI = Initial
PCF = Final
Magazine
T
(See note 6)
Flammability
I = Non flammable
(See note 7)
Wiper position
PM = 50%
PF = Final
NOTES:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
"Z" adjustment only available on "H" versions. Rotor "G" only available in purple (shaft/rotor colour "VI").
Terminals styles: "P" & "J" are crimped.
V=Vertical adjust; H=Horizontal Adjust
Value Example: Code:
10 1
000 = CM = Switch version (contact us)
Numb of zeros
First two digits of the value.
Non standard tolerance, upon request. Example: +7%
Code: 07 05
-5%
negative tolerance
Up to 10.000 cycles.
positive tolerance
Others upon request.
Magazines: not available with the H10, V05 and V13 models, nor with adjustment types X, W, Y, Z.
Non flammable: housing, rotor and shaft. According to UL 94V-0
Potentiometer with shaft: only shaft
Potentiometer without shaft: only rotor
Colour shaft/ rotor:
Cream colour only available in standard plastic.
Low Torque: 1 Ncm
No detent option available for low torque models.
If you wish to use your own custom plastic shaft/knob/actuator please contact Piher for advice about compatible materials.
NOTE: The information contained here should be used for reference purposes only.
www.piher.net
rev111013
39

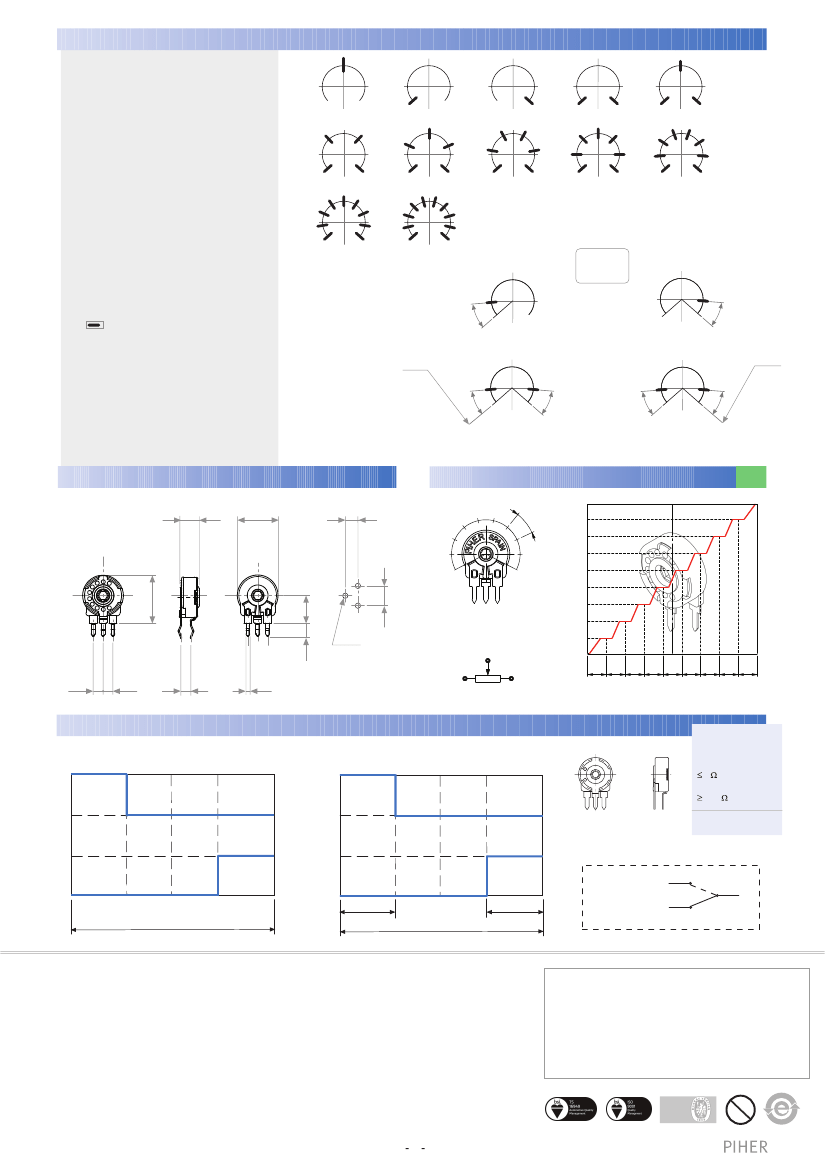

DETENT CONFIGURATIONS
EXAMPLES
This innovative PT´s with detents
family has been specifically developed
to allow the integration of otherwise
large and expensive external
mechanisms into the body of the
majority of the 10 & 15 mm.
PS/PT/PTC potentiometer series thus
allowing a high range of configurations:
special tapers, torque, tolerances,
linearity, cut track, etc.
This detent design not only adds a
"click" sensation of position, but also
offers enormous savings in both cost
and space for any given application.
Strong and weak detents can be mixed
as per cutomer´s request.
Detent number and positions can be
made or fitted to the customer needs
or preferences.
PAM
P1
I
P1F
P02
P03
P04
P05
P06
P07
P08
P09
P10
A= 26º
B= 27.5º
Relative detent positions
along the total mechanical
travel.
Unless otherwise
specified the detents
are evenly spaced
(using the end points
as reference)
*For more than 10 detents versions please contact your
nearest PIHER distributor. Mechanical and/or electrical features
may be affected by detents. Please see our separate PTs with
detents datasheet at www.piher.net
A
PID
Wiper
position
A
PFD
Wiper
position
B
PAI
B
B
PAF
B
(wiper positioned at initial)
(wiper positioned at final)
DETENT DETAILS
4.8
±0.2
±0.1
DETENTS COMBINED WITH SILVER ZONES
100% Un
10.3
2.5
d3
d2
d1
d4
d5
26
°
88.9% Un
77.7% Un
66.6% Un
55.5% Un
44.4% Un
d6
d7
d8
±0.2
PIH
ER
SP
0º
±0.2
234º
12.1
5
7
3.3
2.5
2.5
2.5
1
+0.1
STANDARD SWITCH VERSIONS
D48 Switch code (Housing colour: green)
1 CONTACT
AIN
A
S
E
+0.1
33.3% Un
22.2% Un
Wiper position
11.1% Un
Ø1.3
S
E
A
0% Un / 0º
50%
100%
=
=
=
=
A
=
=
=
=
=
E
d1
d2
d3
d4
d5
d6
d7
d8
SW Standard specs.
A80 Switch code
1 CONTACT
Power Rating:
24V / 15mA
ON position resistance:
5
Insulation Resistance:
30 M
E S A
A
0
0
A
Please contact Piher
for ordering information.
1
CONTACT
1
CONTACT
(Rotor at Final Position)
E
0
50 %
0
E
45º
50 %
45º
A = Initial
S = Wiper
E = Final
A
S
E
Mechanical rotation angle: 45º±5º
Mechanical rotation angle: 235º±5º
