HRPG Series
Miniature Panel Mount Optical Encoders
Data Sheet
Description

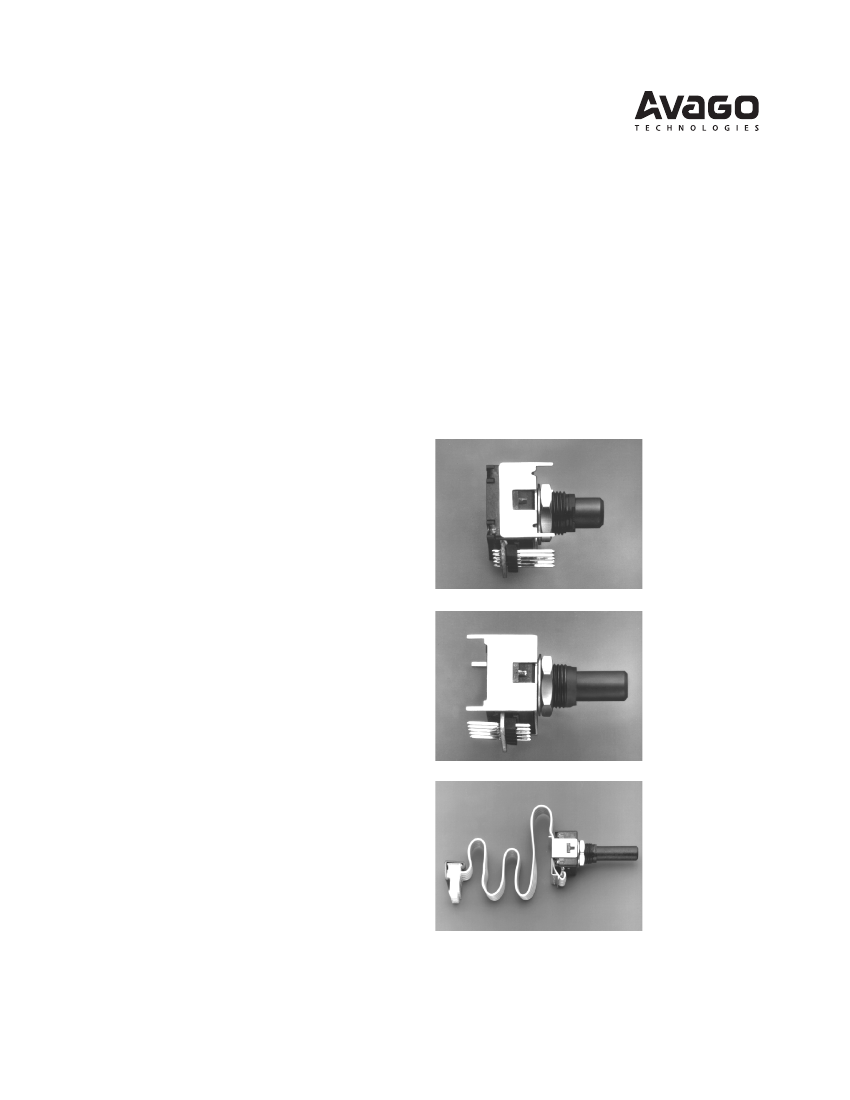

The HRPG series is a family of miniature panel mount
optical encoders, also known as Rotary Pulse Generators
(RPG) and digital potentiometers. The HRPG is
designed to be mounted on a front panel and used as a
rotary, data-entry device. The HRPG is very flexible for
numerous applications due to the many configuration
options available. These options include detents or
smooth, multiple terminations, versatile mounting
capabilities, and different shaft configurations.
The HRPG uses optical reflective technology providing
accuracy and reliability to the encoder. An LED emits
a beam of light onto the specular codewheel surface.
When the light strikes the surface, it projects the image
of the codewheel back on the photodetector, causing
the output to change. The entire detector circuit is on
one IC, thus the part is less sensitive to temperature
and other environmental variations.
Applications
Typical applications for the Rotary Pulse Generator
include front panel instruments, audio/visual boards,
and other devices requiring digital output from a
turning knob.
Note: Avago Technologies encoders are not
recommended for use in safety critical applications.
Eg. ABS braking systems, power steering, life support
systems and critical care medical equipment. Please
contact sales representative if more clarification is
needed.
Features
• Miniature size
• Smooth turning and detented options
• Multiple mounting bracket options
• Uses optical reflective technology
• Quadrature digital output
• Small footprint for versatile mounting
• TTL compatible
