capability. Provided in an 8-pin SOIC package, and
employing optically coupled MOSFET technology, it
provides 3750V
rms
of input/output isolation.
Its optically coupled outputs, which use the patented
OptoMOS architecture, are controlled by a highly
efficient GaAIAs infrared LED.
Dual single-pole OptoMOS relays provide a more
compact design solution than discrete single-pole
relays in a variety of applications by incorporating
both relays in a single 8-pin package.
Features
•
3750V
rms
Input/Output Isolation
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Small 8-Pin Package
•
Machine Insertable, Wave Solderable
•
Surface Mount, Tape & Reel Version Available
Approvals
•
UL Recognized Component: File E76270
•
CSA Certified Component: Certificate 1175739
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 004
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hook Switch
•
Dial Pulsing
•
Ground Start
•
Ringing Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Ordering Information
Part #
LBB120
LBB120S
LBB120STR
Description
8-Pin DIP (50/Tube)
8-Pin Surface Mount (50/Tube)
8-Pin Surface Mount (1000/Reel)
Pin Configuration
+ Control - Switch #1
– Control - Switch #1
+ Control - Switch #2
– Control - Switch #2
1
2
3
4
8
7
6
5
Load - Switch #1
Load - Switch #1
Load - Switch #2
Load - Switch #2
Switching Characteristics of
Normally Closed Devices
Form-B
I
F
I
LOAD
10%
t
off
t
on
90%
Pb
DS-LBB120-R08
e
3
www.ixysic.com
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @ 25ºC
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage, Input to Output
Operational Temperature
Storage Temperature
1
2
LBB120
Ratings
250
5
50
1
150
800
3750
-40 to +85
-40 to +125
Units
V
P
V
mA
A
mW
mW
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33 mW / ºC
Derate linearly 6.67 mW / ºC
Electrical Characteristics @ 25ºC
Parameter
Output Characteristics
Load Current
Continuous, AC/DC Configuration
1
Peak
On-Resistance, AC/DC Configuration
2
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics
Input Control Current to Activate
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Input to Output Capacitance
1
2
Conditions
Symbol
Min
Typ
Max
Units
-
t=10ms
I
L
=120mA
V
L
=250V
P
I
L
I
LPK
R
ON
I
LEAK
t
on
t
off
C
OUT
I
F
I
F
V
F
I
R
C
I/O
-
-
-
-
-
-
-
-
0.4
0.9
-
-
-
-
16
-
-
-
50
-
0.7
1.2
-
3
170
±400
20
1
5
5
-
5
-
1.4
10
-
mA
rms
/ mA
DC
mA
P
A
I
F
=5mA, V
L
=10V
V
L
=50V, f=1MHz
I
L
=170mA
-
I
F
=5mA
V
R
=5V
-
ms
pF
mA
mA
V
A
pF
If both poles operate simultaneously, then the load current must be derated so as not to exceed the package power dissipation value.
Measurement taken within 1 second of on-time.
2
www.ixysic.com
R08
I
NTEGRATED
C
IRCUITS
D
IVISION
PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical LED Forward Voltage Drop
(N=50, I
F
=5mA)
Typical Turn-On Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
35
30
Device Count (N)
25
20
15
10
5
0
0.30
0.42
0.54
0.66
0.78
0.90
0.625 0.875
1.125
1.375
LBB120
35
30
Device Count (N)
25
20
15
10
5
0
35
30
Device Count (N)
25
20
15
10
5
0
Typical Turn-Off Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
1.17
1.19
1.21
1.23
1.25
1.625
1.875
LED Forward Voltage Drop (V)
Turn-On Time (ms)
Turn-Off Time (ms)
30
25
Device Count (N)
Typical I
F
for Switch Operation
(N=50, I
L
=120mA
DC
)
35
25
Device Count (N)
Typical I
F
for Switch Dropout
(N=50, I
L
=120mA
DC
)
35
30
Device Count (N)
25
20
15
10
5
0
Typical On-Resistance Distribution
(N=50, I
L
=120mA
DC
)
20
15
10
5
0
0.63
0.81
0.99
1.17
1.35
1.53
LED Current (mA)
20
15
10
5
0
0.45
0.63
0.81
0.99
1.17
1.35
LED Current (mA)
10.4
10.8
11.2
11.6
12.0
12.4
On-Resistance ( )
Typical Blocking Voltage Distribution
(N=50)
35
30
Device Count (N)
25
20
15
10
5
0
291.25 293.75 296.25 298.75 301.25 303.75
Blocking Voltage (V
P
)
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
Turn-On Time (ms)
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
0.634
0.632
0.630
0.628
0.626
0.624
0.622
0
5
Typical Turn-On Time
vs. LED Forward Current
(I
L
=170mA
DC
)
Turn-Off Time (ms)
1.2
1.0
0.8
0.6
0.4
0.2
0
0
5
Typical Turn-Off Time
vs. LED Forward Current
(I
L
=170mA
DC
)
I
F
=50mA
I
F
=30mA
I
F
=20mA
I
F
=10mA
I
F
=5mA
10
15
20
25
30
35
40
45
50
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
LED Forward Current (mA)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
R08
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION

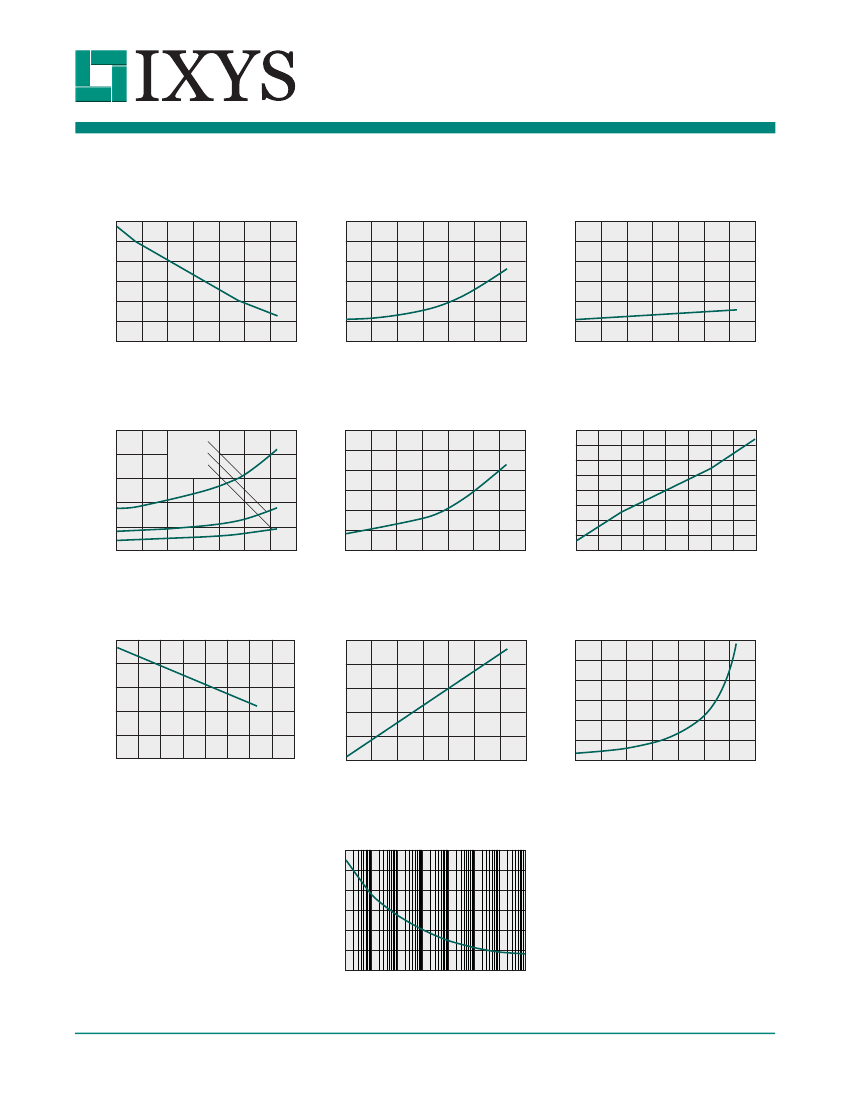

PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical Turn-On Time
vs. Temperature
(I
F
=5mA, I
L
=170mA
DC
)
Typical I
F
for Switch Operation
vs. Temperature
(I
F
=5mA, I
L
=170mA
DC
)
On-Resistance ( )
LBB120
0.12
Turn-On Time (ms)
0.10
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
60
50
40
30
20
10
0
Typical On-Resistance vs. Temperature
(I
F
=5mA, I
L
=170mA
DC
)
0.08
0.06
0.04
0.02
0
-40
-20
0
20
40
60
80
100
Temperature (ºC)
-40
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
2.5
Turn-Off Time (ms)
2.0
1.5
1.0
0.5
0
-40
-20
Typical Turn-Off Time
vs. Temperature
(I
L
=170mA
DC
)
I
F
=5mA
I
F
=10mA
I
F
=20mA
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=170mA
DC
)
Load Current (mA)
200
150
100
50
0
-50
-100
-150
Typical Load Current vs. Load Voltage
(I
F
=5mA)
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
-200
-2.0
-1.5 -1.0 -0.5
0
0.5
1.0
1.5
2.0
Temperature (ºC)
Temperature (ºC)
Load Voltage (V)
250
Load Current (mA)
200
150
100
50
0
Maximum Load Current vs. Temperature
(I
F
=5mA)
Blocking Voltage (V
P
)
Typical Blocking Voltage
vs. Temperature
310
305
Leakage ( A)
300
295
290
285
-40
-20
0
20
40
60
80
100
Temperature (ºC)
0.030
0.025
0.020
0.015
0.010
0.005
0
-40
Typical Leakage vs. Temperature
Measured across Pins 5&6 or 7&8
-40
-20
0
20
40
60
80
100
120
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Energy Rating Curve
1.2
1.0
Load Current (A)
0.8
0.6
0.4
0.2
0
10 s 100 s 1ms 10ms 100ms
Time
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
1s
10s
100s
4
www.ixysic.com
R08
I
NTEGRATED
C
IRCUITS
D
IVISION
Manufacturing Information
Moisture Sensitivity
LBB120
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated
Circuits Division classified all of its plastic encapsulated devices for moisture sensitivity according to
the latest version of the joint industry standard,
IPC/JEDEC J-STD-020,
in force at the time of product
evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper
operation of our devices when handled according to the limitations and information in that standard as well as to any
limitations set forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
LBB120 / LBB120S
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
LBB120 / LBB120S
Maximum Temperature x Time
250ºC for 30 seconds
Board Wash
IXYS Integrated Circuits Division recommends the use of no-clean flux formulations. However, board washing to
remove flux residue is acceptable. Since IXYS Integrated Circuits Division employs the use of silicone coating as
an optical waveguide in many of its optically isolated products, the use of a short drying bake could be necessary
if a wash is used after solder reflow processes. Chlorine- or Fluorine-based solvents or fluxes should not be used.
Cleaning methods that employ ultrasonic energy should not be used.
[color=#222222][backcolor=rgb(238, 238, 238)][font=sans-serif] There is a row of navigation buttons at the top of the CCS interface, which can control the interface to jump forward and backward (the g...
At 11am, I received a call from Yunda Express saying that a package had arrived. I went to the door to pick it up.It's a courier from Suzhou.I took it back and opened it, and it turned out to be a DIY...
[i=s]This post was last edited by witqyz on 2019-12-14 23:47[/i]1. Before designing the schematic diagram, you need to use the original old circuit board to do some testing work
After regular testing,...
White light LED is a voltage-sensitive device. In actual operation, the current is capped at 20mA. However, the current often increases due to various reasons during use. If no protective measures are...
Sailing is gaining more and more attention. How to use modern technology to assist training and improve competition results is particularly important. Considering the real-time data collection in t...[Details]
China's new energy vehicles are in a transition period from research and development to real industrial development. In 2012, with the intensive launch of new energy vehicle policy planning, the de...[Details]
1. What is temperature?
Heat is a type of molecular motion. The hotter an object is, the faster its molecules move. Absolute zero is defined as the temperature at which all molecular motion ...[Details]
The concept of state machine
State machine is an important concept in software programming. More important than this concept is its flexible application. In a clear and efficient program, ther...[Details]
Capacitors
are basic components in various electronic devices and are widely used for bypassing, coupling,
filtering
, tuning, etc. in electronic circuits. However, to use capacitors,...[Details]
LED lighting: Basic circuit design can be completed in as little as one day
Semiconductor manufacturers are also getting involved in the LED lighting business. The power circuit of LED req...[Details]
1. Proposal of
reconfigurable
measurement and control system
The measurement and control system generally refers to a system based on
computers
to realize data acquisition a...[Details]
At present, a large number of cooling tower fans, speed fans and special fans are in use in petroleum, chemical, pharmaceutical, metallurgical and other enterprises. Some fans have no monitoring in...[Details]
The ARINC429 bus is one of the most commonly used communication buses between various subsystems of avionics. As the "skeleton" of modern avionics systems, once the bus system or the attached airbo...[Details]
A stepper motor is an electromagnetic mechanical device that converts an electrical pulse signal into an angular displacement or a linear displacement. The stability and reliability of a stepper mo...[Details]
This article discusses the six design steps of LED lighting system design in detail: (1) determine the lighting requirements; (2) determine the design goals and estimate the optics; (3) the efficie...[Details]
introduction
The Steyr diesel engine produced by Weifang Diesel Engine Factory has huge power and is one of the main power models widely used in China's heavy machinery and large trucks. In ...[Details]
Applying fieldbus technology on new beer production lines is the first choice for large beer companies with strong management level and technical strength. Guangzhou Zhujiang Beer Group Co., Ltd. i...[Details]
UDN2916LB is a two-phase stepper motor bipolar driver integrated circuit launched by SANKEN. It can drive dual-winding bipolar stepper motors and is particularly suitable for controlling dual-step ...[Details]
In the past 20 years, although the inverters that use power transistors (GTR) as inverter power devices, 8-bit microprocessors as control cores, and realize asynchronous motor speed regulation acco...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
