KRP-5AG-120: DescriptionKRP-5AG-120=KA/KB/KC/KR; CategoryTopical application Mechanical and electrical/engineering/automation; File Size318KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

KRP-5AG-120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KRP-5AG-120	-	-	View	Buy Now

KRP-5AG-120 Overview

KRP-5AG-120=KA/KB/KC/KR

KRP-5AG-120 Parametric

Parameter Name	Attribute value
Power relay type	Industrial panel plug-in
Coil excitation system	monostable, AC
Coil Power Rating Class (VA)	1 – 2
Coil Power Rating (AC) (VA)	2
Coil resistance (Ω)	2250
Coil characteristics	UL Coil Insulation Class B
Coil Voltage Rating (VAC)	120
Terminal switch load (minimum)	300mA @ 12V
Terminal Voltage Rating (VAC)	240
Insulation initial resistance (MΩ)	1000
Initial dielectric between terminal and coil (Vrms)	1000
Initial dielectric between adjacent terminals (Vrms)	1000
Open terminal insulation initial dielectric (Vrms)	1000
Drive System	AC
Initial dielectric (V) for insulation between terminals and coil	1000
Coil/terminal insulation initial dielectric type (V)	500 – 1000
product weight	85 g [ 2.988 oz ]
Terminal arrangement	1 Form C (CO)
Terminal current type (A)	5 – 10, 16
Contact Current Rating (Max) (A)	10
Terminal material	AgCdO
Number of terminal poles	1
Terminal type	Plug-in
Relay installation type	socket
Product height	50.8 mm [ 2 in ]
Product length	35.7 mm [ 1.406 in ]
Product width	35.7 mm [ 1.405 in ]
Width type (mechanical) (mm)	30 – 40
Height type (mechanical) (mm)	50 – 60
Length type (mechanical) (mm)	35 – 40
Working group temperature range (°C)	-45 – 55
Environmental Protection Category	RTI
Ambient temperature (maximum)	55 °C [ 131 °F ]
Ambient temperature category (°C)	50 – 70
Encapsulation method	Package

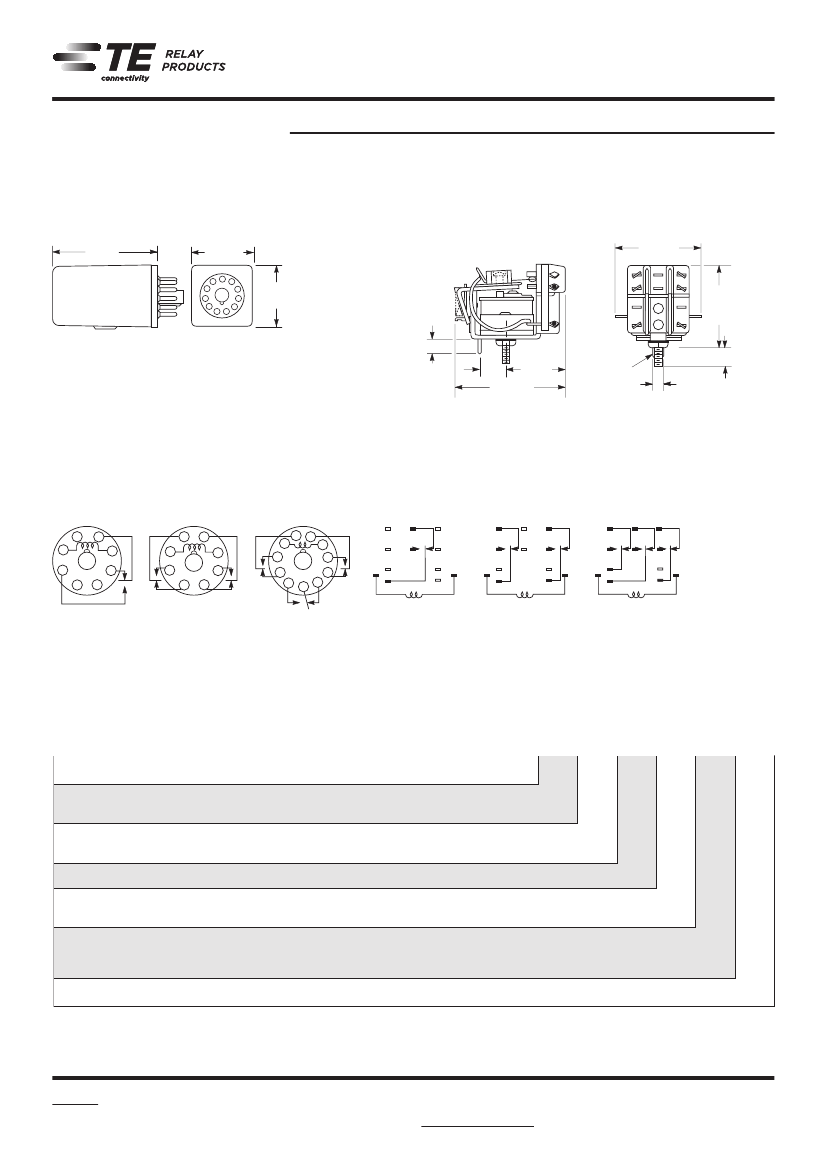

Preview

Download Datasheet

View All

General Purpose

Panel/Plug-in Relays

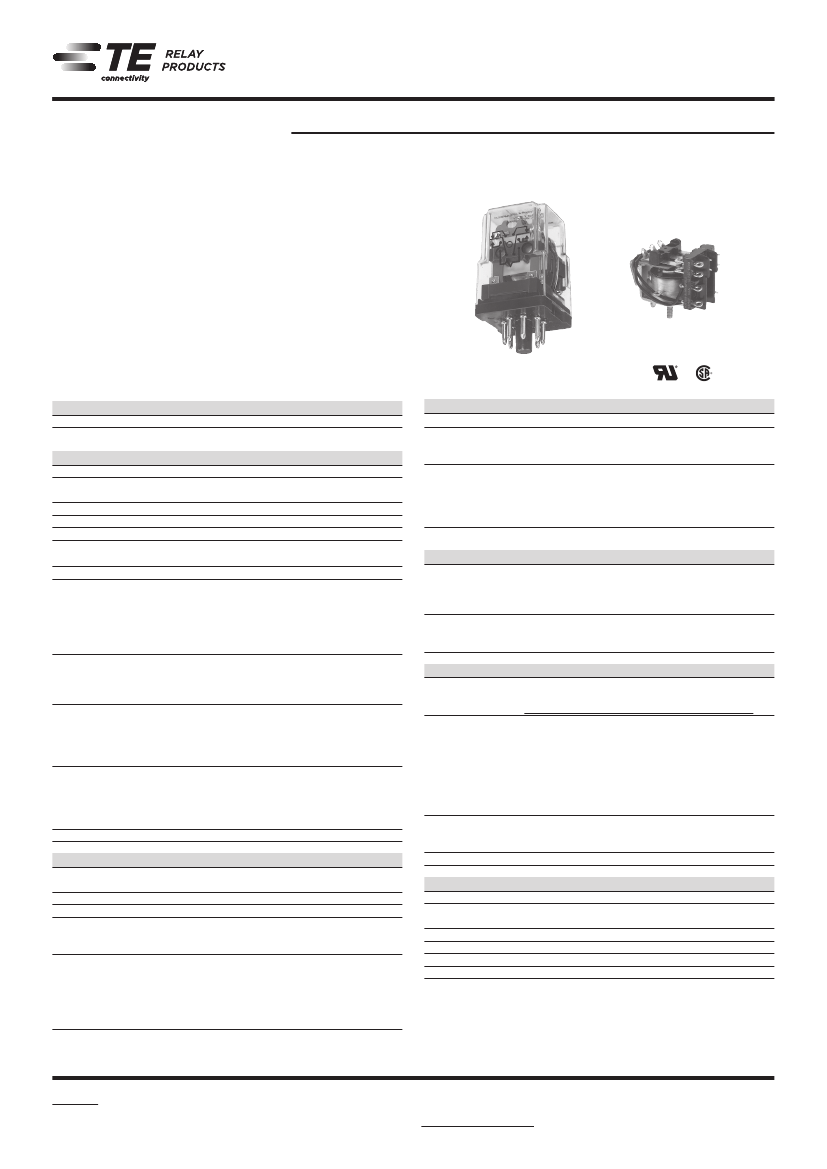

KRPA Series Panel Plug-in Relay

n

Potter & Brumfield

5 to 10A current capability

Contact arrangements of 1, 2 and 3 form C (CO)

Octal type termination for quick installation

Indicator lamp available on certain models

Typical applications

Baggage handling, lighting, inspection equipment, marine.

Approvals

Coil Data (continued)

Coil versions, AC coil

Coil

Rated

code

voltage

VAC

6

12

24

20

120

240

Operate

voltage

VAC

5.1

10.2

20.4

102.0

204.0

Coil

resistance

Ω±15%

6

24

85

2250

9110

Rated coil

power

VA

2.01

2.02

2.1

UL E22575; CSA LR15734

Technical data of approved types on request.

Contact arrangement

Rated voltage

Rated current

Contact material

Min. recommended contact load

Frequency of operation

Contact ratings

Type

Load

UL 508

KRPA, Ag

5A, 120VAC

3A, 240VAC

1/10HP, 120VAC

1/6HP, 240VAC

KRPA, AgCdO

10A, 240VAC

1/3HP, 120VAC

1/2HP, 240VAC

KA, Ag

5A, 120VAC

3A, 240VAC

1/10HP, 120VAC

1/6HP, 240VAC

KA, AgCdO

10A, 120VAC

6A, 240VAC

1/6HP, 120VAC

1/3HP, 240VAC

Mechanical endurance

Contact Data

1 form C (CO), 2 form C (CO), 3 form C (CO)

240VAC

10A

Ag

AgCdO

100mA, 12VDC 300mA, 12VDC

360 ops./hour

Cycles

100x10

3

100x10

3

1x10

3

1x10

3

100x10

3

1x10

3

1x10

3

All figures are given for coil without preenergization, at ambient temperature +23°C.

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

between adjacent contacts

Initial insulation resistance

between insulated elements

1000V

rms

1000V

rms

1000V

rms

KRPA: 1000MΩ

KA: 100MΩ

Other Data

10x10

6

ops.

6 to 220VDC

6 to 240VAC

Class B

Coil Data

Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content

refer to the Product Compliance Support Center at

www.te.com/customersupport/rohssupportcenter

Ambient temperature

DC coil

KRPA: -45ºC to 70ºC

KA: -45ºC to 85ºC

AC coil

KRPA: -45ºC to 55ºC

KA: -45ºC to 70ºC

Category of environmental protection

IEC 61810

RTI - dust protected KRPA and

RT0 - open style KA

Terminal type

KRPA: 8- or 11-pin octal-type plug

KA: solder terminals

Weight

85g

Packaging/unit

tray/25 pcs., box/150pcs.

Coil voltage range

Accessories

Product Code

27E891

27E892

27E122

27E123

Coil insulation system according UL

Coil versions, DC coil

Coil

Rated

Operate

Coil

Rated coil

code

voltage

resistance

power

VDC

Ω±10%

W

6

4.5

32

1.15

12

9.0

120

1.2

24

18.0

472

1.25

48

36.0

1800

1.3

110

82.5

10000

1.2

–

220

Use 110V relay with 10KΩ, 5W resistor in series

All figures are given for coil without preenergization, at ambient temperature +23°C.

For details see datasheet

Sockets and Accessories, KRPA Relays

Description

Two pole DIN socket (use 20C318 clip)

Three pole DIN socket (use 20C318 clip)

Two pole track mount socket (use 20C318 clip)

Three pole track mount socket (use 20C318 clip)

11-2012, Rev. 1112

www.te.com

a TE Connectivity Ltd. company.

Catalog and product specification according

to IEC 61810-1 and to be used only together

with the ‘Definitions’ section.

Catalog and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,

application notes and all specifications are

subject to change.
