Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 3F20-4

Preview

3F20-4: Descriptionrelay sockets & hardware filter emi W/nuetral for 3ph ssr; CategoryAnalog mixed-signal IC filter; File Size548KB，3 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Parametric View All

3F20-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3F20-4	-	-	View	Buy Now

3F20-4 Overview

relay sockets & hardware filter emi W/nuetral for 3ph ssr

3F20-4 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
filter type	THREE PHASE EMI FILTER
high	28 mm
length	42 mm
Installation type	THROUGH HOLE MOUNT
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Packaging Materials	PLASTIC
physical size	L42.0XB42.0XH28.0 (mm)/L1.654XB1.654XH1.102 (inch)
Rated current	0.035 A
Rated voltage	475 V
width	42 mm
Base Number Matches	1

Preview

Download Datasheet

View All

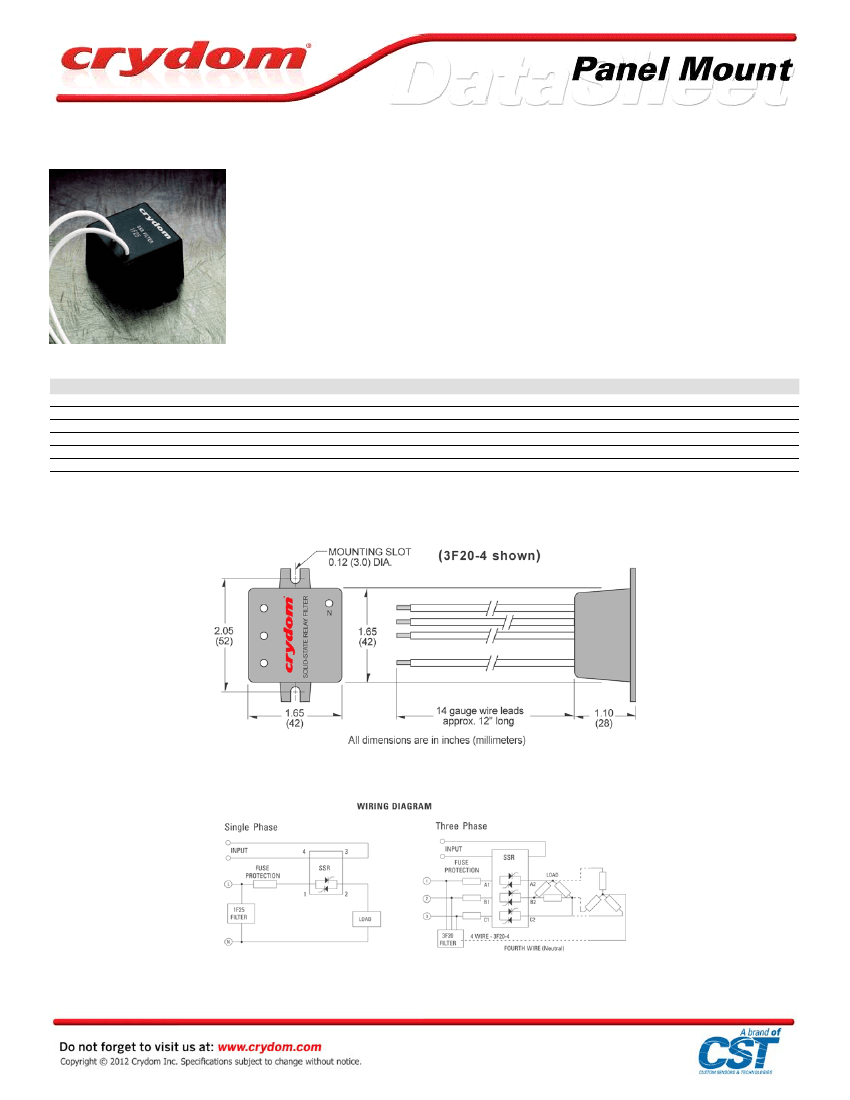

AC Filters

EMI noise suppression filters for SSRs

in single-phase and three-phase systems

SPECIFICATIONS

Description

Model Number

Connection (number of phases)

Maximum Operating Voltage

Operating Temperature Range

Attenuation (150 to 250 Khz), typical

Current Drain at VRMS max

1F25

Single

275 VRMS

30 dBμV

40 mA

3F20

Three

475 VRMS

-40 to +100 ° C

25 dBμV

35 mA

25 dBμV

35 mA

3F20-4

Three (w/neutral)

475 VRMS

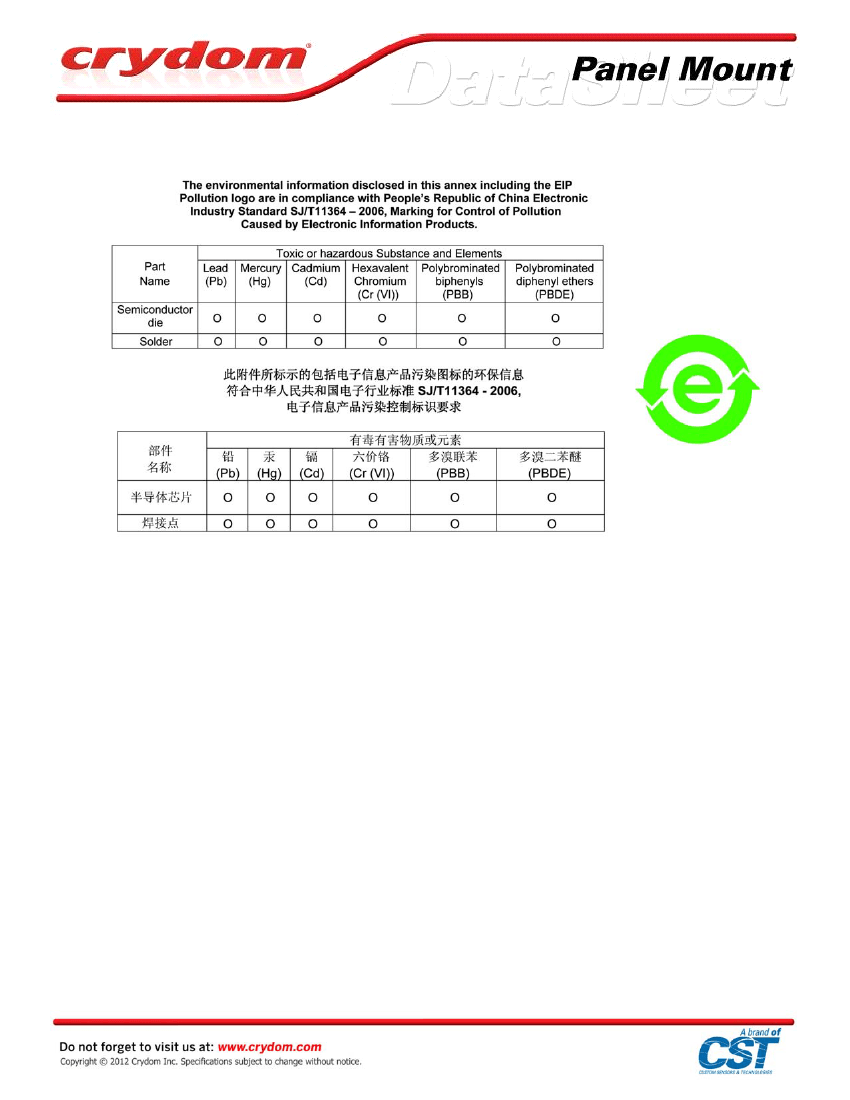

GENERAL NOTES

1) All parameters at 25°C unless otherwise specified.

MECHANICAL SPECIFICATIONS

WIRING DIAGRAM
