Note: Please add “-1” to the end of the part number for AgPd contacts (low level load).
2. Self-clinching terminal
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
2 Form C
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
TXS2-H-1.5V
TXS2-H-3V
TXS2-H-4.5V
TXS2-H-6V
TXS2-H-9V
TXS2-H-12V
TXS2-H-24V
1 coil latching
Part No.
TXS2-L-H-1.5V
TXS2-L-H-3V
TXS2-L-H-4.5V
TXS2-L-H-6V
TXS2-L-H-9V
TXS2-L-H-12V
TXS2-L-H-24V
2 coil latching (L2)
Part No.
TXS2-L2-H-1.5V
TXS2-L2-H-3V
TXS2-L2-H-4.5V
TXS2-L2-H-6V
TXS2-L2-H-9V
TXS2-L2-H-12V
TXS2-L2-H-24V
2 coil latching (LT)
Part No.
TXS2-LT-H-1.5V
TXS2-LT-H-3V
TXS2-LT-H-4.5V
TXS2-LT-H-6V
TXS2-LT-H-9V
TXS2-LT-H-12V
TXS2-LT-H-24V
Standard packing: Tube: 40 pcs.; Case: 1,000 pcs.
Note: Please add “-1” to the end of the part number for AgPd contacts (low level load).
3. Surface-mount terminal
1) Tube packing
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
TXS2S -1.5V
TXS2S -3V
TXS2S -4.5V
TXS2S -6V
TXS2S -9V
TXS2S -12V
TXS2S -24V
1 coil latching
Part No.
TXS2S -L-1.5V
TXS2S -L-3V
TXS2S -L-4.5V
TXS2S -L-6V
TXS2S -L-9V
TXS2S -L-12V
TXS2S -L-24V
2 coil latching (L2)
Part No.
TXS2S -L2-1.5V
TXS2S -L2-3V
TXS2S -L2-4.5V
TXS2S -L2-6V
TXS2S -L2-9V
TXS2S -L2-12V
TXS2S -L2-24V
2 coil latching (LT)
Part No.
TXS2S -LT-1.5V
TXS2S -LT-3V
TXS2S -LT-4.5V
TXS2S -LT-6V
TXS2S -LT-9V
TXS2S -LT-12V
TXS2S -LT-24V
2 Form C
: For each surface-mounted terminal identification, input the following letter. SA type: A, SL type: L, SS type: S
Standard packing: Tube: 40 pcs.; Case: 1,000 pcs.
Note: Please add “-1” to the end of the part number for AgPd contacts (low level load).
2) Tape and reel packing
Contact
arrangement
Nominal coil
voltage
1.5V DC
3V DC
4.5V DC
2 Form C
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
TXS2S -1.5V-Z
TXS2S -3V-Z
TXS2S -4.5V-Z
TXS2S -6V-Z
TXS2S -9V-Z
TXS2S -12V-Z
TXS2S -24V-Z
1 coil latching
Part No.
TXS2S -L-1.5V-Z
TXS2S -L-3V-Z
TXS2S -L-4.5V-Z
TXS2S -L-6V-Z
TXS2S -L-9V-Z
TXS2S -L-12V-Z
TXS2S -L-24V-Z
2 coil latching (L2)
Part No.
TXS2S -L2-1.5V-Z
TXS2S -L2-3V-Z
TXS2S -L2-4.5V-Z
TXS2S -L2-6V-Z
TXS2S -L2-9V-Z
TXS2S -L2-12V-Z
TXS2S -L2-24V-Z
2 coil latching (LT)
Part No.
TXS2S -LT-1.5V-Z
TXS2S -LT-3V-Z
TXS2S -LT-4.5V-Z
TXS2S -LT-6V-Z
TXS2S -LT-9V-Z
TXS2S -LT-12V-Z
TXS2S -LT-24V-Z
: For each surface-mounted terminal identification, input the following letter. SA type: A, SL type: L, SS type: S
Standard packing: Tape and reel: 500 pcs.; Case: 1,000 pcs.
Notes: 1. Tape and reel packing symbol “-Z” is not marked on the relay. “X” type tape and reel packing (picked from 1/2/3/4-pin side) is also available.
2. Please add “-1” to the end of the part number for AgPd contacts (low level load). (Ex. TXS2SA-1.5V-1-Z)
Measurement at same location as “Initial breakdown voltage” section.
750 Vrms for 1min. (Detection current: 10mA)
1,800 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
1,500 V (10×160µs) (FCC Part 68)
2,500 V (2×10µs) (Telcordia)
Max. 50°C
(By resistive method, nominal coil voltage applied to the coil; contact carrying current: 1A.)
Max. 5 ms [Max. 5 ms] (Nominal coil voltage applied to the coil, excluding contact bounce
time.)
Max. 5 ms [Max. 5 ms] (Nominal coil voltage applied to the coil, excluding contact bounce
time.) (without diode)
Min. 750 m/s
2
(Half-wave pulse of sine wave: 6 ms; detection time: 10µs.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 3.3 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 5 mm
Min. 5×10
7
(at 180 cpm)
Min. 2×10
5
(1 A 30 V DC resistive) (at 20 cpm)
Ambient temperature: –40°C to +70°C
–40°F to +158°F;
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 cpm
Approx. 2 g
.071 oz

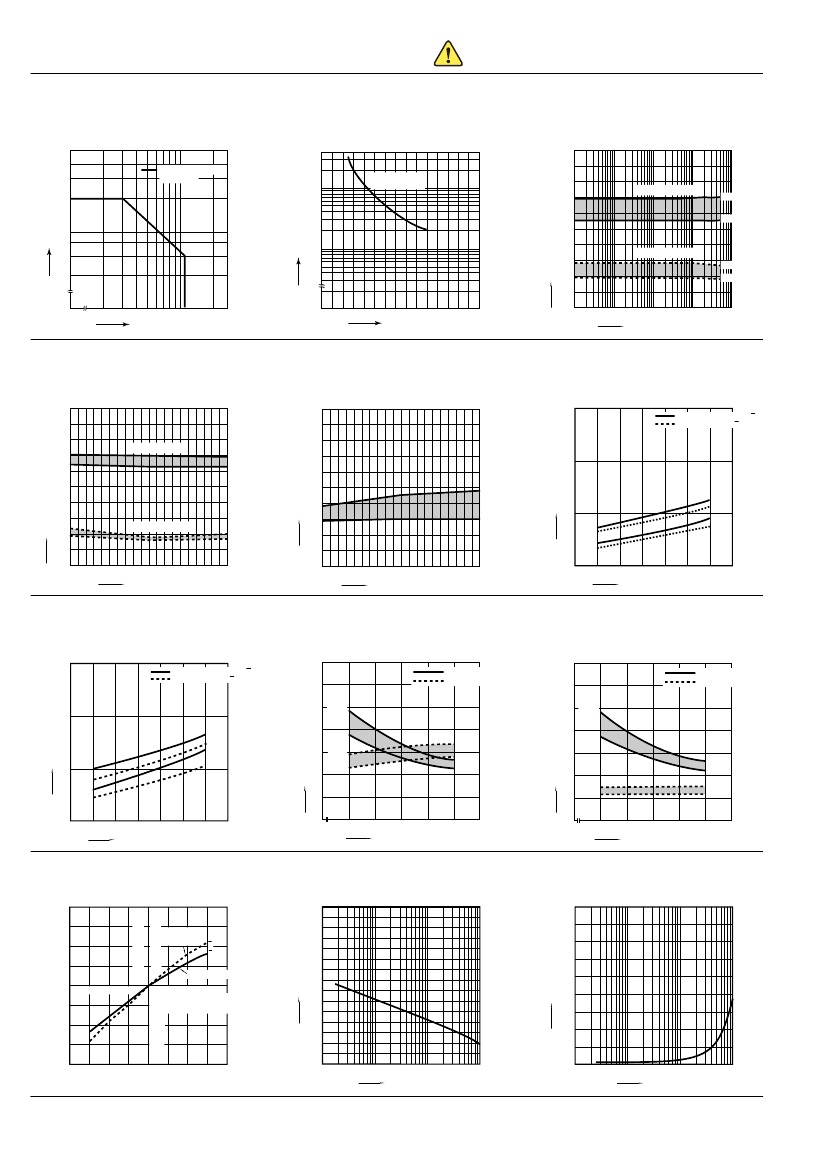

Specifications
Rating
Temperature rise (at 20°C
68°F)
Operate time [Set time] (at 20°C
68°F)
Release time [Reset time] (at 20°C
68°F)

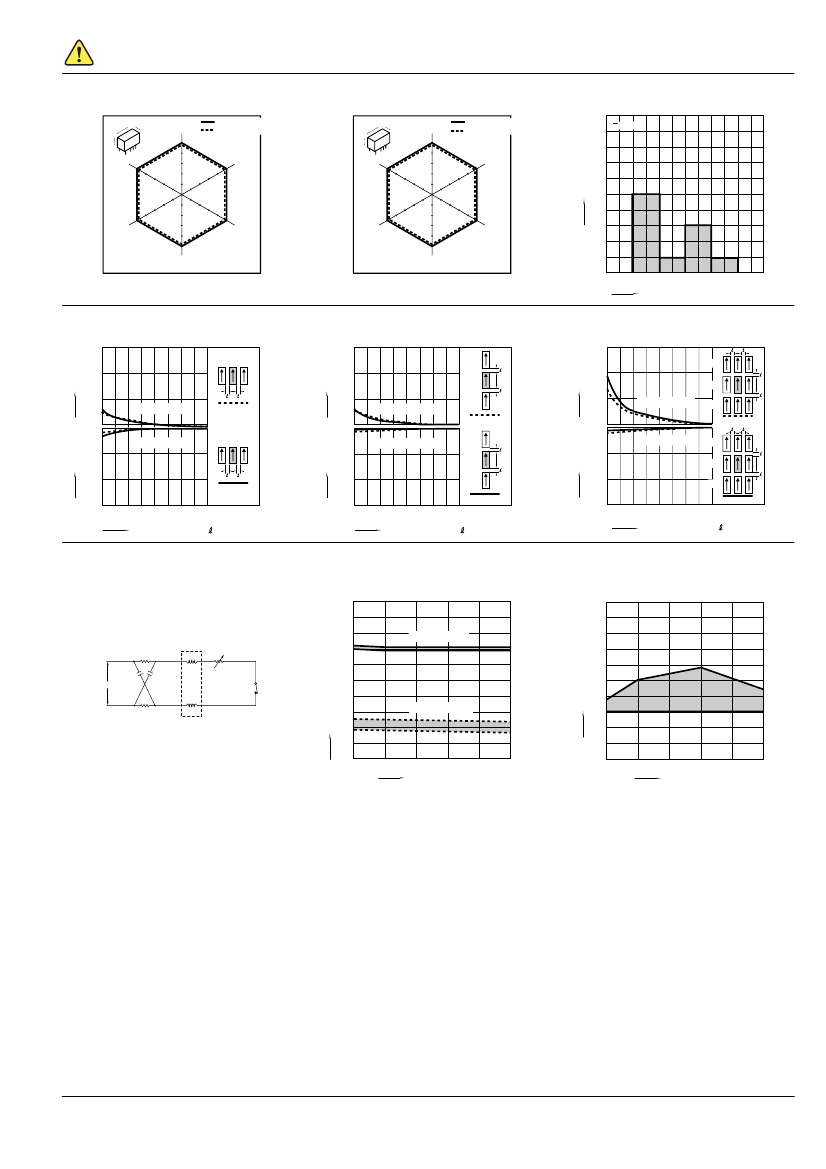

Shock resistance
Mechanical
characteristics
Vibration resistance
Mechanical
Electrical
Conditions for operation, transport and storage*
2
Max. operating speed (at rated load)
Unit weight
Functional
Destructive
Functional
Destructive
Expected life
Conditions
Notes: *1 This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load. (AgPd contact type is available for low level load switching [10V DC, 10mA max. level])
*2 Refer to 6. Conditions for operation, transport and storage mentioned in AMBIENT ENVIRONMENT.
