Low Signal Relay
G6K
• Compact fourth generation design, offers excellent board
space savings.
• Available in 2.54 and 3.2 mm coil-contact terminal spacing.
• “-Y” models meet 2.5 kV Bellcore surge requirements.
• Conforms to FCC Part 68.
• Terminal design based on Omron’s successful G6S relay.
• Available in PCB through-hole, SMT gullwing and SMT
“inside-L” terminals.
• UL recognized / CSA certified.
• Available in single coil latching.
• RoHS Compliant.
RC

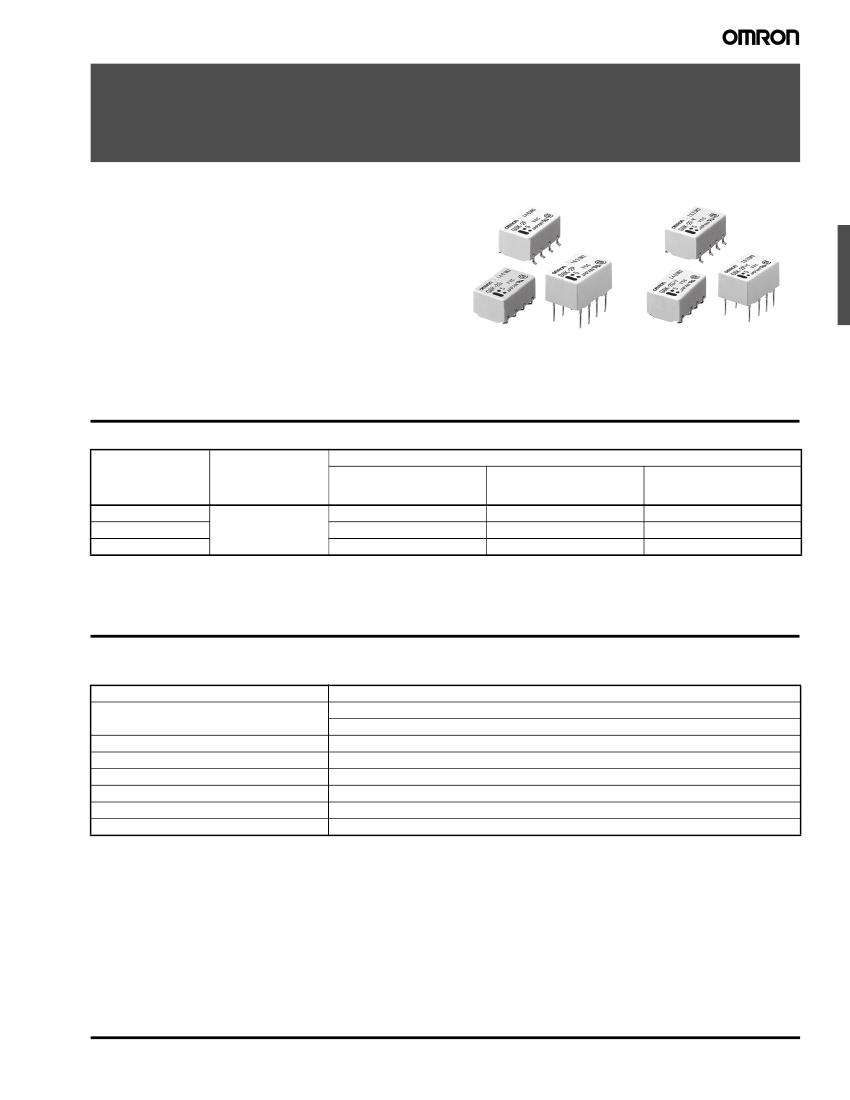

Ordering Information
To Order: Select the part number and add the desired coil voltage rating (e.g., G6K-2F-DC5).
Terminal
Contact form
Non-latching
2.54 mm spacing
Gullwing
Inside “L”
PCB through-hole
DPDT
G6K-2F
G6K-2G
G6K-2P
Model
Non-latching
3.2 mm coil-contact
terminal spacing
G6K-2F-Y
G6K-2G-Y
G6K-2P-Y
Single coil latching
3.2 mm coil-contact
terminal spacing
G6KU-2F-Y
G6KU-2G-Y
G6KU-2P-Y
When ordering tape packing (surface mount versions), add “-TR” to the model number (e.g., G6K-2G-TR-DC5)
Specifications
■
Contact Data
Load
Rated load
Contact material
Max. carry current
Max. operating voltage
Max. operating current
Max. switching capacity
Min. permissible load (See note)
Resistive load (cosφ=1)
0.3 A at 125 VAC
1 A at 30 VDC
Ag (Au clad)
1A
125 VAC, 60 VDC
1A
37.5 VA, 30W
10
μA
at 10 mVDC
Note:
This value was measured at a switching frequency of 120 operations/min and the criterion of contact resistance is 50
Ω.
This value may vary
depending on the switching frequency and operating environment. Always double-check relay suitability under actual operating conditions.
Low Signal Relay
G6K
53
■
Coil Data
G6K- 2.5 mm coil-contact terminal spacing, standard, non-latching (G6K-2F, G6K-2G, G6K-2P)
G6K- 3.2 mm coil-contact terminal spacing, non-latching (G6K-2F-Y, G6K-2G-Y, G6K-2P-Y)
Rated voltage
(VDC)
3
4.5
5
6
9
12
24
Rated current
(mA)
33.0
23.2
21.1
17.6
11.3
9.1
4.6
Coil resistance
(Ω)
91
194
237
341
795
1,315
5,220
Pick-up voltage
80% max.
Dropout voltage
% of rated value
10% min.
150% max.
@ 23°C to 70°C
Maximum voltage
Power consumption
(mW)
Approx. 100
G6KU- 3.2 mm spacing, single coil latching (G6KU-2F-Y, G6KU-2G-Y, G6KU-2P-Y)
Rated voltage
(VDC)
3
4.5
5
6
9
12
24
Note: 1.
2.
3.
4.
Rated current
(mA)
33.0
23.2
21.1
17.6
11.3
9.1
4.6
Coil resistance
(Ω)
91
194
237
341
795
1,315
5,220
Set-up voltage
75% max.
Reset voltage
% of rated value
75% min.
150% max.
@ 23°C to 70°C
Maximum voltage
Power consumption
(mW)
Approx. 100
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±
10%.
The operating characteristics are measured at a coil temperature of 23°C unless otherwise specified.
Pick-up voltage will vary with temperature
The maximum voltage is the highest voltage that can be imposed on the relay coil instantaneously.
■
Characteristics
Contact resistance (See note 1)
Operate (set) time (See note 2)
Release (set) time (See note 2)
Insulation resistance (See note 3)
Dielectric strength
100 mΩ max.
3 ms max. (Approx. 1.4 ms - standard. Approx. 1.2 ms - latching)
3 ms max. (Approx. 1.3 ms - standard. Approx. 1.2 ms - latching)
1,000 MΩ min. (at 500 VDC)
1,500 VAC for 1 minute between coil contacts
1,000 VAC for 1 minute between contacts of different poles
750 VAC for 1 minute between contacts of the same pole
2,500 V, (2 x 10
μs)
between coil and contacts.
(Conforms to Bellcore specifications)
1,500 V, (10 x 160
μs)
between coil and contacts / contacts of different and same polarity.
(Conforms to FCC Part 68)
Surge withstand voltage “-Y’ versions
Standard versions
Vibration
Shock
Ambient temperature
Humidity
Service life
Weight
Note: 1.
2.
3.
4.
Mechanical
Electrical
Mechanical durability
10 to 55 Hz; 5.0 mm double amplitude
Malfunction durability
10 to 55 Hz; 3.3 mm double amplitude
Mechanical durability
1,000 m/s
2
(approx. 100G)
Malfunction durability
750 m/s
2
(approx. 75G)
-40°C to 70°C with no icing or condensation
5 to 85% RH
50,000,000 operations min. (at 36,000 operations per hour)
100,000 operations min. at rated load (at 1,800 operations per hour)
Approx. 0.7 g
The contact resistance was measured with 10 mA at 1 VDC with a voltage-drop method.
Values in parentheses are typical values unless otherwise stated.
The insulation resistance was measured with a 500-VDC megohmmeter applied to the same parts as those for checking the dielectric strength.
Data shown are of initial value.
54
Low Signal Relay
G6K
■

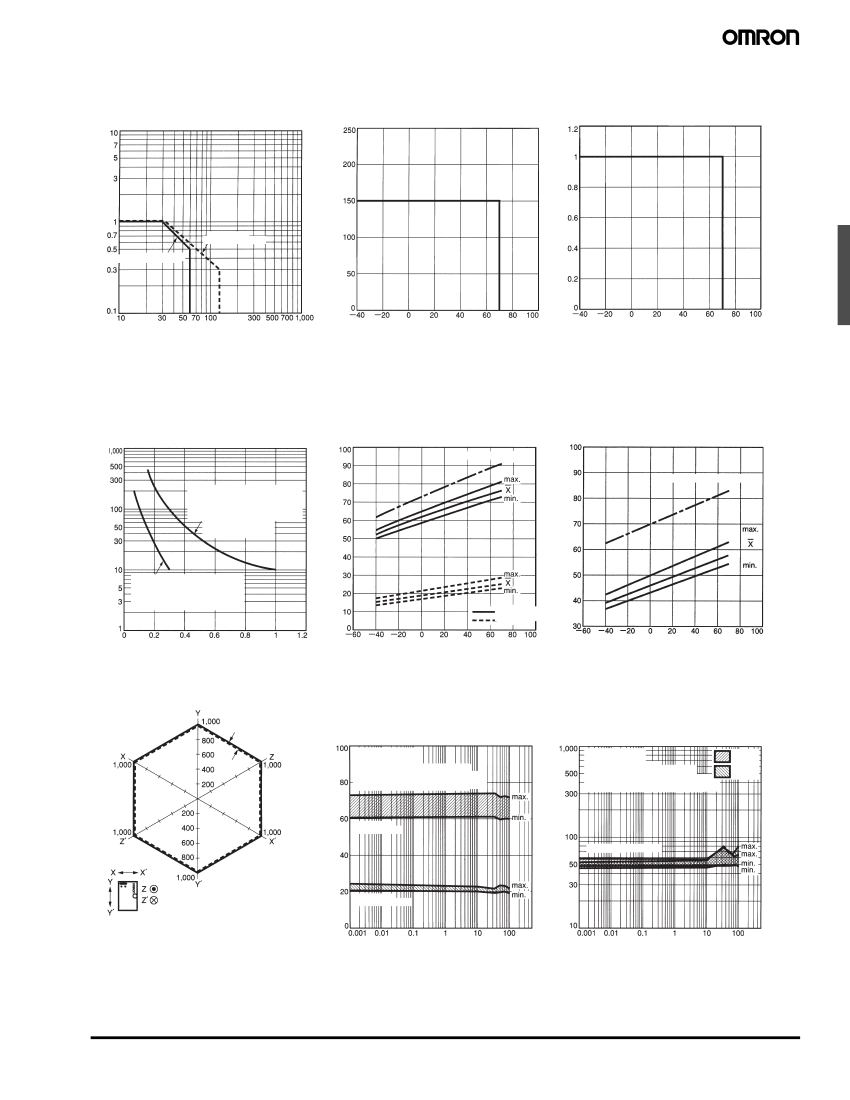

Characteristic data
Maximum Switching Capacity
Ambient Temperature vs.
Maximum Coil Voltage
Maximum coil
voltage
(%)
Ambient Temperature vs.
Switching Current
Rated operating current (A)
Rated operating current (A)
AC resistive load
DC resistive load
Rated operating
voltage
(V)
Ambient temperature (°C)
Note:
The maximum coil
voltage
refers to the maxi-
mum
value
in a
varying
range of operating
power
voltage,
not a continuous
voltage.
Ambient temperature (°C)
Electrical Service Life
Ambient Temperature vs. Must
Ambient Temperature vs. Must
Operate or Must Release Voltage Set or Must Reset Voltage
G6K-2G (F/P), G6K-2G (F/P)-Y
On the
basis
of rated
voltage
(%)
Max. estimated
value
G6KU-2G (F/P)-Y
On the
basis
of rated
voltage
(%)
Service Life (x10
4
operations)
Max. estimated
value
30
VDC
resistive load
Ambient temperature: 23°C
Switching frequency:
1,800 operations/hour
125
VAC
resistive load
Ambient temperature: 23°C
Switching frequency:
1,800 operations/hour
Operate
voltage
Release
voltage
Rated operating current (A)
Ambient temperature (°C)
Ambient temperature (°C)
Shock Malfunction
Energized
Not
energized
Electrical Service Life
(with Must Operate and Must
Release Voltage) (See note.)
G6K-2G (F/P), G6K-2G (F/P)-Y
On the
basis
of rated
voltage
(%)
Sample: G6K-2G
Number of Relays: 10
Test conditions: 1 A resistive load at
30
VDC with
an operation rate of 50%
Switching frequency: 1,800 operations/h
Electrical Service Life
(Contact Resistance) (See note.)
G6K-2G (F/P), G6K-2G (F/P)-Y
Contact resistance (mΩ)
Sample: G6K-2G
Number of Relays: 10
Test conditions: 1 A resistive load
at 30
VDC with
an operation rate of 50%
Switching frequency: 1,800 operations/h
NO
contact
NC
contact
Must operate
Contact resistance
Shock direction
Unit: m/s
2
Sample: G6K-2G
Number of Relays: 10
Must release
Conditions:
Shock is applied in
±X, ±Y,
and
±Z
di
rections three times each
with
and
with
out energizing the Relays to check the
number of contact malfunctions.
Operating frequency (x10
3
operations)
Note:
The tests
were
conducted at an
ambient temperature of 23°C.
Operating frequency (x10
3
operations)
Note:
The tests
were
conducted at an
ambient temperature of 23°C.
Low Signal Relay
G6K
55

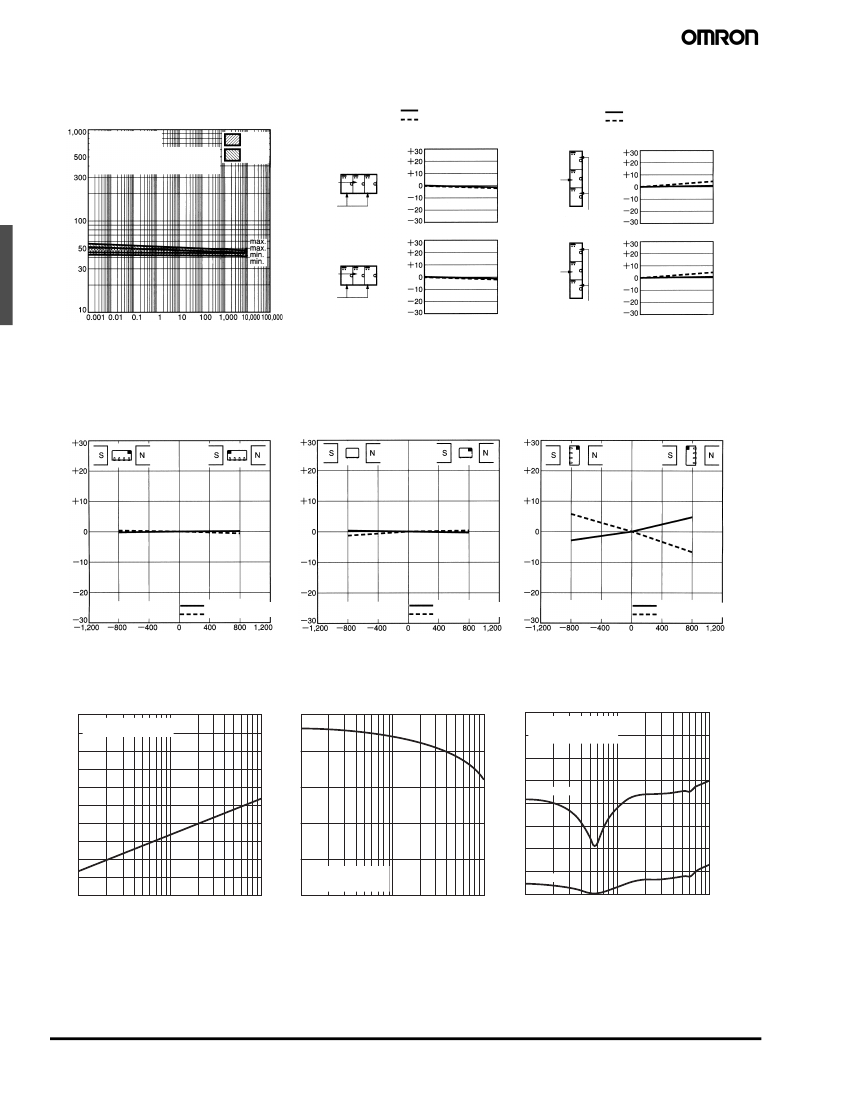

Contact Reliability Test
(See note.)
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
Mutual Magnetic Interference Mutual Magnetic Interference
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
Must operate voltage
Must release voltage
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
Must operate voltage
Must release voltage
Change rate on the basis
of initial value (%)
Contact resistance (m
Ω
)
Change rate on the basis
of initial value (%)
Sample: G6K-2G
Number
of Relays: 10
Test conditions: 10 mA resistive load at
10 mVDC with an operation rate of 50 %
Switching frequency: 7,200 operations/h
NO
contact
NC
contact
Initial stage
Test
Initial stage
Test
Sample
Not
energized
Sample
Average value
Initial stage
Test
Not
energized
Average value
Initial stage
Test
Change rate on the basis
of initial value (%)
Sample
Energized
Sample
Average value
Energized
Change rate on the basis
of initial value (%)
Average value
Operating frequency (x10 operations)
Note 1:
The test was conducted at an ambient temperature of 23°C.
2:
The contact resistance data are periodically measured reference values and are not values from each monitoring operation.
Contact resistance values will vary according to the switching frequency and operating environment, so be sure to check
operation under the actual operating conditions before use.
3
External Magnetic Interference
Change rate on the basis of initial value (%)
Change rate on the basis of initial value (%)
Change rate on the basis of initial value (%)
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
(Average value)
(Average value)
(Average value)
Sample: G6K-2G
Number
of Relays: 10
Must operate voltage
Must release voltage
Sample: G6K-2G
Number
of Relays: 10
Must operate voltage
Must release voltage
Sample: G6K-2G
Number
of Relays: 10
Must operate voltage
Must release voltage
External magnetic field (A/m)
External magnetic field (A/m)
External magnetic field (A/m)
High-frequency Characteristics
(Isolation)
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
Insertion loss (dB)
(Average value)
High-frequency Characteristics
(Insertion Loss)
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
Return loss (dB)
0
High-frequency Characteristics
(Return Loss)
G6K-2G
(F/P),G6K-2G (F/P)-Y
0
10
20
30
Return loss
40
1.2
1.15
1.1
1.05
V.SWR
80
1
1
10
100
Sample: G6K-2G
Number
of Relays: 10
1.4
Isolation (dB)
0
10
20
30
40
50
60
70
80
90
Sample: G6K-2G
Number
of Relays: 10
1.35
1.3
1.25
0.1
0.2
0.3
50
60
0.4
Sample: G6K-2G
Number
of Relays: 10
10
100
0.5
1
10
100
70
100
1
Frequency (MHz)
Frequency (MHz)
Frequency (MHz)
Note: 1.
The tests were conducted at an ambient temperature of 23°C.
2.
High-frequency characteristics depend on the PCB to which the Relay is mounted. Always check these characteristics including
endurance in the actual machine before use.
56
Low Signal Relay
G6K
V.SWR
(Average value)
(Average value)
Must Operate and Must Release
Time Distribution
(See note.)
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
Number
of contacts
Sample: G6K-2G
Number
of Relays:
50
Must operate
Must release time
Must Operate and Must Release
Bounce Time Distribution
(See note.)
G6K-2G
(F/P) ,
G6K-2G
(F/P)-Y
Number
of contacts
Must operate
bounce time
Must release
bounce time

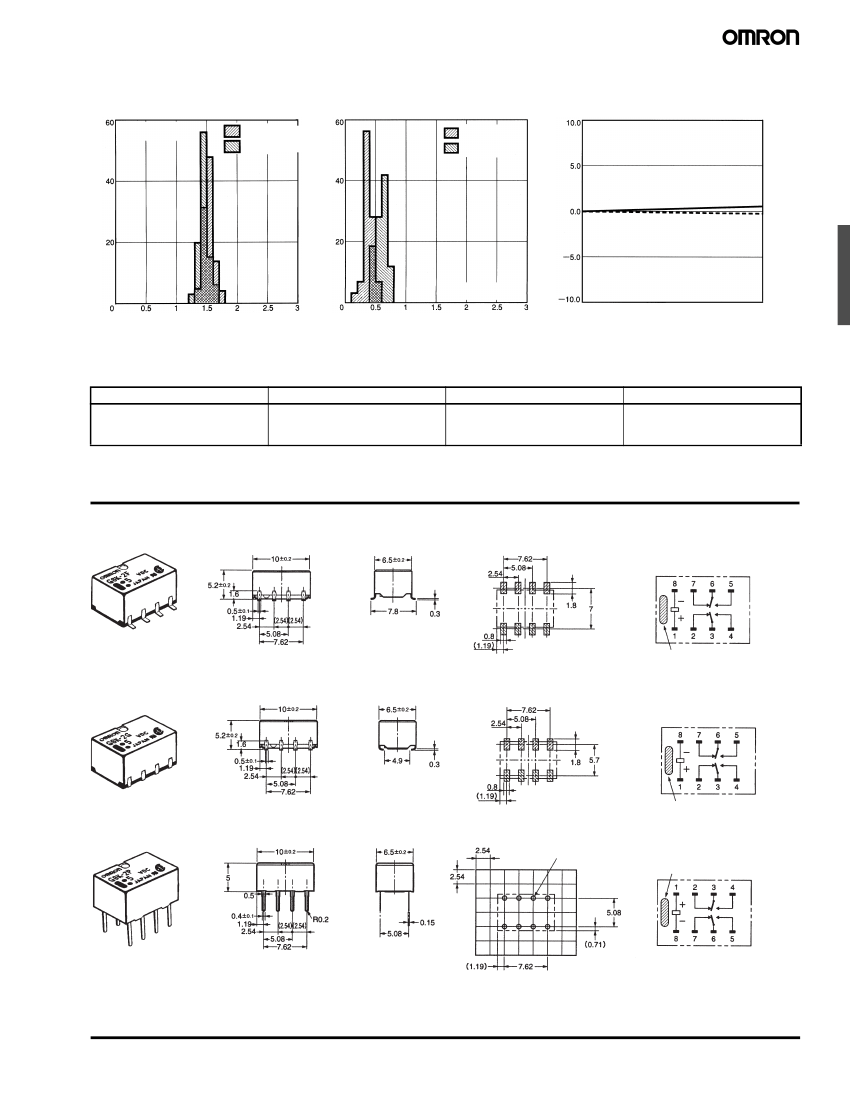

Vibration Resistance
G6K-2G
(F/P),
G6K-2G
(F/P)-Y
Change rate on the basis of rated value (%)
Must operate voltage
Must release voltage
Sample: G6K-2G
Number
of Relays: 50
■
Approvals
DPDT
Time (ms)
Note:
The tests were conducted at an ambient temperature of 23°C.
Time (ms)
After test
UL Recognized (File No. E41515) / CSA Certified (File No. LR31928) - - Ambient Temp. = 40°C
Contact form
Coil rating
3 to 24 VDC
Contact ratings
1 A at 30 VDC (Resistive)
0.5 A at 60 VDC (Resistive)
0.3 A at 125 VAC (General Use)
Number of test operations
6,000
Dimensions
Note:
All units are in millimeters unless otherwise indicated.
G6K-2F
Mounting Dimensions (Top View)
Tolerance:
±0.1
mm
Terminal Arrangement/
Internal Connections
(Top View)
Note:
Each
value
has a tolerance of
±0.3
mm.
Orientation mark
G6K-2G
Mounting Dimensions (Top View)
Tolerance:
±0.1
mm
Terminal Arrangement/
Internal Connections
(Top View)
Note:
Each
value
has a tolerance of
±0.3
mm.
Orientation mark
G6K-2P
Mounting Dimensions (Bottom View) Terminal Arrangement/
Tolerance:
±0.1
mm
Internal Connections
(Bottom View)
Eight, 0.8-dia. holes
Orientation mark
Note:
Each
value
has a tolerance of
±0.3
mm.
Low Signal Relay
G6K
57
京公网安备 11010802033920号
EEWORLD
