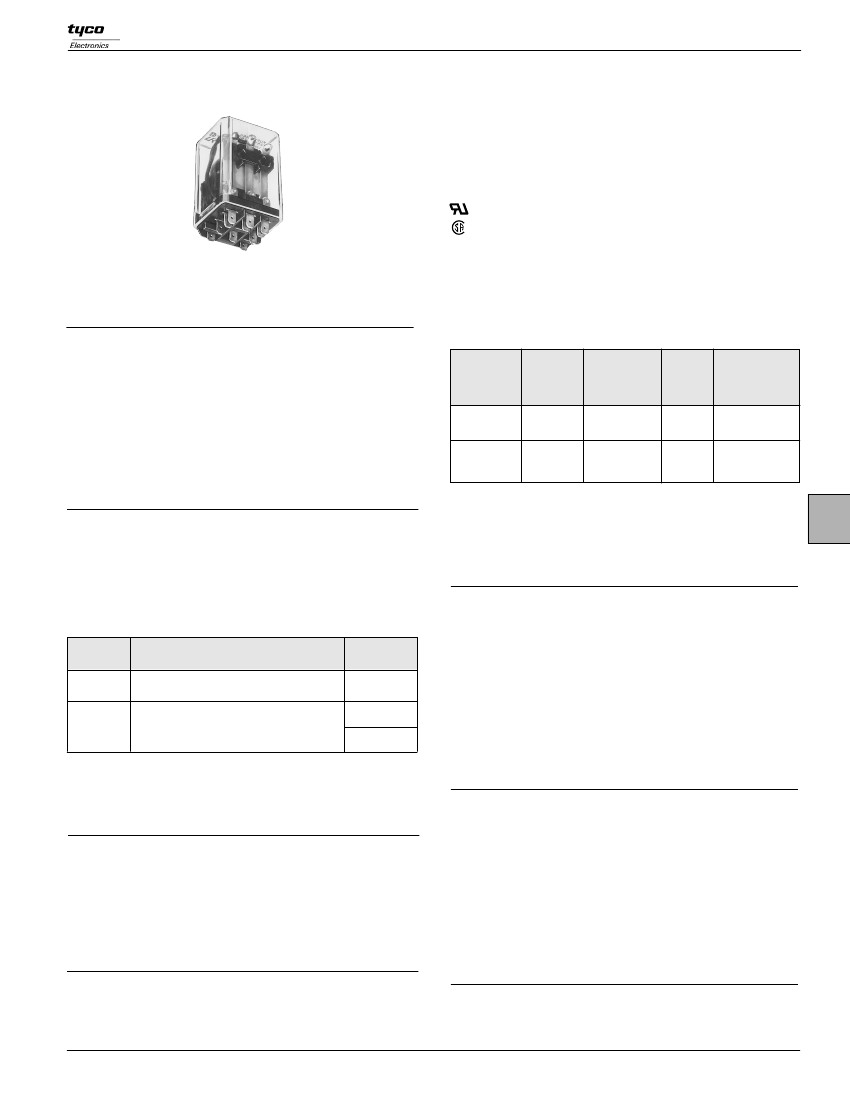

Catalog 1308242
Issued 3-03
P&B
KUP93
series
General Purpose
3 to 10 Amp, Multicontact
AC or DC Relay
File E22575
File LR15734
Users should thoroughly review the technical data before selecting a product
part number. It is recommended that users also seek out the pertinent
approvals files of the agencies/laboratories and review them to ensure the
product meets the requirements for a given application.
Features
• AC coils 24, 120 & 240V 50/60 Hz.; DC 12 & 24VDC.
• Contact arrangement to 3PDT.
• Sockets available for all models.
• Accepted pin pattern for HVAC industry.
• Primarily designed for the HVAC industry.
Coil Data
Nominal
Voltage
DC
Coils
AC
Coils
12
24
24
120
240
DC
Resistance
in Ohms
± 10%*
120
472
72
1,700
7
,200
Must
Operate
Voltage
9.0
18.0
20.4
102.0
204.0
Nominal
Coil
Current
(mA)
100
51
115
24
12
*AC coils, ± 15%
Contact Data @ 25°C
Material:
Fine silver or silver-cadmium oxide.
Operate Data @ 25°C
Contact Ratings
Material
Fine silver
Silver-
cadmium
oxide
UL/CSA Ratings
5A @ 28VDC or 240VAC, 80% PF
,
1/10 HP @ 120VAC, 1/4 HP @ 240VAC
10A @ 28VDC or 240VAC, 80% PF
,
1/4 HP @ 120VAC,1/3 HP @ 240VAC
10 FLA, 30 LRA @ 120VAC,
5 FLA,15 LRA @ 240VAC
Life
Expected
100,000
100,000
30,000
Must Operate Voltage:
DC Coils:
75% of nominal voltage or less.
AC Coils:
85% of nominal voltage or less.
Operate Time (Excluding Bounce):
15 milliseconds, typical,
at nominal voltage.
Release Time (Excluding Bounce):
DC Coils:
10 milliseconds, typical, at nominal voltage.
AC Coils:
10 milliseconds, typical, at nominal voltage.
Environmental Data
Temperature Range:
Storage:
All Coils:
-45°C to +105°C.
Operating:
DC Coils:
-45°C to +70°C.
AC Coils:
-45°C to +45°C.
Initial Dielectric Strength
Between Open Contacts:
500V rms.
Between Adjacent Contacts:
1,500V rms.
Between Contacts and Coil:
1,500V rms.
Coil Data @ 25°C
Nominal Power:
DC Coils:
1.2 Watts.
AC Coils:
2.7VA.
Initial Insulation Resistance:
100 megohms, min., at 25°C.
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Mechanical Data
Termination:
.187" x .020" quick connect.
Enclosures:
Clear polycarbonate dust cover.
Weight:
3.0 oz. (86g) approximately.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
731
Catalog 1308242
Issued 3-03
P&B
Ordering Information
Typical Part No.
1. Type:
KUP93 = Enclosed general purpose relay.
2. Contact Arrangement:
14 = 3 Form C (3PDT)
3. Coil Input:
A = AC
4. Mounting:
1 = PLAIN CASE;
5. Terminals, Contact Material & Rating:
1 = .187" (4.75mm) quick connect, silver, 5 amps.
3 = .187" (4.75mm) quick connect, silver-cadmium oxide, 10 amps.
6. Coil Voltage:
To 240VAC, 50/60 Hz. or 110VDC.
D = DC
B
KUP93
11
A
2
1
-24
Our authorized distributors are more likely to stock the following items for immediate delivery.
No items in this series typically are stocked.
Outline Dimensions
.187 TYP
.
(4.75)
1.406 MAX.
(35.71)
Wiring Diagrams
3 Form C
8
9
7
C2
5
6
4
2
3
1
C1
1.531 MAX.
(38.89)
1.906 MAX.
(48.41)
.054 DIA.
(1.37)
.250
(6.35)
KUP93 Sockets
.205 DIA.
(5.21)
(2 HOLES)
.218 REF
.
(5.54)
Socket PC Board Layout (Component Side of Board)
.790
20.07
1.308
(33.22)
2.350
(59.69)
MTG. HOLE
.157
±
.003
(3.99
±
.08)
.276
(7
.01)
.338
(8.58)
.395
(10.03)
.062
(1.57)
.161
±
.005
(4.09
±
.13)
DIA. (2) HOLES
.737
(18.72)
1.858
(47
.19)
.097
±
.004
(2.46
±
.10)
DIA. (11) HOLES
1.858
(47
.19)
.710
(18.03)
.790
(20.07)
1.250
(31.75)
.469
±
.015
(11.91
±
.38)
.465
(11.81)
.100
(2.54)
.317
(8.05)
KUP93 Socket Number
Socket
Color
Natural Nylon
**UL Recognized, file E22575
P C Socket With
Terminals
27E168**
Socket:
Rated 10 amperes. Will accept .187" (4.75mm)
quick-connect terminals of all KUP93 relays.
Dimensions are shown for
732
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
