0503S31DM01 datasheet, PDF - EEWORLD Datasheet

0503S31DM01: DescriptionCard Edge Connector, 31 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size241KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

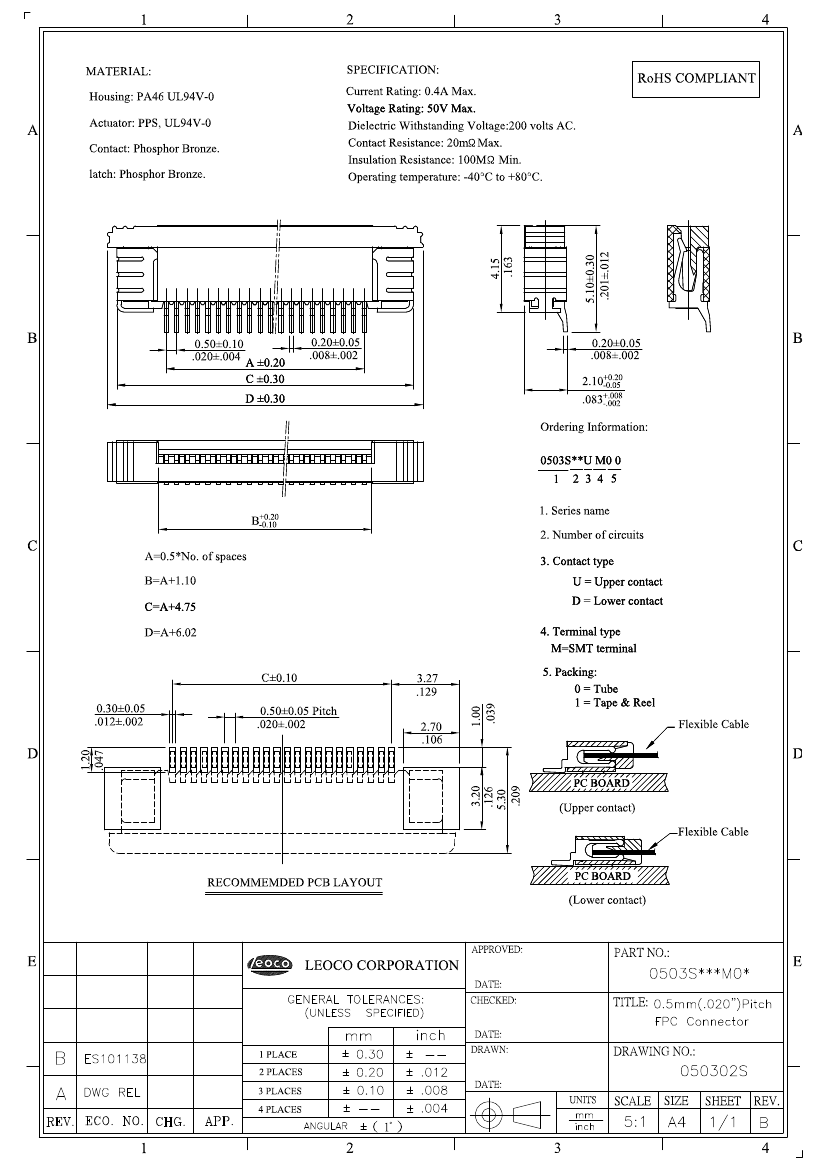

Download Datasheet Parametric View All

0503S31DM01 Overview

Card Edge Connector, 31 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

Parameter Name	Attribute value
Guideline	UL
Objectid	305228734
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	ROHS COMPLIANT
Contact resistance	20 mΩ
insulator material	POLYAMIDE
Number of rows loaded	1
Rated current (signal)	0.4 A
Total number of contacts	31
Connector type	FFC/FPC CONNECTOR
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Terminal pitch	0.508 mm
Contact style	BELLOWED TYPE
Plug contact pitch	0.02 inch
Termination type	SURFACE MOUNT
Board mount options	SOLDER HOLDING POSTS
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Mixed contacts	NO
Installation option 1	LOCKING
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
body width	0.083 inch
subject depth	0.163 inch
body length	0.828 inch
Dielectric withstand voltage	200VAC V
Filter function	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
