BTS-075-01-L-D-A-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> BTS-075-01-L-D-A-TR

BTS-075-01-L-D-A-TR: DescriptionBoard Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size391KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTS-075-01-L-D-A-TR Overview

Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle, ROHS COMPLIANT

BTS-075-01-L-D-A-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	TAPE & REEL PACKAGING
Board mount options	POSITIONING PIN
body width	0.235 inch
subject depth	0.16 inch
body length	2.038 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	ENDS
Rated current (signal)	1.6 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	150
Base Number Matches	1

Preview

Download Datasheet

View All

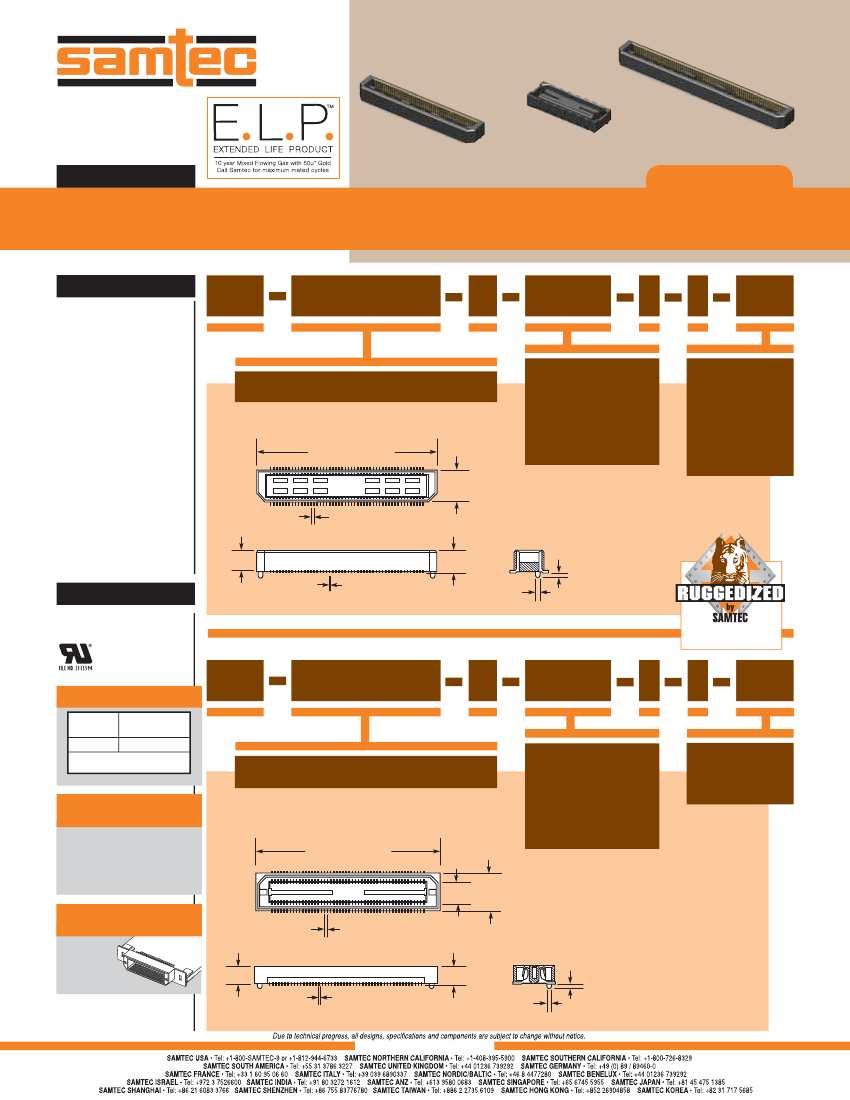

F-214

BSS–025–01–L–D–A

BTS–075–01–L–D–A

BTS–050–01–F–D–A

(0,635 mm) .025"

BTS, BSS SERIES

BASIC BLADE & BEAM HEADER & SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?BTS or

www.samtec.com?BSS

Insulator Material:

Liquid Crystal Polymer

Terminal Material (BTS):

Phosphor Bronze

Contact Material (BSS):

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

1.8 A per pin

(1 pin powered per row)

Operating Temp Range:

-55°C to +125°C

RoHS Compliant:

Yes

BTS

Mates with:

BSS

NO. OF POSITIONS

PER ROW

PLATING

OPTION

OTHER

OPTION

–F

–025, –050, –075, –100

= Gold Flash on contact,

Matte Tin on tail

–K

= (7,00 mm) .275" DIA

Polyimide Film Pick

& Place Pad

–L

No. of Positions x (0,635) .025

+ (4,13) .163

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

–TR

= Tape & Reel

(–100 positions

maximum)

Processing:

(5,97)

.235

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max

Board Stacking:

For applications requiring more

than two connectors per board

or 100 positions or higher,

contact ipg@samtec.com

(0,635)

.025

(4,27)

.168

(0,20)

.008

(0,89)

.035

DIA

• Passes

10 year MFG

(4,06)

.160

(0,89)

.035

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

BSS

MATED HEIGHT

LEAD

STYLE

MATED

HEIGHT*

(5,00) .197

NO. OF POSITIONS

PER ROW

PLATING

OPTION

OTHER

OPTION

–01

Mates with:

BTS

*Processing conditions will

affect mated height.

–F

–025, –050, –075, –100

= Gold Flash on contact,

Matte Tin on tail

–TR

= Tape & Reel

(–100 positions

maximum)

ALSO AVAILABLE

(MOQ Required)

• 30µ" (0,76 µm) Gold

• Other platings

• Other positions

Contact Samtec.

No. of Positions x (0,635) .025

+ (5,41) .213

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

(3,81) (7,24)

.150 .285

OTHER

SOLUTIONS

Edge

Mount

capability.

Call for availability.

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(0,635)

.025

(0,76)

.030

(0,15)

.006

(0,89)

.035

DIA

(3,43)

.135

(3,63)

.143

WWW.SAMTEC.COM

BTS-075-01-L-D-A-TR Related Products

	BTS-075-01-L-D-A-TR	BTS-075-01-L-D-A-K	BTS-050-01-F-D-A	BTS-050-01-F-D-A-K	BTS-075-01-F-D-A-TR	BSS-100-01-F-D-A-TR	BSS-025-01-F-D-A	BTS-100-01-F-D-A-TR
Description	Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle, ROHS COMPLIANT	Board Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Plug, ROHS COMPLIANT	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Plug, ROHS COMPLIANT	Board Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	2 weeks	2 weeks	2 weeks	2 weeks	2 weeks	2 weeks	2 weeks	2 weeks
Other features	TAPE & REEL PACKAGING	PICK & PLACE PAD	NONE	PICK & PLACE PAD	TAPE & REEL PACKAGING	TAPE & REEL PACKAGING	NONE	TAPE & REEL PACKAGING
Board mount options	POSITIONING PIN	POSITIONING PIN	PEG	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN
body width	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.285 inch	0.285 inch	0.235 inch
subject depth	0.16 inch	0.16 inch	0.168 inch	0.16 inch	0.16 inch	0.135 inch	0.135 inch	0.16 inch
body length	2.038 inch	2.038 inch	1.413 inch	1.413 inch	2.038 inch	2.713 inch	0.838 inch	2.663 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL (50)	GOLD FLASH OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	FEMALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.025 inch	0.025 inch	0.025 inch	0.025 inch	0.025 inch	0.025 inch	0.025 inch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-55 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	ENDS	ENDS	POLARIZED HOUSING	ENDS	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	1.6 A	1.6 A	1.8 A	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	150	150	100	100	150	200	50	200
Base Number Matches	1	1	1	1	1	-	-	-
