PCH-124L2M,000 Overview

PCH-124L2M,000

PCH-124L2M,000 Parametric

Parameter Name	Attribute value
Power relay type	standard
Terminal limit breaking current (A)	5
Coil excitation system	Monostable, DC
Coil Power Rating Class (mW)	150 – 200
Coil Power Rating (DC) (mW)	200
Coil resistance (Ω)	2880
Coil characteristics	UL Coil Insulation Class F, Sensitive Version
Coil Voltage Rating (VDC)	24
Terminal switch load (minimum)	100mA @ 5V
Terminal switching voltage (max) (VAC)	277
Terminal switching voltage (max) (VDC)	30
Terminal Voltage Rating (VAC)	277
Terminal Voltage Rating (VDC)	30
Initial dielectric between terminal and coil (Vrms)	4000
Insulation leakage type (mm)	3 – 5.5
Terminal limit continuous current (A)	5
Terminal limit short-time current (A)	5
Terminal limit closing current (A)	5
Open terminal insulation initial dielectric (Vrms)	750
Coil/terminal insulation initial dielectric type (V)	3500 – 4000
product weight	7 g [ .247 oz ]
Insulating properties	Tracking index of relay base PTI175
Terminal arrangement	1 Form A (NO)
Terminal current type (A)	2 – 5, 16
Contact Current Rating (Max) (A)	5
Terminal material	AgSnO
Number of terminal poles	1
Terminal type	PCB-THT
Relay installation type	A printed circuit board
Product height	15.2 mm [ .598 in ]
Product length	20 mm [ .787 in ]
Product width	10 mm [ .394 in ]
Width type (mechanical) (mm)	8 – 10
Height type (mechanical) (mm)	15 – 16
Insulation gap type (mm)	0 – 2.5
Length type (mechanical) (mm)	16 – 20
Environmental Protection Category	RTII
Ambient temperature (maximum)	85 °C [ 185 °F ]
Ambient temperature category (°C)	50 – 70
Encapsulation method	Tray, boxes and trays

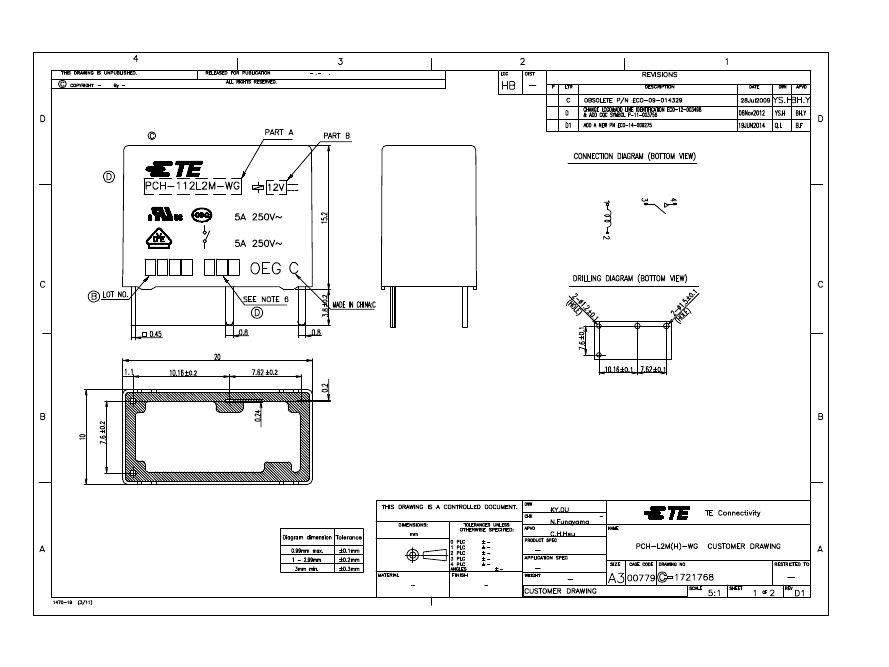

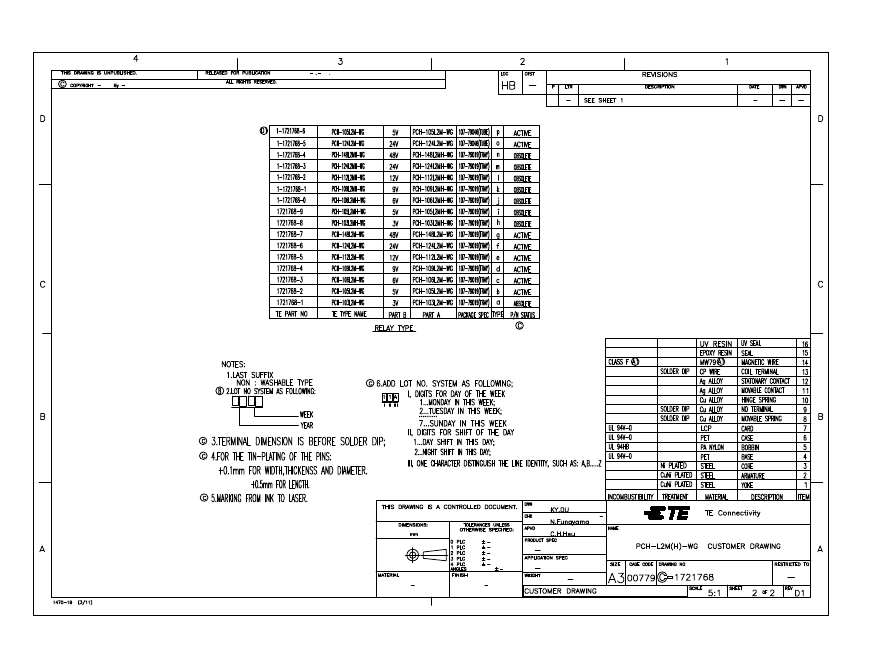

Preview

Download Datasheet

View All

PCH-124L2M,000 Related Products

	PCH-124L2M,000	PCH-112L2M-WG	PCH-124L2M-WG	PCH-148D2,000	PCH-112L2M,000	PCH-105L2M,000	PCH-112D2-WG	PCH-124D2M,000	PCH-124D2MH,000	PCH-112D2M,000
Description	PCH-124L2M,000	PCH-112L2M-WG	PCH-124L2M-WG	PCH-148D2,000	PCH-112L2M,000	PCH-105L2M,000	PCH-112D2-WG	PCH-124D2M,000	PCH-124D2MH,000	PCH-112D2M,000
Power relay type	standard	standard	standard	standard	standard	standard	standard	standard	standard	standard
Terminal limit breaking current (A)	5	5	5	5	5	5	5	5	5	5
Coil excitation system	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC	Monostable, DC
Coil Power Rating Class (mW)	150 – 200	150 – 200	150 – 200	300 – 400	150 – 200	150 – 200	300 – 400	300 – 400	300 – 400	300 – 400
Coil Power Rating (DC) (mW)	200	200	200	400	200	200	400	400	400	400
Coil resistance (Ω)	2880	720	2880	5760	720	125	360	1440	1440	360
Coil characteristics	UL Coil Insulation Class F, Sensitive Version	UL Coil Insulation Class F, Sensitive Version	UL Coil Insulation Class F, Sensitive Version	UL Coil Insulation Class F	UL Coil Insulation Class F, Sensitive Version	UL Coil Insulation Class F, Sensitive Version	UL Coil Insulation Class F	UL Coil Insulation Class F	UL Coil Insulation Class F	UL Coil Insulation Class F
Coil Voltage Rating (VDC)	24	12	24	48	12	5	12	24	24	12
Terminal switch load (minimum)	100mA @ 5V	100mA @ 5V	100mA @ 5V	100mA @ 5V	100mA @ 5V	100mA @ 5V	100mA @ 5V	100mA @ 5V	100mA @ 5V	100mA @ 5V
Terminal switching voltage (max) (VAC)	277	277	277	277	277	277	277	277	277	277
Terminal switching voltage (max) (VDC)	30	30	30	30	30	30	30	30	30	30
Terminal Voltage Rating (VAC)	277	277	277	277	277	277	277	277	277	277
Terminal Voltage Rating (VDC)	30	30	30	30	30	30	30	30	30	30
Initial dielectric between terminal and coil (Vrms)	4000	4000	4000	4000	4000	4000	4000	4000	4000	4000
Insulation leakage type (mm)	3 – 5.5	3 – 5.5	3 – 5.5	3 – 5.5	3 – 5.5	3 – 5.5	3 – 5.5	3 – 5.5	3 – 5.5	3 – 5.5
Terminal limit continuous current (A)	5	5	5	5	5	5	5	5	5	5
Terminal limit short-time current (A)	5	5	5	5	5	5	5	5	5	5
Terminal limit closing current (A)	5	5	5	5	5	5	5	5	5	5
Open terminal insulation initial dielectric (Vrms)	750	750	750	750	750	750	750	750	750	750
Coil/terminal insulation initial dielectric type (V)	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000	3500 – 4000
product weight	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]	7 g [ .247 oz ]
Insulating properties	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175	Tracking index of relay base PTI175
Terminal arrangement	1 Form A (NO)	1 Form A (NO)	1 Form A (NO)	1 Form C (CO)	1 Form A (NO)	1 Form A (NO)	1 Form C (CO)	1 Form A (NO)	1 Form A (NO)	1 Form A (NO)
Terminal current type (A)	2 – 5, 16	2 – 5, 16	2 – 5, 16	2 – 5, 16	2 – 5, 16	2 – 5, 16	2 – 5, 16	2 – 5, 16	2 – 5, 16	2 – 5, 16
Contact Current Rating (Max) (A)	5	5	5	5	5	5	5	5	5	5
Terminal material	AgSnO	AgSnO	AgSnO	AgSnO	AgSnO	AgSnO	AgSnO	AgSnO	AgSnO	AgSnO
Number of terminal poles	1	1	1	1	1	1	1	1	1	1
Terminal type	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT	PCB-THT
Relay installation type	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board
Product height	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]	15.2 mm [ .598 in ]
Product length	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]	20 mm [ .787 in ]
Product width	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]	10 mm [ .394 in ]
Width type (mechanical) (mm)	8 – 10	8 – 10	8 – 10	8 – 10	8 – 10	8 – 10	8 – 10	8 – 10	8 – 10	8 – 10
Height type (mechanical) (mm)	15 – 16	15 – 16	15 – 16	15 – 16	15 – 16	15 – 16	15 – 16	15 – 16	15 – 16	15 – 16
Insulation gap type (mm)	0 – 2.5	0 – 2.5	0 – 2.5	0 – 2.5	0 – 2.5	0 – 2.5	0 – 2.5	0 – 2.5	0 – 2.5	0 – 2.5
Length type (mechanical) (mm)	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20	16 – 20
Environmental Protection Category	RTII	RTII	RTII	RTII	RTII	RTII	RTII	RTII	RTIII	RTII
Ambient temperature category (°C)	50 – 70	70 – 85	70 – 85	50 – 70	50 – 70	50 – 70	70 – 85	50 – 70	50 – 70	50 – 70
Encapsulation method	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays	Tray, boxes and trays
Ambient temperature (maximum)	85 °C [ 185 °F ]	85 °C [ 185 °F ]	85 °C [ 185 °F ]	-	85 °C [ 185 °F ]	85 °C [ 185 °F ]	85 °C [ 185 °F ]	85 °C [ 185 °F ]	85 °C [ 185 °F ]	85 °C [ 185 °F ]
