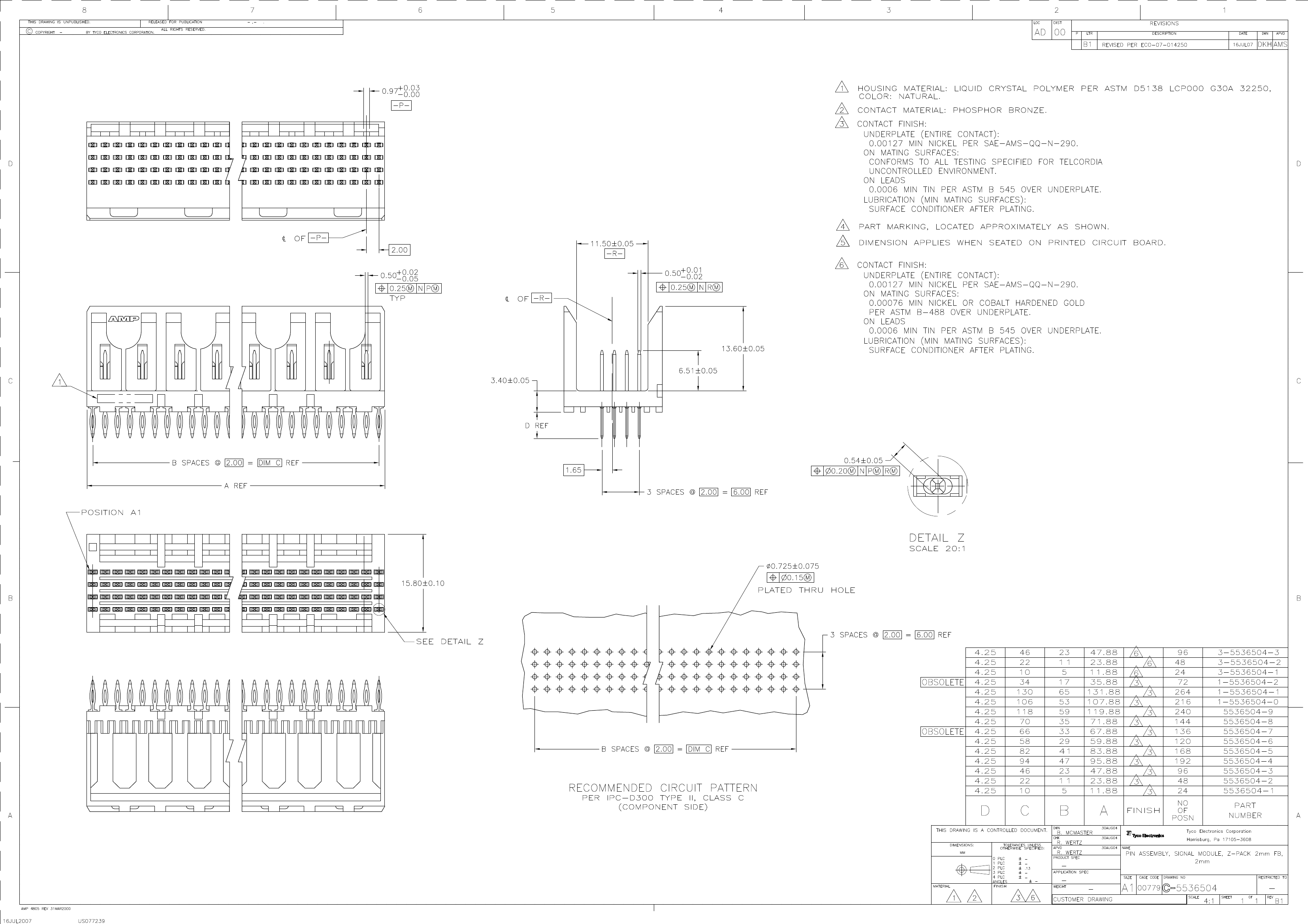

24 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.622 inch |
| subject depth | 0.669 inch |
| body length | 0.468 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL (50)/NICKEL (30) |
| Contact completed and terminated | TIN LEAD (24) OVER NICKEL (50) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .695 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | NATURAL |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 5536504 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| reliability | COMMERCIAL |
| Terminal length | 0.167 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 24 |
| Evacuation force-minimum value | .1112 N |
| Base Number Matches | 1 |
| 3-5536504-1 | 5536504-9 | 5536504-5 | 5536504-6 | 3-5536504-3 | 3-5536504-2 | 5536504-8 | EHH1125TTS-2.0625M-G | EHH1145TS-13.42177M-G2 | 5536504-7 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 24 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT | HEADER CONNECTOR,PCB MNT,PLUG,240 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING,NATURAL | 168 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT | HEADER CONNECTOR,PCB MNT,PLUG,120 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING,NATURAL | 96 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT | 48 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT | HEADER CONNECTOR,PCB MNT,PLUG,144 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING,NATURAL | CMOS, Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 8 Pin DIP Metal Thru-Hole Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 8 Pin DIP Metal Thru-Hole | CMOS, Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 8 Pin DIP Metal Thru-Hole Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 8 Pin DIP Metal Thru-Hole | 136 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT |
| Reach Compliance Code | unknown | compliant | unknown | compliant | unknown | unknown | compliant | compliant | compliant | unknown |
| body width | 0.622 inch | 0.622 inch | - | 0.622 inch | 0.622 inch | 0.622 inch | 0.622 inch | - | - | - |
| subject depth | 0.669 inch | 0.669 inch | - | 0.669 inch | 0.669 inch | 0.669 inch | 0.669 inch | - | - | - |
| body length | 0.468 inch | 4.72 inch | - | 2.357 inch | 1.88 inch | 0.94 inch | 2.83 inch | - | - | - |
| Body/casing type | PLUG | PLUG | - | PLUG | PLUG | PLUG | PLUG | - | - | - |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | - | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL (50)/NICKEL (30) | AU ON NI | NOT SPECIFIED | AU ON NI | GOLD OVER NICKEL (50)/NICKEL (30) | GOLD OVER NICKEL (50)/NICKEL (30) | AU ON NI | - | - | NOT SPECIFIED |
| Contact completed and terminated | TIN LEAD (24) OVER NICKEL (50) | TIN OVER NICKEL | - | TIN OVER NICKEL | TIN LEAD (24) OVER NICKEL (50) | TIN LEAD (24) OVER NICKEL (50) | TIN OVER NICKEL | - | - | TIN LEAD (24) OVER NICKEL (50) |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | - | - | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | - | - |
| contact mode | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - | - |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | - | - |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | - | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | - | - | - |
| Durability | 250 Cycles | 250 Cycles | - | 250 Cycles | 250 Cycles | 250 Cycles | 250 Cycles | - | - | - |
| maximum insertion force | .695 N | .695 N | - | .695 N | .695 N | .695 N | .695 N | - | - | - |
| Insulation resistance | 100000000 Ω | 100000000 Ω | - | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | - | - | - |
| Insulator color | NATURAL | NATURAL | - | NATURAL | NATURAL | NATURAL | NATURAL | - | - | - |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER | - | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER | - | - | - |
| JESD-609 code | e0 | - | - | - | e0 | e0 | - | e3 | e3 | e0 |
| Manufacturer's serial number | 5536504 | - | - | 5536504 | 5536504 | 5536504 | - | EHH11 | EHH11 | - |
| Plug contact pitch | 0.079 inch | 0.079 inch | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | - | - | - |
| Match contact row spacing | 0.079 inch | 0.079 inch | - | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | - | - | - |
| Installation option 1 | LOCKING | LOCKING | - | LOCKING | LOCKING | LOCKING | LOCKING | - | - | - |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | - | - | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | - | - | BOARD |
| Number of connectors | ONE | ONE | - | ONE | ONE | ONE | ONE | - | - | - |
| PCB row number | 4 | 4 | - | 4 | 4 | 4 | 4 | - | - | - |
| Number of rows loaded | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | - | 4 |
| Maximum operating temperature | 125 °C | 125 °C | - | 125 °C | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C | - |
| Minimum operating temperature | -55 °C | -55 °C | - | -55 °C | -55 °C | -55 °C | -55 °C | - | - | - |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - | - |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | - | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | - | - | - |
| Plating thickness | 30u inch | 30u inch | - | 30u inch | 30u inch | 30u inch | 30u inch | - | - | - |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | - | - | - |
| Terminal length | 0.167 inch | 0.167 inch | - | 0.167 inch | 0.167 inch | 0.167 inch | 0.167 inch | - | - | - |
| Terminal pitch | 2 mm | 2.0066 mm | 2 mm | 2.0066 mm | 2 mm | 2 mm | 2.0066 mm | - | - | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | - | - | PRESS FIT |
| Total number of contacts | 24 | 240 | 168 | 120 | 96 | 48 | 144 | - | - | 136 |
| Evacuation force-minimum value | .1112 N | .1112 N | - | .1112 N | .1112 N | .1112 N | .1112 N | - | - | - |
| Is it Rohs certified? | - | conform to | conform to | conform to | - | - | conform to | conform to | conform to | - |
| Objectid | - | 304959536 | 2062376850 | - | - | - | 304959535 | 7032447180 | 7032454370 | 1790921258 |
