8956.2C Overview

safety relays rm2g4 4 chnl 24vdc safety relay dpdt

Preview

Download Datasheet

View All

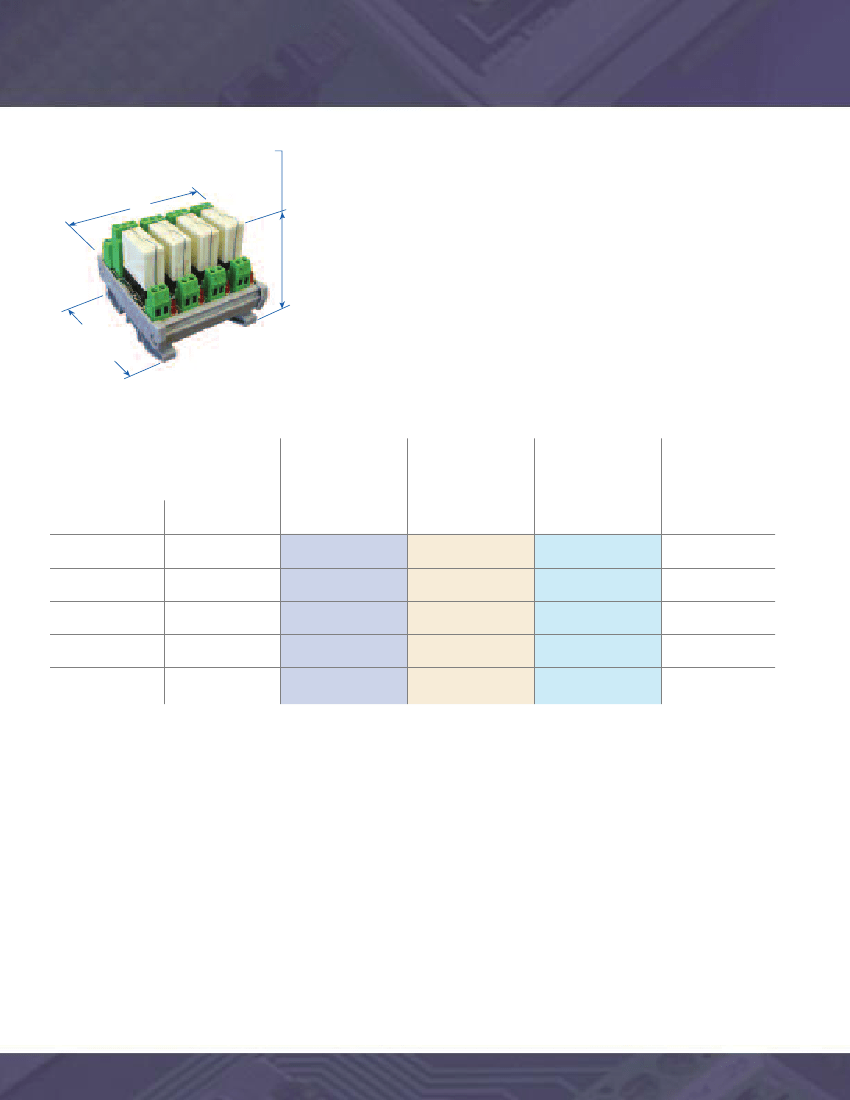

Safety Relay Modules

Isolated Channels - 8 Amp Contacts, 35 or 32 DIN Rail

Isolated Channel (Double Pole Double Throw)

TS35x7.5 71 mm (2.80 in.)

TS32x15 76 mm (2.99 in.)

Altech Safety Relay Modules utilize Relays with Force-Guided-Contacts that meet or

exceed international standards, TÜV and UL. They are designed to protect man and

machine as specified in OSHA FR1910 Regulations, a mandatory requirement of the

European Machinery Directive EMD 89.392 EEC. The Safety Relays are used in Safety

Devices such as Emergency Stop Modules, Safety Gate Monitors, 2-Hand Safety Modules, etc.

This series of Safety Relay Modules are Double Pole, Double Throw configurations, and are

available as 1, 2, 4, 8 and 16 isolated channels and 8 and 16 bussed channels with 12 or 24

VDC coils. Isolated channels allow control of each relay by a different logic system, if

necessary. There are two inputs for each relay coil per channel. Bussed channels allow high

density packaging with a common input for all relays.Safety Relay Modules may be ordered

with three different types of relay contact material, depending on the actual load current.

•

Screw-Cage Clamp Connection

LED Coil Voltage Indicator

Reverse DC Polarity LED Protection

Surge Suppression With DC Coils

Industry Standard Relays

DIN Rail Mount, Panel Mount Available

DPDT

Isolated Channel

(no bus)

1 Channel

2 Channel

4 Channel

8 Channel

16 Channel

m )

m in.

87 .43

Contact Material:Contact Material:

AgSnO

+0.2µmAu

Contact Ratings:

8A(2x5A) 250VDC, 400VAC

Contact Material:

AgNi10+0.2µmAu

Contact Ratings:

8A(2x5A) 250VDC, 400VAC

AgNi10+5µmAu

Contact Ratings:

8A(2x5A) 250VDC, 400VAC

Coil Voltage

12V

24V

12V

24V

12V

24V

12V

24V

12V

24V

Part Number

8949.2C

8951.2C

8949.3C

8951.3C

8955.2C

8956.2C

8955.3C

8956.3C

8963.2C

8972.2C

Part Number

8949.2N

8951.2N

8949.3N

8951.3N

8955.2N

8956.2N

8955.3N

8956.3N

8963.2N

8972.2N

Part Number

8949.2S

8951.2S

8949.3S

8951.3S

8955.2S

8956.2S

8955.3S

8956.3S

8963.2S

8972.2S

Module Length (L)

in mm (in)"

21 (0.83)

40 (1.57)

79 (3.11)

157 (6.18)

311 (12.24)

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE
