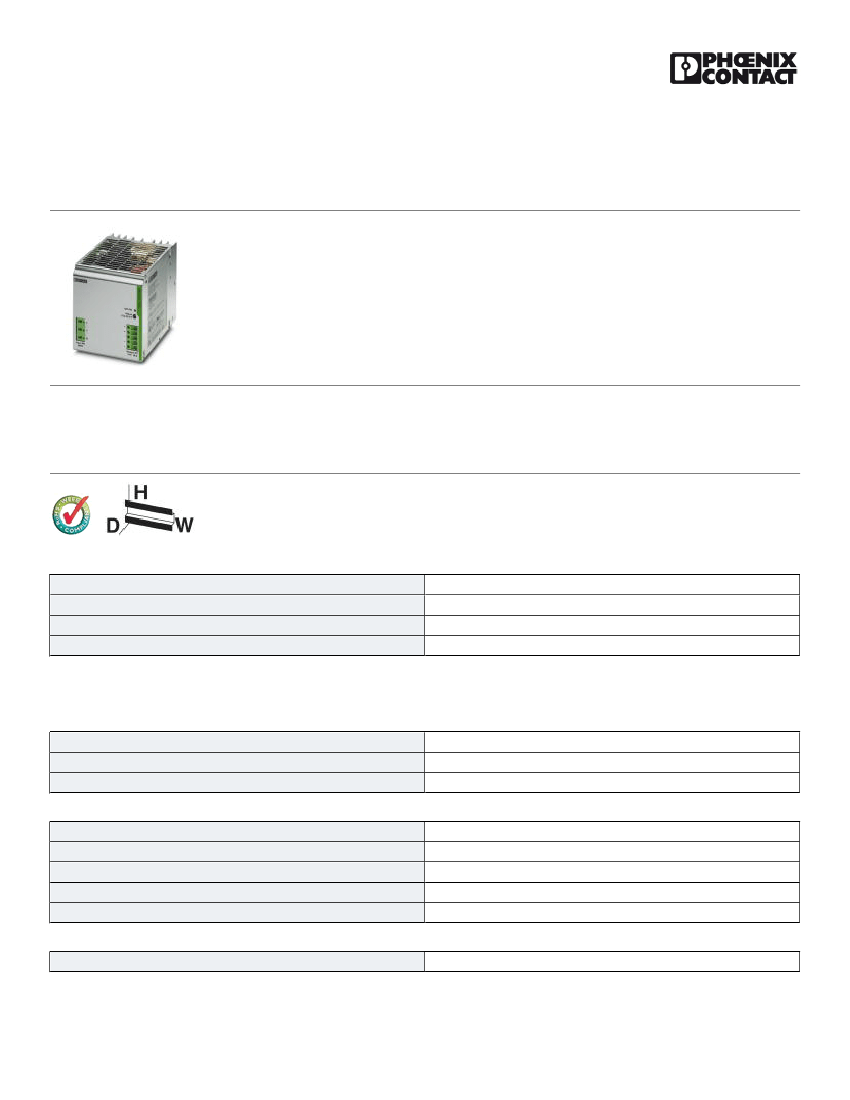

Power supply unit - TRIO-PS/600DC/24DC/20 - 2866530
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
DIN rail power supply unit, primary-switched, 1-phase, input: 600 V DC; output: 24 V DC/20 A
Product description
TRIO POWER is the power supply unit for the DIN rail with basic functionality at the highest level. TRIO POWER, 600 V DC, 24 V DC is ideally suited for
connection to 600 V DC intermediate circuits of frequency inverters: In the event of a line supply failure, 24 V loads are supplied using the kinetic energy
of the motor.
Packing unit
1 pc
1980.0 GRM
85044030
China
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Width
Height
Depth
115 mm
130 mm
152.5 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Max. permissible relative humidity (operation)
Noise immunity
IP20
-25 °C ... 70 °C (> 55° C derating)
-40 °C ... 85 °C
≤ 95 % (at 25 °C, non-condensing)
EN 61000-6-2:2005
Input data
Nominal input voltage range
600 V DC
10/21/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/2866530
Power supply unit - TRIO-PS/600DC/24DC/20 - 2866530
Technical data
Input data
Input voltage range
Frequency range DC
Current consumption
Inrush surge current
Power failure bypass
Choice of suitable fuses
Type of protection
Protective circuit/component
450 V DC ... 840 V DC (Dielectric strength up to 900 V DC)
0 Hz
0.9 A (600 V DC)
< 26 A
> 15 ms (600 V DC)
4 A ... 6 A (1000 V DC)
Transient surge protection
Varistor
Output data
Nominal output voltage
Setting range of the output voltage
Output current
Derating
Connection in parallel
Connection in series
Max. capacitive load
Current limitation
Control deviation
24 V DC ±1 %
22.5 V DC ... 29.5 V DC (U
IN
> 475 V DC)
22.5 V DC ... 28 V DC (U
IN
≤ 475 V DC)
20 A (-25°C ... 55°C)
55 °C ... 70 °C (2.5%/K)
Yes, for redundancy and increased capacity
Yes
Unlimited
Approx. 25 A (for short-circuit)
< 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %)
Residual ripple
Peak switching voltages nominal load
Maximum power dissipation NO-Load
Power loss nominal load max.
< 40 mV
PP
< 10 mV
PP
3.8 W
45 W
General
Net weight
Efficiency
Insulation voltage input/output
Protection class
Mounting position
Assembly instructions
Electromagnetic compatibility
Low Voltage Directive
2 kg
> 91 % (With 600 V DC and nominal values)
4 kV AC (type test)
2 kV AC (routine test)
I (with PE connection)
> 701000 h (40°C)
horizontal DIN rail NS 35, EN 60715
Can be aligned: Horizontally 0 mm, vertically 50 mm
Conformance with EMC Directive 2004/108/EC
Conformance with LV directive 2006/95/EC
10/21/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/2866530
Power supply unit - TRIO-PS/600DC/24DC/20 - 2866530
Technical data
General
Standard – Electrical equipment of machines
Standard - Electrical safety
Standard – Electronic equipment for use in electrical power installations
and their assembly into electrical power installations
Standard – Safety extra-low voltage
Standard - Safe isolation
Standard – Protection against electric shock
Standard – Protection against shock currents, basic requirements for
protective separation in electrical equipment
Standard – Limitation of mains harmonic currents
UL approvals
Surge voltage category
EN 60204
EN 60950-1/VDE 0805 (SELV)
EN 50178/VDE 0160 (PELV)
EN 60950-1 (SELV)
EN 60204 (PELV)
DIN VDE 0100-410
DIN VDE 0106-1010
DIN 57100-410
DIN VDE 0106-101
EN 61000-3-2
UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950
III
Connection data, input
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Stripping length
Screw thread
Screw connection
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
14
9 mm
M2,5
Connection data, output
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Stripping length
Screw connection
0.5 mm²
6 mm²
0.5 mm²
4 mm²
12
10
14 mm
Signaling
Status display
"DC OK" LED green
10/21/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/2866530
Power supply unit - TRIO-PS/600DC/24DC/20 - 2866530
Technical data
Signaling
Note on status display
U
OUT
> 21.5 V: LED lights up
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27040702
27040702
27049002
27049002
27049002
27049002
27049002
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001039
EC000599
EC002540
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211502
39121004
39121004
39121004
39121004
Approvals
Approvals
Approvals
UL Recognized / UL Listed / cUL Recognized / cUL Listed / cULus Recognized / cULus Listed
Ex Approvals
Approvals submitted
10/21/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/2866530
Power supply unit - TRIO-PS/600DC/24DC/20 - 2866530
Approvals
Approval details
UL Recognized
UL Listed
cUL Recognized
cUL Listed
cULus Recognized
cULus Listed
Drawings
Block diagram
PE
