Data sheet
SAI-M23-KBC-0.75/2.50
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawing
The M23 round plug-in connectors offer a high number
of mating cycles, high current-carrying capacity and high
contact-density coupled with minimum dimensions.
Enclosures, inserts and crimp contacts need to be
ordered separately.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
SAI-M23-KBC-0.75/2.50
1995820000
Sensor/Actuator plug-in connector, Crimp contact
4032248925681
50 pc(s).
Creation date November 16, 2018 9:33:26 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
1
Data sheet
SAI-M23-KBC-0.75/2.50
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
0.94 g
Dimensions and weights
Net weight
Temperatures
Operating temperature, max.
REACH SVHC
125 °C
Operating temperature, min.
-40 °C
Environmental Product Compliance
Lead 7439-92-1
Standards
Certificate No. (UR)
E344862
General data
Conductor O.D.
Contact surface
Type of connection
-
Gold-plated
Crimp connection
Contact material
Rated current
Copper-zinc alloy
20 A
Classifications
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
EC002635
27-06-91-90
27-06-91-90
27-44-02-90
ETIM 6.0
eClass 7.1
eClass 9.0
EC000796
27-06-91-90
27-06-91-90
Product information
Product information
Enclosures, inserts and crimp contacts need to be ordered separately.
Approvals
Approvals
ROHS
Conform
Downloads
Brochure/Catalogue
CAT 8 SAI 15/16 EN
FL FIELDWIRING EN
Creation date November 16, 2018 9:33:26 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
2
Data sheet
SAI-M23-KBC-0.75/2.50
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Accessories

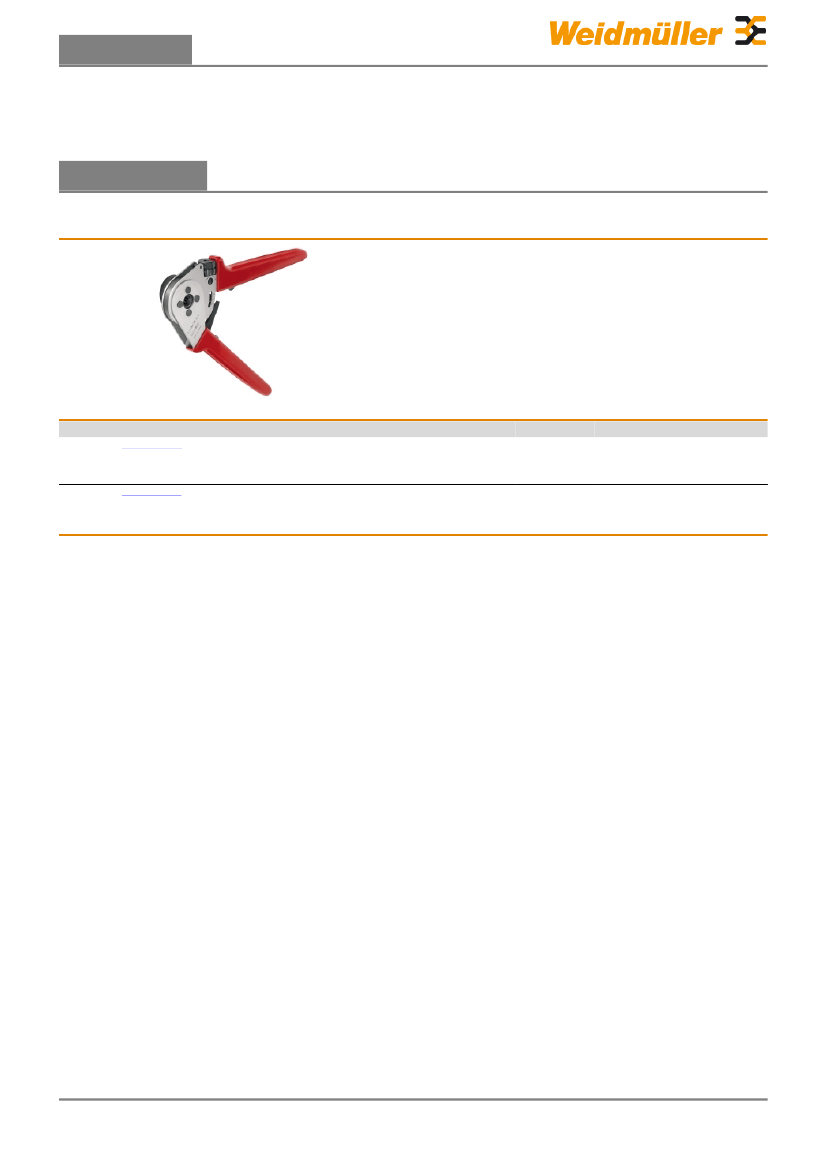

M23 crimping tool
Weidmüller offers a wide range of tools and accessories
for sensor-actuator cabling.
General ordering data
Type
SAI M23
TOOL 2
Order No.
CRIMPING
SAI M23
TOOL 1
1203960000
Version
Sensor/Actuator plug-in
connector
GTIN (EAN)
4050118000764 1 pc(s).
Qty.
CRIMPING
1203840000
Sensor/Actuator plug-in
connector
4032248986934 1 pc(s).
Creation date November 16, 2018 9:33:26 AM CET
Catalogue status 09.11.2018 / We reserve the right to make technical changes.
3
