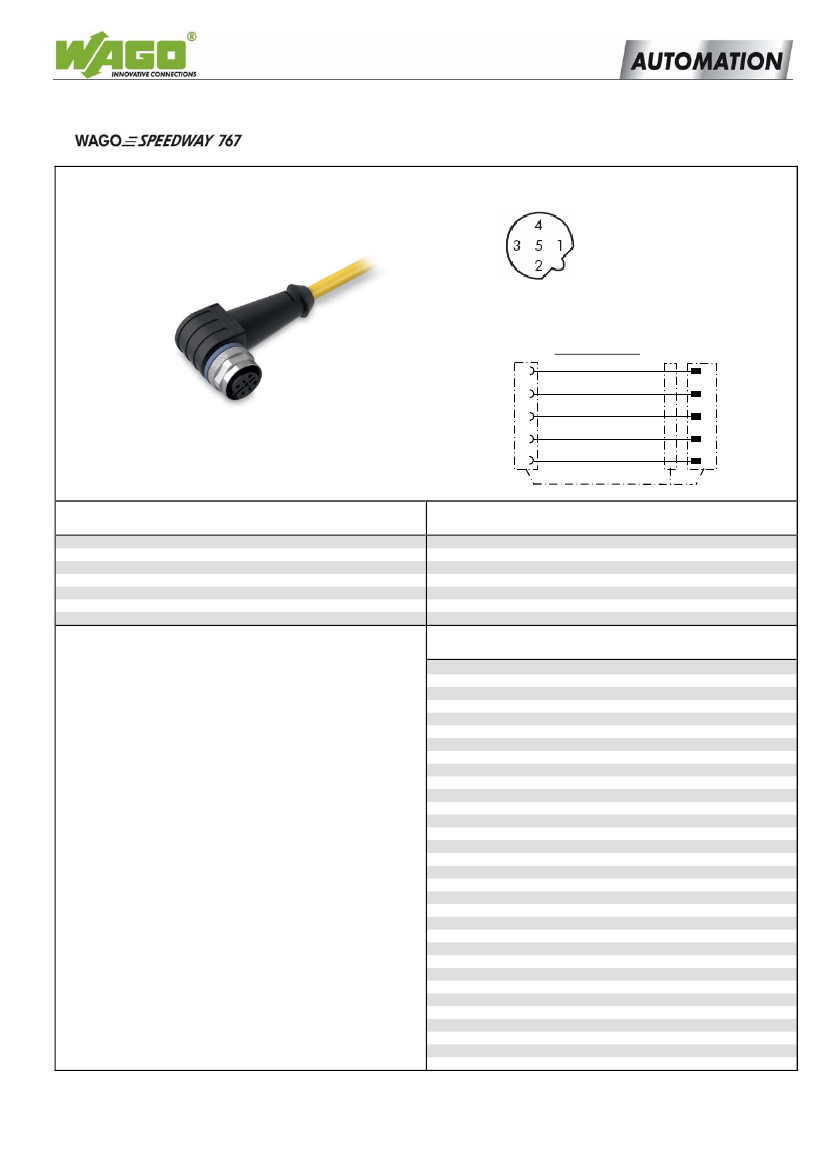

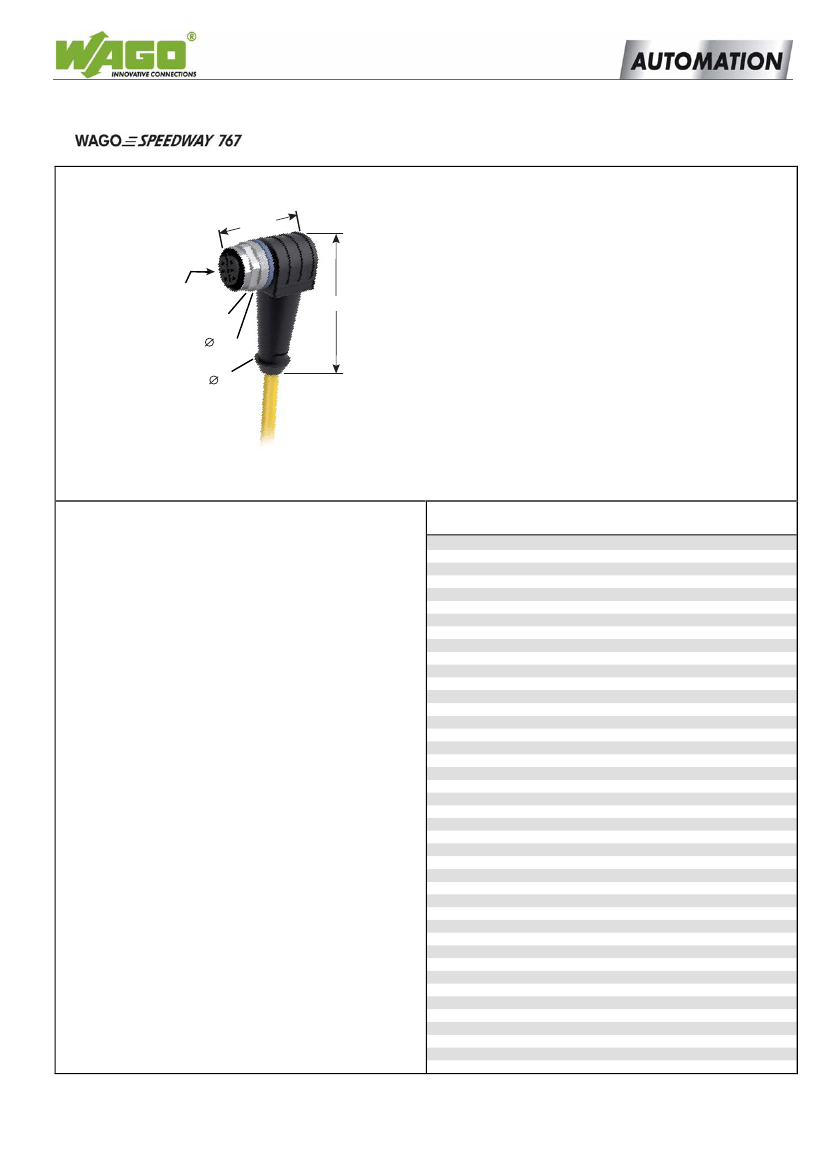

System Bus Cable
for
1/2
Data Sheet
M12 Socket
Pin assignment
1
2
3
4
5
white/blue
red
blue
white/orange
orange
white/green,green,white/
brown,brown
shielded
(
)
1
2
3
4
5
Description
System bus cable, with one end of cable fitted,, B coded,
not drag chain suitable
M12 socket, right angle, one free cable end, 2.0 m
M12 socket, right angle, one free cable end, 5.0 m
M12 socket, right angle, one free cable end, 10.0 m
M12 socket, right angle, one free cable end, 20.0 m
Item
no.
Pack. unit
pcs
1
1
1
1
756-1302/0060-0020
756-1302/0060-0050
756-1302/0060-0100
756-1302/0060-0200
Short description:
PUR, halogen-free
Free of silicon and CFC
Good resistance to microbes, hydrolysis, oil, ozone and
UV radiation. Good chemical resistance.
UL approved
Technical data
General
Operating voltage
Operating current
Rated surge voltage
Insulation resistance
Contact resistance
Resistance of conductor
Pollution degree
Degree of protection
Operating temperature
Min. bending radius
Other characteristics
≤
60 V
4 A acc. to IEC 60512-3
1.5 kV acc. to IEC 61076-2-101
8
≥
5x10
Ω
≤
10 mΩ acc. to IEC 61076-2-101
≤
145
Ω/km
3/2 acc. to IEC 60664-1
IP67 acc. to IEC 60529
-25 °C ... +60 °C (static)
5 x cable Ø
UV resistant acc. to
DIN EN ISO 4892-2B (2006)
(1000 h UV continuous light)
KS-02YS(ST+C)11Y 4x2xAWG26/7-
100
Ω,
shielded
Constr. acc. to UL AWM Style 21586
Aluminum-laminated foil and
tinned copper braid, optical
coverage approx. 65 %
Better than Category 5 according to
EN 50228 and IEC 61156
Band width 200 MHz
Bare copper wire , AWG 26/7
Max. Ø 1.0 mm, foamed PE
Halogen-free polyurethane (PUR)
flame resistant acc. to IEC 60332-1-2
Yellow, RAL -1021
Approx. Ø 6.0 mm
Cable
Type code
Note
Overall shield
Note
Conductor
Insulation
Outer jacket
Color
Cable diameter
WAGO Kontakttechnik GmbH & Co.KG
Subject to design changes
30.08.2012 / d07561302_00600xx0_0en.doc
Postfach 2880 • D-32385 Minden
Hansastr. 27 • D-32423 Minden
Phone: 05 71 / 8 87-0
E-Mail:
Fax:
05 71 / 8 87-169 Web:
info@wago.com
http://www.wago.com
System Bus Cable
for
2/2
Data Sheet
28,5
M12 x 1
SW13
15
11,6
45,5
Technical data (continued)
Connectors
Socket
Molded body/
Housing material
Contact material
Contact plating
Knurled nut with hexagonal
Knurled nut surface
Sealing ring
Mechanical life
Torque
Accessories
Torque assembly kit incl.
M8- und M12- Allen key
M12x1, B-coded
TPU/TPU, black (~ RAL 9005)
CuZn
CuNi/Au
CuZn
Nickel-plated
FPM (Viton)
Max. 100 mating cycles
0.6 Nm
206-701
WAGO Kontakttechnik GmbH & Co.KG
Subject to design changes
30.08.2012 / d07561302_00600xx0_0en.doc
Postfach 2880 • D-32385 Minden
Hansastr. 27 • D-32423 Minden
Phone: 05 71 / 8 87-0
E-Mail:
Fax:
05 71 / 8 87-169 Web:
info@wago.com
http://www.wago.com
