48 x 48 Electromechanical 6 s 12 mm Part number 88226013
Relay output
Mono-voltage
1 timed changeover and 1 instantaneous contact
Elapsed time can be saved mechanically in the event of a break in supply
Progress of cycle displayed
Housing 48 x 48 mm
Connection by screw-terminal base or 8-pin base
Part numbers
Type
88 226 013
Functions
Relay outputs
1 time changeover 5 A 1 instantaneous
Delay
12 min : - Max. timing 6 s - 60 s - 12 min- Dial graduation 0.1 s - 1 s - 12 s
Voltages
24 V AC
6 s 12 mm Multi-function 2 - 3 - 4
Specifications
Precision limit error
Repetition accuracy
Selection precision
Reset time
Timed two-pole
Instantaneous single pole
Thermal rating
Rating (cos
φ =
0.41) 10
4
operations
Absorbed power-motor
Voltage variation at maximum temperature of 55
o
C
according to IEC 255 100
± 2 % (± 5 %/6 s)
± 1.5 % (± 4 %/6 s)
See "timing ranges" table for scale graduation
0.20 s
1
1
6,3 A
5 A - 230 V
3 VA cos
φ 0,8
24 V +10 % - 42 V -15 %
48 V +10 % - 110 V -20 %
127 V 0 % - 220 V -20 %
240 V 0 %
100 %
-10→+55
-20→70
Operating factor
Temperature limits use (°C)
Temperature limits stored (°C)
Environmental protection Tropicalised to IEC 68-2-10
Vibration withstand on 3 axes (Veritas standard)
4 G - 55 Hz
Dielectric test voltage according to IEC 255 5 or VDE 0435
1000 V - Un ≤ 60 V
2000 V - Un > 60 V
Insulation according to standard VDE 0110 group C
380 V AC - 440 V DC
Protection Housing
IP 40
Degree of terminal protection
IP 10
Conformity to standards NFC 45250 - VDE 0110 - 0435 -
0660 or ICE 529
Connection : Screw/saddle
Terminal capacity Single-wire 1 or 2 leads Multi-wire
0,75 - 2,5 mm
2
Terminal capacity Multi-wire 1 or 2 leads
Mounting : Base mounting on 8-pin socket
Weight (g)
0,5 - 1 mm
2
185

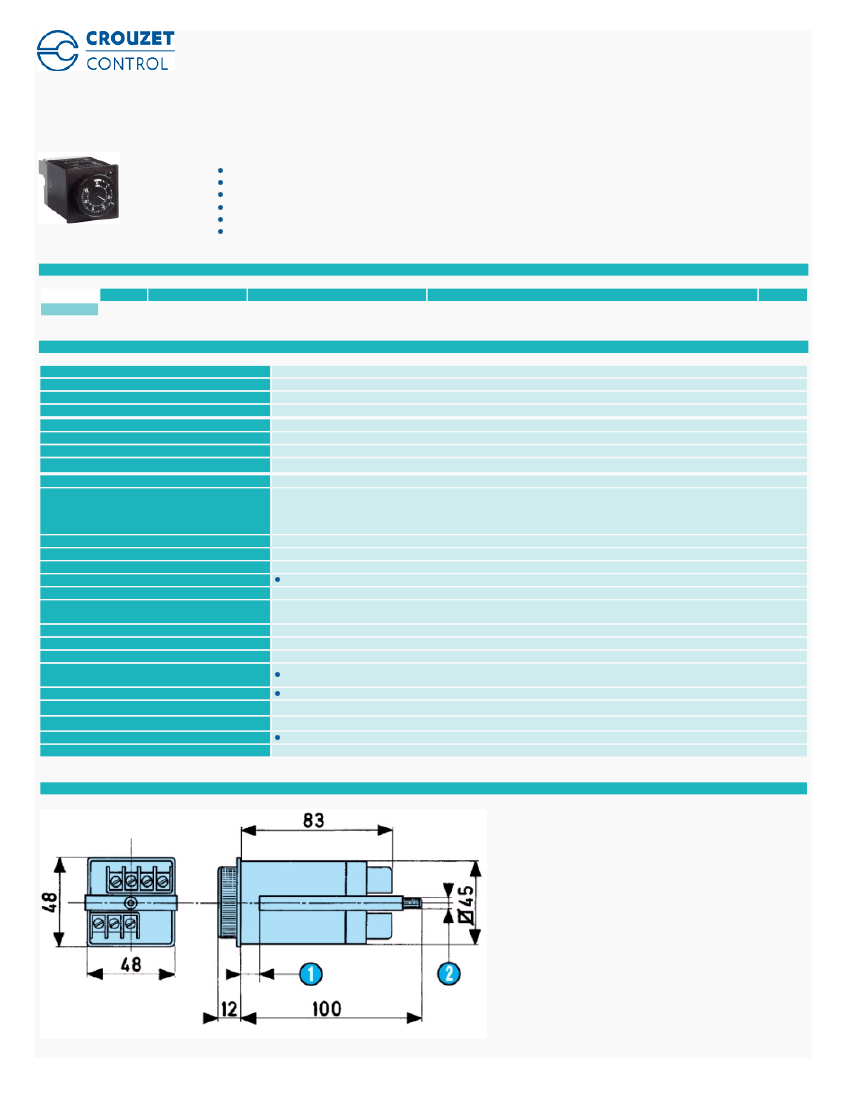

Dimensions (mm)
88 226 0
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
48 V DC
84 861 503 : 110 127 V DC
Weight 150 g" class="link_produits thickbox"> Zoom
N
o
Legend

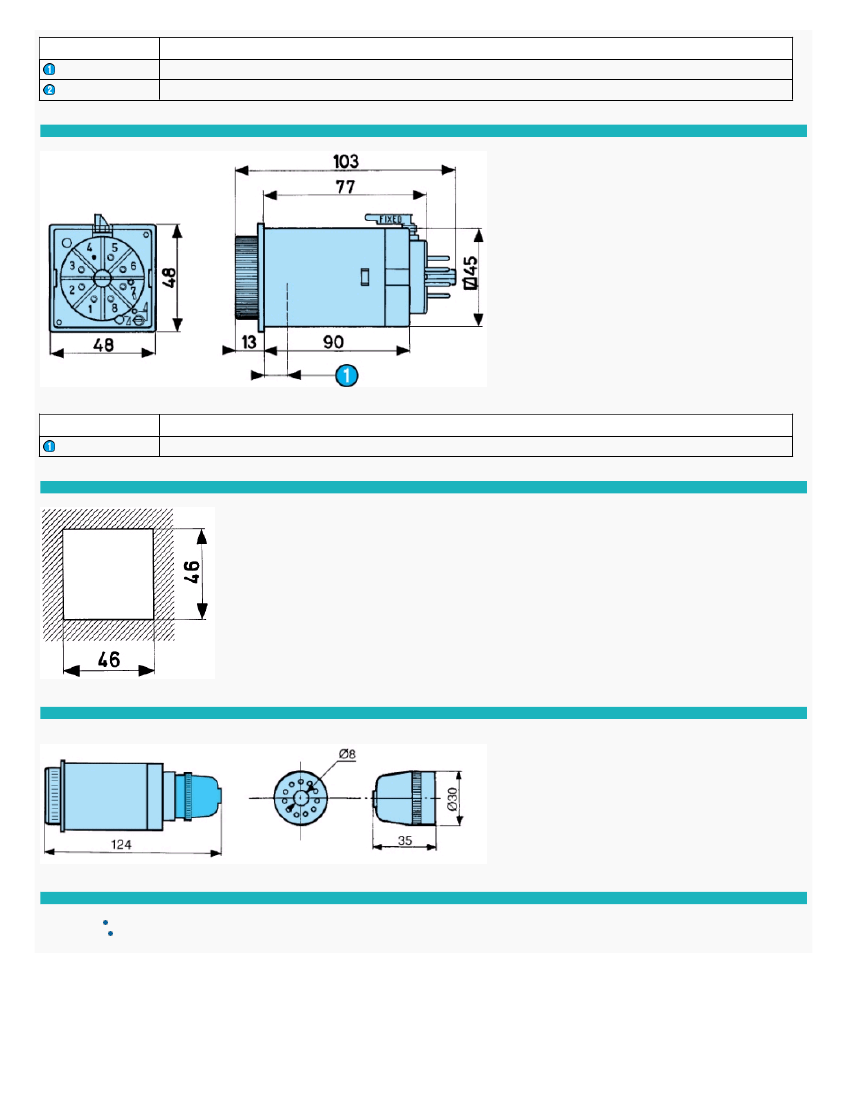

Fixing holes ø 5
Dimensions (mm)
Screw terminal or connector socket
26 622 128 - 8-pin

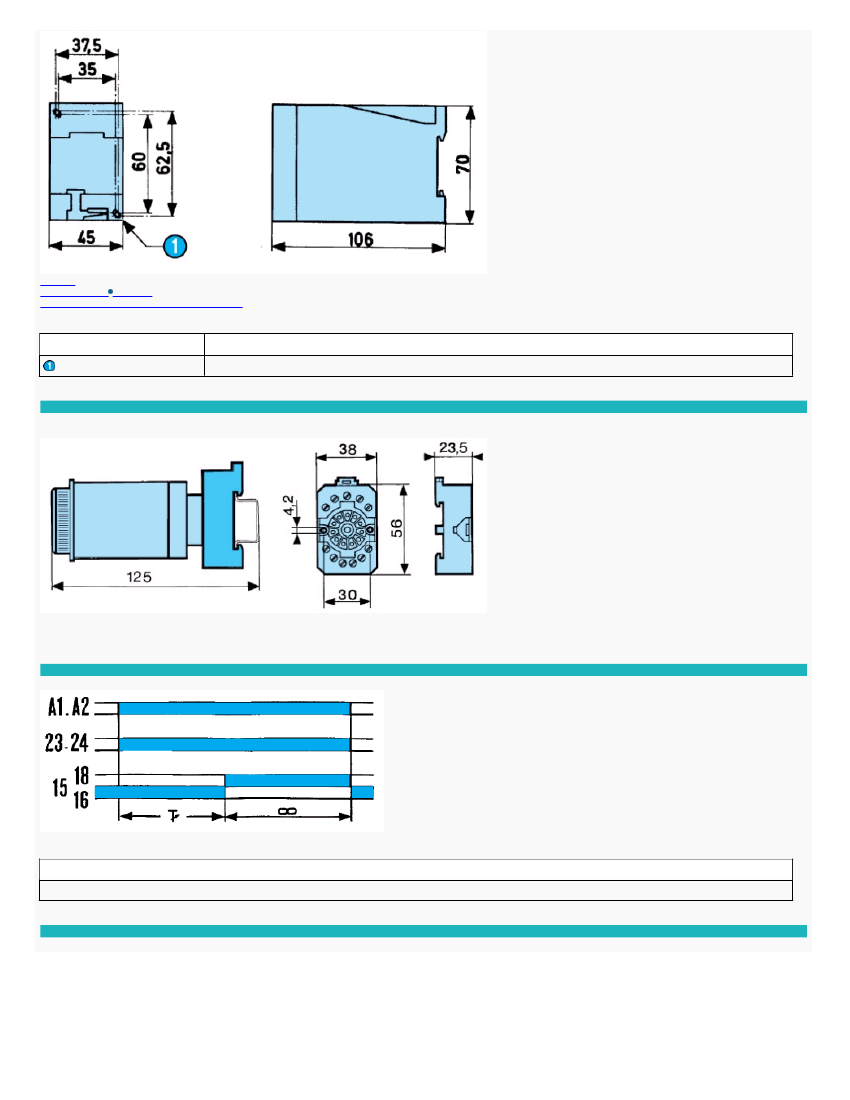

Curves
Function 2
Function
*** TRADUCTION MANQUANTE ***

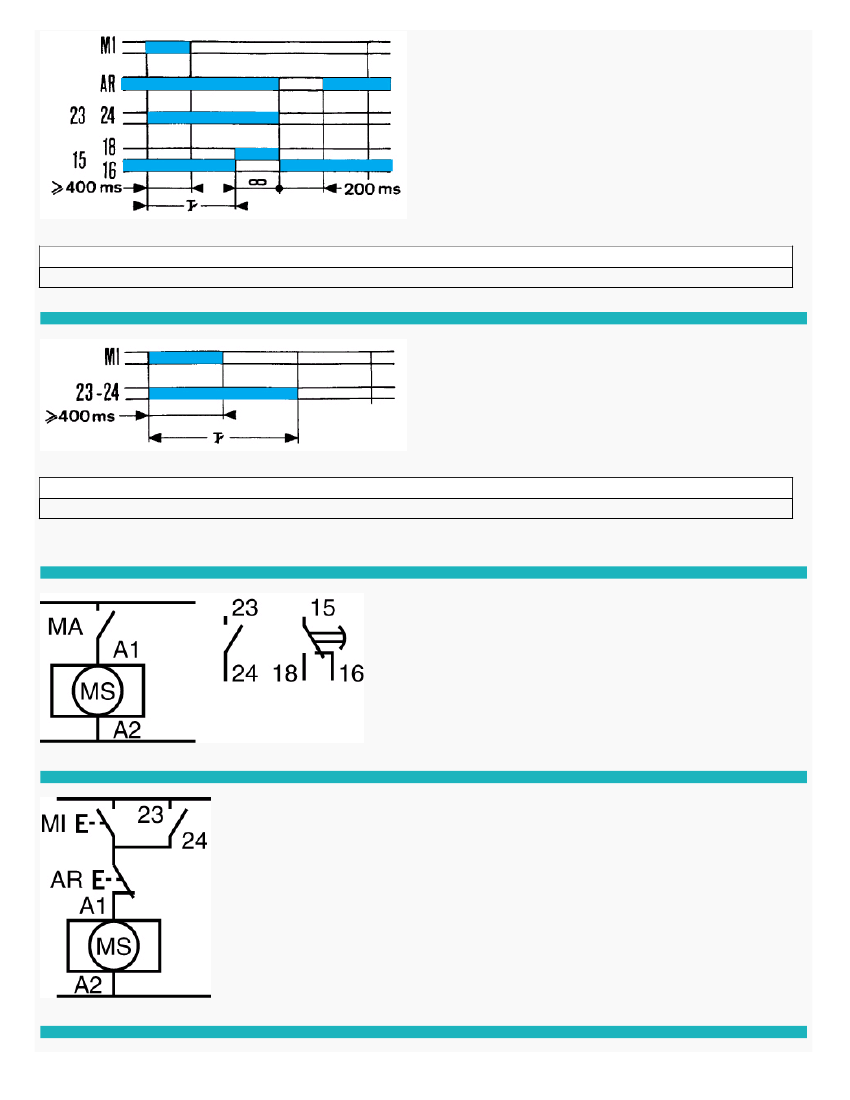

Curves
Function 3
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
Function
*** TRADUCTION MANQUANTE ***
Curves
Function 4
Function
*** TRADUCTION MANQUANTE ***
Connections
Function 2
Connections
Function 3
Connections
Function 4
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
Function 4 : On energisation, chance of contact bounce on instantaneous contact for 250 ms
Connections

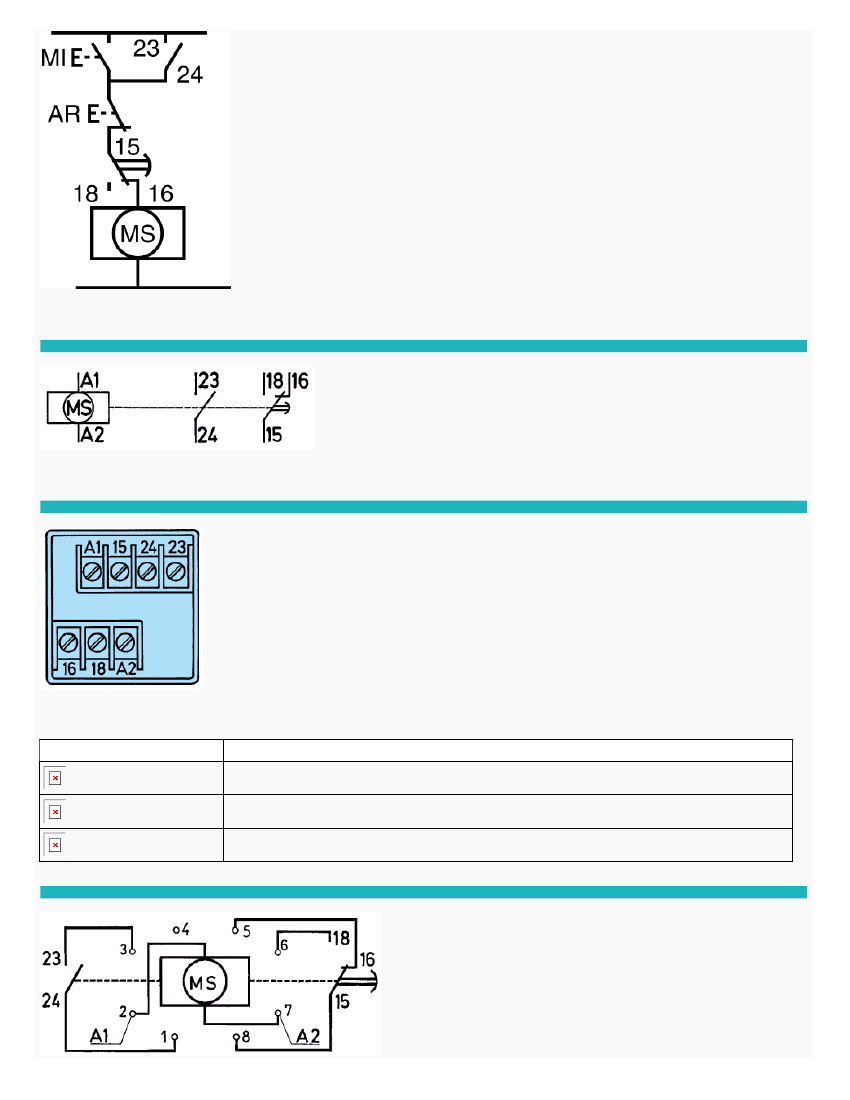

Internal layout 88 226 0
Function 4 : On energisation, chance of contact bounce on instantaneous contact for 250 ms
Connections
Terminal identification 88 226 0
Function 4 : On energisation, chance of contact bounce on instantaneous contact for 250 ms
N
o
Legend
Supply
Timed contact
Instantaneous contact
Connections
Internal layout 88 226 5
