Board Connector, 22 Contact(s), 2 Row(s), Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

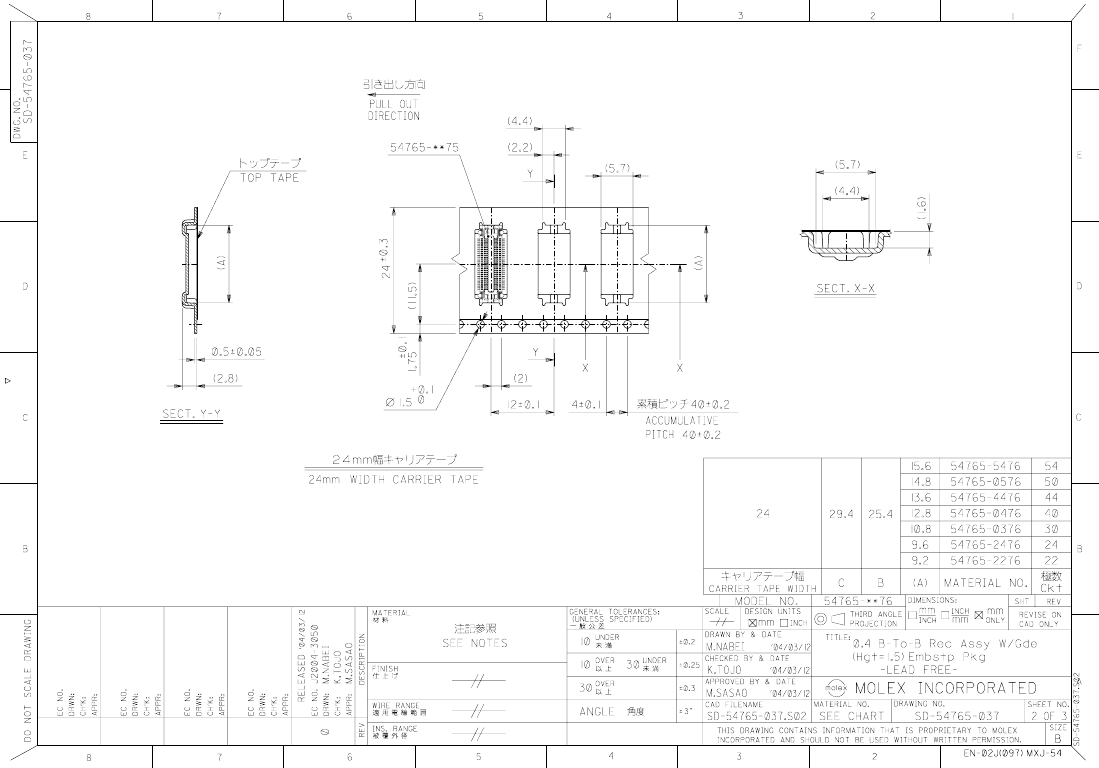

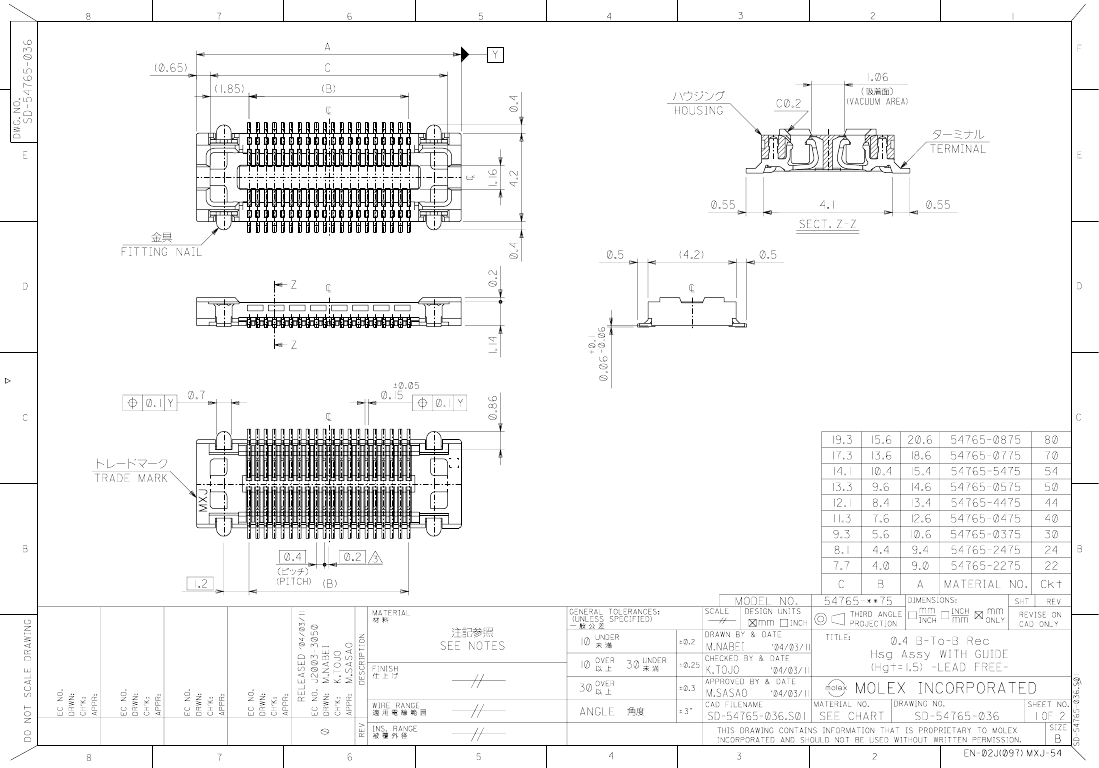

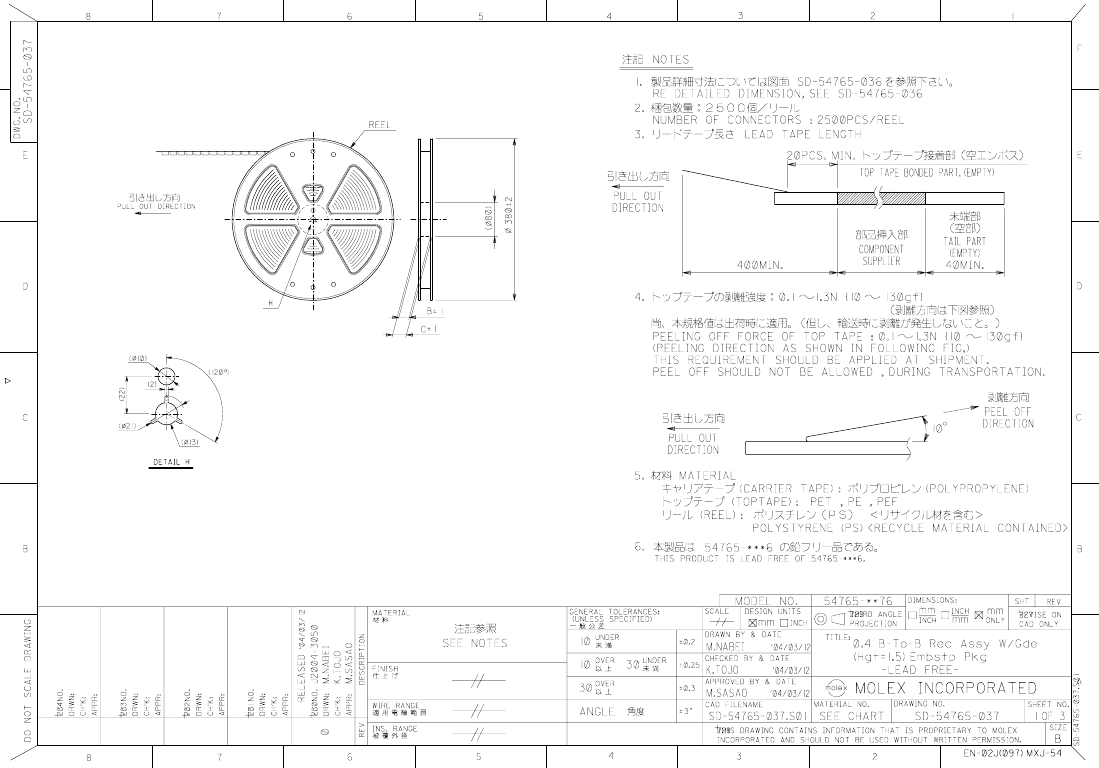

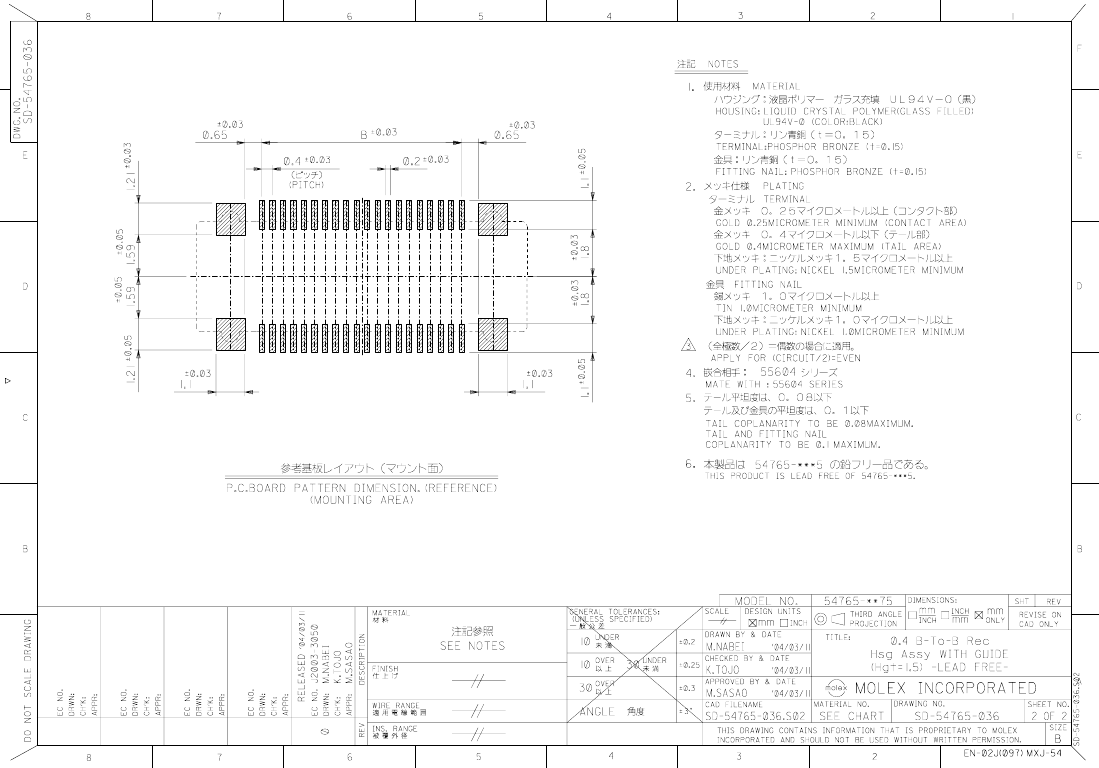

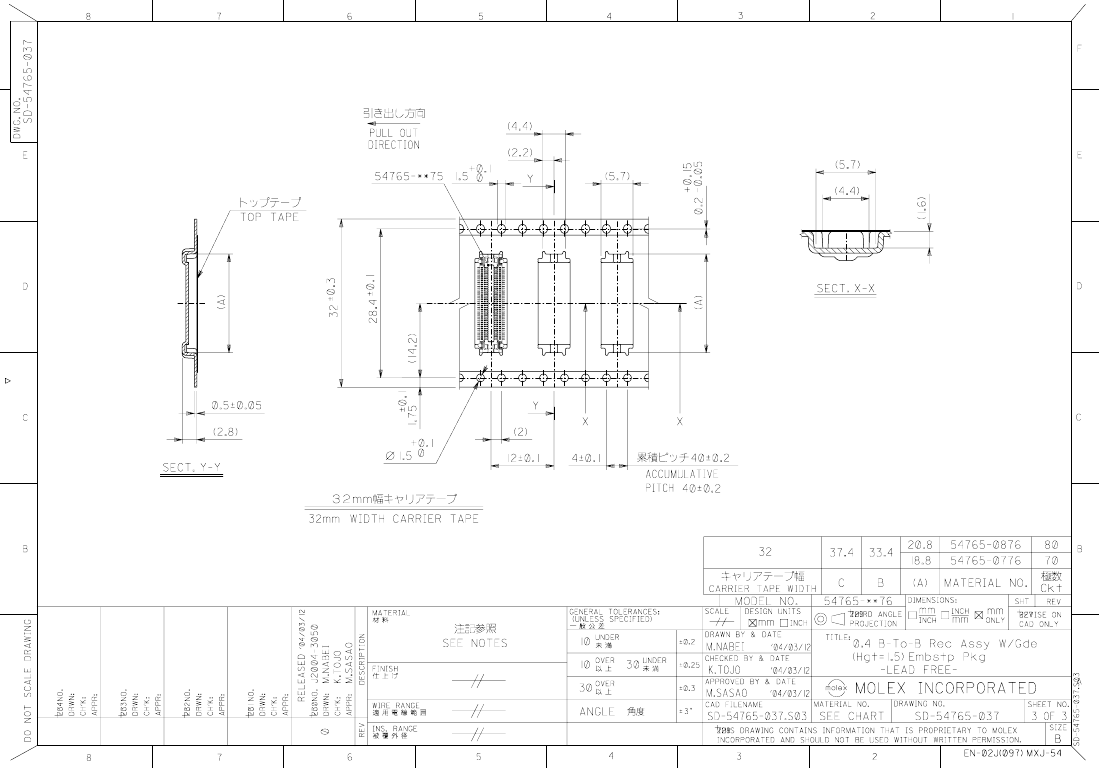

| Parameter Name | Attribute value |
| contact mode | RECTANGULAR |
| Installation option 1 | LOCKING |
| PCB contact row spacing | 4.699 mm |
| Contact style | BELLOWED TYPE |
| Plug contact pitch | 0.016 inch |
| Mixed contacts | NO |
| Number of connectors | ONE |
| PCB contact pattern | RECTANGULAR |
| Contact completed and terminated | GOLD OVER NICKEL |
| Plating thickness | 10u inch |
| Board mount options | FITTING NAIL |
| Contact material | PHOSPHOR BRONZE |
| Insulator color | BLACK |
| Termination type | SURFACE MOUNT |
| body width | 0.165 inch |
| subject depth | 0.053 inch |
| body length | 0.354 inch |
| Total number of contacts | 22 |
| Body/casing type | RECEPTACLE |
| Contact to complete cooperation | AU ON NI |
| Contact resistance | 40 mΩ |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Connector type | BOARD CONNECTOR |
| Durability | 30 Cycles |
| PCB row number | 2 |
| Rated current (signal) | 0.3 A |
| Terminal pitch | 0.4064 mm |
| Dielectric withstand voltage | 350VAC V |
| Filter function | NO |
| Insulation resistance | 100000000 Ω |
| polarization key | POLARIZED HOUSING |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Guideline | UL |
| 2D Presentation | https://componentsearchengine.com/2D/0/16386662.png |
| 3D View | https://componentsearchengine.com/viewer/3D.php?partID=16386662 |
| Samacsys Thumbnail Image | https://componentsearchengine.com/2D/0/16386662.png |
| Objectid | 313659489 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Samacsys Manufacturer | Molex |
| Samacsys Modified On | 2022-06-14 20:41:48 |
| Samacsys PartID | 16386662 |
| Is Samacsys | N |
| YTEOL | 0 |
