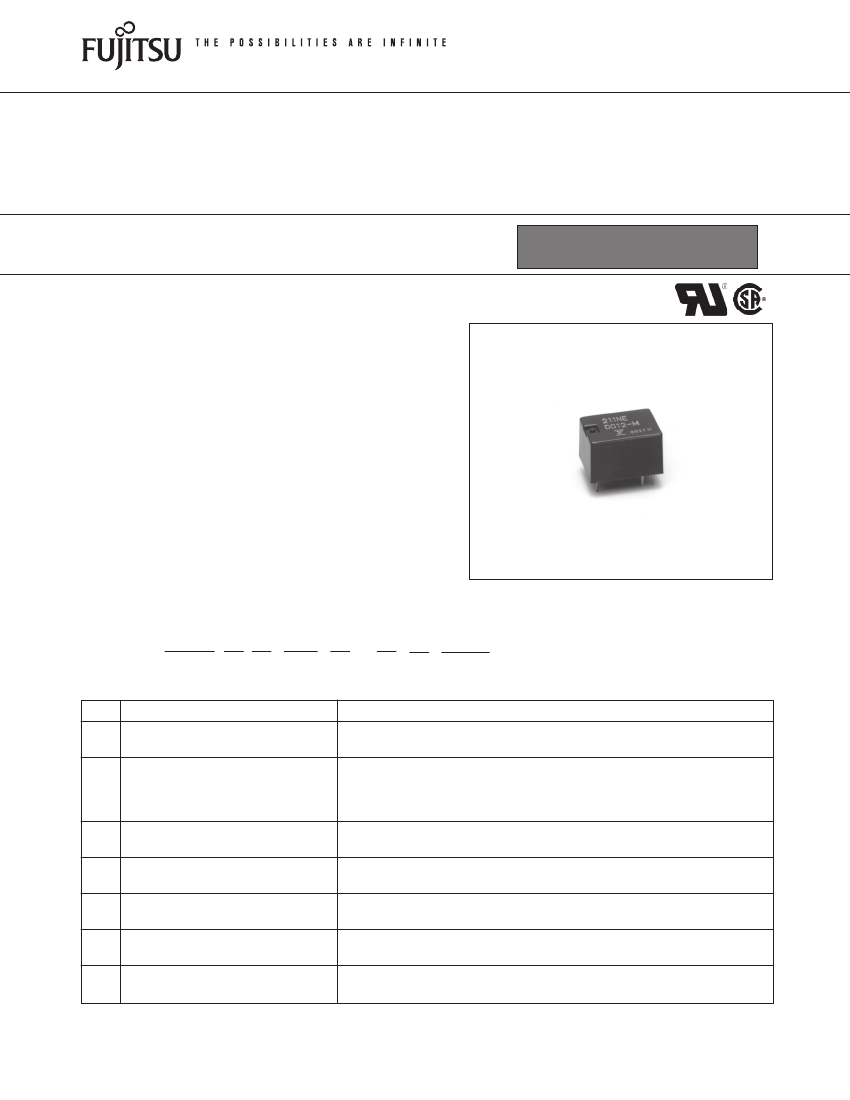

MINIATURE RELAY
1 POLE—1 to 2 A
(FOR SIGNAL SWITCHING)
FBR211 SERIES
n
FEATURES
l
RoHS compliant
l
l
l
l
l
l
l
2 A maximum carrying current
Capable of 2 A maximum continuous carrying current in the
contact
Superior reliability gold-overlay contacts
P type: Gold-overlay silver-palladium contacts
International terminal pitch of one inch grid terminal layout
High sensitivity, low power dissipation types also available
Standard types: 0.45 W (A or B type)
High sensitivity types: 0.2 W (C or E type)
Conforms to FCC 68.302 (high dielectric strength type)
UL recognized (File number E63615)
CSA recognized (File number LR64026)
RoHS compliant since date code: 0433A
Please see page 5 for more information
DI
SC
ON
D012
(d)
n
ORDERING INFORMATION
[Example]
(a)
(b)
FBR211 S A
(a)
(b) (c)
U – P
(e)
(f )
FBR211
TI
Series Name
Enclosure
S: Flux free type
N: Plastic sealed type
NU
2
(g)
(–CSA)
(h)
(c)
Coil Power and Schematics
A: Standard A type (nominal power 450 mW type)
B: Standard B type
C: High sensitivity C type (nominal power 200 mW type)
E: High sensitivity E type
}
}
ED
(d)
(e)
(f )
(g)
(h)
Nominal Voltage
UL Marking on Cover
Contact Material
Special Type
CSA Marking
(Example) D003: 3 VDC
D012: 12 VDC (refer to the COIL DATA CHART)
Nil : No UL marking
U : UL marking
P : Gold-overlay silver-palladium
M : Gold-overlay silver
Nil : Standard
2 : High dielectric strength type
Nil
: Standard
-CSA : UL + CSA marking (valid when (e) is U)
(1
9
98
)
1
Note: The designation name is stamped on the top of the relay case as follows:
(Example) Designation ordered: FBR211SAD005-P
Stamp: 211SAD005-P
FBR211 SERIES
n
COIL DATA CHART
1. STANDARD (A or B type)
MODEL
A type
Flux free
Plastic sealed
B type
Flux free
Plastic sealed
Nominal
voltage
1.5 VDC
3 VDC
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
Nominal
Coil
current
Must
resistance (at nominal operate
(±10%)
voltage)
voltage
approx.
5Ω
20 Ω
56 Ω
80 Ω
180 Ω
320 Ω
1,280 Ω
300 mA
150 mA
89 mA
75 mA
50 mA
38 mA
19 mA
70% max. 10% min.
of nominal of nominal
voltage
voltage
150% of
Approx.
Approx.
nominal
450 mW
45 deg
voltage (at nominal (at nominal
voltage)
voltage)
Must
release
voltage
Maximum
allowable
voltage
Nominal
power
Coil
temperature
rise
FBR211SAD001-n FBR211NAD001-n FBR211SBD001-n FBR211NBD001-n
FBR211SAD003-n FBR211NAD003-n FBR211SBD003-n FBR211NBD003-n
FBR211SAD005-n FBR211NAD005-n FBR211SBD005-n FBR211NBD005-n
FBR211SAD006-n FBR211NAD006-n FBR211SBD006-n FBR211NBD006-n
FBR211SAD009-n FBR211NAD009-n FBR211SBD009-n FBR211NBD009-n
FBR211SAD012-n FBR211NAD012-n FBR211SBD012-n FBR211NBD012-n
FBR211SAD024-n FBR211NAD024-n FBR211SBD024-n FBR211NBD024-n
Note: All values in the table are measured at 20°C.
2. HIGH SENSITIVITY (C or E type)
MODEL
C type
E type
Flux free
FBR211SCD001-n FBR211NCD001-n FBR211SED001-n FBR211NED001-n
FBR211SCD003-n FBR211NCD003-n FBR211SED003-n FBR211NED003-n
FBR211SCD005-n FBR211NCD005-n FBR211SED005-n FBR211NED005-n
FBR211SCD006-n FBR211NCD006-n FBR211SED006-n FBR211NED006-n
FBR211SCD009-n FBR211NCD009-n FBR211SED009-n FBR211NED009-n
FBR211SCD012-n FBR211NCD012-n FBR211SED012-n FBR211NED012-n
FBR211SCD024-n FBR211NCD024-n FBR211SED024-n FBR211NED024-n
DI
SC
ON
Plastic sealed
Flux free
Plastic sealed
Nominal
voltage
TI
1.5 VDC
3 VDC
5 VDC
6 VDC
9 VDC
12 VDC
24 VDC
Nominal
Coil
current
Must
resistance (at nominal operate
(±10%)
voltage)
voltage
approx.
12 Ω
45 Ω
120 Ω
180 Ω
400 Ω
125 mA
67 mA
42 mA
Must
release
voltage
Maximum
allowable
voltage
Nominal
power
Coil
temperature
rise
2,800 Ω
Note: All values in the table are measured at 20°C.
NU
33 mA
23 mA
9 mA
700 Ω
17 mA
70% max. 10% min.
of nominal of nominal
voltage
voltage
225% of
Approx.
Approx.
nominal
200 mW
25 deg
voltage (at nominal (at nominal
voltage)
voltage)
ED
(1
99
8)
2
FBR211 SERIES
n
SPECIFICATIONS
Item
Contact
Arrangement
Material
Resistance (initial)
Standard (A or B type)
1 form C (SPDT)
Gold-overlay silver-palladium / gold-overlay silver
Maximum 100 mΩ (at 0.1 A 6 VDC)
0.5 A 120 VAC or 1 A 28 VDC
2A
60 VA or 28 W
220 VAC or 150 VDC
1.25 A (AC) or 2 A (DC)
Plastic sealed 1 mA, 1V
Flux free 1 mA, 5V
Approximately 450 mW
Approximately 315 mW maximum
–25°C to +55°C (no frost)
45 to 85%RH
Maximum 5 ms
Maximum 5 ms
5 × 10
6
operations minimum
Approximately 200 mW
Approximately 140 mW maximum
–25°C to +75°C (no frost)
High sensitive (C or E type)
Coil
DI
Rating (resistive)
Maximum Carrying Current
Maximum Switching Power
Max. Switching Voltage*
1
Maximum Switching Current
Minimum Switching load*
2
(reference)
Nominal Power (at 20°C)
Operate Power (at 20°C)
Operating Temperature
Operating Humidity
Time Value
Life
Operate (at nominal voltage)
Mechanical
Release (at nominal voltage)
Electrical
(Refer to the REFERENCE DATA)
Other
Vibration Resistance
Shock
Resistance
Weight
Misoperation
Endurance
SC
ON
TI
3 × 10
5
operations minimum (at 1 A/ 28 VDC resistive load)
1 × 10
5
operations minimum (at 2 A/ 12 VDC resistive load)
1 × 10
5
operations minimum (at 0.5 A/120 VDC resistive load)
10 to 55 Hz (double amplitude of 1.5 mm)
100 m/s
2
(11±
1
ms)
Approximately 4 g
1,000 m/s
2
(11±
1
ms)
NU
*
1
If the switching voltage exceeds the rated contact voltage, reduce the current. The current values vary according to the type
of load.
2
* Values when switching a resistive load at normal room temperature and humidity and in a clean environment. The minimum
switching load varies with the switching frequency and operation environment.
ED
60 m/s
2
(11±
1
ms)
n
INSULATION
Item
Isolation (initial)
Dielectric
Strength
Standard (A or B)
Minimum 100 MΩ (at 500VDC)
High sensitive (C or E)
(1
500VAC 1 min. (standard)
1,500VAC 1 min. (high isolation coil and contact)
99
8)
n
SAFETY STANDARDS
Type
UL
CSA
Compliance
UL 110
E63615
C22.2 No. 14
LR 40304, LR 46016
Contact rating
Flammability: UL 94-V0 (plastics)
0.5A, 120VAC (resistive)
1A, 28VDC (resistive)
3
FBR211 SERIES
n

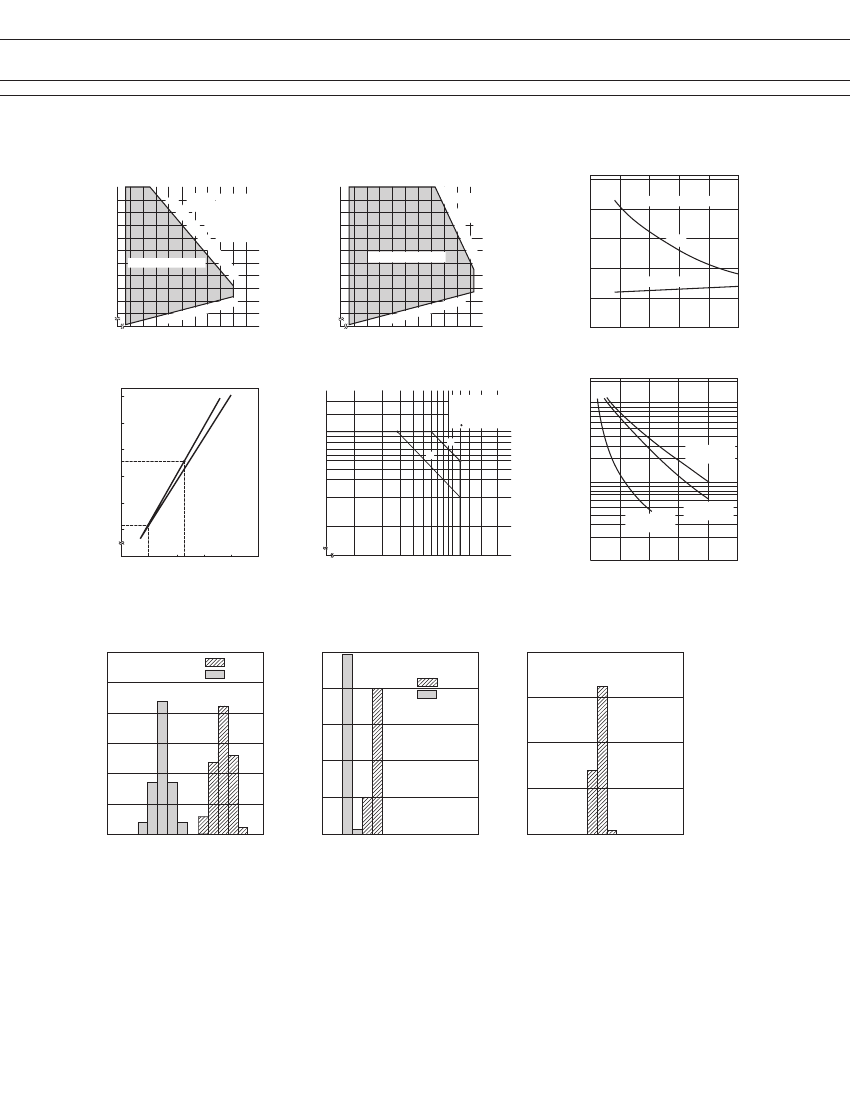

Range of operation temperature and voltage
(Standard 0.45 W type)
Nominal voltage multiplying factor (%)
CHARACTERISTIC DATA
(Data) assumes that
the maximum allow-
able temperature
of E type insula-
tion coil is 115°C
Range of operation temperature and voltage
(high sensitive 0.2 W type)
ge
volta
coil
able
llow
ma
imu
Max
Nominal voltage multiplying factor (%)
Operate and release time data
5
4
3
2
Release time
1
0
Not including bounce time
Op
e
DI
110
100
90
80
70
70
60
50
40
30
20
0.2
140
130
120
140
130
120
110
100
90
80
70
Time (msec)
160
150
160
150
Operating voltage range
Operating voltage range
(Data) assumes that
the maximum allow-
able temperature
of E type insula-
tion coil is
115°C
Must
–10 0 10 20 30 40 50 60 70 80
Operating temperature (°C)
Coil temperature rise data
(at 20°C)
Coil temperature rise (°C)
(○ AC contact rating)
(
DC contact rating)
DC resistive load
Service life (operations)
Contact load current (A)
Coil power (W)
n
REFERENCE DATA
Distribution of operate and release voltage
60
50
Distribution (%)
um
xim
Ma
0.4
SC
ON
te v
opera
oltag
e
Standard
(0.45 W type)
High
sensitive
(0.2 W type)
1.0
0.5
0.3
0.1
e
ag
olt
il v
co
le
ab
ow
all
0.6
0.8
rat
et
im
e
Mus
rate
t ope
volta
ge
–10 0 10 20 30 40 50 60 70 80
0.2
Operating temperature (°C)
(x10
4
)
200
100
50
Coil power (W)
0.4
0.6
0.8
Maximum switching capacity
AC resistive load
Life curve
10
TI
20
30
12 V DC
resistive load
10
5
28 V DC
resistive load
Contact load current (A)
FBR211
n = 100
Operate
Release
100
Distribution of operate and release time
FBR211
n = 100
Operate
NU
50
120
120 V AC
resistive load
1
0
80
Distribution (%)
Release
40
30
60
Distribution (%)
ED
80
60
40
20
0
0
10
20
Contact load current (A)
0.5
1.0
1.5
2.0
Distribution of contact resistance
FBR211
n = 100
40
20
10
0
0
10
20
30
40
50
60
70
80
20
(1
9
40
50
60
0
0
1
2
3
4
5
6
7
8
30
70
98
80
Nominal voltage multiplying factor (%)
Time (ms)
Contact resistance (m
Ω
)
)
4
FBR211 SERIES
n
DIMENSIONS
1. STANDARD (Flux free type)
Dimensions
10.1
+0.5
Schematics
(BOTTOM VIEW)
15.1
+0.5
(A type or C type)
1
3.2
(B type or E type)
1
12
5 6
8 7
2. N-TYPE (Plastic sealed type)
Dimensions
11.7
+0.5
DI
SC
ON
10.5
+
0.5
5
8
6
7
12
0.3
7.62
(1.24)
0.6
0.35
(1.2)
10.16
2.54
Schematics
(BOTTOM VIEW)
(A type or C type)
(B type or E type)
1
12
5 6
8 7
16.5
+0.5
0.3
0.6
7.62
(2.04)
(1.9)
10.16
3. PC BOARD MOUNTING HOLE LAYOUT
6–ø1.0
PC
board mounting hole layout (BOTTOM VIEW)
TI
3.2
10.7
+
0.5
1
12
5
8
6
7
2.54
10.16
2.54
7.62
NU
ED
(1
Unit: mm
99
8)
5
