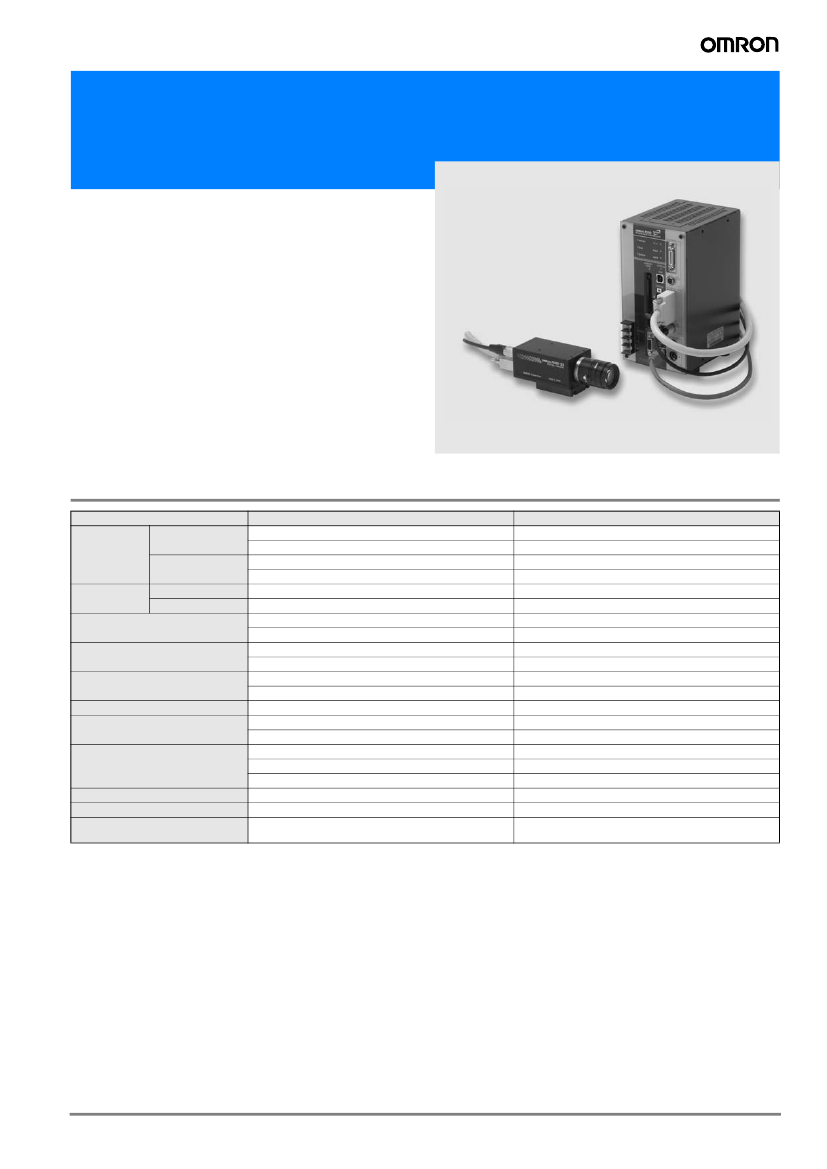

Network-Ready Vision System Series
F210ETN / F500ETN
Ultimate Power - High Resolution (F500)
Network-Ready Vision System
• Two digital cameras ports, high resolution (1K x 1K) with
F500ETN
• Advanced real time data logging and storage functions
• 10/100 Base TX Ethernet Port, USB, RS232/422,
33 digital I/O
• Optional VisionComposerNET for remote configuration/
maintenance
• Security tools, audit trail creation in security sensitive
environment

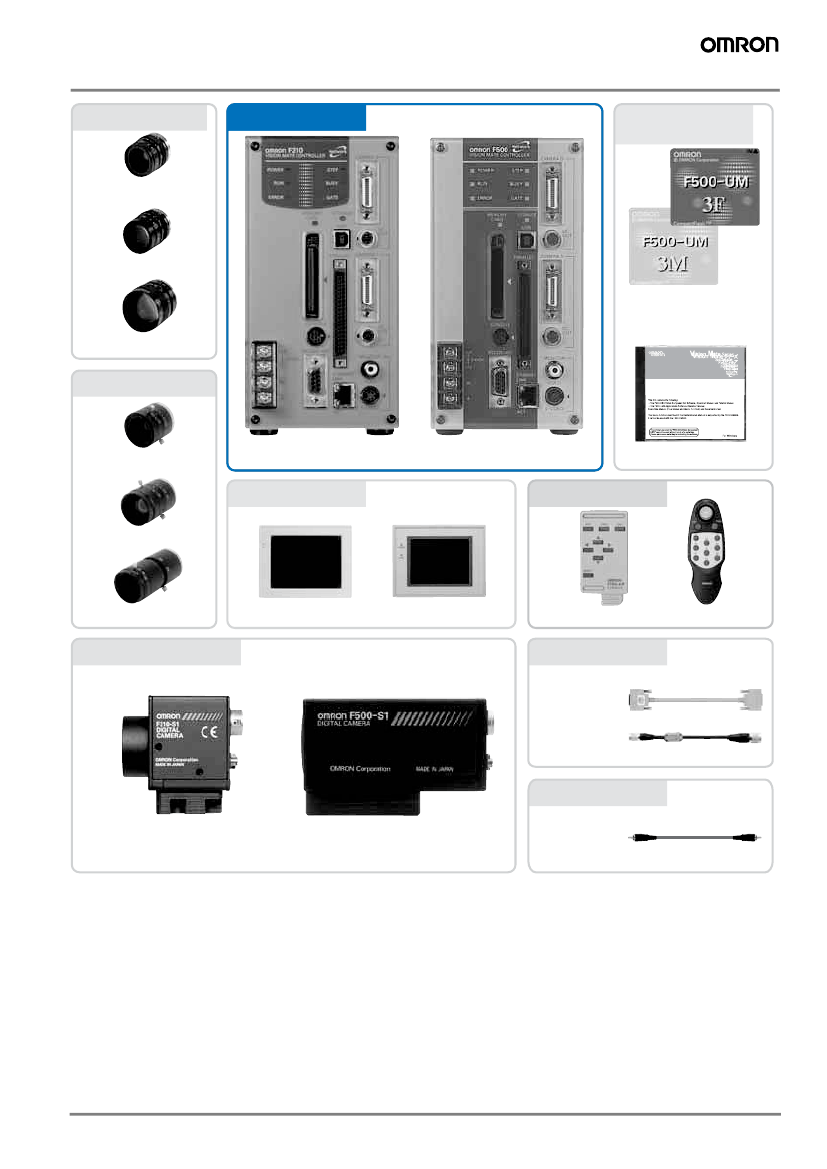

Ordering information
Name
Controller
Standard Resolution
High Resolution
Camera
Monitor
Console
Memory Cards
PC-Software
Application Software
High precision Lenses
250 K Pixel
1 M Pixel
Model
F210-C10-ETN
F210-C15-ETN
F500-C10-ETN
F500-C15-ETN
F210-S1
F500-S1
F150-M05L
F500-M10L
F150-KP
F-160-KP
F160-N64S(S)
F160-N256S
F500-CD3E
F500-UM3ME
F500-UM3FE
F500-LE16
F500-LE25
F500-LE50
Camera cable
Monitor cable
Parallel cable
F500-VS2
F500-VM
F160-VP
Remarks
NPN Input / Output
PNP Input / Output
NPN Input / Output
PNP Input / Output
For F210ETN only
For F500ETN only
5.5" color TFT LCD
10.4" color TFT LCD
Standard Console
Console with additional function keys
Memory capacity 64 MB
Memory capacity 256 MB
Optional remote configuration software (via ETN)
With macro function
Without macro function
focal length 16 mm
focal length 25 mm
focal length 50 mm
Available lenght 2 m, 5 m, 10 m
Cable length 2 m
Loose-wire cable for parallel I/O connectors.
Cable length 2 m
F210ETN / F500ETN
1
Specifications
Controller
Model
Connected Camera
No. of connectable Cameras
Processing resolution
No. of scenes
Image memory function
Storage
Operation and settings
Menu language
Serial communications
Network communications
Parallel I/O
Monitor interface
Memory Card interface
Power supply voltage
Current consumption
Ambient temperature
Ambient humidity

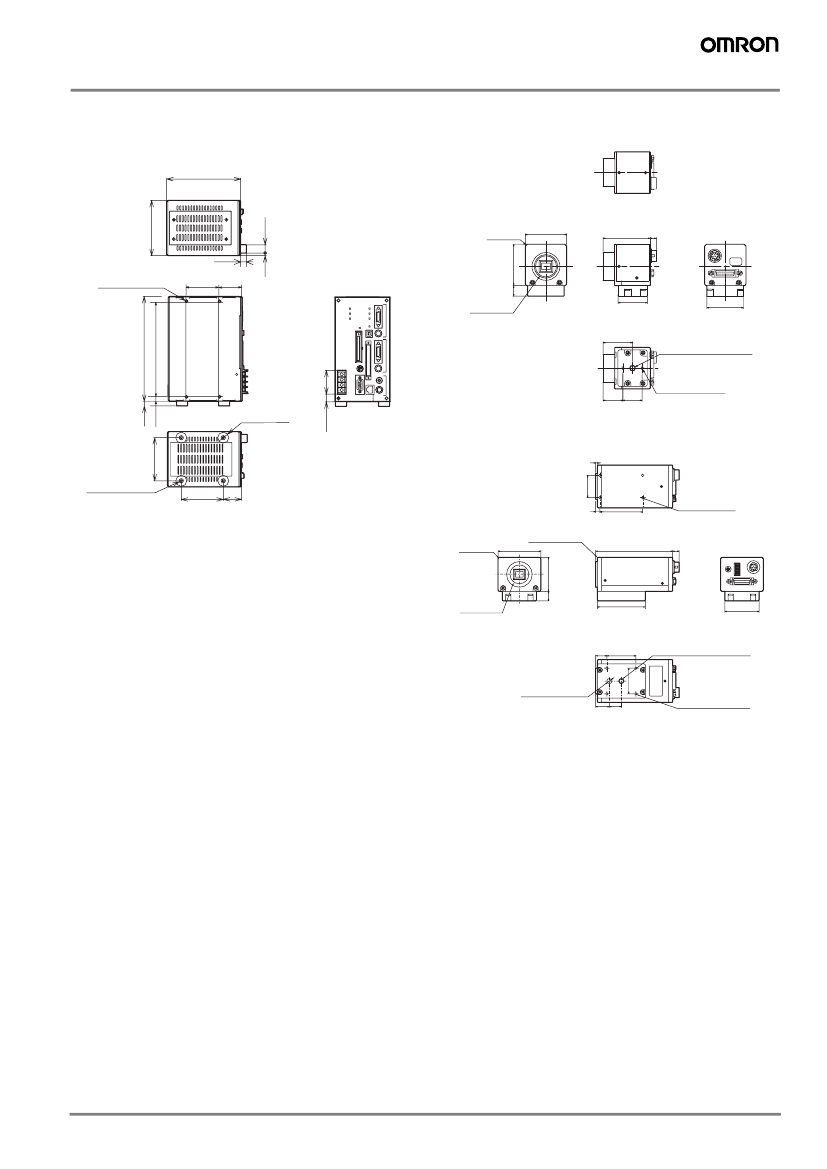

Dimensions
Weight
Accessories
F210-C10-ETN / F210-C15-ETN
F210-S1
2
512x484 (HxV)
32 (Can be increased using Memory Cards.)
35 images max.
64 MB non-volatile memory
Measurement items installed using Applications Software.
Menu operations used to combine measurement items.
Vision Composer Net can be used for operation and settings.
Japanese or English (switchable)
USB series B: 1 channel
RS-232C/422: 1 channel
Ethernet 100Base-TX/10Base-T
11 inputs, 22 outputs
Composite video output: 1 channel,
S-VIDEO output: 1 channel
Compact Flash card slot, 1 channel
20.4 to 26.4 VDC
2.1 A max. (with two F210-S1 Cameras connected)
Operating: 0 to +50 °C
Storage: -25 to +65 °C with no icing or condensation
Operating/storage: 35% to 85% with no condensation
100x198x134 mm (WxHxD)
(without connectors and other protrusions)
Approx. 1.6 kg (Controller only)
Ferrite core for Console (1)
Setup Manual
F500-C10-ETN / F500-C15-ETN
F500-S1
2
1024x1024 (HxV)
32 (Can be increased using Memory Cards.)
35 images max.
256 MB non-volatile memory
Measurement items installed using Applications Software.
Menu operations used to combine measurement items.
Vision Composer Net can be used for operation and settings.
Japanese or English (switchable)
USB series B: 1 channel
RS-232C/422: 1 channel
Ethernet 100Base-TX/10Base-T
11 inputs, 22 outputs
Composite video output: 1 channel,
S-VIDEO output: 1 channel
Compact Flash card slot, 1 channel
20.4 to 26.4 VDC
2.1 A max. (with two F500-S1 Cameras connected)
Operating: 0 to +50 °C
Storage: -25 to +65 °C with no icing or condensation
Operating/storage: 35% to 85% with no condensation
100x198x134 mm (WxHxD)
(without connectors and other protrusions)
Approx. 1.6 kg (Controller only)
Ferrite core for Console (1)
Setup Manual
Digital Interface Cameras
Model
Imaging device
Pixel size
Shutter
Partial function
Communications interface
Ambient temperature
Ambient humidity
Dimensions
Weight
Accessories
F210-S1
1/3-inch CCD
7.4x7.4 µm (HxW)
Electronic shutter, 8 shutter speeds
(1/60 to 1/12,000 s), changed via menu
Seven settings
Conforms to Camera Link
Operating: 0 to +50 °C
Storage: -25 to +60 °C with no icing or condensation
Operating/storage: 35% to 85% with no condensation
43x43x49 mm (WxHxD)
(without connectors and other protrusions)
Approx. 110 g
Instruction Manual
F500-S1
2/3-inch CCD
6.45x6.45µm (HxW)
Electronic shutter, 10 shutter speeds
(1/24 to 1/10,000 s), changed via menu
Four settings
Conforms to Camera Link
Operating: 0 to +50 °C
Storage: -25 to +60 °C with no icing or condensation
Operating /storage: 35% to 85% with no condensation
50x40x90 mm (WxHxD)
(without connectors and other protrusions)
Approx. 270 g
Instruction Manual
Monitor
Model
Size in inches
Type
Resolution
Brightness
Input signal
Power supply voltage
Current consumption
Ambient temperature
F500-M10L
10.4 inches
LCD TFT
640 x 480
350 cdm/m (typical)
NTSC composite video (1.0 V / 75
Ω
termina-
tion), S-VIDEO
20.4 to 26.4 VDC
1.0 A max.
Operating: 0 to +50 °C
Storage: -20 to +65 °C with no icing or con-
densation
Ambient humidity
Dimensions
Weight
Accessories
Operating/storage: 30% to 80% with no con-
densation
285x225x49 mm (WxHxD)
Approx. 1.8 kg
Instruction Manual, 4 mounting brackets
System Requirements for F500-CD3E Vision Composer Net
CPU
OS
Pentium III 600 MHz min.
(Pentium III 1 GHz min. recommended)
Windows 2000 Professional,
Service Pack 4 or higher
Windows XP Home Edition,
Service Pack 2 or higher
Windows XP Professional,
Service Pack 2 or higher
192 MB min.
(256 MB min. recommended)
300 MB min. available space
Resolution: 1,024 x 768 min.
Display colors: High Color (16-bit) min.
(True Color (32-bit) min. recommended)
10BaseT-compliant network
(100Base-TX recommended)
F210-C10-ETN/F210-C15-ETN,
F500-C10-ETN / F500-C15-ETN
F500-UM Version 3.00 or later
Memory
Hard disk
Monitor
Network
Vison
Sensor
Controller
Application
software
2
Vision Systems
Software

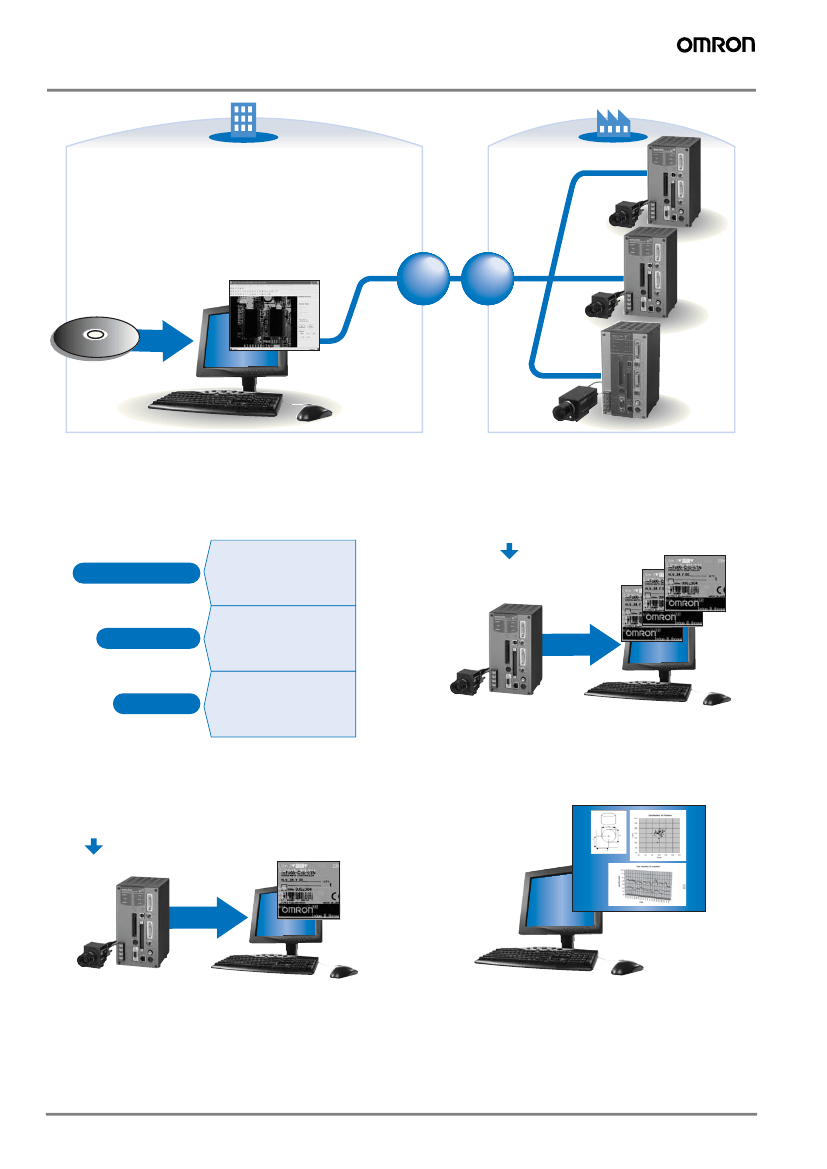

In the Office
At the Factory
Vision Composer Net
This software covers the design, start-up,
operation, and maintenance monitoring of the
Vision Sensor, all via Windows UI operation.
Vision Composer Watcher
This software integrates control over
the status of the
Controllers.
Router
Router
Vision Composer Net
Security Function
The security function allows you to classify the operations of regis-
tered users into three ranks (Administrator, Supervisor, or Operator)
depending on their access privileges.
Recording
Live images sent by the Controller can be recorded by a personal
computer using the AVI format. Effective for trend control.
Recorded by personal computer
Change system data
Administrator
Register users
Add access privileges
Add model data
Saved in AVI format
live-image
transfer
Supervisor
Re-register models
Change inspection items
Change criteria
Operator
Screen Captures
Change display screens
Adjust inspection regions
Logging
This function lets you accumulate a variety of production data, includ-
ing images, measurement values, time stamps, production quantity,
and defect rates. The macro function in the Controller then makes it
possible to process this into the form of data that you need.
Previously, images were stored via a Compact Flash Card inserted
into the Controller. It is now possible to capture network-transferred
live images on a personal computer at any desired point in time.
Capture on personal computer
Save
live-image
transfer
4
