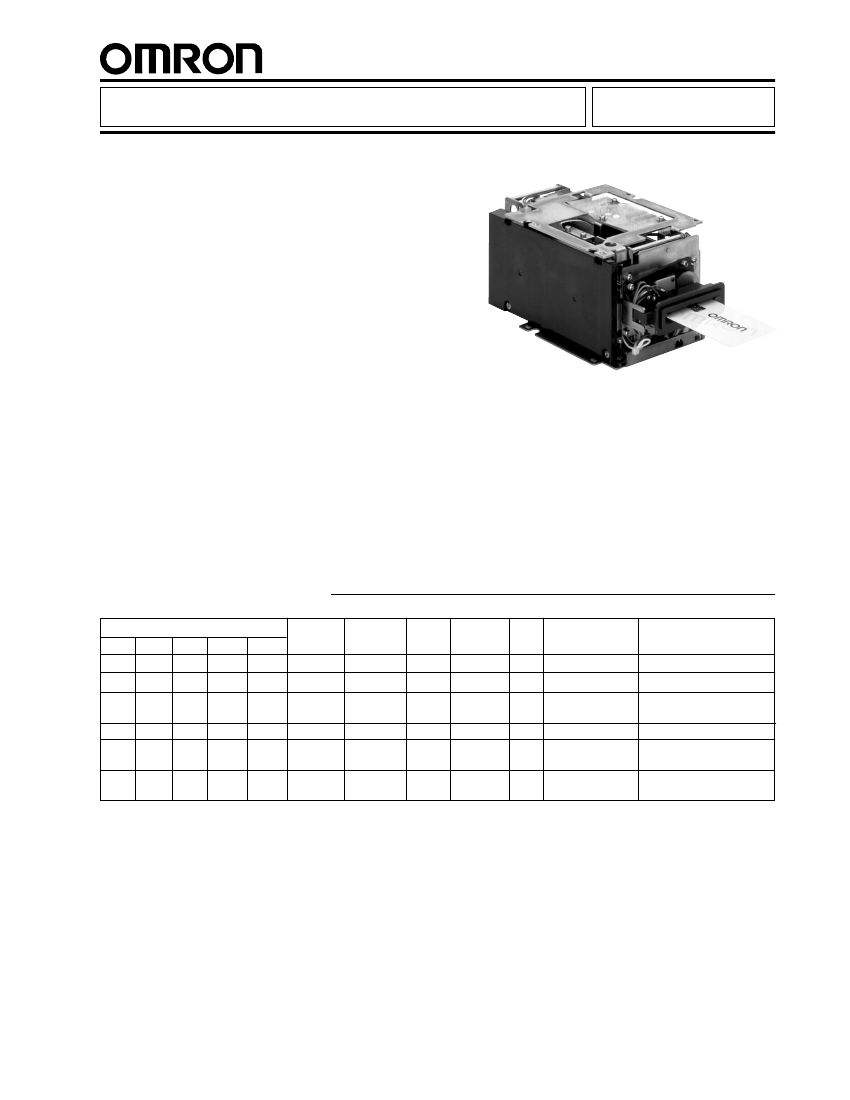

Motor Driven Card Reader/Writer
Reliably Handles Read/Write Functions
for both Magnetic and IC Cards
s
3S4YR-MVF/MVS
s
s
s
s
s
s
Downloadable firmware for specification
updates, customer requirements,
firmware updates, new smart card support
Powerful all-roller card feeding system easily
handles warped and/or wet cards
Highly reliable reading/writing of all three
tracks using new pick-up encoder technology
Fully-integrated RS-232C eliminates the
need for IC adapter boards
User-friendly interface with multifunction
commands and support for T=0 and T=1, EMV
Compact size and light weight for
easy installation
Locking shutter for fraud prevention
Ordering Information
Magnetic Tracks Supported (R, R/W) IC
1
2
3
Center JIS II Contact
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
—
—
—
—
—
—
—
—
—
—
—
—
No
Interface
Built-in Card
(see note 3) Shutter Ejection
RS-232
Yes
Yes
Yes
Yes
Yes
Yes
Color Notes
—
—
support (see note1)
Part Number
(see note 2)
3S4YR-MVFW1D-052
3S4YR-MVFW1JD-051L
3S4YR-MVFW1JD-M51L
3S4YR-MVFW1JDH-074
3S4YR-MVS1D
(MVFW1D-052 Core)
3S4YR-MVS1JD
(MVFW1JD-051L Core)
Front/Rear Black
Front/Rear Black
ISO 7816 RS-232
ISO 7816 RS-232
ISO 7816 RS-232
No
RS-232
Front/Rear Black
Memory card
Front/Rear Black
HiCo
Front/Rear Black
—
ISO 7816 RS-232
Front/Rear Black
Housing
Note 1: Inquire regarding specific memory card support.
2: Models with support for SAM modules are available. Please contact Omron for details.
3: Please contact Omron for details concerning USB interface availability.
s
TYPICAL APPLICATIONS
• Cash Dispensers
• Automatic Teller Machines (ATM)
• POS Terminals
• Credit Card Checkers
• ID Card Checkers
• Electronic Lock System
• Medical Patient System
• Health Control System
•Teller Terminal
• Front desk card encoders
3S4YR-MVF/MVS
3S4YR-MVF/MVS
Specifications
Part number
Recommended card
type
Recording method
Card feeding speed
Location of magnetic stripe
Motor type
Service life
(see note 2)
Entire unit
IC contact
Operating power supply
Current consumption
Mounting location
Ambient temperature Operation
Storage
Ambient humidity
Vibration
Shock
Dimensions (with shutter)
Weight
Operation
Storage
Magnetic card
IC card
(see Note 1)
3S4YR-MVF
ISO 7816/1-4 (T=0 and/or T=1)
FM decoding (F2F)
20 cm/sec (8 in/sec) in normal operation; 5 cm/sec (2 in/sec) IC card handling
Installation
DC motor
1,500,000 passes or 5 years, whichever comes first
300,000 times
24 VDC
±
10%
Indoors — away from wind, rain, and sunlight
5° to 55°C (41° to 131°F)
-25° to 55°C (-13° to 131°F)
5% to 85% RH, no condensation
5% to 90% RH, no condensation
0° to 40° C (32° to 104°F)
-25° to 55° C (-13° to 131°F)
35% to 85% RH, no condensation
(see note 3)
5% to 90% RH, no condensation
(see note 3)
100 VAC to 240 VAC (± 10%)
2.0 A or less when motor revolution starts; 500 mA in standby mode
At bottom
3S4YR-MVS
ISO 7810, 7811/1-5, 7812, 7813. Please inquire if using high-coercivity cards.
10 to 150 Hz and single vibration width of 0.15 mm or
an acceleration of 2 G (19.6 m/sec
2
), whichever is smaller
20 G in six directions (up and down, left and right, forward and back,
3 times in each direction)
210L x 124W x 90H mm
(8.27L x 4.88W x 3.54H in)
Approx. 2 kg (4.41 lbs)
271L x 130W x 154H mm
(10.67L x 5.12W x 6.06H in)
Approx. 4.5 kg (9.92 lbs.) without attachment
Note 1: Please request confirmation on specific IC card compatibility, including EMV (Europay / Mastercard / Visa) and memory cards.
2: One pass denotes one round trip.
3: Absolute air humidity in operation is 23 g/m
3
or less. In storage, absolute air humidity is 40 g/m
3
or less.
Engineering Data
s
I/O INFORMATION
RS-232C Interface automatically recognizes data transmission speeds of 1200, 2400, 4800, 9600, and 19200 baud.
3S4YR-MVFW1JD RS-232C Interface
Card reader side:
JAE 9-pin D-Sub socket, DELC-J9SAF-10L9.
Pin #
1
2
3
4
5
6
7
8
9
Signal
NC
RXD
TXD
DTR
GND
NC
NC
CTS
NC
Input/Output
—
Input
Output
Output
—
—
—
Input
—
Description
Not connected
Receive data
Transmit data
Data terminal ready
Ground
Not connected
Not connected
Clear to send
Not connected
3S4YR-MVFW1JD Power Interface
Card reader side:
Molex 4 node, 2.54 mm pitch in serial 5046-04A.
Pin #
1
2
3
4
Signal
+24V
GND
XGND
X24V
Input/Output
—
—
—
—
Description
Power supply
Power ground
Secondary power ground
Secondary supply
2
