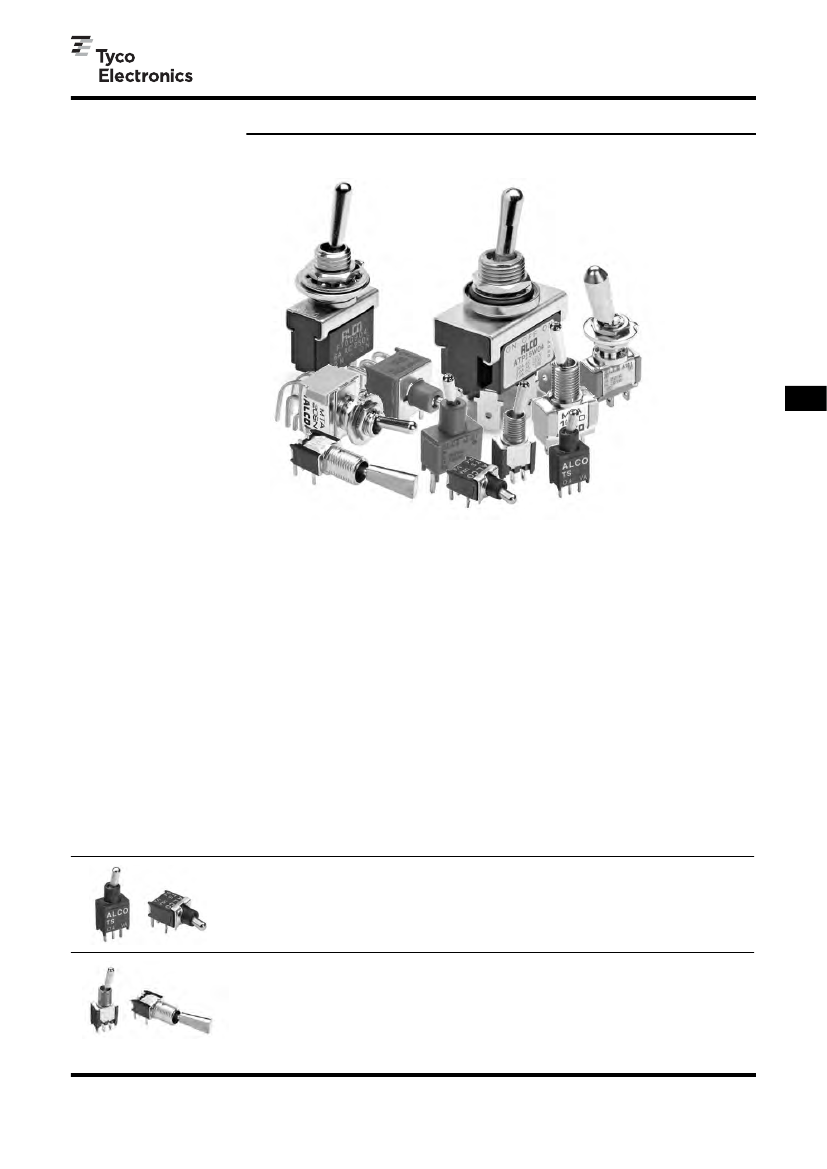

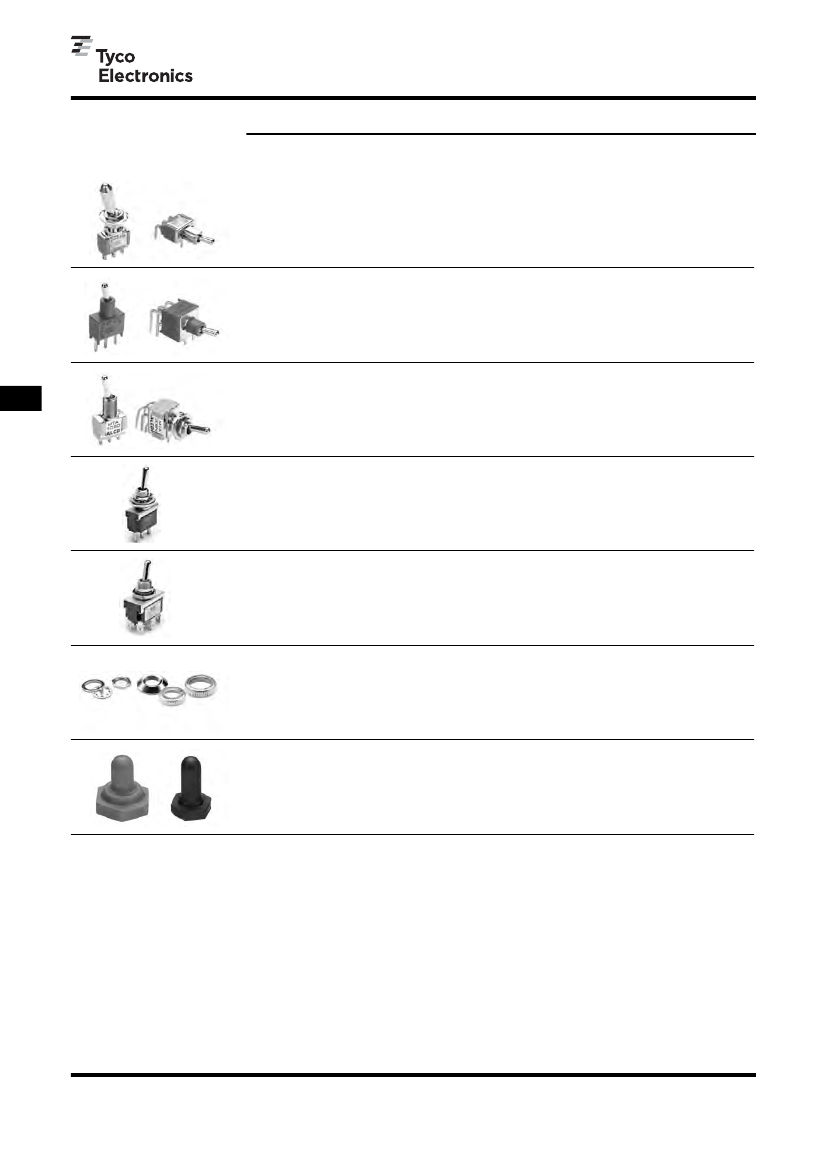

Toggle Switches
Product Range
Toggle Switches
Toggle Switches
I
I
I
Tiny Toggles:
TT and TST Series
Miniature Toggles:
Gemini Series and Green Series
Power Toggles:
F and AW Series
Main features:
I
I
I
I
I
I
I
I
I
I
I
Up to 4 poles
Wide range of different switch functions
Gold or silver contacts
Up to 20 A
Sealed or unsealed versions
Horizontal and vertical right angle versions
Many different actuator styles
Locking versions
Different bushings with or with out thread
THT and wire lug terminals
Accessories: Boot seals, decorative mounting hardware
TST Tiny Toggle, Process Sealed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E3
TT Tiny Toggle Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E6
E1
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
Toggle Switches
Product Range
(Continued)
Gemini A Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E15
Gemini AE Series, Sealed IP67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E26
MT Green Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E32
Toggle Switches
F Series, Panel Mounting, 6A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E43
AW Series, Panel Mounting, Waterproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E46
Hardware and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E49
Boot Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page E50
E2
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com

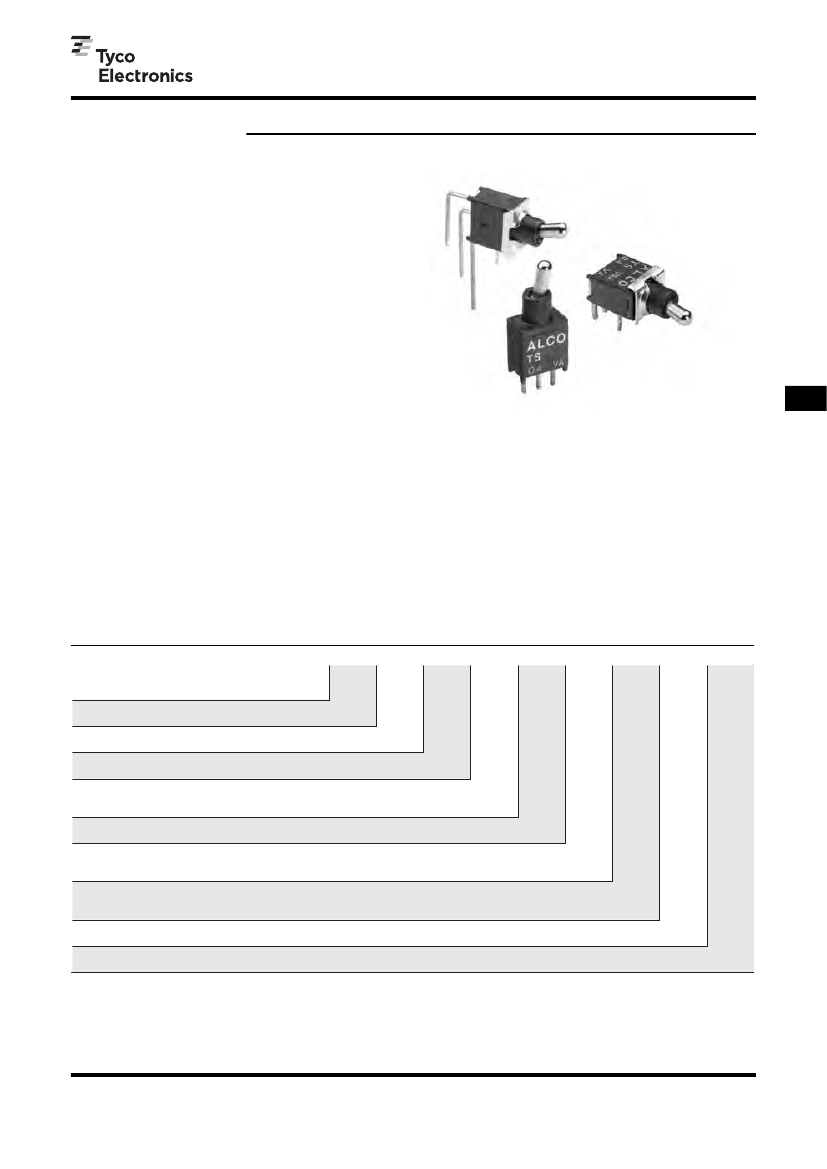

Toggle Switches
TST, Tiny Toggle, Process Sealed
Features
I
I
I
Washable process sealed construction (Internal "O" ring)
Compact design
Liquid Crystal Poymer (LCP) case
Typical performance characteristics
Contact configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . spst, spdt
Contact timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . break-before-make
Contact rating, max . . . . . . . . . . . . . . . . . . . . gold 0.4 VA @ 20 VAC/DC
Electrical life . . . . . . . . . . . . . . . . . . . . . . D = 80,000 cycles (2 position)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E = 60,000 cycles (3 position)
. . . . . . . . . . . . F and G = 30,000 cycles (momentary 2 and 3 position)
Contact resistance, initial. . . . . . . . . . . . . . . . . . . . . . . . max.20 mOhms'
Insulation resistance . . . . . . . . . . . . . . . . 1,000 mega Ohms @ 500 VDC
Dielectric strength . . . . . . . . . . . . . . . . . . . . . . . 1,000 Vrms @ sea Level
Actuator travel . . . . . . . . . . . . . . . . . . . . . . . . . . 22° for D and E function
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18° for F and G function
Environmental specification
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . -30°C to +85°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to +85°C
Solder heat resistance . . . . . . . . . . . . . . wave solder capable to 265°C
Seal . . . . . . . . . . . . . . . . . . . . . . . . process sealed with internal "O" ring
Toggle Switches
Material specifications
Contacts . . . . . . . . . . . . . . copper or brass alloy, gold over nickel finish
Bat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . brass alloy, nickel finish
Terminals . . . . . . . . . . . . . . . brass with gold over nickel in contact area
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . tin over nickel in solder aArea
Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . theroplastic (LCP)
Spring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . music wire zinc plated
Support bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . steel tin plated
Seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . "O" ring rubber
RoHS Directive 2002/95/EC . . . . . . . . . . . . . . . . . . . . . . . . . . . compliant
Product key
Typical product key
TST
1
1
D
G
RA
1
D
04
Type
TST
Tiny toggle, process sealed, through hole mount
Number of Poles
1
single pole
Contact rating
1
0.4VA Gold
Function
D
On None On
F
On None (On)
E
On Off On
G
(On) Off (On)
Plating
G
Gold
Terminals
PC
printed circuit board
RA
right angle
PCV
printed circuit board, w bracket
VRA
vertical right angle
Actuator length
1
.206 (5.23)
4
.400 (10.16)
2
.250 (6.35)
Bushing
D
plain, not threaded
Material
04
RoHS compliant
E3
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
Toggle Switches
TST, Tiny Toggle, Process Sealed
(Continued)
Function
Function
D
On
E
On
F
On
G
(On)
Terminals 1-2
None
Off
None
Off
-
On
On
(On)
(On)
2-3
Off
(On)
None
indicates a mechanical position
with no electrical connection
indicates momentary connection
indicates no mechanical position

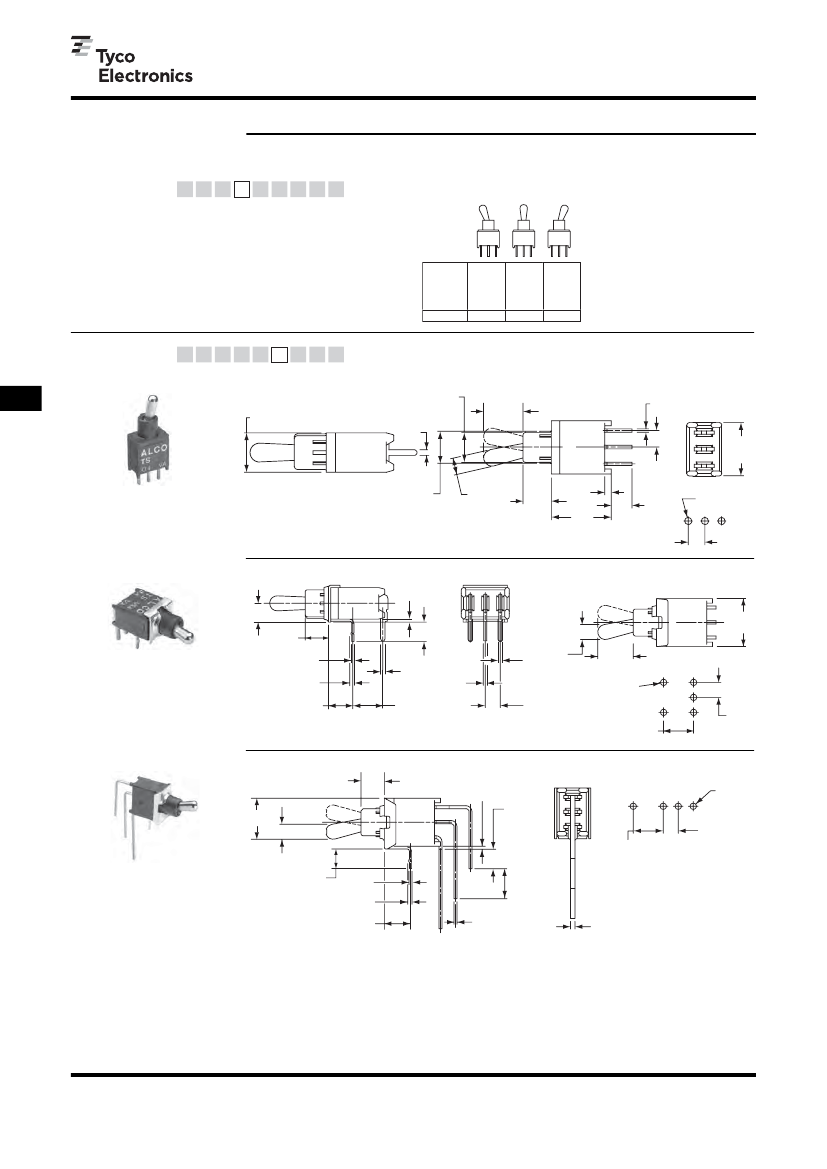

Terminations
PC
printed circuit
.180
(4.57)
DIA.
.030
(0.76)
.020
(0.51)
TYP.
3
2
.100
(2.54)
DIA.
.125
(3.18)
1
.043
(1.09)
DIA. TYP.
.100
(2.54)
DIA.
.320
(8.13)
Toggle Switches
.195
(5.00)
.206
(5.23)
TST11DGPC1D
.189
(4.80)
DIA.
.100
(2.54)
DIA.
.170
(4.32)
.040
(1.00)
.360
(9.14)
RA
right angle
.020
(0.51)
.126
(3.20)
.156
(3.96)
.130
(3.30)
.030
(0.76)
2 PLCS.
.020
(0.51)
TYP.
.100
(2.54)
TYP.
.206
(5.23)
.043
(1.09)
DIA. TYP.
.100
(2.54)
.200
(5.08)
.100
(2.54)
DIA.
.320
(8.13)
TST11DGRA1D
.014
(0.36)
.020
(0.51)
.162
(4.11)
.030
(0.76)
.200
(5.08)
VRA
vertical right angle
.156
(3.96)
.340
(8.64)
.020
(0.51
.130
(3.30)
TYP.
.043
(1.09)
DIA. TYP.
.100
(2.54)
TYP.
.200
(5.08)
TYP.
TST11DGVRA1D
.100
(2.54)
DIA. .130
(3.30)
.200
(5.08)
.014
(0.36)
.020
(0.51)
.174
(4.42)
.020
(0.51)
TYP.
.030
(0.76)
E4
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
Toggle Switches
TST, Tiny Toggle, Process Sealed
(Continued)
Actuator
Codes 1,2,4
actuator lengths
Code 1
.100 DIA.
(2.54)
.206
(5.23)
Code 2
.100 DIA.
(2.54)
Code 4
.100 DIA.
(2.54)
.250
(6.35)
.400
(10.16)
Product key
Poles
1 pole
TST11DGPC1D04
TST11DGPCV1D04
TST11DGRA1D04
TST11DGVRA1D04
TST11EGPC4D04
Preferred parts in bold print
Rating
0.4VA
Function
On None On
Plating
Gold
On Off On
Terminals
Actuator
pcb
.206 (5.23)
pcb w brack.
right angle
vertical r.a.
pcb
.400 (10.16)
Bushing
plain,
not
threaded
Material
RoHS
compliant
Part Number
1825455-1
1825455-2
1825455-3
1825455-4
1825455-5
Toggle Switches
E5
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
