PTS125 Series
12 mm Tact Switches
Features/Benefits
•
Stable control feeling
•
Thru-hole actuation
•
160 or 260 grams actuation force
•
RoHS compliant and compatible
Typical Applications
•
Consumer products
•
Instrumentation
•
Computer products
•
Industrial
B
Tactile Switches
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: SPST, N.O.
TERMINALS: PC pins
Environmental
OPERATING TEMPERATURE: -40˚C to 60˚C
Process
SOLDERING: Preheating to 100˚C for 45 sec. max. Keep flux
flush with top surface of PCB; do not apply to component side of
PCB and area where terminals are located. Soldering to 255˚C for
5 sec. max. Clean by brushing on solder surface. Do not clean
switch with solvents.
Mechanical
ACTUATION FORCE: PTS125M models: 160 grams.
PTS125 K models: 260 grams.
LIFE EXPECTANCY: 200,000 operations, M option;
100,000 operations, K option.
Materials
Electrical
CONTACT RATING: 50 mA @ 12 V DC.0
DIELECTRIC STRENGTH: 250 V AC min.
CONTACT RESISTANCE: 100 mΩ max. initial.
INSULATION RESISTANCE: 10
11
Ω
min.
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
BASE: 6/6 nylon or glass filled polyester (PBT) (UL 94V-0).
ACTUATOR: PBT (UL94V0) or polyacetal (UL 94HB).
COVER PLATE: Tin alloy.
DOME CONTACTS: Phosphor bronze, silver clad.
STATIONARY CONTACTS: Brass, silver plated.
TERMINALS: Brass, silver plated. Insert molded.
Packaging
Tube packaging.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and and place it in the appropriate box.
P
T
S
1
2
5
L
F
S
RoHS compliant and
compatible.
Silver plated.
Termination
S
Straight
Actuator Shape
NONE
Round
Actuator Force
M
160 grams
K
260 grams
Actuator Height
Thru Hole
V Vertical
43
85
12
4,3 (.169)
8,5 (.335)
12 (.472)
3,2 (.125)
6,2 (.244)
N/A N/A

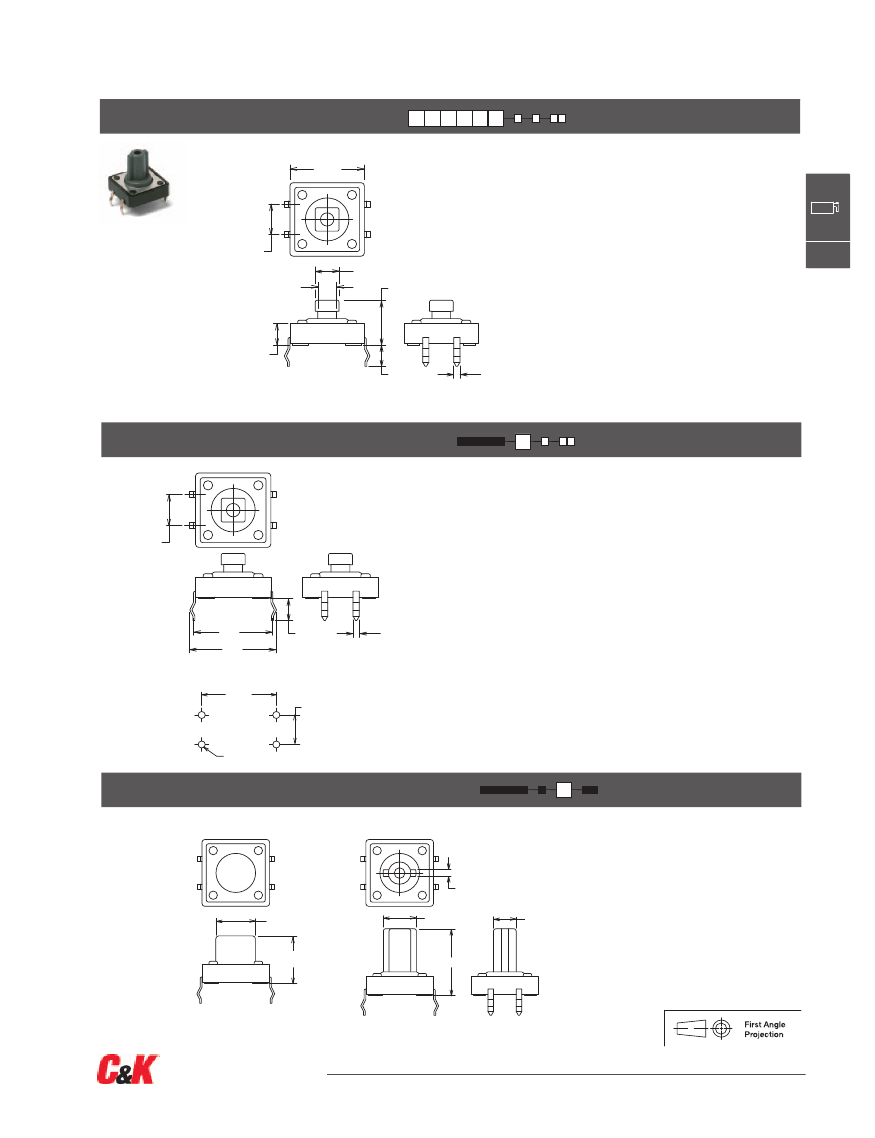

Dimensions are shown: mm (inches)
Specifications and dimensions subject to change
B–86
www.ck-components.com
