ZOR-12-R-F0R: DescriptionFixed Resistor, 0.166W, 0ohm, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size115KB，1 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

ZOR-12-R-F0R Overview

Fixed Resistor, 0.166W, 0ohm, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

ZOR-12-R-F0R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
Is Samacsys	N
YTEOL	7.4
Objectid	7016510272
package instruction	AXIAL LEADED, ROHS COMPLIANT
Other features	RATED CURRENT: 8A
Rated temperature	70 °C
surface mount	NO
Installation features	THROUGH HOLE MOUNT
Rated power dissipation(P)	0.166 W
resistance
Resistor type	JUMPER
Number of terminals	2
Package shape	TUBULAR PACKAGE
method of packing	TR
Terminal shape	WIRE
Maximum operating temperature	155 °C

Preview

Download Datasheet

View All

Through-hole resisTors

Zero Ohm Resistors

Coating Type

Normal Style [ ZOR Series ]

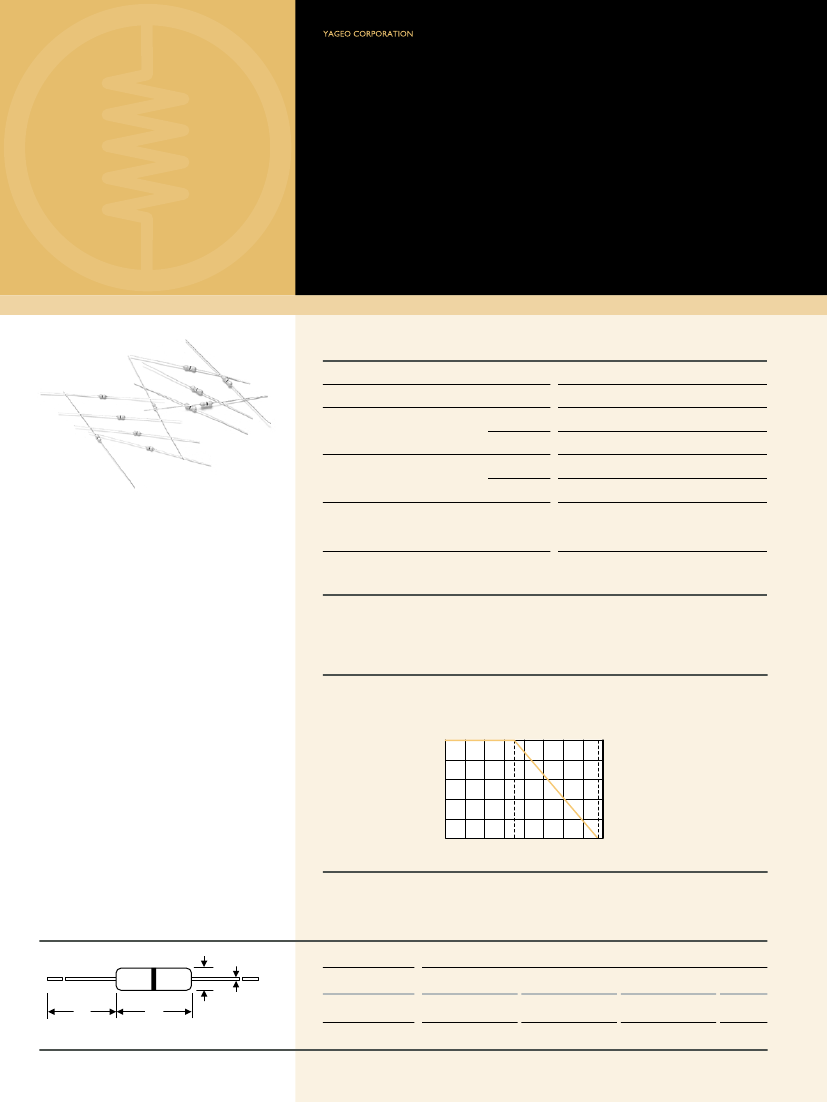

sPeCiFiCATioNs

Power Rating

Maximum Resistance

Min. Insulation Resistance

Dry

Wet

Atmospheric

Reduced

1/6W, 1/4W

20mΩ or less

10,000MΩ

100MΩ

500V RMS

325V RMS

Resistor insulation is self extinguishing within 10

Sec. after externally applied flame is removed

10 AMPS at 70°C for 1/4W

8 AMPS at 70°C for 1/6W

Min. Dielectric Withstanding Voltage

iNTroDuCTioN

• Similar to a 1/4W resistor (1/6W size also

available)

• Ideal for automatic insertion or Cut and Form

• Available in Tape/Reel, Tape/Box and Bulk

•

Products meet EU-RoHS requirements

Insulation Flammability

Current Rating

DerATiNg CurVe

For resistors operated in ambient temperatures above 70°C, power rating must be derated

in accordance with the curve below.

Rated Load (%)

100

100 120 140 160

155 °C

Ambient Temperature (°C)

DiMeNsioNs

ød

Unit: mm

sTYle

Normal

DiMeNsioN

3.3±0.4

6.3±0.5

øD

1.8±0.3

2.3±0.3

28±2.0

ød

0.45±0.05

0.55±0.05

øD

ZOR-12

ZOR-25

Single color code: black
