CM Series
Single Pole Power Rocker Switches
Features/Benefits
•
Illuminated versions available
•
Easy to install snap-in design
•
Multiple actuator and termination
styles to choose from
Typical Applications
•
Computers and peripherals
•
Power supplies
•
Industrial equipment
•
Small appliances
•
RoHS compliant
Specifications
CONTACT RATING:
UL/CSA: 16 AMPS @ 125 VAC, 1/8 HP;
10 AMPS @ 250 VAC, 1/3 HP.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to +80ºC
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, gloss or
matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, gloss or matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G–95 through G–97. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CM101
SPDT On-None-On
CM102
SPST On-None-Off
CM103
SPDT On-Off-On
CM107
SPDT On-Off-Mom.
CM12
*
SPST On-None-Off
Actuator
J1
Rocker
J3
Illuminated rocker
Actuator Color
2
Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
Snap-in, black
S4
Snap-in, black
S1
Snap-in, white
Termination
S3
Snap-in, white
05
.250” quick connect
07
Solder lug
Rocker
Actuator Marking
(NONE)
No marking
D
ON-OFF
H
”O l” - international ON-OFF
P
”O -” international ON-OFF
*
CM12 - for switches with both marking and illumination
Contact Rating
QA
Silver
Lamp Rating
(NONE)
No lamp
7
125 VAC neon
8
250 VAC neon
G
G–94
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CM Series
Single Pole Power Rocker Switches

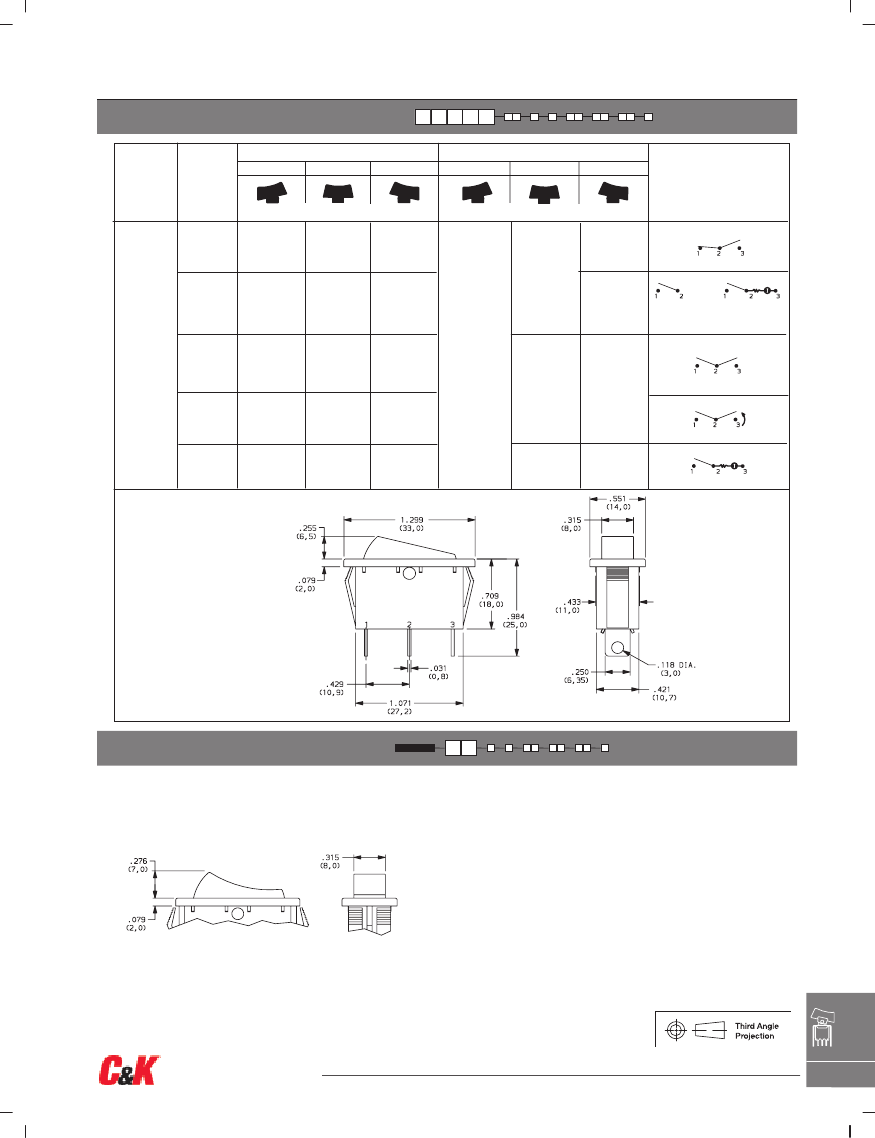

SWITCH FUNCTION
SWITCH FUNCTION
Pos. 1
Pos. 2
Pos. 3
Pos. 1
CONNECTED TERMINALS
Pos. 2
Pos. 3
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
CM101
ON
NONE
ON
N/A
2-1
CM102
ON
NONE
OFF
OPEN
OR
For Illuminated
Version
2-1
SP
CM103
ON
OFF
ON
OPEN
2-3
CM107
ON
OFF
MOM.
CM12 *
ON
NONE
OFF
N/A
OPEN
*
CM12 - for switches with both
marking and illumination
Shown in Pos. 1
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
Rocker
NOTE:
J3 actuator available with CM102 & CM12 switch function only.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–95
www.ck-components.com
G
CM Series
Single Pole Power Rocker Switches

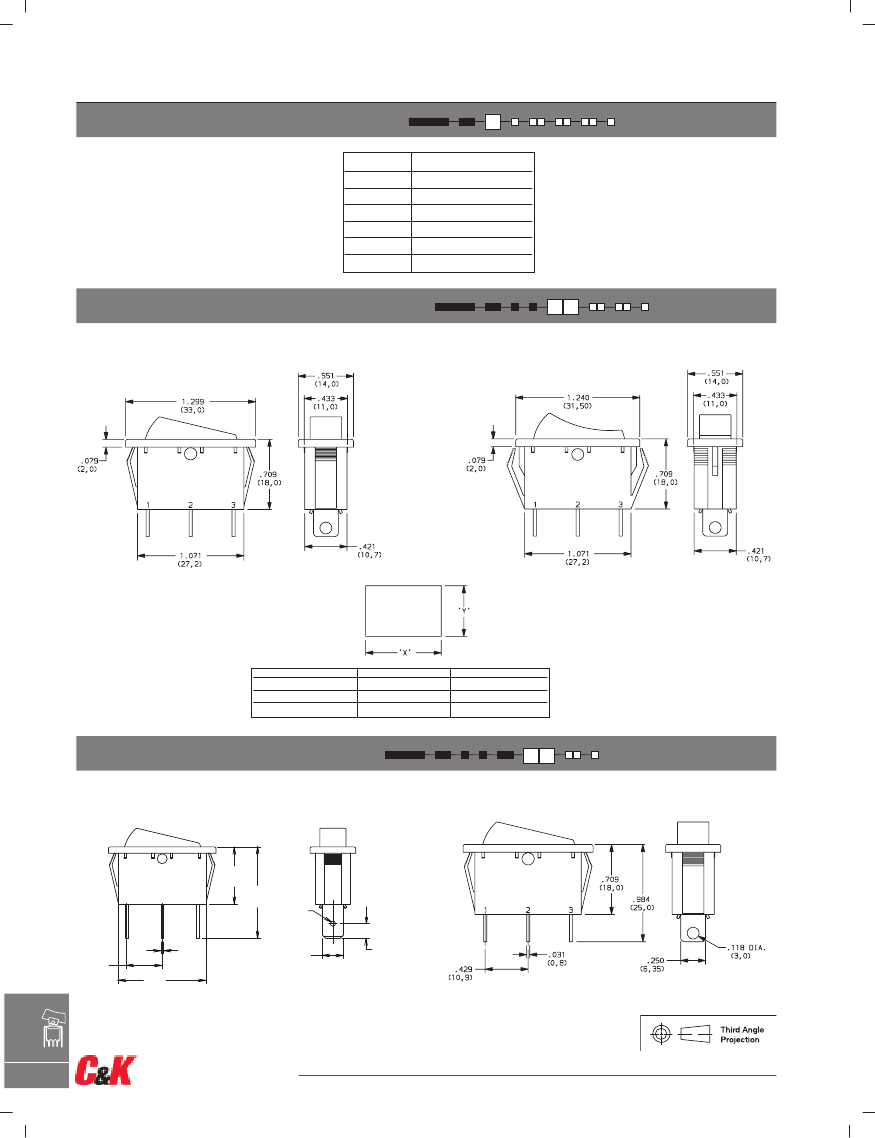

ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
2
1
3
R
A
G
MOUNTING STYLE/COLOR
S2
S1
SNAP-IN, BLACK
SNAP-IN, WHITE
S4
S3
SNAP-IN, BLACK (SHORT FRAME)
SNAP-IN, WHITE
PANEL MOUNTING
Shown in Pos. 1
Shown in Pos. 1
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
1.189-.004 (30,2-0,1)
1.197-.004 (30,4-0,1)
1.212-.004 (30,8-0,1)
“Y”
0.441+.004 (11,2+0,1)
0.441+.004 (11,2+0,1)
0.441+.004 (11,2+0,1)
TERMINATION
05
.250 QUICK CONNECT
07
SOLDER LUG
.709
(18,0)
Rocker
1
2
3
1.124
(28,55)
.063 DIA.
(1,60)
.185
(4,7)
.429
(10,9)
.031
(0,8)
1.071
(27,2)
.250
(6,35)
NOTE:
Available with CM101 & CM102 switch functions only.
Shown in Pos. 1
G
G–96
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CM Series
Single Pole Power Rocker Switches
ACTUATOR MARKING
NONE
NO MARKING
D
ON-OFF
H
Ol
P
O-
NOTE:
Orientation of actuator marking and terminals.
Shown in Pos. 1
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 1/8 HP
10 AMPS @ 250 VAC, 1/3 HP (UL/CSA).
QA
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
LAMP RATING
(NONE)
NO LAMP
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
NOTE:
Lamp rating for J3 & J8 actuator option.
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–97
www.ck-components.com
G
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
C&K Components
:
CM101J12S207QA CM101J11S205QA CM101J12S205QA CM101J12S405QA CM101J11S105QA
CM101J62S205QA CM107J12S205QA CM103J12S205QA CM102J12S207QA CM102J12S205HQA
CM102J12S205QA CM102J62S205QA CM102J12S205DQA CM102J3RS205QA7 CM102J11S205QA
CM102J12S205PQA CM102J3AS205QA7 CM102J3AS205QA8 CM102J3RS205QA8 CM102J11S205PQA
CM102J12S405QA CM102J3GS205QA7 CM102J3GS205QA8 CM102J11S305HQA CM102J12S105PQA
CM102J12S405PQA CM102J13S205QA
