REVISION BJ
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. TERMINALS TO BE SHEARED TO MEET DIMENSION SPECIFICATION.
3. PARTS MAY BE CUT TO POSITION.
4. MINIMUM PUSHOUT FORCE: .5 LB.
5. EJ OPTION IS NOT AVAILABLE AS OF REVISION AG.
APPLICABLE VIEWS ARE REMAINING FOR REFERENCE TO BUILD
INTERNAL ASP ORDERS ONLY. THIS OPTION WAS FOR EXISTING
BUSINESS ONLY. ANY EXISTING CUSTOMERS WILL HAVE PART
NUMBERS SETUP AS INTERNAL ASP'S.
6. MAX BURR ALLOWANCE: .003" [.08"]
7. MAX CUT FLASH: .010 [.25]
8. MAX HEIGHT VARIATION BETWEEN ROWS: .005 [.13]
No OF POSITIONS
-02 THRU -50
(PER ROW)

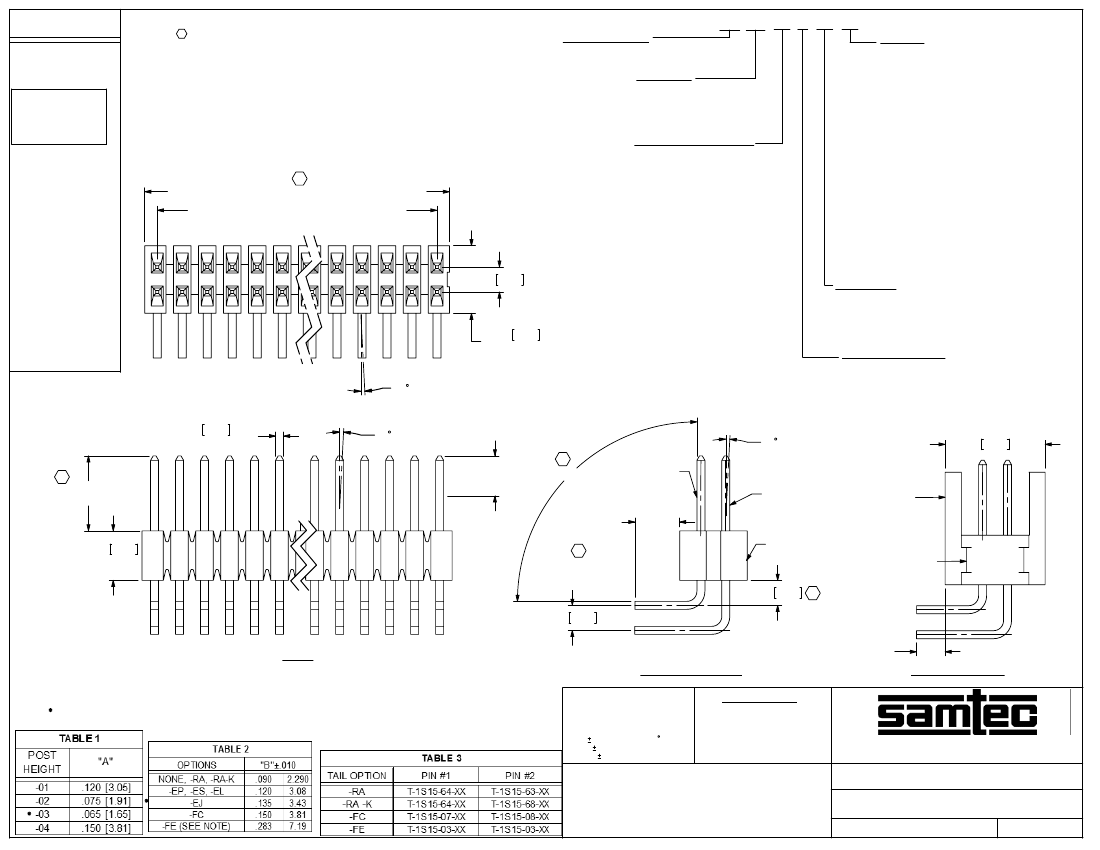

FTSH-1XX-XX-XX-D-XX-XX
LEAD STYLE
-01: .120 [3.05]
-02: .075 [1.91]
-03: .065 [1.65] MIN
-04: .150 [3.81]
PLATING SPECIFICATION
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LTL: 10µ" SELECTIVE GOLD IN CONTACT AREA,
90 / 10 ± 5% TIN LEAD ON TAIL
C
No OF POS x .0500 [1.270] - .003 [.08] ± .006 [.15]
No OF POS x .0500 [1.270] - .0500 [1.270]
02
01
50
.050 1.26
49
.135 3.43
REF
2 MAX SWAY
(EITHER DIRECTION)
.016 0.41 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
CONTACT
AREA
TAIL OPTION
-RA: RIGHT ANGLE
-FC: FLEX CARD (MUST USE FTSH-50-D)
(-01 LEAD STYLE ONLY, FOR USE WITH FCF)
-FE: FLEX CARD ELEVATED (MUST USE FTSH-50-D)
(-01 LEAD STYLE ONLY, FOR USE WITH FCF)
-ES: END SHROUDS
(-02 & -03 LEAD STYLE ONLY- SEE FIG 2, SHT 2)
(9 POS PER ROW MIN)
(MUST USE FTSH-50-D)
-EL: SHROUD LOCK
(-02 & -03 LEAD STYLE ONLY- SEE FIG 4, SHT 2)
(9 POS PER ROW MIN)
(USE ONLY WHEN MATING WITH CLP)
(MUST USE FTSH-50-D)
-EP: GUIDE POST
(-02 & -03 LEAD STYLE ONLY- SEE FIG 5, SHT 2)
(9 POS PER ROW MIN)
(USE ONLY WHEN MATING WITH CLP)
(MUST USE FTSH-50-D)
-EJ: EJECTOR SHROUD
(SEE FIG 3, SHT 2)
(SEE NOTE 5)
(MUST USE FTSH-50-D)
-K: KEYING SHROUD
(-01 LEAD STYLE ONLY- SEE FIG 1, -K OPTION)
(POS 05, 08, 10, 13, 15, 17, 20, 25 ONLY)
(USE ONLY WITH -RA TAIL OPTION)
(MUST USE FTSH-XX-CN-XX)
OPTIONS
"A"
(SEE TABLE 1 & NOTE 8)
C
C
90°±3°
PIN #1
(SEE TABLE 3)
.099 2.51
REF
"B"
(SEE TABLE 2
& SEE NOTE 2)
C
ROW SPECIFICATION
-D: DOUBLE ROW
(USE **FTSHC-1XX-XX-XXX-D-RA UNLESS
OPTION IS SPECIFIED, THEN USE BODY
CALLED OUT UNDER OPTION AND BUILD
PER PRINT. SEE OPTIONS FOR BODY
CALLOUT)
** = SEE FTSHC-1XX-XX-XXX-DX-XX PRINT FOR DETAILS
2 MAX SWAY
.200 5.08 REF
(EITHER DIRECTION)
NOTCH TO
BE ORIENTED
AWAY FROM
PIN #2
-RA TAILS
(SEE TABLE 3)
FTSHC-50-D
FTSH-XX-CN-XX
.050 1.27 C
.050 1.27
FTSHC-1XX-XX-XXX-D-RA SHOWN
(SEE FTSHC-1XX-XX-XXX-DX-XX PRINT FOR DETAILS)
FIG 1
-RA OPTION SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
"B"
(SEE TABLE 2
& SEE NOTE 2)
-K OPTION SHOWN
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
1
.XXX: .005 [.13]
.XXXX: .0010 [.025]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
INSULATOR: BLACK LIQUID CRYSTAL POLYMER
TERMINAL: PHOSPHOR BRONZE, ALLOY No. 510
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
BY:
BRATCHER 08/17/1995
FTSH-1XX-XX-XX-D-XX-XX
SHEET
1
OF
3
REVISION BJ

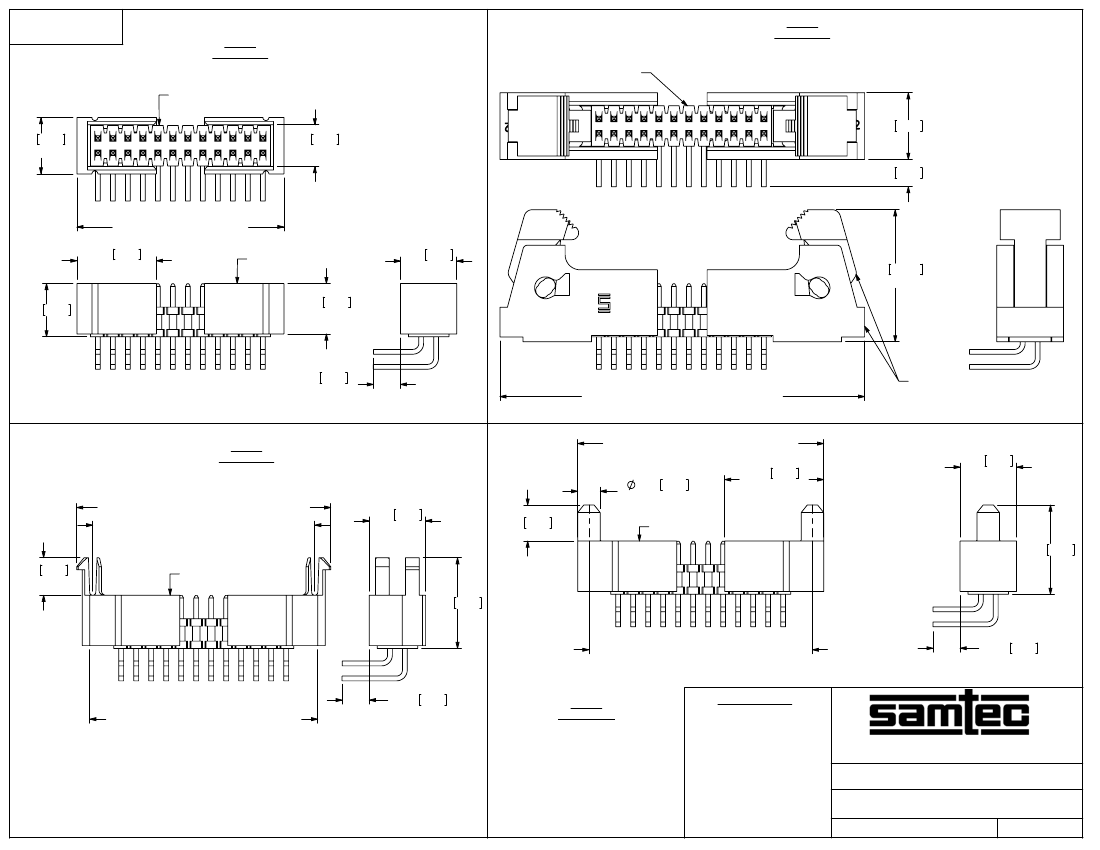

-ES OPTION
AVAILABLE IN LEAD STYLE -02 & -03 ONLY
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FTSH-50-D
FIG 2
FTSH-50-D
-EJ OPTION
(FOR EXISTING CUSTOMERS ONLY)
AVAILABLE IN LEAD STYLE -01 ONLY
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(SEE NOTE 5 ON SHEET 1)
FIG 3
.188 4.78
REF
.139 3.53
REF
.222 5.65 REF
.091 2.31 REF
(No OF POS x .050[1.27])
+.061[1.55] ±.008[.20]
.265 6.73
REF
FTSH-ES
.188 4.78
REF
.168 4.27
REF
.440 11.18
REF
.178 4.51
.090 2.29
REF
No OF POS x .050[1.27] + .621[15.77]
±.010[.25]
No OF POS x .050[1.27] + .231[5.87]
±.008[.20]
.075 1.91
REF
.120 3.05
FTSH-EP
.330 8.38
REF
USE FTSH-EJEHA SUB ASSEMBLY
(2 REQ'D PER ASSEMBLY - EACH
USES 1 EHA-02, 1 FTSH-EJ)
-EL OPTION
(USE ONLY WHEN MATING WITH CLP)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 2)
No OF POS x .050[1.27] + .257[6.53] REF
No OF POS x .050[1.27] + .153[3.89] REF
.188 4.78
REF
FIG 4
.188 4.78
REF
.298 7.56
.125 3.18
REF
FTSH-EL
.303 7.68
No OF POS x .050[1.27] + .156[3.96] RE
.090 2.29 REF
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
No OF POS x .050[1.27] + .223[5.66]
±.008[.20]
.090 2.29 REF
-EP OPTION
(USE ONLY WHEN MATING WITH CLP)
(DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG 2)
FIG 5
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
DWG. NO.
FTSH-1XX-XX-XX-D-XX-XX
SHEET
2
OF
3
BY:
BRATCHER 08/17/1995
