SPA Series
Single In-line Package Switches
Features/Benefits
•
Thin Single In-line Packaging saves
•
•
•
•
PCB space
Retention feature holds part to PCB
prior to soldering
Available in vertical or right angle
models
High pressure contact system
does not require tape sealing
RoHS compliant
Typical Applications
•
Address switch for industrial
controls
•
Logic switching for computers
and peripherals
•
Function controlling for
numerous applications
H
DIP
Specifications
CONTACT RATING:
Carry: 10 mA @ 5VDC
Switching: 0.1 mA @ 0.1m VDC min.
MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.
CONTACT RESISTANCE: 50 mΩ max. @ 20 V DC 10mA.
INSULATION RESISTANCE: 100 MΩ min. @ 100 V DC.
DIELECTRIC STRENGTH: 1 minute @ 300 V AC.
CAPACITANCE: 5pF max. between adjacent terminals.
OPERATING TEMPERATURE: -30°C to 60°C.
STORAGE TEMPERATURE: -30°C to 80°C.
OPERATING FORCE: 5.9N max.
SOLDERABILITY: Dip & look solderability testing per C&K spec.
#448. Unplated edges of terminals permitted.
PACKAGING: Switches supplied in rigid dispensing tubes in full-
tube quantities only, this may affect order quantity. Numbers of
switches per tube varies with model.
Materials
BASE: PPS (UL94V-0).
COVER: PBT (UL94V-0).
ACTUATOR: 4/6 Nylon (UL 94V-0).
MOVABLE CONTACT: Beryllium copper alloy, gold over nickel plate.
FIXED CONTACT: Copper alloy, gold over nickel plate.
CLIP: Phosphor bronze wire. Phosphor bronze, Tin over nickel plate.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
All switches supplied in “OFF” position.
S P A
Number of
Positions
SPA02
2 positions
SPA04
4 positions
SPA06
6 positions
SPA08
8 positions
SPA10
10 positions
B
Switch Function
NONE
Vertical
A
Right Angle
Contact material
B
Gold

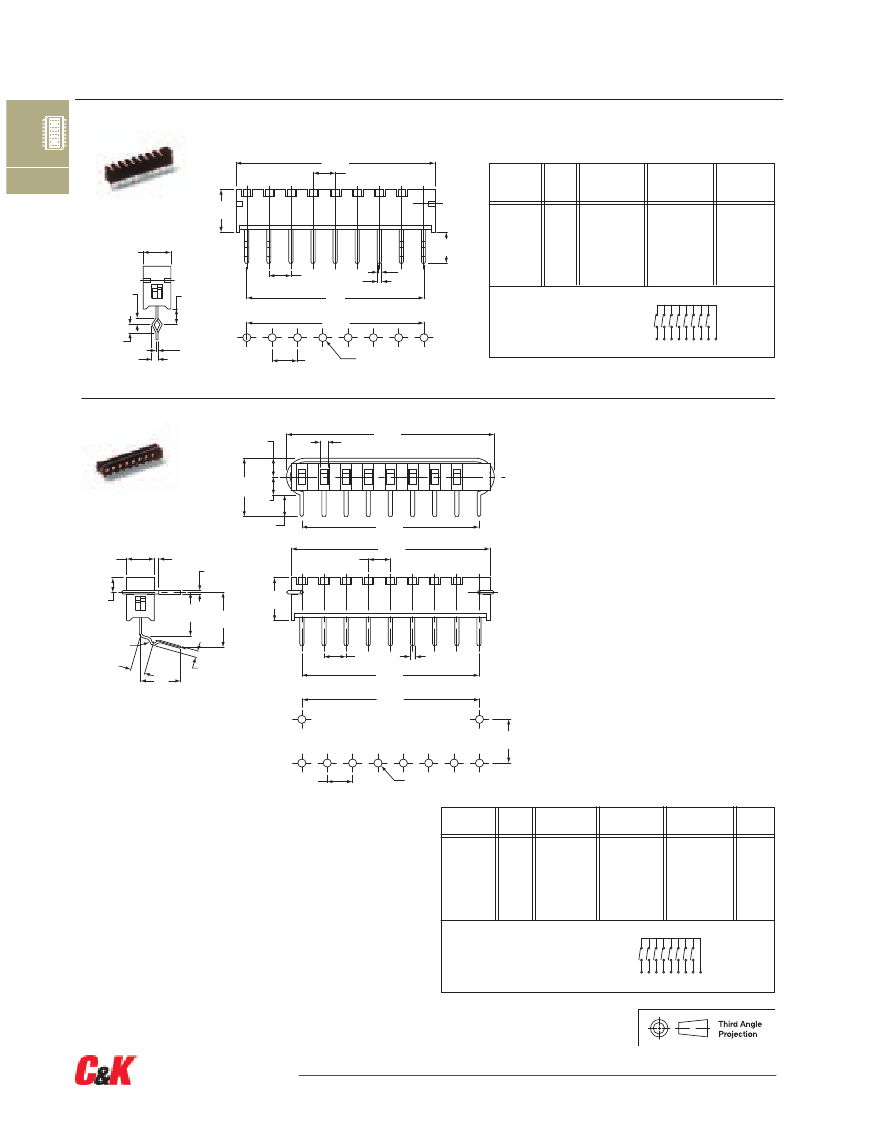

Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–19
www.ck-components.com
