BA-2634-206 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BA-2634-206

BA-2634-206: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.18 inch Pitch, Solder Terminal, White Insulator, Plug,; CategoryThe connector The connector; File Size174KB，2 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

BA-2634-206 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.18 inch Pitch, Solder Terminal, White Insulator, Plug,

BA-2634-206 Parametric

Parameter Name	Attribute value
ECCN code	EAR99
Is Samacsys	N
Objectid	1943502339
Reach Compliance Code	unknown
Terminal length	0.16 inch
body width	0.5 inch
subject depth	0.64 inch
body length	1.254 inch
Durability	5 Cycles
Rated current (signal)	9 A
Terminal pitch	4.57 mm
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Installation method	STRAIGHT
Installation type	BOARD
Contact resistance	10 mΩ
PCB row number	1
Total number of contacts	6
insulator material	POLYESTER
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Contact completed and terminated	TIN
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Mixed contacts	NO
Number of connectors	ONE
Contact material	COPPER ALLOY
Insulator color	WHITE
Plug contact pitch	0.18 inch
Plug information	RIBBON CABLE
Guideline	UL, CSA
UL Flammability Code	94V-0
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING
Dielectric withstand voltage	2600VAC V
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

Preview

Download Datasheet

View All

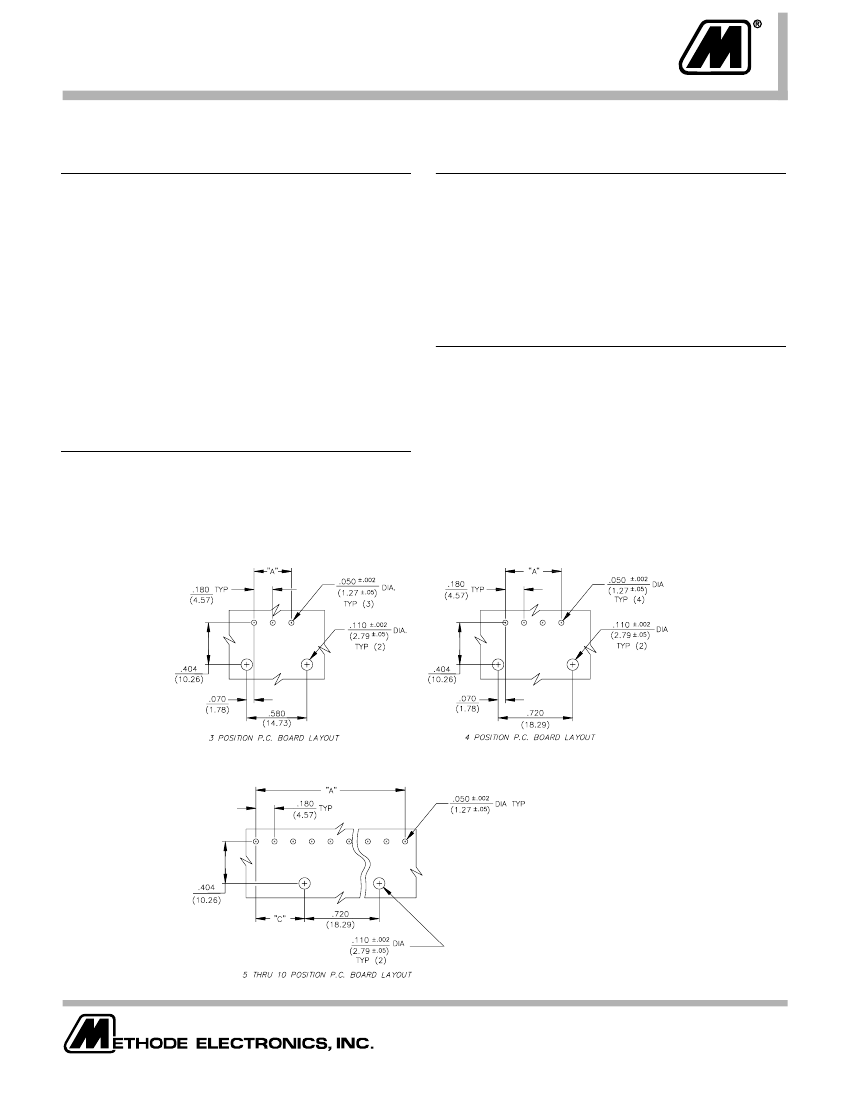

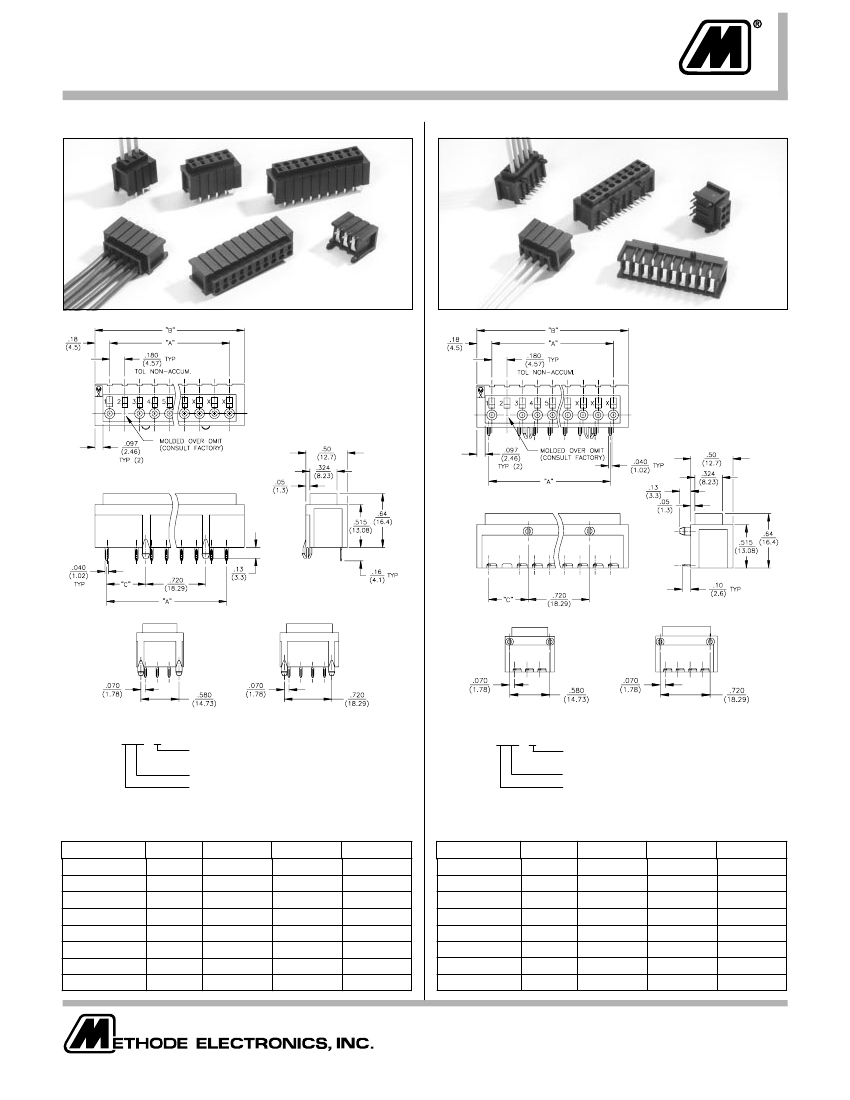

.180” Wire Trap Connector

Vertical Type

Right Angle Type

3 POSITION

4 POSITION

3 POSITION

4 POSITION

P/N Legend

BA - 2634 - XXX - X

OMIT POSITION #(S)

CONSULT FACTORY

NUMBER OF POSITIONS

INSULATOR COLOR; PEG OPTION

0 = WHITE WITH PEGS

1 = BLACK WITH PEGS

2 = WHITE WITHOUT PEGS

3 = BLACK WITHOUT PEGS

BA - 2675 - XXX - X

OMIT POSITION #(S)

CONSULT FACTORY

NUMBER OF POSITIONS

INSULATOR COLOR; PEG OPTION

0 = WHITE WITH PEGS

1 = BLACK WITH PEGS

2 = WHITE WITHOUT PEGS

3 = BLACK WITHOUT PEGS

PART NUMBER

BA-2634-X03

BA-2634-X05

BA-2634-X06

BA-2634-X07

BA-2634-X08

BA-2634-X09

BA-2634-X10

NO. POS.

"A "

.360 (9.14)

.540 (13.72)

.720 (18.29)

.900 (22.86)

1.080 (27.43)

1.260 (32.00)

1.440 (36.58)

1.620 (41.15)

"B"

.714 (18.14)

.894 (22.71)

1.074 (27.28)

1.254 (31.85)

1.434 (36.42)

1.614 (41.00)

1.794 (45.57)

1.974 (50.14)

"C"

SEE FIGURE

.110 (2.79)

.290 (7.37)

.470 (11.94)

PART NUMBER

BA-2675-X03

BA-2675-X05

BA-2675-X06

BA-2675-X07

BA-2675-X08

BA-2675-X09

BA-2675-X10

NO. POS.

"A"

.360 (9.14)

.540 (13.72)

.720 (18.29)

.900 (22.86)

1.080 (27.43)

1.260 (32.00)

1.440 (36.58)

1.620 (41.15)

"B"

.714 (18.14)

.894 (22.71)

1.074 (27.28)

1.254 (31.85)

1.434 (36.42)

1.614 (41.00)

1.794 (45.57)

1.974 (50.14)

"C"

SEE FIGURE

.110 (2.79)

.290 (7.37)

.470 (11.94)
