MA Series
Microminiature Memory Card
Slide Switches
SPECIFICATIONS
Contact rating:
300 mA at 4 VDC
Initial contact resistance:
70 milliohms max.
Insulation resistance:
100 megohms min. at 100 VDC
Dielectric strength:
100 VAC for 1 minute
Electrical life:
10,000 cycles min.
Operating temperature range:
-10°C to +60°C
Actuation force:
200g ± 100g
Solder heat resistance:
Reflow - 260°C max. for 1 min.
Manual - iron temperature
305 °C max. for 6 seconds.
Washing not recommended
MODEL NO.
MA12R
FEATURES
Ultra-compact size.
Surface mounting with restraining bosses.
Reflow or hand solderable.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Low Profile.
MATERIALS
Contacts:
Silver plated beryllium copper
Terminals:
Silver plated brass
Base:
Liquid crystal polymer
Cover:
Tin plated steel
Actuator:
Liquid crystal polymer
.059 (1.50) TRAVEL/THROW
.098 (2.50) TRAVEL/THROW
1P2T
O
RIGHT ANGLE ACTUATOR
MODEL NO.
MA12R/TR
MA13R/TR
Same as above models except
supplied on tape & reel as shown.
Model No.
MA12RTR
Dim. A
Dim. B
SCHEMATIC

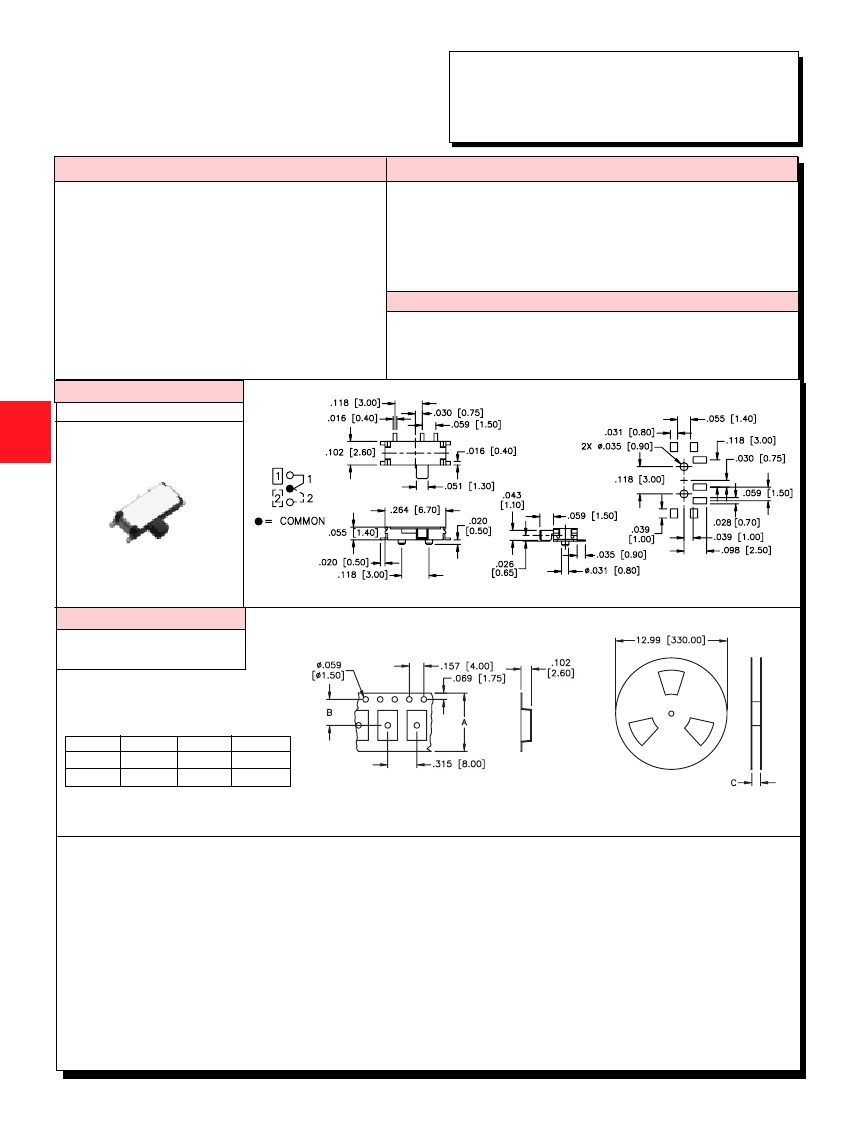

MECHANICAL OUTLINE
P.C. BOARD LAYOUT
Dim. C
.646 (16.4)
.630 (16.0) .217 (5.5)
MA13R/TR .945 (24.0) .453 (11.5) .960 (24.4)
CARRIER TAPE
REEL DIMENSIONS
O6
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
