Z-279S-18FD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> Z-279S-18FD

Preview

Z-279S-18FD: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

Z-279S-18FD Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

Z-279S-18FD Parametric

Parameter Name	Attribute value
Is it lead-free?	Yes
Is it Rohs certified?	Yes
Objectid	1863306878
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact point gender	FEMALE
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Total number of contacts	18
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Number of connectors	ONE
Options	GENERAL PURPOSE
Termination type	SOLDER
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Filter function	NO

Preview

Download Datasheet

View All

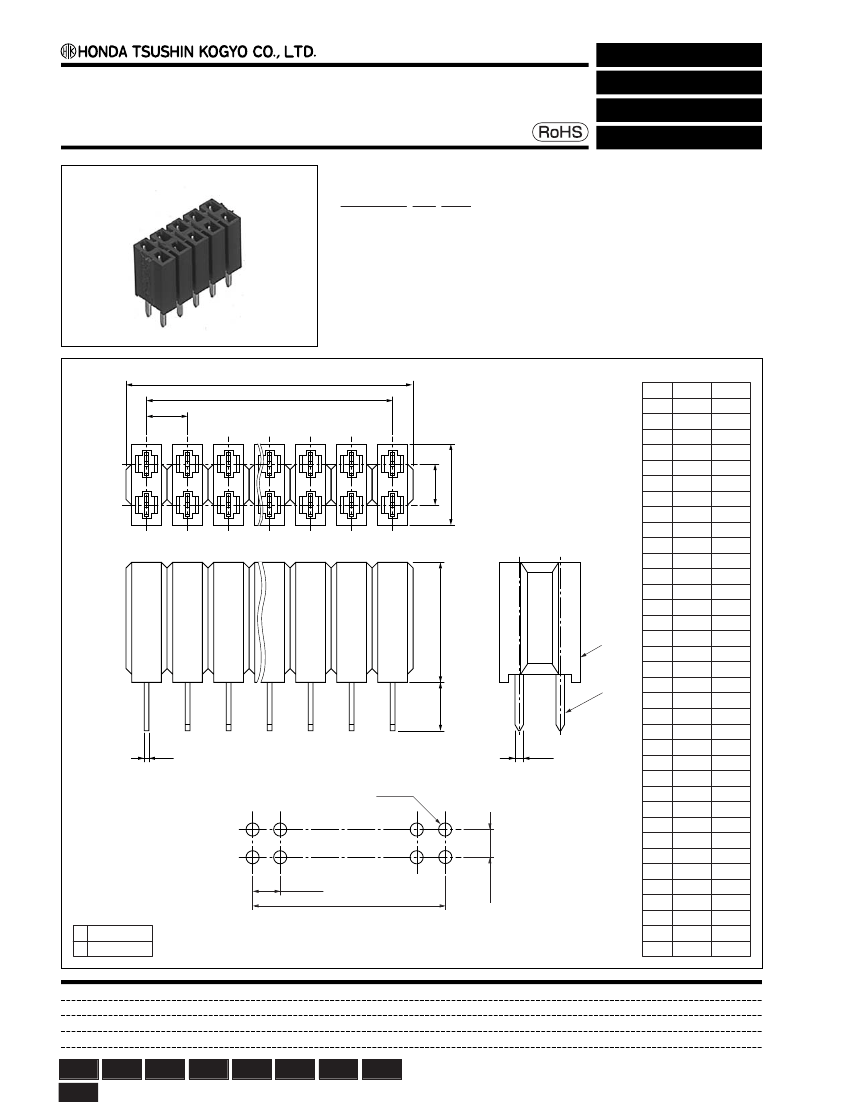

2.54 mm pitch connector

Straight through hole type female connector for PCB

(Square contact type)

Z-279S-( )FD

●

Configuration of product Part No.

For PCB

Straight Through hole

Z-279S- ( ) FD

➀

➁

➂

➀

Series name

➁

No. of contacts: 2–72

➂

Type of contact

FD: Straight through hole type, female

Contact plating : Gold plate

B

A

2.54

●

Dimensions

No. of

contacts

2

4

6

8

10

A

–

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

2.54

5.04

12

14

16

18

20

22

24

26

28

7.5

30

➀

➁

3

32

34

36

38

40

42

44

46

48

50

0.4

0.75

ø1

+0.06

52

54

56

58

60

2.54

– 0.05

62

64

66

68

70

72

2.54

+ 0.05

–

A

– 0.1

+

●

Components

➀

Insulator

➁

Contact

Recommended PCB layout

Mating connectors:

FFC series male connector (Cross section of contact: 0.635 mm square, Length of contact: 5 mm)

FFC-( )T9BMEP1(B) or FFC-( )T19LBMEP1(B) male connector

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

+

Recommended Resources

electronic watch circuit

DC/DC circuit controlled by UCC38083

Electromagnetic braking control

Infrared light control switch circuit diagram 1

TDA1180P power amplifier circuit

Speed control circuit example
