SPECIFICATIONS
Material:
HEXSEALS: Silicone rubber conforms to A-A-59588 Class III,
GR 60 unless otherwise specified.
Mounting Nut:
HEXSEALS: Brass, nickel-plated (unless otherwise
noted)
Temperature Range:
HEXSEALS: -94°F to +400°F
Pressure Range:
Exceeds 15 psi internal and 1500 psi external.
Operational Life:
50,000 actuations (minimum).
Shelf Life:
Excess of 25 years.
Resistant to:
Salt spray, sunlight, ozone, weather, fungus, and most
acids and lubricating oils
Agency Recognition:
E-SEELS and HEXSEALS are UL-listed to UL
Std. 50 types 1-13, and meet CSA standards.
Installation:
If a reducing adaptor is required - see page 14 of
HEXSEAL catalog HEX200 for part numbers and drawing.
TITLE:
FINISH: GRAY
APM-HEXSEAL CORPORATION
SCALE
4:1
DWG. NO.
MAT'L: SILICONE RUBBER
A-A-59588 Class III, Gr.60
MAXIMUM AND MINIMUM MEASURE-
MENTS ARE STATED DIRECTLY ON
EACH DIMENSION.
C
MAT'L CHANGED
B
CAD COMPUTER GENERATED
A
UPDATED and REDRAWN
DESCRIPTION
REV.

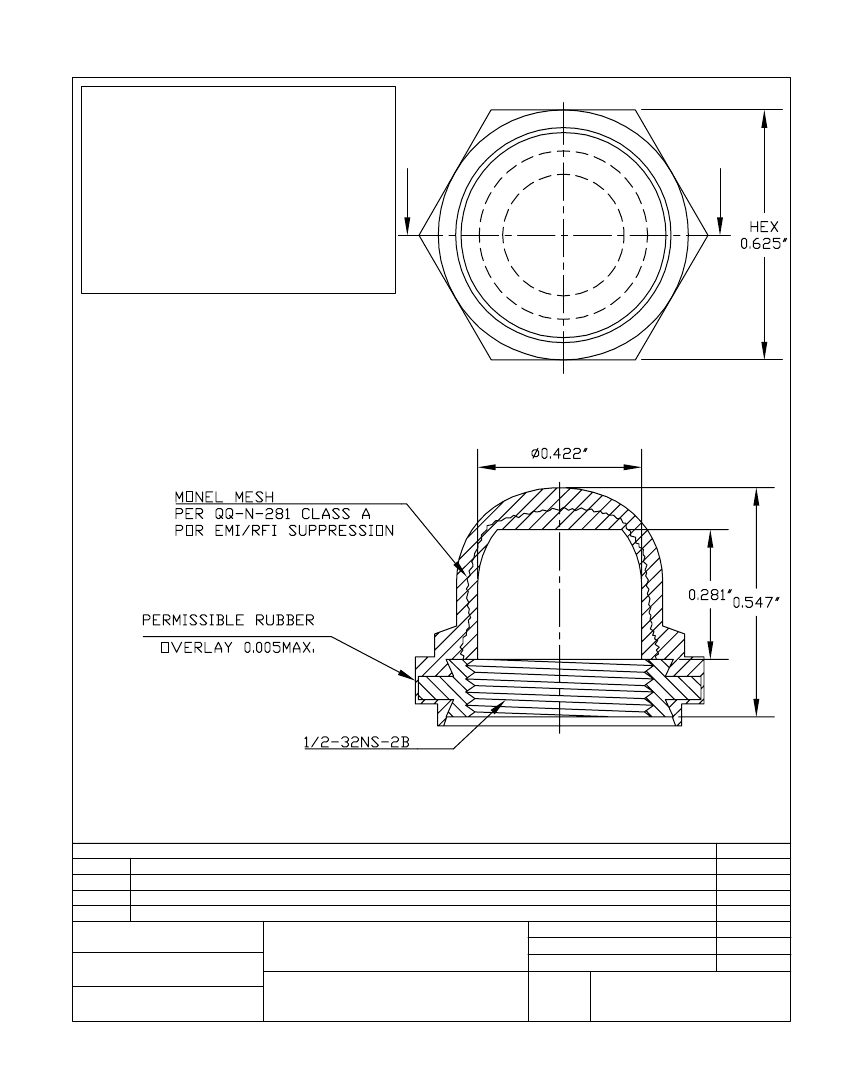

BOOT, PUSH BUTTON
SWITCH (NH3030RFI)
ENG.
DWN.
CHKD.
07.29.09
09.23.02
M.M.
09.12.76
DATE
S.GOK
07.29.09
07.22.74
R. C.
J. CELLA 07.29.09
S.GOK
NH3030RFI
HEXSEAL ®
