PM7226GBC datasheet, PDF - EEWORLD Datasheet

PM7226GBC: DescriptionIC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, UUC20, 0.129 X 0.151 INCH, DIE-20, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size264KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

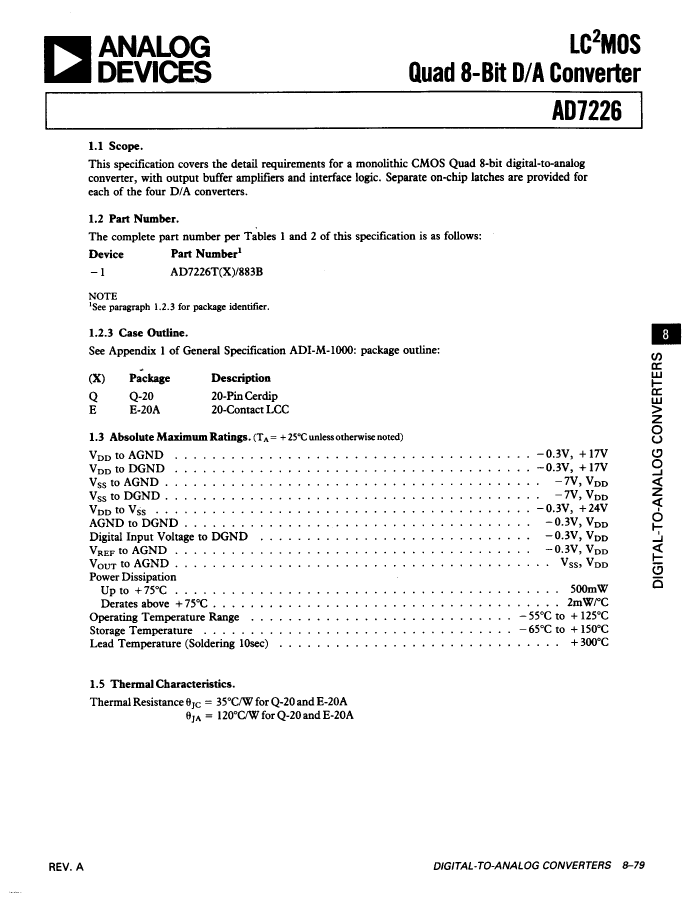

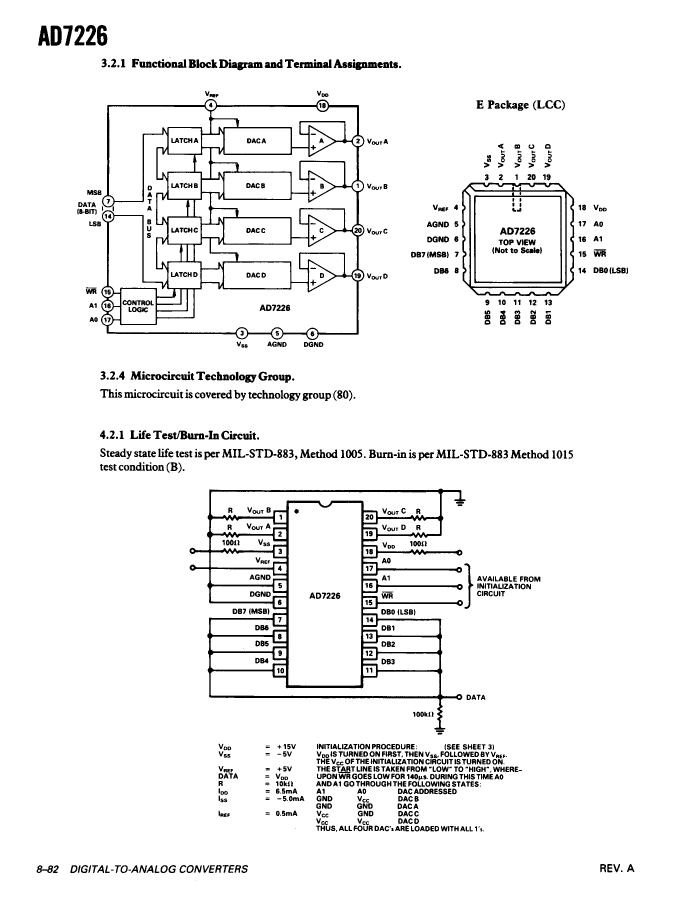

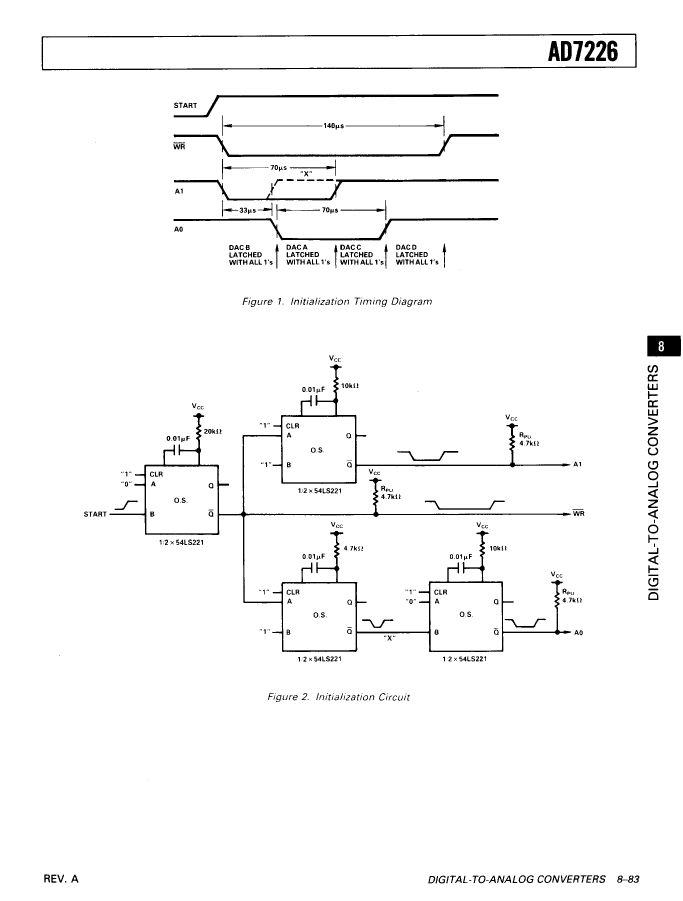

PM7226GBC Overview

IC PARALLEL, 8 BITS INPUT LOADING, 8-BIT DAC, UUC20, 0.129 X 0.151 INCH, DIE-20, Digital to Analog Converter

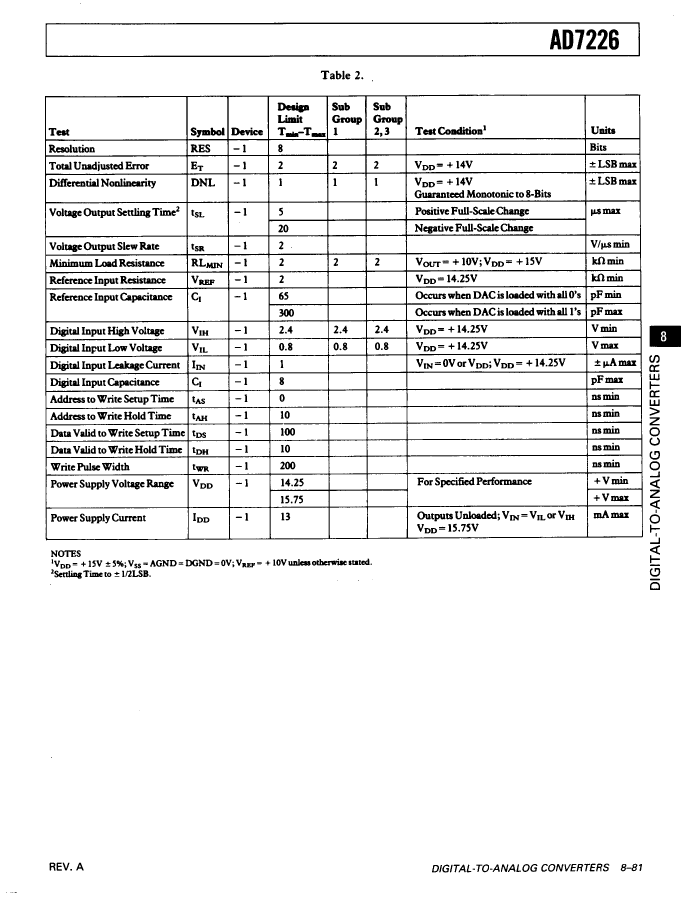

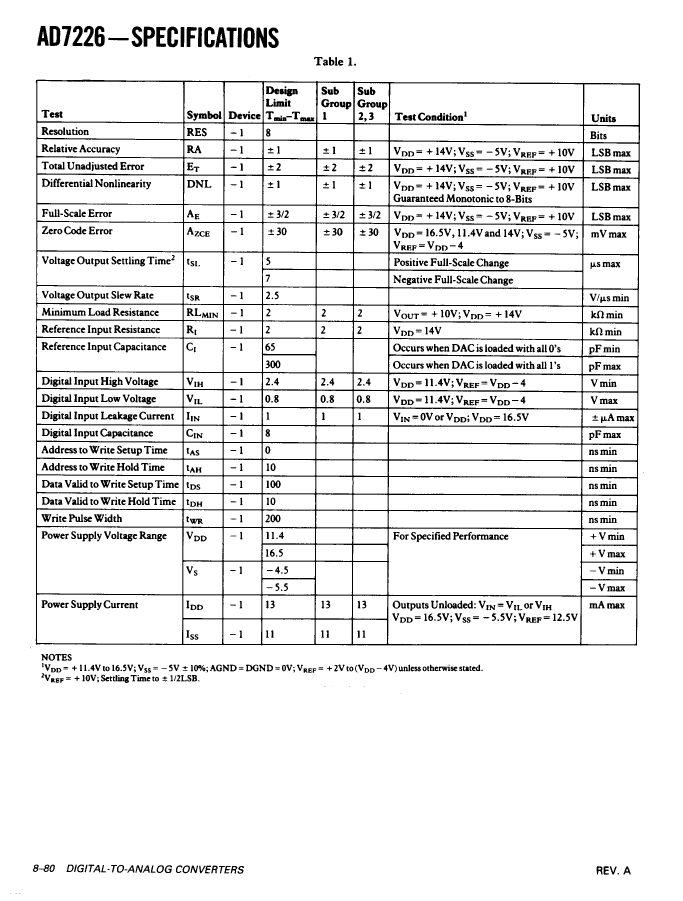

Parameter Name	Attribute value
Contacts	20
ECCN code	EAR99
Reach Compliance Code	unknown
Is Samacsys	N
YTEOL	0
Objectid	1402337924
Parts packaging code	DIE
package instruction	0.129 X 0.151 INCH, DIE-20
Is it Rohs certified?	No
surface mount	YES
Maximum analog output voltage	15 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Maximum linear error (EL)	0.391%
Number of digits	8
Temperature level	OTHER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, 8 BITS
Nominal negative supply voltage	-5 V
Number of functions	1
Maximum stabilization time	5 µs
Maximum slew rate	12 mA
technology	CMOS
JESD-30 code	R-XUUC-N20
JESD-609 code	e0
Certification status	Not Qualified
Number of terminals	20
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Terminal surface	TIN LEAD
Terminal location	UPPER
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Terminal form	NO LEAD
Maximum operating temperature	25 °C
Minimum operating temperature	25 °C
Filter level	MIL-STD-883 Class B (Modified)
