Series FS
Toggles
Miniature Slides for High Frequency
General
Specifications
For high frequency (DC through 1GHz): Isolation 40dB minimum at 1GHz.
Insertion loss 0.5dB maximum at 1GHz.
Impedance 75 ohms
Innovative alternative to relay products
Highly reliable, self-cleaning twin contact mechanism with gold plating
Long total travel of .138” (3.5mm) for highly visible actuator position
Distinct audible and tactile feedback during actuation
Suited to high frequency applications (90MHz to 1GHz) such as CATV and
communication equipment
Actual Size
with Tall Actuator
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Rotaries
Distinctive
Characteristics
Electrical Capacity (Resistive Load)
Logic Level:
Slides
H
RF Ratings
Impedance:
Insertion Loss:
Isolation:
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
75 ohms
0.5dB maximum @ 1GHz
40dB minimum @ 1GHz
Tactiles
Other Ratings
Tilt
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Contact Timing:
Total Travel:
200 milliohms maximum
250 megohms minimum @ 500V DC
500V AC minimum for 1 minute minimum
1,000 operations minimum
1,000 operations minimum
Nonshorting (break-before-make)
.138” (3.5mm)
Touch
Indicators
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Accessories
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 5 minutes; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Installation
Supplement
Soldering Time & Temp:
Cleaning:
Wave Soldering: See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
www.nkk.com
H14
Miniature Slides for High Frequency
TYPICAL SWITCH ORDERING EXAMPLE
Series FS
Toggles
FS
2
2
A
A
P
Pole
2
DPDT
A
Frequency Band
DC through 1GHz
P
Terminals
Straight PC
2
ON
NONE
ON
A
B
Short (.291” or 7.4mm)
Tall (.488” or 12.4mm)
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
FS22AAP
H
Short Actuator
DPDT
ON-NONE-ON Circuit
Frequency Band DC through 1GHz
Straight PC Terminals
Slide Position
Left
Pole
DP
Model
FS22
ON
NONE
ON
Center
Right
Left
Connected Terminals
Center
Right
Throw & Schematics
Note: Terminal numbers are not
actually on the switch.
DPDT
2
1
(COM)
3
4
5
6
2-1 5-4
NA
2-3 5-6
www.nkk.com
H15
Supplement
Accessories
Indicators
POLE & CIRCUIT
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Circuit
Actuators
Programmable Illuminated PB
Pushbuttons
Rockers
Series FS
Toggles
Miniature Slides for High Frequency

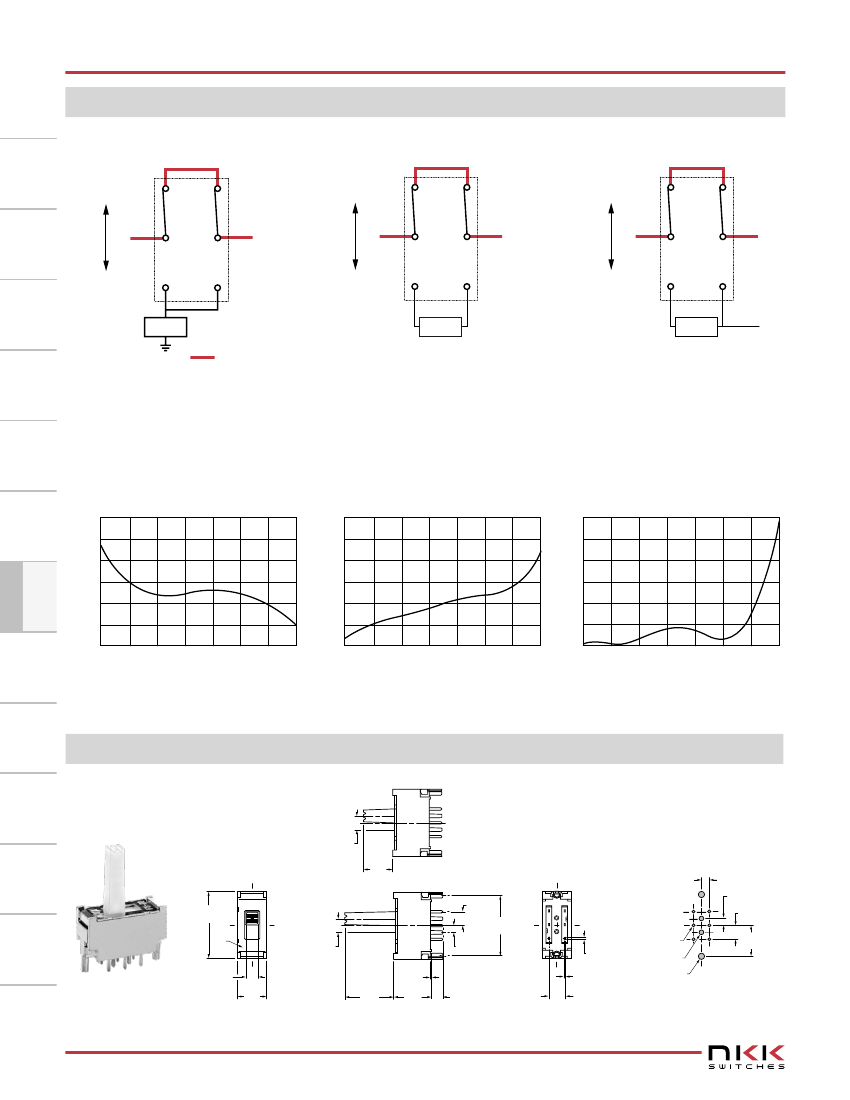

HIGH FREQUENCY PERFORMANCE
RF Connection Options
Rockers
Option 1
Direction of Actuation
Direction of Actuation
Option 2
Direction of Actuation
Option 3
4
In
5
1
Out
2
4
In
5
1
Out
2
4
In
5
1
Out
2
Programmable Illuminated PB
Pushbuttons
6
3
6
3
6
3
T
= Circuit Trace
A
T = Terminator
A
Out 2
A = Amplifier or other device
Isolation
>40dB @ 1GHz
(higher value is better)
Insertion Loss
<0.5dB @ 1GHz
(lower value is better)
Standing Wave Ration
or Impedance Matching
Standing Wave = ratio between highest
voltage & lowest voltage
(must always be more than 1)
VSWR (Voltage Standing Wave Ratio):
1:1 @ 1GHz
Keylocks
Rotaries
90
80
70
Isolation: Greater than 40dB @ 1GHz
0.6
0.5
0.4
dB 0.3
0.2
0.1
Insertion Loss: Less than 0.5dB @ 1GHz
1.6
1.5
Slides
H
dB 60
50
40
V
S
1.3
W
R
1.2
1.1
1.4
Tactiles
30
10MHz
500MHz
1GHz
0
10MHz
500MHz
1GHz
1
10MHz
500MHz
1GHz
Note: The data above reflects the conditions using the FS switch on a test PCB with two coaxial connectors.
High frequency applications require external connection on the PCB. Contact factory for details.
Tilt
TYPICAL SWITCH DIMENSIONS
Short & Tall Actuators
Touch
(3.5) Travel
.138
Indicators
(7.4)
.291
(3.5) Typ
.138
(15.7)
.618
(3.5) Travel
.138
(0.3)
.012
(9.6)
.378
(1.75) Typ
.069
Accessories
(17.0)
.669
Part
No.
1
2
3
4
5
6
4
5
1
2
3
(2.0) Typ
.079
(1.75) Typ
.069
(3.5) Typ
.138
(7.85) Typ
.309
(0.6) Typ
.024
(0.3) Typ
.012
(3.0) Sq
.118
(7.4)
.291
(12.4)
.488
(0.8) Dia Typ
6
.031
(1.2) Dia Typ
.047
(1.6) Dia Typ
.063
Supplement
(2.9)
.114
(4.0)
.157
FS22ABP
H16
Actuator in LEFT position.
www.nkk.com
