GB15AV-XC-RO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> GB15AV-XC-RO

GB15AV-XC-RO: Descriptionpushbutton switches ON-(ON) .157 red cap vertical PC .4va; CategoryTopical application Mechanical and electrical/engineering/automation; File Size188KB，5 Pages; ManufacturerNKK; Websitehttps://www.nkkswitches.com.cn; Environmental Compliance

Download Datasheet Compare View All

GB15AV-XC-RO Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GB15AV-XC-RO	-	-	View	Buy Now

GB15AV-XC-RO Overview

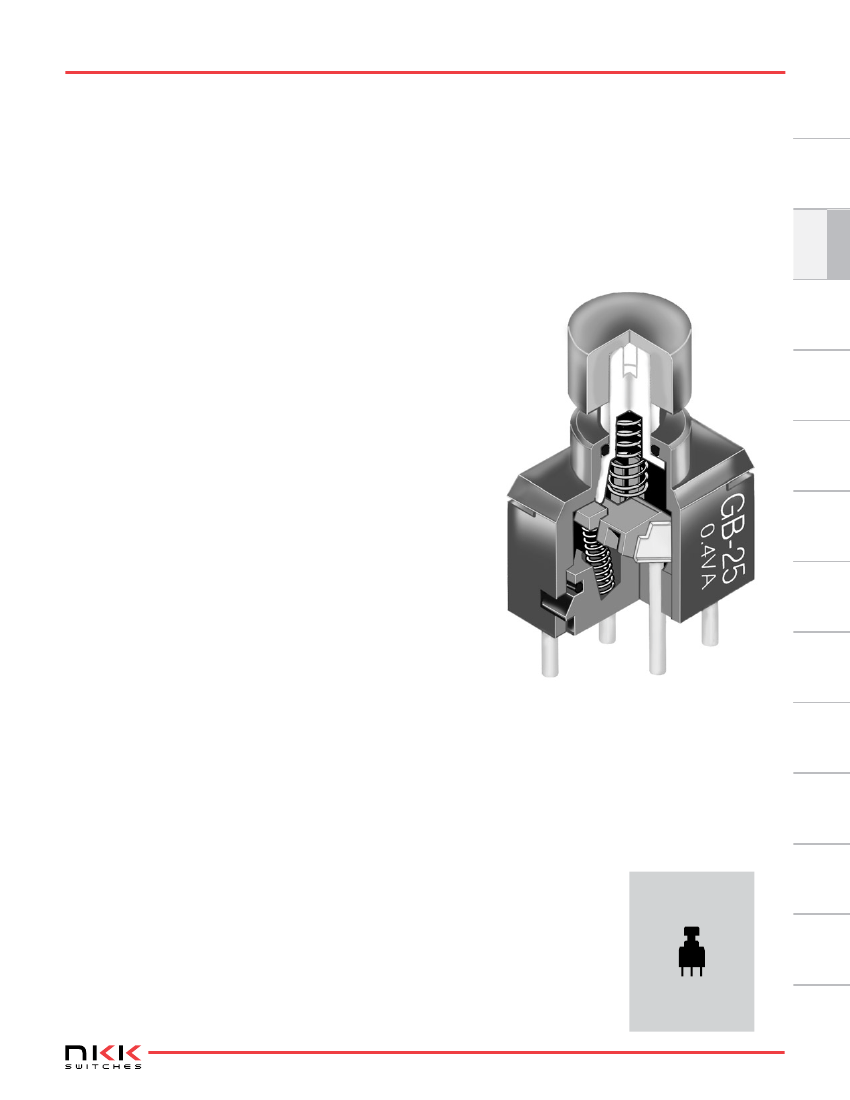

pushbutton switches ON-(ON) .157 red cap vertical PC .4va

Preview

Download Datasheet

View All

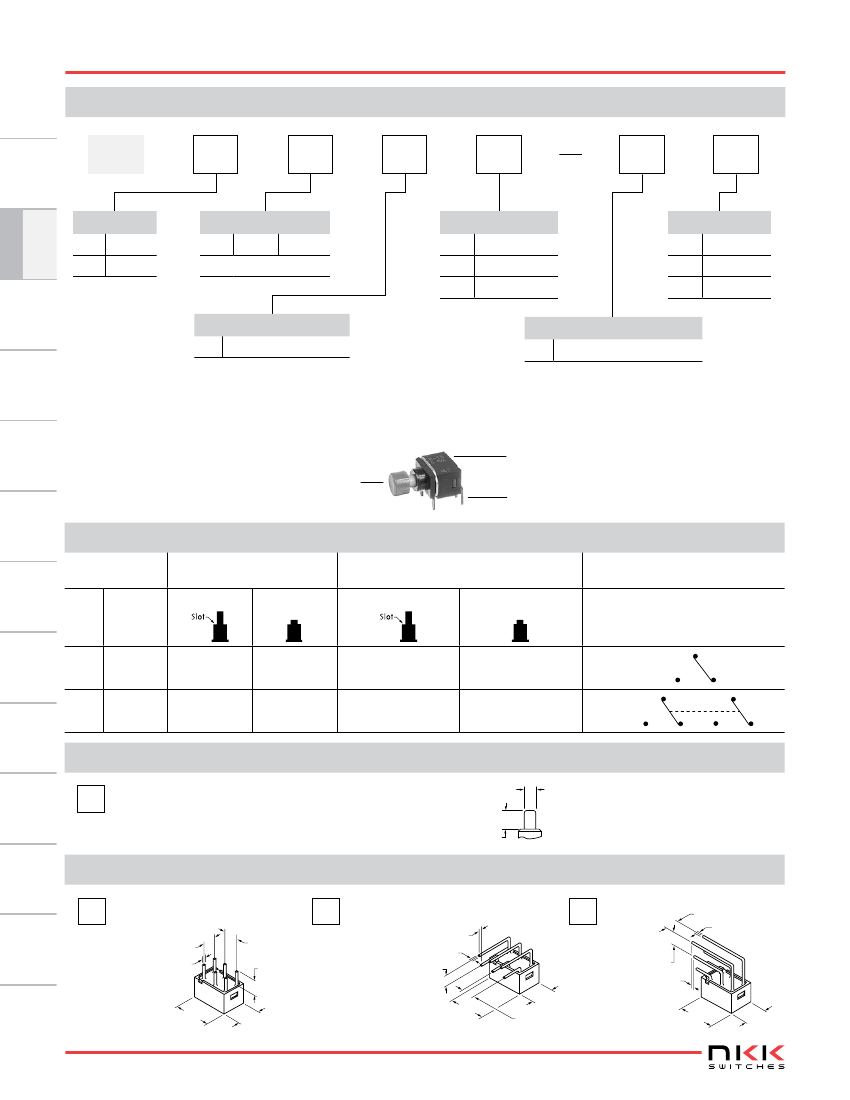

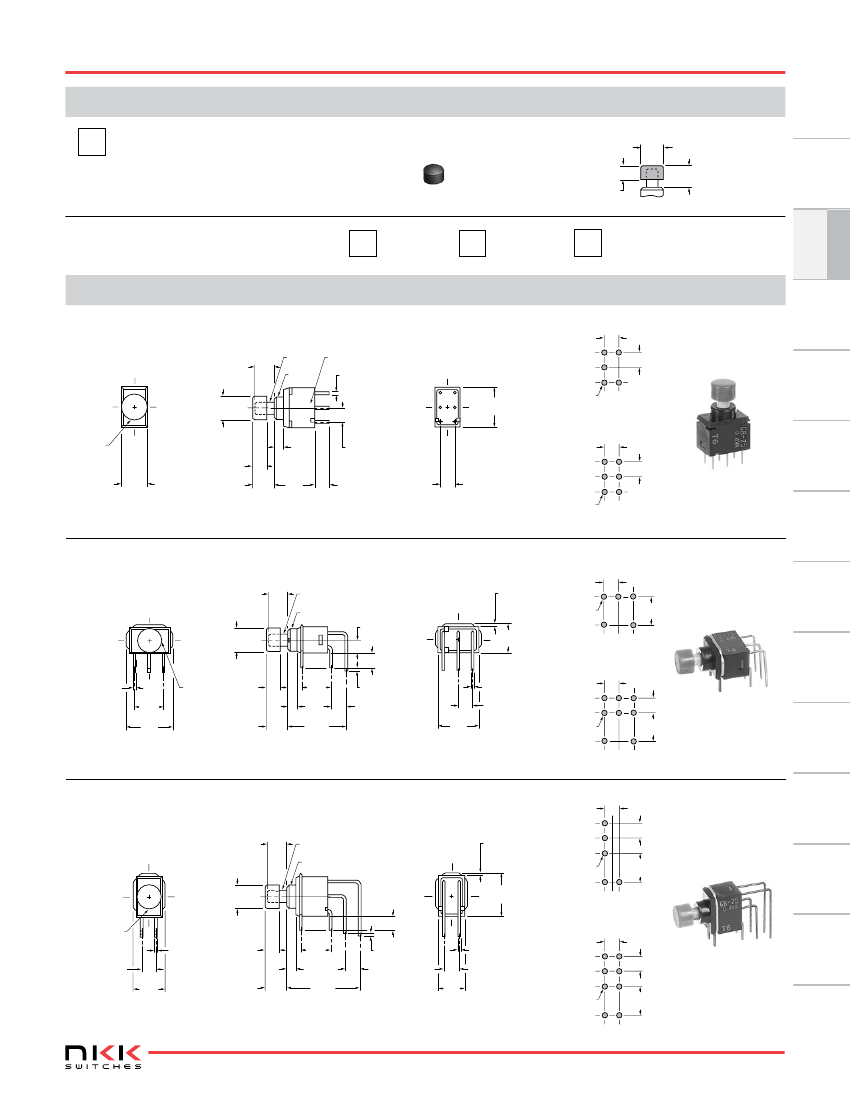

Series GB

Toggles

Process Sealed Ultra-Miniature Pushbuttons

Rockers

General

Specifications

Electrical Capacity (Resistive Load)

Logic Level:

Pushbuttons

Other Ratings

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Travel:

0.4VA maximum @ 28V AC/DC maximum

(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)

Note: Find additional explanation of operating range in Supplement section.

Programmable Illuminated PB

80 milliohms maximum

500 megohms minimum @ 500V DC

500V AC minimum for 1 minute minimum

50,000 operations minimum

1.70N

Pretravel .035” (0.9mm); Overtravel .008” (0.2mm); Total Travel .043” (1.1mm)

Keylocks

Materials & Finishes

Slides

Actuator:

Case:

Sealing Rings:

Movable Contacts:

Stationary Contacts:

Base:

Mounting Bracket:

Terminals:

Polyacetal

Glass fiber reinforced polyamide

Nitrile butadiene rubber

Phosphor bronze with gold plating

Glass fiber reinforced polyamide

Phosphor bronze with tin plating

Phosphor bronze with gold plating

Rotaries

Environmental Data

Tactiles

Operating Temp Range:

Humidity:

Vibration:

Shock:

–30°C through +85°C (–22°F through +185°F)

90 ~ 95% humidity for 96 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Tilt

Installation

Cap Installation Force:

39.1N (8.8 lbf) maximum downward force on actuator

Touch

PCB Processing

Soldering:

Cleaning:

Indicators

Wave Soldering Recommended: See Profile A in Supplement section.

Manual Soldering: See Profile A in Supplement section.

Automated cleaning. See Cleaning specifications in Supplement section.

Accessories

Standards & Certifications

The GB Series pushbuttons have not been tested for UL recognition or CSA certification.

These switches are designed for use in a low-voltage, low-current, logic-level circuit.

When used as intended in a logic-level circuit, the results do not produce hazardous energy.

Supplement

C44

www.nkk.com

GB15AV-XC-RO Related Products

	GB15AV-XC-RO	GB15AP-RO	GB25AH-XB	GB25AH-XC	GB15AV-XC	GB25AH-XC-RO	GB25AH-RO	GB15AH-RO
Description	pushbutton switches ON-(ON) .157 red cap vertical PC .4va	pushbutton switches spdt ON -(ON) strt	pushbutton switches dpdt ON-(ON) R/A white cap	pushbutton switches ON-(ON) .157 red cap right angl PC .4va	pushbutton switches ON-(ON) .157 red cap vertical PC .4va	pushbutton switches ON-(ON) .157 red cap right angl PC .4va	pushbutton switches dpdt ON -(ON) R/A	pushbutton switches spdt ON-(ON) R/A
Manufacture	-	NKK Switches	NKK Switches	NKK Switches	NKK Switches	NKK Switches	NKK Switches	-
Product Category	-	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches	Pushbutton Switches	-
RoHS	-	Yes	Yes	Yes	Yes	Yes	Yes	-
Contact Form	-	SPDT	DPDT	DPDT	SPDT	DPDT	DPDT	-
Switch Functi	-	ON - (ON)	ON - (ON)	ON - (ON)	ON - (ON)	ON - (ON)	ON - (ON)	-
Voltage Rating AC	-	28 V	28 V	28 V	28 V	28 V	28 V	-
Voltage Rating DC	-	28 V	28 V	28 V	28 V	28 V	28 V	-
Power Rating	-	0.4 VA	0.4 VA	0.4 VA	0.4 VA	0.4 VA	0.4 VA	-
Mounting Style	-	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	-
Termination Style	-	Solder Pi	Solder Pi	Solder Pi	Solder Pi	Solder Pi	Solder Pi	-
Contact Plating	-	Gold	Gold	Gold	Gold	Gold	Gold	-
Actu	-	Plunge	Round	Round	Round	Round	Plunge	-
