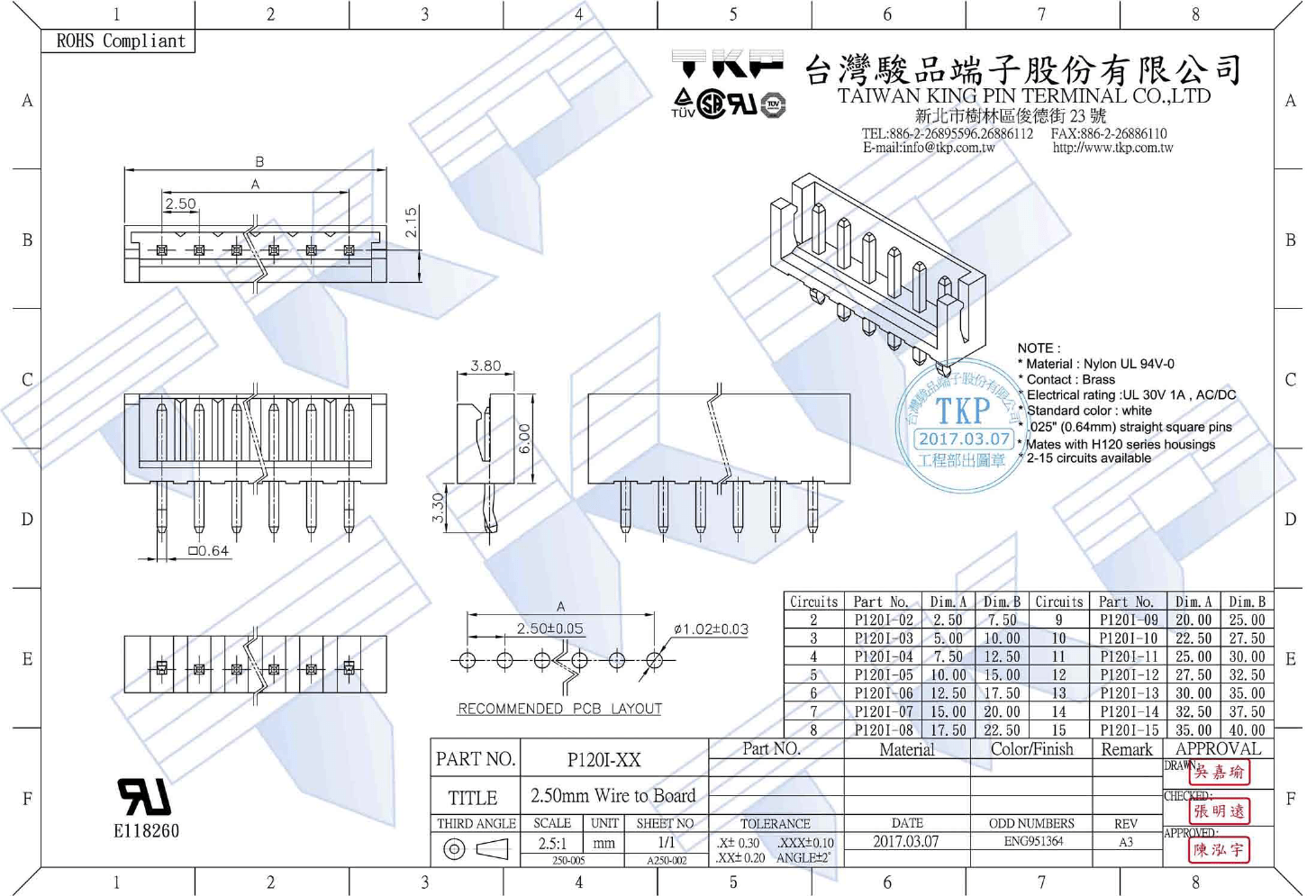

P120I-03: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, White Insulator,; CategoryThe connector The connector; File Size239KB，1 Pages; ManufacturerTaiwan King Pin Terminal Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

P120I-03 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, White Insulator,

Parameter Name	Attribute value
Installation method	STRAIGHT
Terminal pitch	2.5 mm
insulator material	POLYAMIDE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Rated current (signal)	1 A
Total number of contacts	3
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Number of connectors	ONE
Options	GENERAL PURPOSE
Termination type	SOLDER
Insulator color	WHITE
Plug information	MULTIPLE MATING PARTS ARE AVAILABLE
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
Filter function	NO
Guideline	CSA; TUV
UL Flammability Code	94V-0
Is it Rohs certified?	Yes
ECCN code	EAR99
Is Samacsys	N
Objectid	145236252327
Reach Compliance Code	unknown
body width	0.13 inch
subject depth	0.236 inch
body length	0.394 inch
Terminal length	0.13 inch
