530509-6 datasheet, PDF - EEWORLD Datasheet

530509-6: DescriptionEDGE CONNECTOR,CABLE MNT,24 CONTACTS,2; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

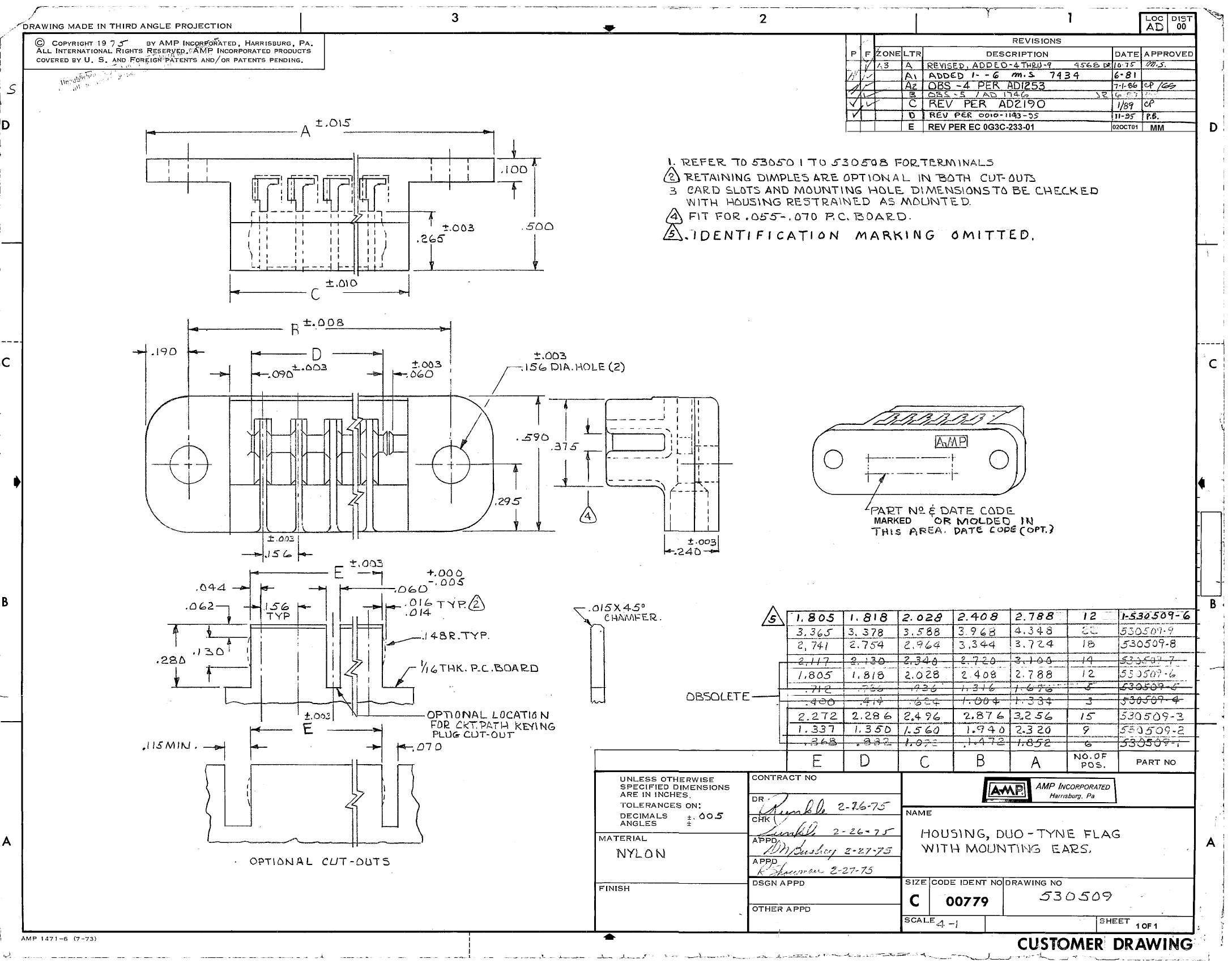

530509-6 Overview

EDGE CONNECTOR,CABLE MNT,24 CONTACTS,2

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Board mount options	HOLE .138-.163
body width	0.59 inch
subject depth	0.5 inch
body length	2.788 inch
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2200VAC V
Minimum insulation diameter	0.09 inch
Insulator color	NATURAL
insulator material	NYLON
Plug contact pitch	0.156 inch
Match contact row spacing	0.062 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	24
Base Number Matches	1

	530509-6	1-530509-6	530509-9	530509-5	530509-4	530509-7	530509-3	530509-1
Description	EDGE CONNECTOR,CABLE MNT,24 CONTACTS,2	12 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN	22 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN	CONNECTOR, 5 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN	CONNECTOR, 3 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN	CONNECTOR, 14 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN	CONNECTOR, 15 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN	CONNECTOR, 6 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN
Reach Compliance Code	compliant	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Number of rows loaded	2	1	1	1	1	1	1	1
Total number of contacts	24	12	22	5	3	14	15	6
Maker	TE Connectivity	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Base Number Matches	1	1	-	1	1	1	1	-
Contact point gender	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	-	NO	NO	NO	NO	NO	NO	NO
Filter function	-	NO	NO	NO	NO	NO	NO	NO
IEC compliance	-	NO	NO	NO	NO	NO	NO	NO
MIL compliance	-	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	-	NO	NO	NO	NO	NO	NO	NO
Installation type	-	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Manufacturer's serial number	-	-	530509	530509	530509	530509	530509	530509
