3152-5-5MJ3 datasheet, PDF - EEWORLD Datasheet

3152-5-5MJ3: DescriptionRF Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack; CategoryThe connector The connector; File Size535KB，6 Pages; ManufacturerKings Electronics

Download Datasheet Parametric Compare View All

3152-5-5MJ3 Overview

RF Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack

Parameter Name	Attribute value
Maker	Kings Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	VSWR MAX AT 4 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	7/16
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP SOLDER
voltage standing wave ratio	1.12
Base Number Matches	1

PRODUCT

BULLETIN

NO. 319

Wireless Telecom Market

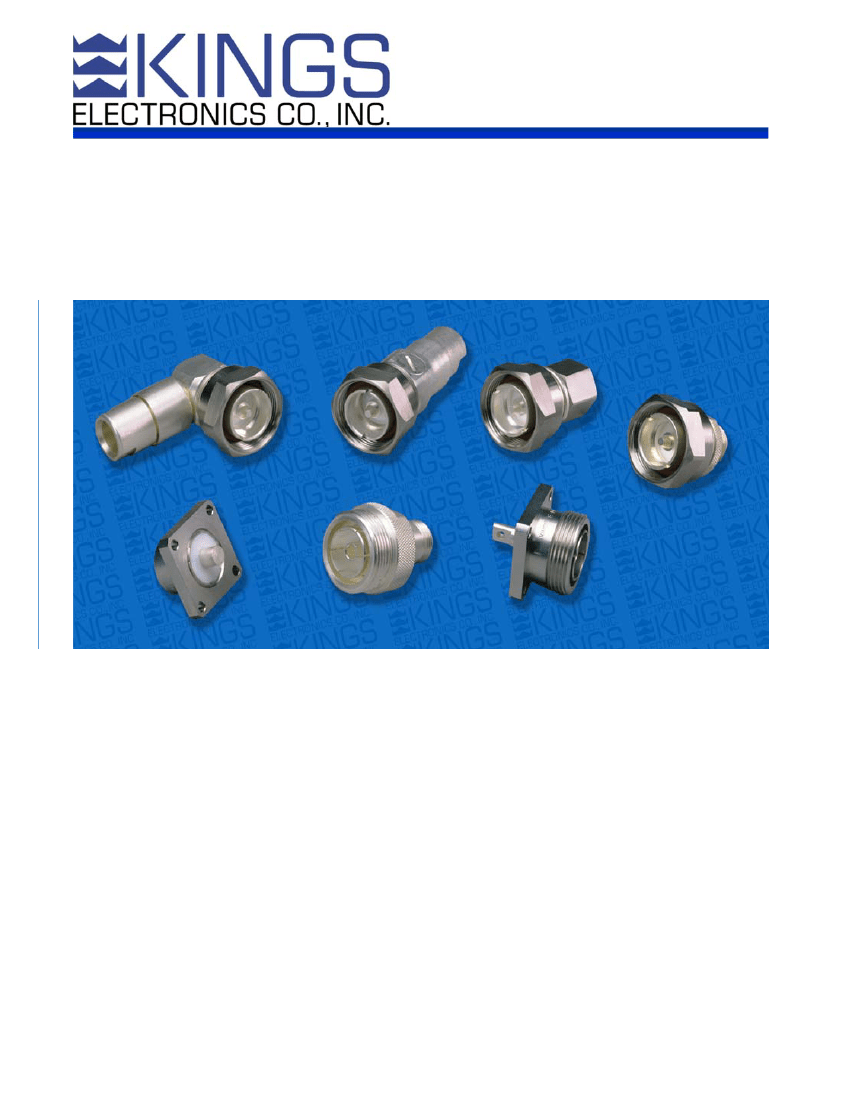

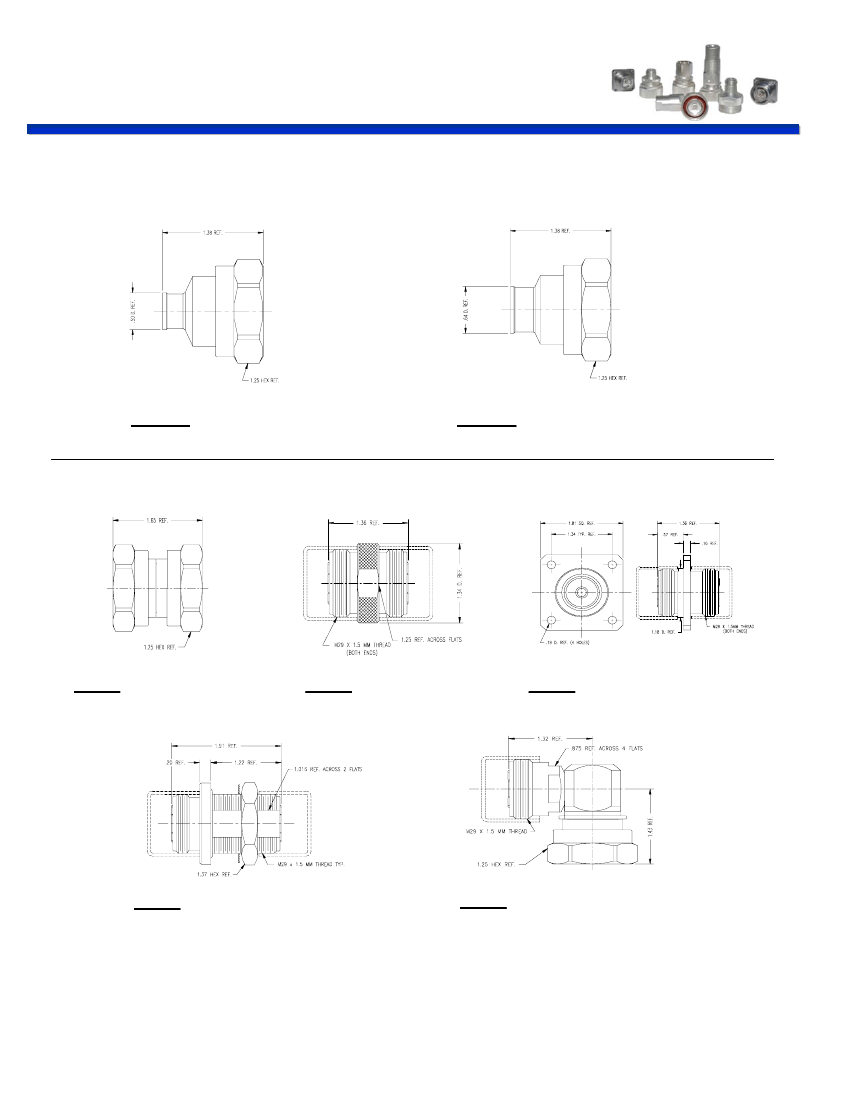

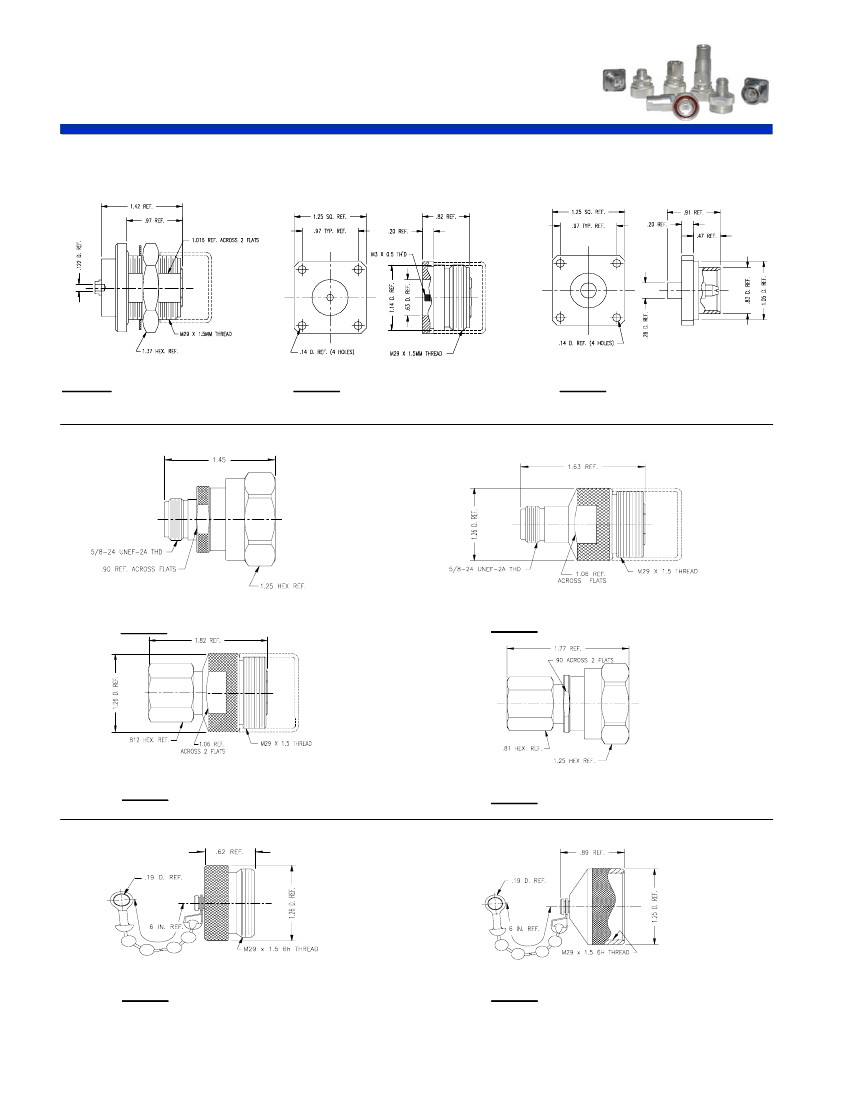

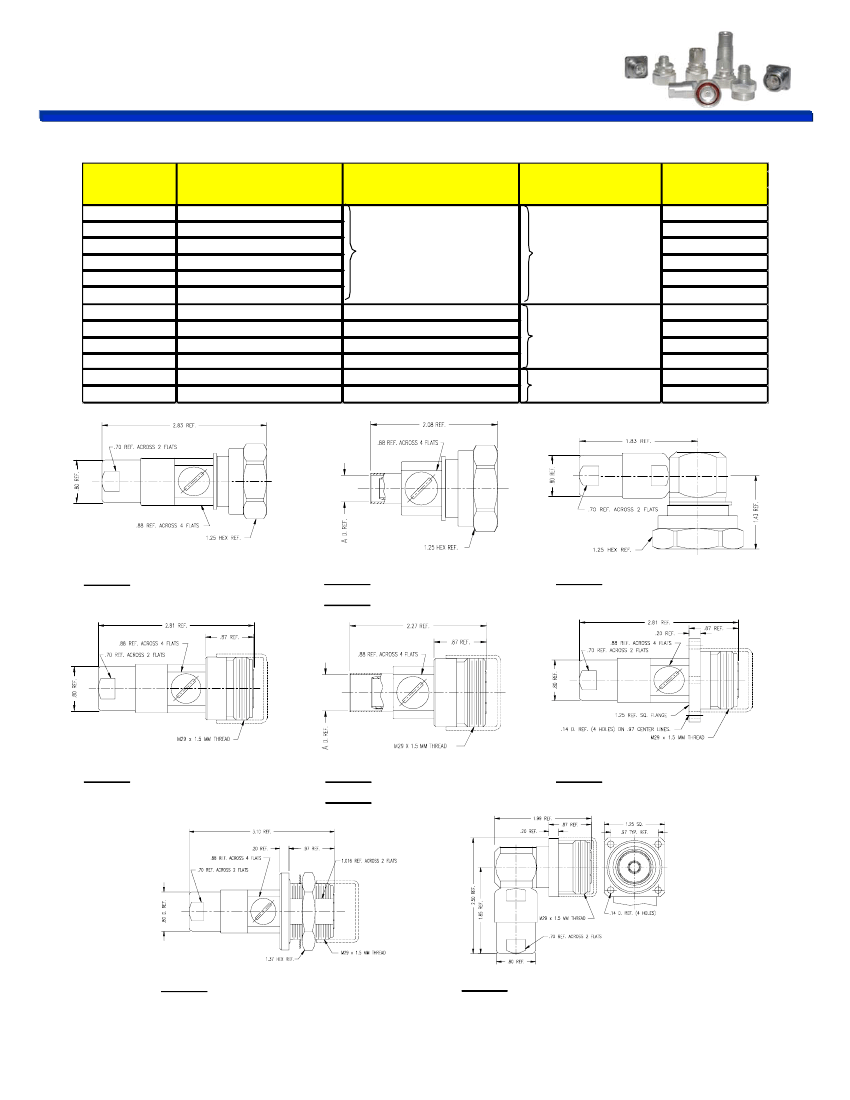

7/16 Series Connectors

www.kingselectronics.com

The 7/16 connector series is a high quality, 50 Ohm product designed to achieve

excellent RF performance and withstand the vibration, shock, moisture and

temperatures of adverse outdoor environments. They are a rugged, solid brass

bodied connector with a M29 x 1.5 mating thread. The typical use is in high power,

single and multi-channel base stations, antennas and broadcast communication

systems operating at 100 watts per channel. These connectors have few components

to handle and are easily assembled to cable.

Kings product line consists of cable connectors, receptacles, adapters within series,

adapters to series “N” and accessories.

In addition to the 7/16 connectors contained in this flyer, Kings offers an extensive

product line of type “N” series connectors. For detailed information, be sure to visit

Kings Electronics’ website at www.kingselectronics.com .

	3152-5-5MJ3	3155-5-101MJ3	3155-6-101MJ3	3155-4-5MJ3
Description	RF Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack	RF Connector, Male, Cable Mount, Solder Terminal, Plug	RF Connector, Male, Cable Mount, Solder Terminal, Plug	RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug
Maker	Kings Electronics	Kings Electronics	Kings Electronics	Kings Electronics
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	VSWR MAX AT 4 GHZ	VSWR MAX AT 4 GHZ	VSWR MAX AT 4 GHZ	VSWR MAX AT 4 GHZ
Body/casing type	JACK	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	FEMALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.12 dB	0.12 dB	0.12 dB	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	7/16	7/16	7/16	7/16
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	NO	NO
Termination type	CLAMP SOLDER	SOLDER	SOLDER	CRIMP SOLDER
voltage standing wave ratio	1.12	1.12	1.12	1.12
Base Number Matches	1	1	1	1
