30-5025-000-621-000 datasheet, PDF

30-5025-000-621-000: DescriptionPCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size259KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

30-5025-000-621-000 Overview

PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5025
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	136
Base Number Matches	1

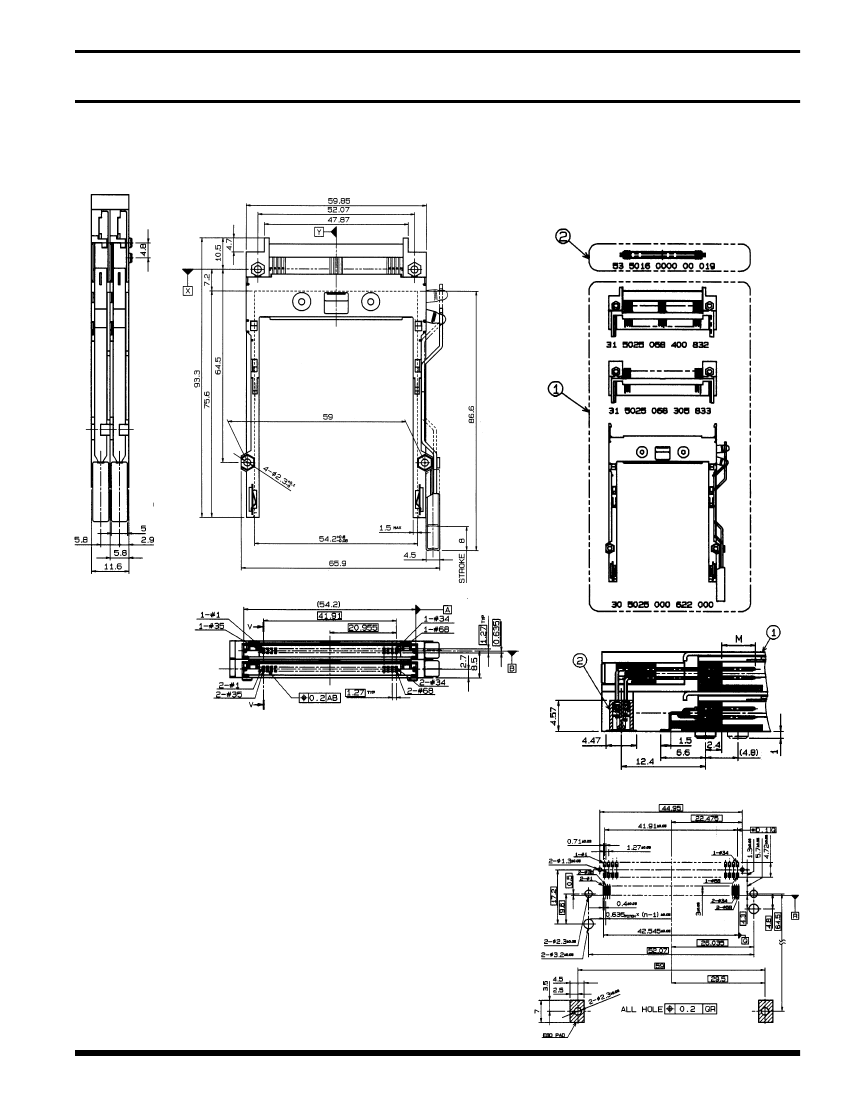

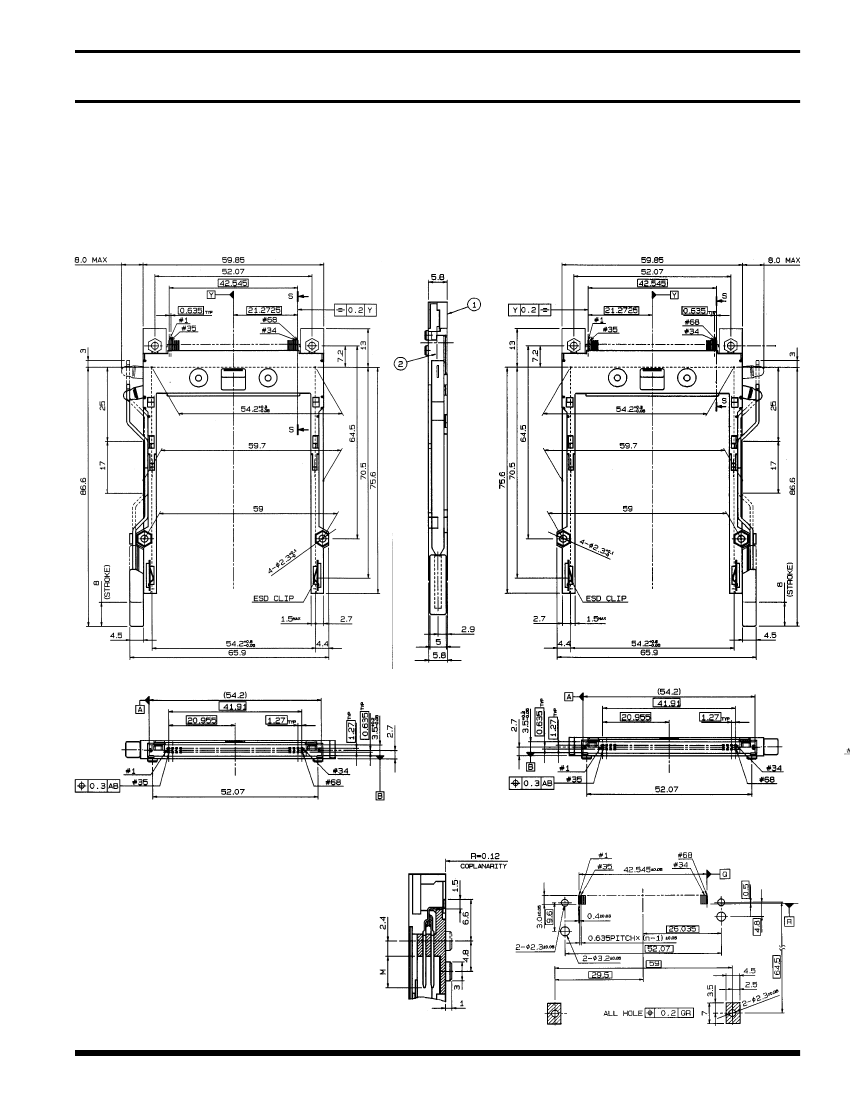

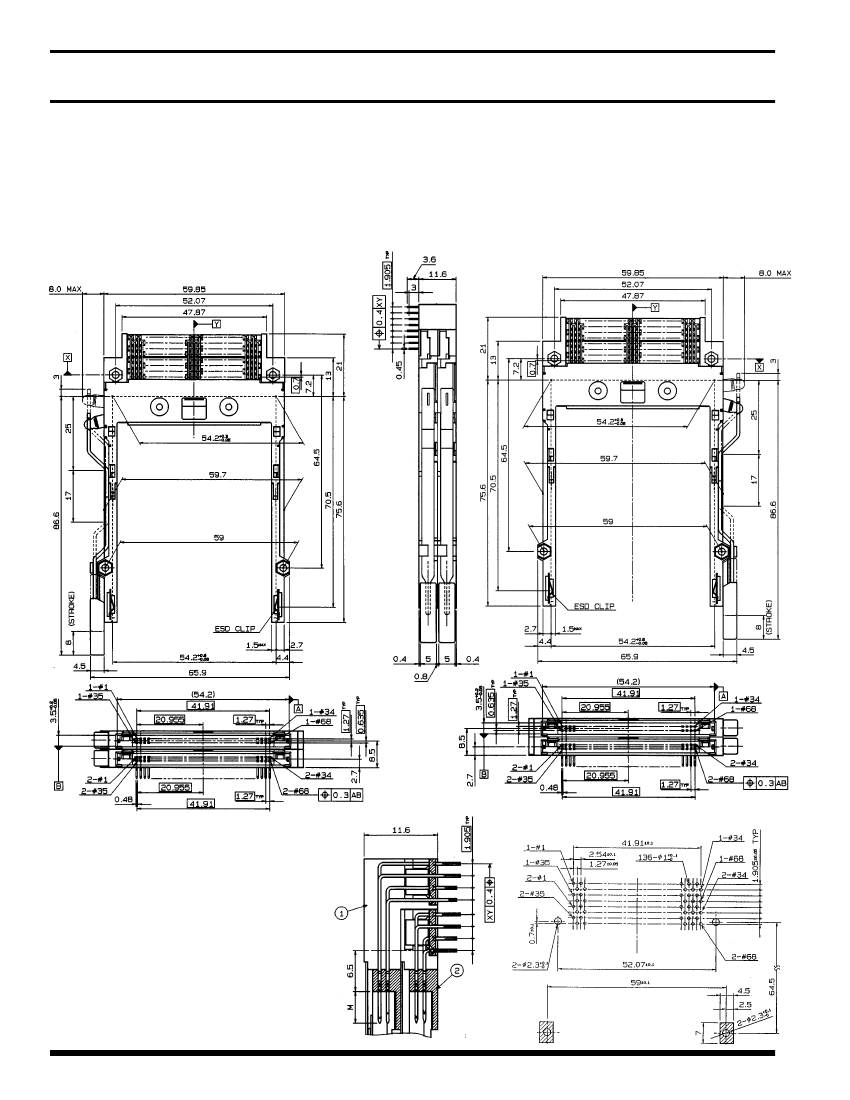

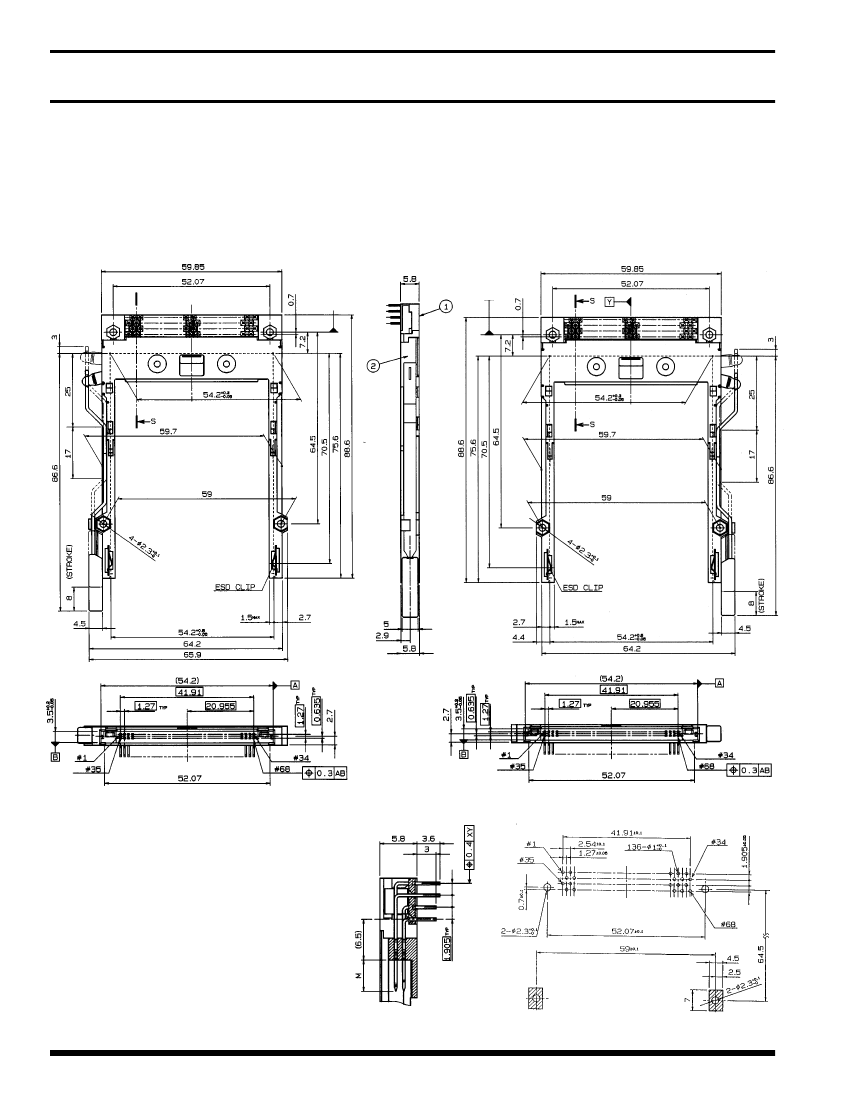

Header / Ejector Assembly

SERIES 5025

Single Slot

Plated Through Hole

Left Button 31-5025-068-100-833 Header

30-5025-000-321-000 Ejector

Right Button 31-5025-068-100-833 Header

30-5025-000-322-000 Ejector

Recommended P.C. Board Layout

Notes:

1

Connector

2

Ejector

3

ESD Clip

* Ejectors and connectors are packaged separately

14

	30-5025-000-621-000	31-5025-068-200-833	30-5025-000-622-000
Description	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	136 CONTACT(S), MALE, RIGHT ANGLE PCMCIA CONNECTOR, SOLDER	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	unknown	compli	compliant
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	5025	5025	5025
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	136	136	136
Base Number Matches	1	1	1
