SM15T12CA-E3/9AT datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> SM15T12CA-E3/9AT

SM15T12CA-E3/9AT: Descriptiontvs diodes - transient voltage suppressors 1500w 12v 5% Bi; CategoryDiscrete semiconductor diode; File Size90KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

SM15T12CA-E3/9AT Overview

tvs diodes - transient voltage suppressors 1500w 12v 5% Bi

SM15T12CA-E3/9AT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY ,HIGH RELIABILITY
Maximum breakdown voltage	12.6 V
Minimum breakdown voltage	11.4 V
Breakdown voltage nominal value	12 V
Maximum clamping voltage	16.7 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum power dissipation	6.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	10.2 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

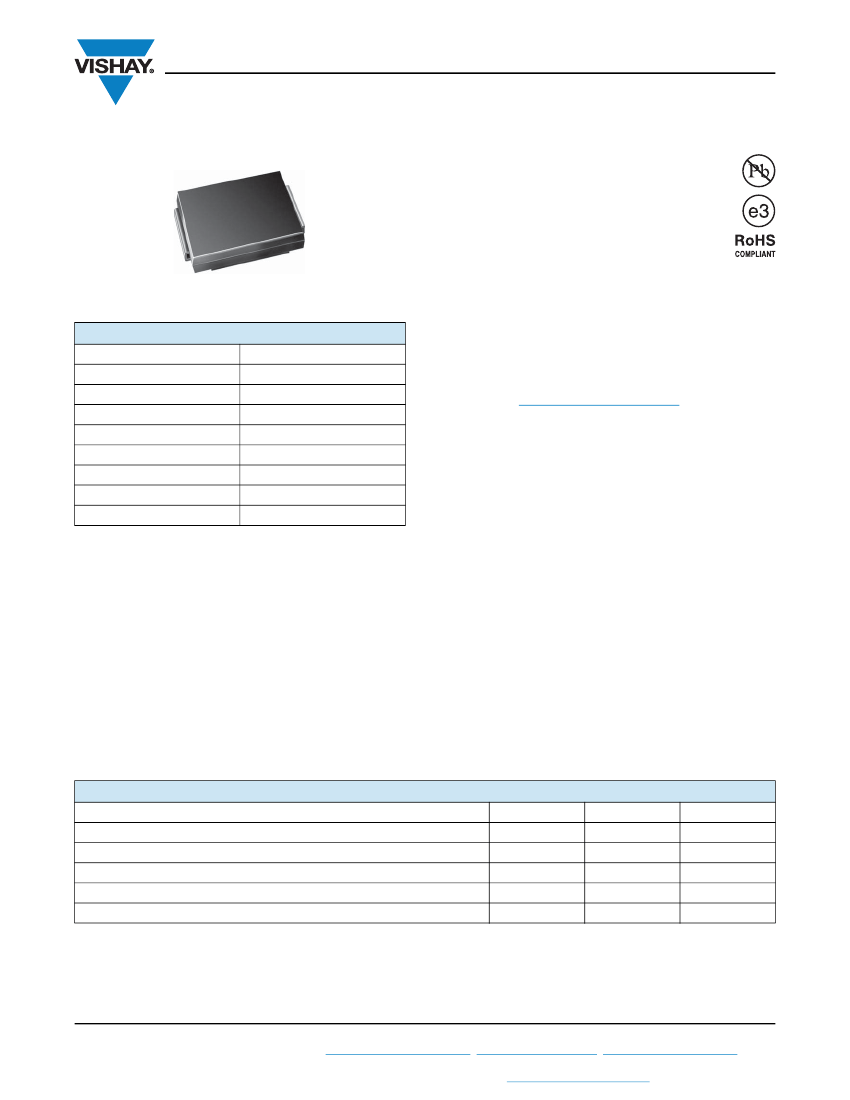

SM15T Series

www.vishay.com

Vishay General Semiconductor

Surface Mount T

RANS

ORB®

Transient Voltage Suppressors

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated chip junction

• Available in uni-directional and bi-directional

• 1500 W peak pulse power capability with a

10/1000 μs waveform

DO-214AB (SMC)

• Excellent clamping capability

• Low inductance

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• AEC-Q101 qualified

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

PRIMARY CHARACTERISTICS

uni-directional

bi-directional

PPM

FSM

(uni-directional only)

max.

Polarity

Package

5.8 V to 188 V

6.8 V to 220 V

1500 W

6.5 W

200 A

150 °C

Uni-directional, bi-directional

DO-214AB (SMC)

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lighting

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, automotive, and telecommunication.

DEVICES FOR BI-DIRECTION APPLICATIONS

For bi-directional devices use CA suffix (e.g. SM15T12CA).

Electrical characteristics apply in both directions.

MECHANICAL DATA

Case:

DO-214AB (SMC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS compliant and commercial grade

Base P/NHE3 - RoHS compliant and AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

For uni-directional types the band denotes

cathode end, no marking on bi-directional types

APPLICATION NOTES

A 1500 W (SMC) device is normally selected when the threat

of transients is from lightning induced transients, conducted

via external leads or I/O lines. It is also used to protect

against switching transients induced by large coils or

industrial motors. Source impedance at component level in

a system is usually high enough to limit the current within the

peak pulse current (I

) rating of this series. In an overstress

condition, the failure mode is a short circuit.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak power dissipation with a 10/1000 μs waveform

(1)(2)

(fig. 1)

Peak pulse current with a 10/1000 μs waveform

(1)

(fig. 3)

Power dissipation on infinite heatsink at T

= 50 °C

Peak forward surge current 10 ms single half sine-wave uni-directional only

(2)

Operating junction and storage temperature range

Notes

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2.

(2)

Mounted on 0.31" x 0.31" (8.0 mm x 8.0 mm) copper pads to each terminal

SYMBOL

PPM

FSM

, T

STG

VALUE

1500

See next table

6.5

200

- 65 to + 150

UNIT

°C

Revision: 05-Oct-12

Document Number: 88380

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice
