BY229X-800HE3/45 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BY229X-800HE3/45

BY229X-800HE3/45: Descriptiondiodes - general purpose, power, switching 8.0A 800 volt 145ns 100 amp ifsm; CategoryDiscrete semiconductor diode; File Size131KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BY229X-800HE3/45 Overview

diodes - general purpose, power, switching 8.0A 800 volt 145ns 100 amp ifsm

BY229X-800HE3/45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	TO-220AC
package instruction	R-PSFM-T2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW LEAKAGE CURRENT, HIGH RELIABILITY
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.85 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.145 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT APPLICABLE
Base Number Matches	1

Preview

Download Datasheet

View All

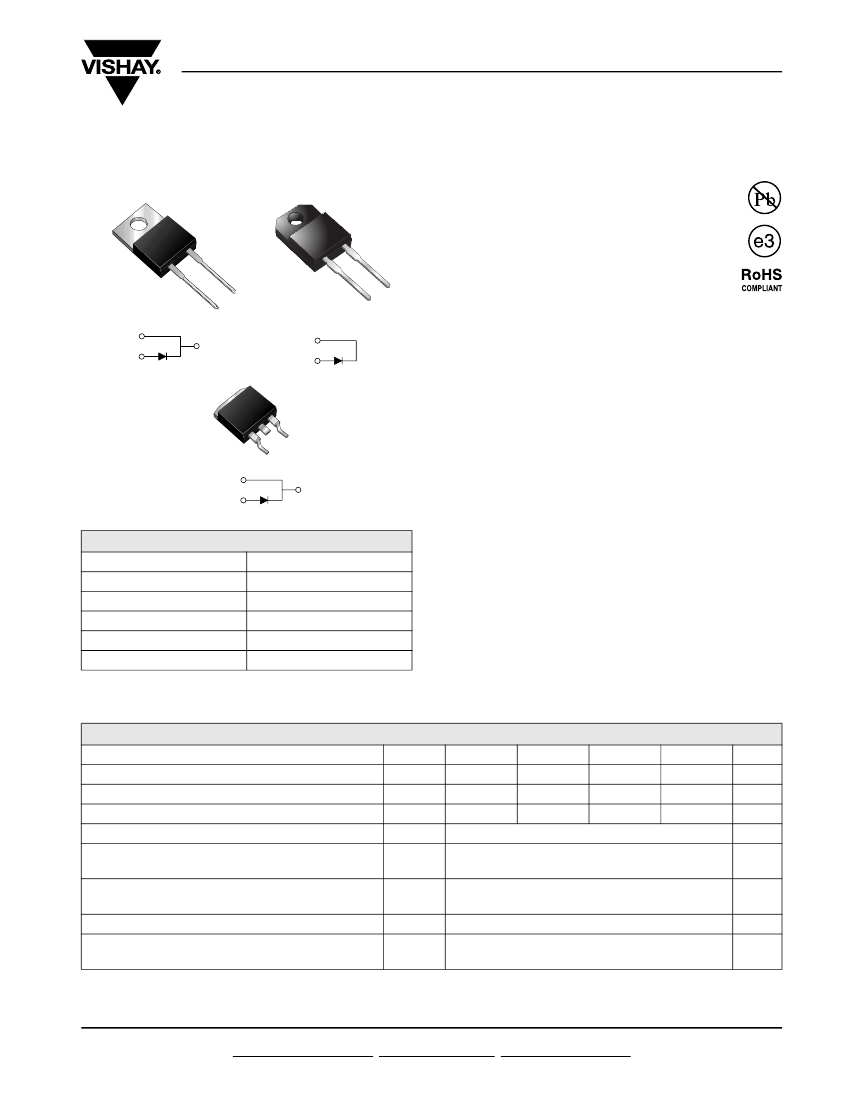

BY229(X,B)-200 thru BY229(X,B)-800

Vishay General Semiconductor

Fast Switching Plastic Rectifier

TO-220AC

ITO-220AC

FEATURES

• Glass passivated chip junction

• Superfast recovery time for high efficiency

• Low leakage current

• High forward surge capability

BY229 Series

PIN 1

PIN 2

• Meets MSL level 1, per J-STD-020, LF

maximum peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AC and

ITO-220AC package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

BY229x Series

PIN 1

CASE

PIN 2

TO-263AB

BY229B Series

PIN 1

PIN 2

HEATSINK

For use in fast switching rectification of power

supply, inverters, converters and freewheeling diodes

application.

MECHANICAL DATA

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

8.0 A

200 V to 800 V

100 A

145 ns

1.85 V

150 °C

Case:

TO-220AC, ITO-220AC, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for commercial grade, meets JESD 201 class

1A whiskter test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum recurrent peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 100 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Maximum slope of reverse recovery current

= 2.0 A, V

= 30 V, dI/dt = 20 µs

Operating junction and storage temperature range

Isolation voltage (ITO-220AC only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

dI/dt

, T

STG

BY229-200

200

140

200

BY229-400

400

280

400

8.0

100

- 40 to + 150

1500

BY229-600

600

420

600

BY229-800

800

560

800

UNIT

A/μs

°C

Document Number: 88540

Revision: 06-Nov-07

For technical questions within your region, please contact one of the following:

PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com

www.vishay.com

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Revision: 12-Mar-12

Document Number: 91000
