BYT28-x00, BYT28F-x00, BYT28B-x00, UG10xCT, UGF10xCT, UGB10xCT
www.vishay.com
Vishay General Semiconductor
Dual Common Cathode Ultrafast Soft Recovery Rectifier

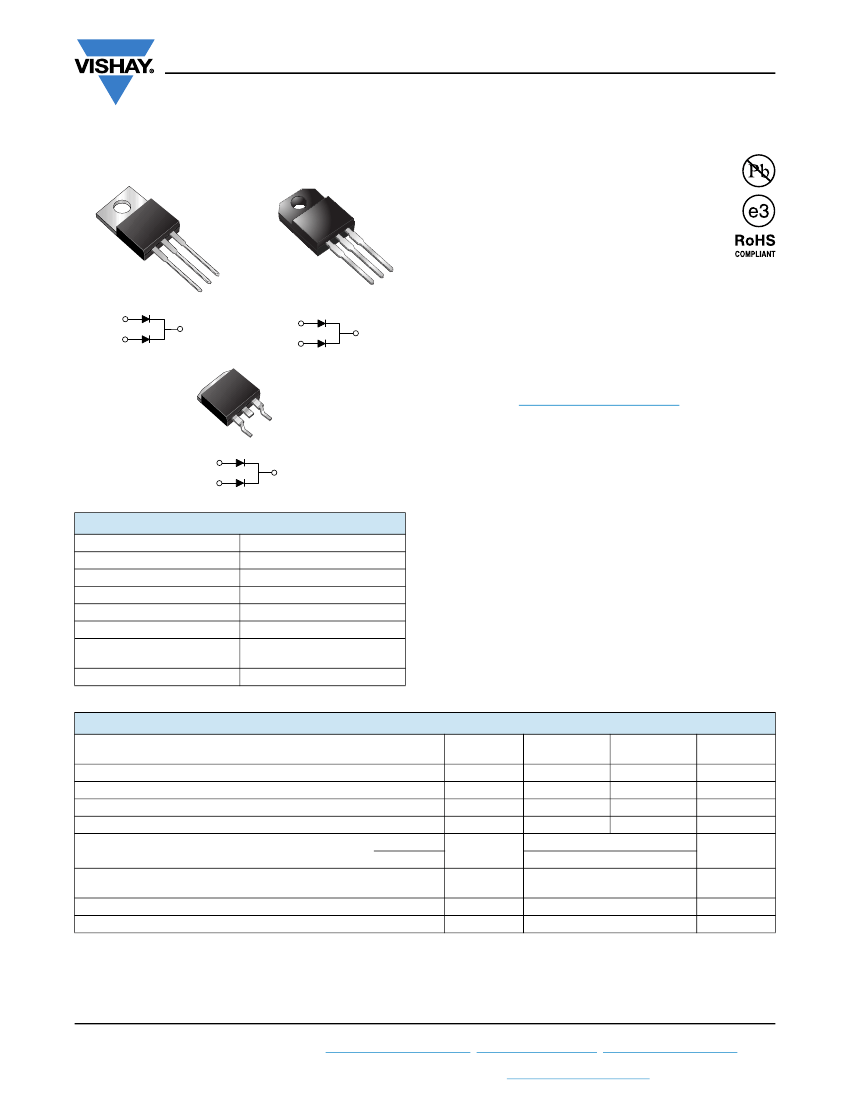

FEATURES
TO-220AB
ITO-220AB
• Power pack
• Glass passivated chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• Low forward voltage drop
2
BYT28, UG10 Series
PIN 1
PIN 3
PIN 2
CASE
3
1
2
3
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
245 °C (for TO-263AB package)
• Solder dip 275 °C max. 10 s, per JESD 22-B106
(for TO-220AB and ITO-220AB package)
• AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
1
PIN 1
PIN 3
PIN 2
BYT28F, UGF10 Series
TO-263AB
K
2
1
BYT28B, UGB10 Series
PIN 1
PIN 2
K
HEATSINK
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode
power supplies, inverters, freewheeling diodes, DC/DC
converters, and other power switching application.
MECHANICAL DATA
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
at I
F
T
J
max.
Package
Diode variations
2 x 5.0 A
300 V to 400 V
60 A
35 ns
1.05 V
150 °C
TO-220AB, ITO-220AB,
TO-263AB
Dual Common Cathode
Case:
TO-220AB, ITO-220AB, TO-263AB
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commerical grade
Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
As marked
Mounting Torque:
10 in-lbs maximum
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum working reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
C
= 100 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load per diode
Operating junction and storage temperature range
Isolation voltage (ITO-220AB only) from terminal to heatsink t = 1 min
total device
per diode
SYMBOL
V
RRM
V
RWM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
V
AC
BYT28-300
UG10FCT
300
300
210
300
10
5.0
60
-40 to +150
1500
BYT28-400
UG10GCT
400
400
280
400
UNIT
V
V
V
V
A
A
°C
V
Revision: 05-Nov-13
Document Number: 88552
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYT28-x00, BYT28F-x00, BYT28B-x00, UG10xCT, UGF10xCT, UGB10xCT
www.vishay.com
Vishay General Semiconductor
TEST CONDITIONS
SYMBOL
V
F
(1)
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage per diode
Maximum reverse current
per diode at V
RRM
Maximum reverse recovery
time per diode
Maximum reverse recovery
current per diode
Maximum stored
charge per diode
I
F
= 5 A
I
F
= 10 A
I
F
= 5 A
VALUE
1.30
1.40
1.05
I
R
10
200
35
t
rr
I
RM
Q
rr
50
3.0
50
ns
μA
V
UNIT
T
J
= 25 °C
T
J
= 150 °C
T
J
= 25 °C
T
J
= 100 °C
I
F
= 0.5 A, I
R
= 1.0 A, I
rr
= 0.25 A
I
F
= 1.0 A, dI/dt = 100 A/μs, V
R
= 30 V,
I
rr
= 0.1 I
RM
I
F
= 5 A, dI/dt = 50 A/μs, V
R
= 30 V,
T
C
= 100 °C
I
F
= 2 A, dI/dt = 20 A/μs, V
R
= 30 V,
I
rr
= 0.1 I
RM
A
nC
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance junction to case per diode
SYMBOL
R
JC
BYT28
UG10
4.5
BYT28F
UGF10
6.7
BYT28B
UGB10
4.5
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
(1)
PREFERRED P/N
BYT28-400-E3/45
BYT28F-400-E3/45
BYT28B-400-E3/45
BYT28B-400-E3/81
BYT28-400HE3/45
(1)
UNIT WEIGHT (g)
1.80
1.95
1.77
1.77
1.80
1.95
1.77
1.77
PACKAGE CODE
45
45
45
81
45
45
45
81
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tube
Tape and reel
BYT28F-400HE3/45
(1)
BYT28B-400HE3/45
(1)
BYT28B-400HE3/81
(1)
Note
AEC-Q101 qualified
Revision: 05-Nov-13
Document Number: 88552
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYT28-x00, BYT28F-x00, BYT28B-x00, UG10xCT, UGF10xCT, UGB10xCT
www.vishay.com
Vishay General Semiconductor

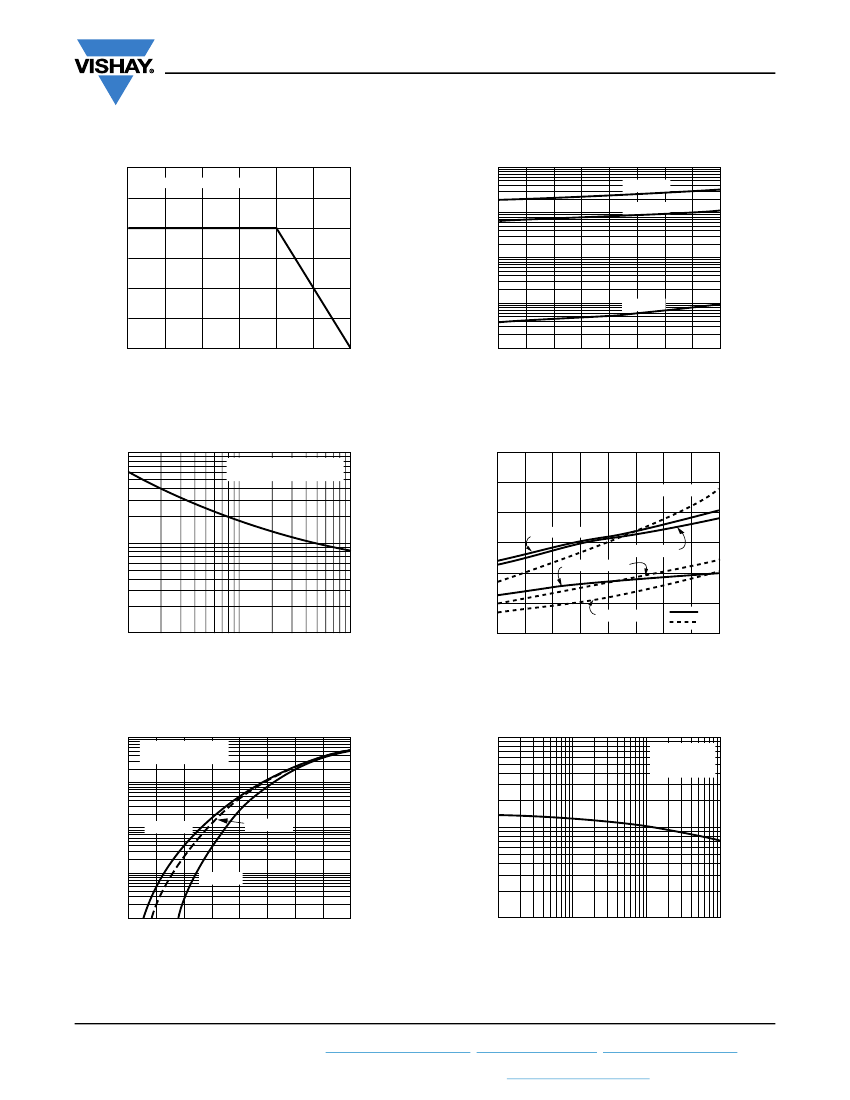

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
15
Resistive or Inductive Load
1000
Instantaneous Reverse Current (μA)
T
J
= 125 °C
100
T
J
= 100 °C
Average Forward Current (A)
10
10
5
1.0
T
J
= 25 °C
0
0
50
100
150
0.1
20
40
60
80
100
Case Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Forward Current Derating Curve
Fig. 4 - Typical Reverse Characteristics Per Diode
Peak Forward
Surge
Current (A)
T
C
= 105 °C
8.3 ms
Single
Half
Sine-Wave
Stored
Charge/Reverse Recovery Time
(nC/ns)
100
120
100
at 5 A, 50 A/μs
80
at 2 A, 20 A/μs
60
at 5 A, 50 A/μs
at 1 A, 100 A/μs
10
40
20
at 2 A, 20 A/μs
0
25
50
75
100
t
rr
Q
rr
125
1
1
10
100
Number of Cycles at 60 Hz
Junction Temperature (°C)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge
Current Per Diode
Fig. 5 - Reverse Switching Characteristics Per Diode
100
100
Pulse Width = 300 μs
1 % Duty Cycle
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Instantaneous Forward Current (A)
10
1.0
T
J
= 125 °C
T
J
= 100 °C
Junction Capacitance (pF)
1.6
1.8
10
0.1
T
J
= 25 °C
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics Per Diode
Fig. 6 - Typical Junction Capacitance Per Diode
Revision: 05-Nov-13
Document Number: 88552
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYT28-x00, BYT28F-x00, BYT28B-x00, UG10xCT, UGF10xCT, UGB10xCT
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AB
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
0.148 (3.74)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
3
0.603 (15.32)
0.573 (14.55)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.025 (0.64)
0.015 (0.38)
0.105 (2.67)
0.095 (2.41)
0.404 (10.26)
0.384 (9.75)
0.076 (1.93) REF.
0.076 (1.93) REF.
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
0.135 (3.43) DIA.
0.122 (3.08) DIA.
Vishay General Semiconductor
ITO-220AB
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
45° REF.
0.600 (15.24)
0.580 (14.73)
PIN
0.671 (17.04)
0.651 (16.54)
7° REF.
0.350 (8.89)
0.330 (8.38)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
0.104 (2.65)
0.096 (2.45)
PIN
2
1
2
3
7° REF.
0.191 (4.85)
0.171 (4.35)
0.110 (2.79)
0.100 (2.54)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
TO-263AB
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) MIN.
0.33 (8.38) MIN.
0.624 (15.85)
0.591 (15.00)
0.670 (17.02)
0.591 (15.00)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.15 (3.81) MIN.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 05-Nov-13
Document Number: 88552
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
