54FCT2257ATDB

Description
Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16
Categorylogic    logic
File Size393KB,7 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric View All

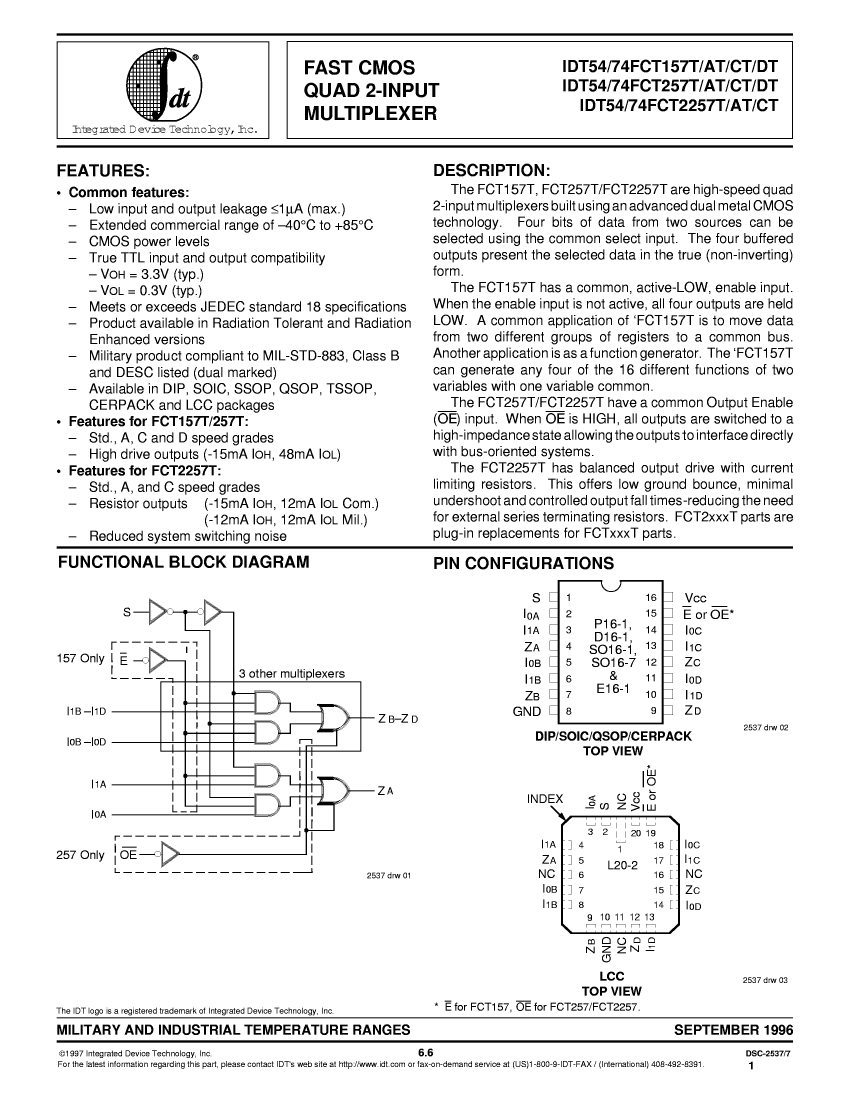

54FCT2257ATDB Overview

Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16

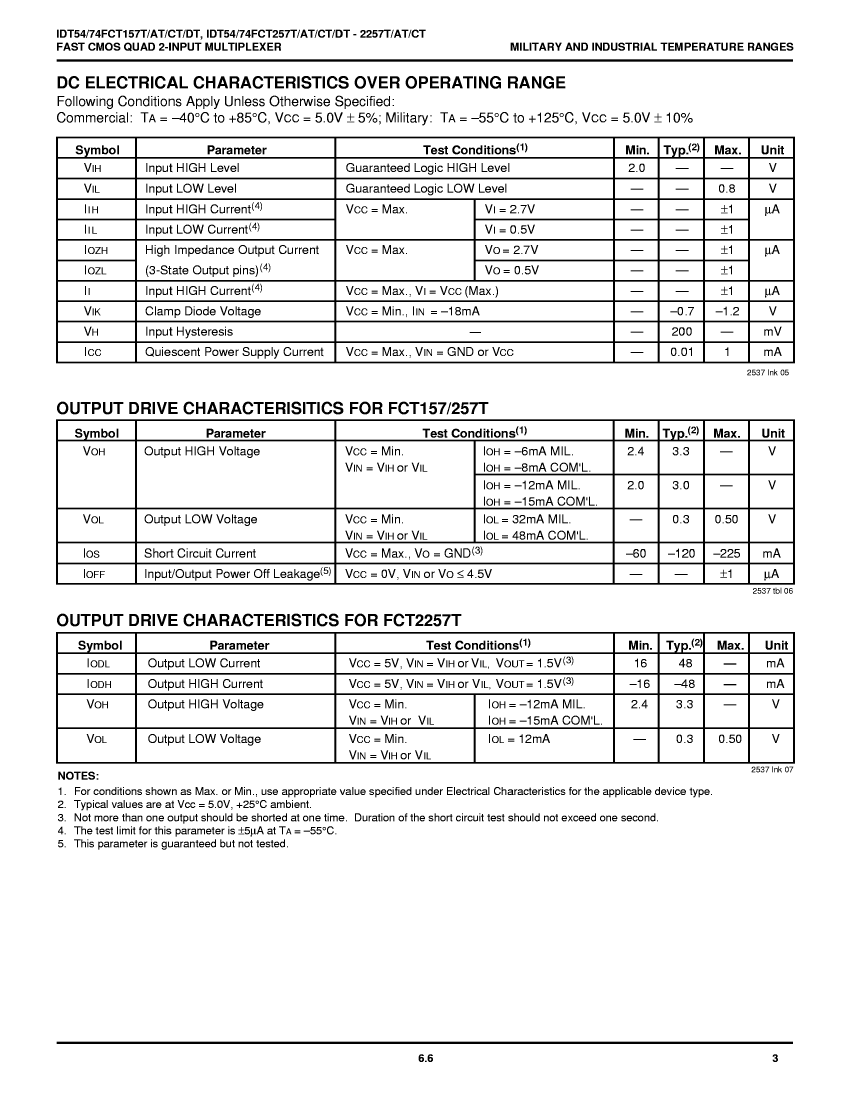

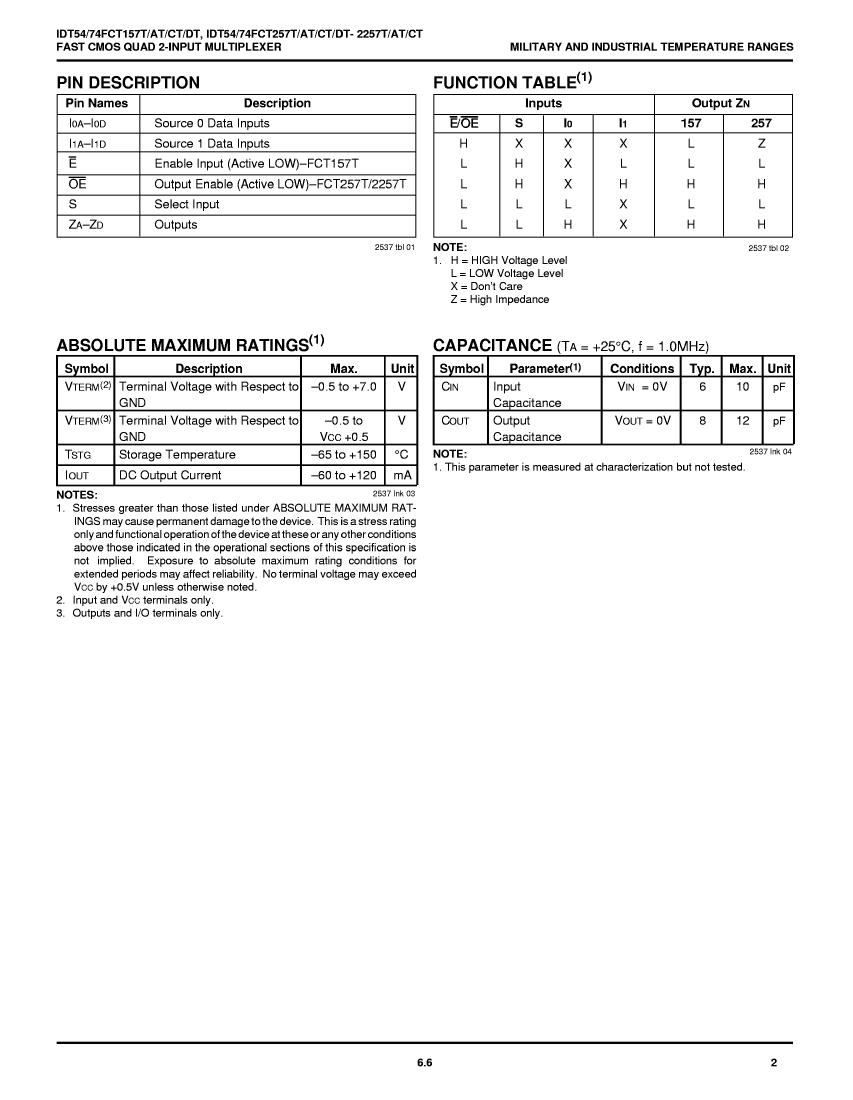

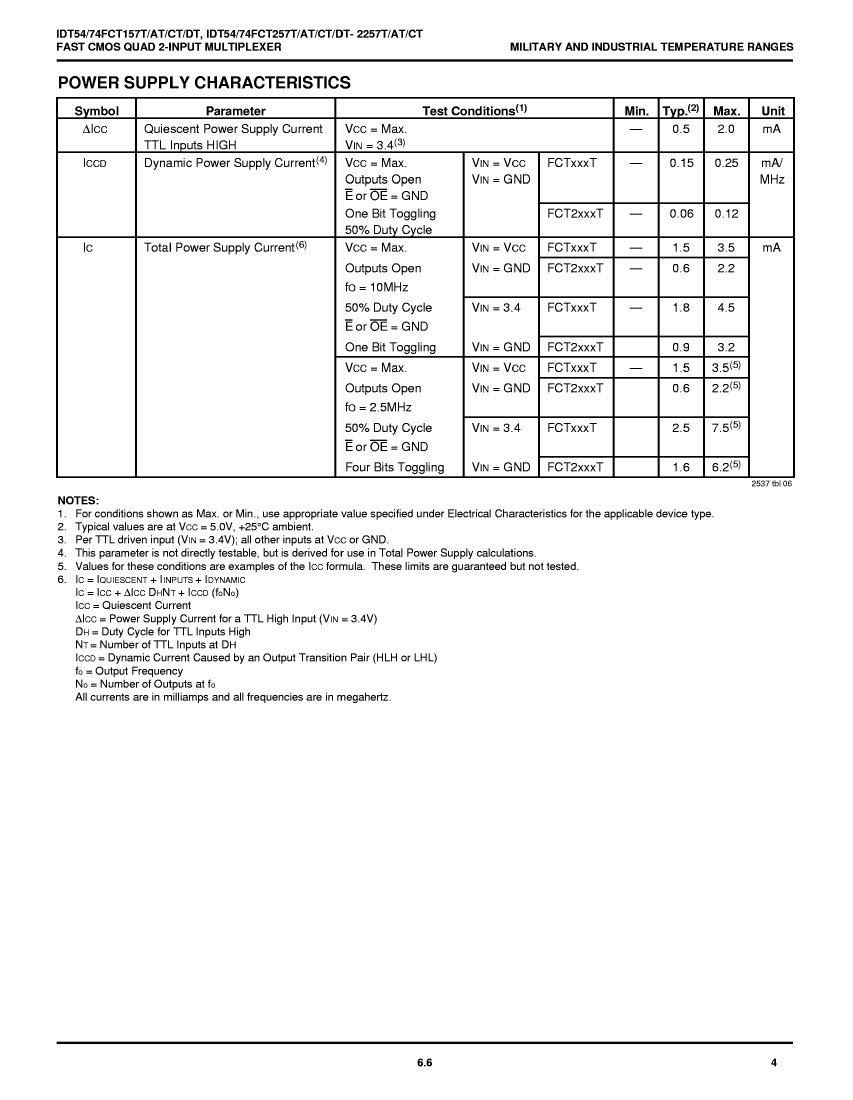

54FCT2257ATDB Parametric

Parameter NameAttribute value
Certification statusNot Qualified
JESD-30 codeR-XDIP-T16
JESD-609 codee0

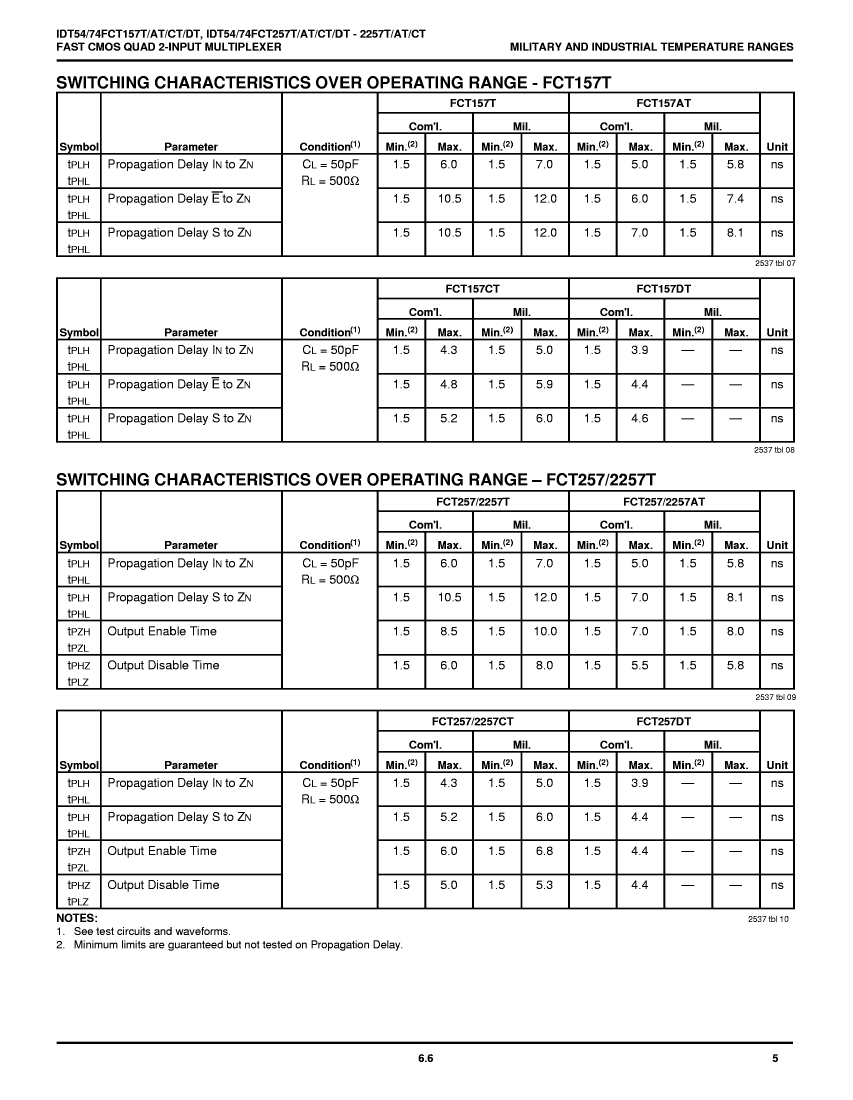

Prop。Delay @ Nom-Sup5.8 ns
Nominal supply voltage (Vsup)5 V
surface mountNO
Load capacitance (CL)50 pF
Number of functions4
Number of entries2
Output characteristics3-STATE
encapsulated codeDIP
Temperature levelMILITARY
Logic integrated circuit typeMULTIPLEXER
MaximumI(ol)0.012 A
technologyCMOS
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Number of terminals16
Package body materialCERAMIC
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Filter level38535Q/M;38534H;883B
YTEOL0
Objectid1125517384
package instructionDIP, DIP16,.3
Reach Compliance Codenot_compliant
Is SamacsysN
Is it lead-free?No
Is it Rohs certified?No
