F203-0612-200-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> F203-0612-200-Z

Preview

F203-0612-200-Z: DescriptionCard Edge Connector, 6 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

F203-0612-200-Z Overview

Card Edge Connector, 6 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking

F203-0612-200-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.11 inch
body length	0.354 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	50VAC V
maximum insertion force	LIF N
Insulation resistance	1000000000 Ω
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

CURRENT RA T NG : 0 .5 A

CO NTA CT RES IS TA NCE:

< 3 0 Millio h m Ma x .

INS UL A TIO N RES IS TA NCE:

> 1 0 0 0 Me g a o h m Min .

DIEL ECTRIC W ITHS TA NDING V O L TA G E:

5 0 V ( r ms ) A C f o r 1 Min u te

O PERA TING TEMPERA TURE: - 4 0 °C to +1 0 5 °C

ELECTRICAL:

HOW TO ORDER:

F

2

0

PITCH:

3

-

X

1

2

-

2

0

0 - TUBE

0

-

Z

RoHS

COMPLIANT

PACKAGING:

MATERIAL:

3 -1.00mm PITCH

INS UL A TO R: Th e r mo p la s tic , N y l o n 4 6

FL A MMA B IL ITY RA TING : UL 9 4 V - 0

CO NTA CT MA TERIA L : Co p p e r A llo y

PL A TING : Tin Pla tin g o v e r Nic ke l

03 THRU 32

NUMBER OF CONTACTS:

2 - DUAL CONTACT

CONTACT POINT:

SOLDERABILITY:

Re v

0

PER MIL - S TD- 2 0 2 F METHO D 2 0 8 D

Drawn Checked Approved

B.S.

S.M.

Date

3/1/07

1 - THROUGH HOLE

DEFINITION:

2 - SIDE ENTRY

INSERT DIRECTION:

Issued

S M P T E C H N O L O G Y , IN C .

S CA L E

TO L . DEC.

.X +/- 0 .2 5

MA T'L

.X X + /- 0 .2 0

.X X X + /- 0 . 1 0

FINIS H

A NG L E + /- 2 °

UNIT: mm

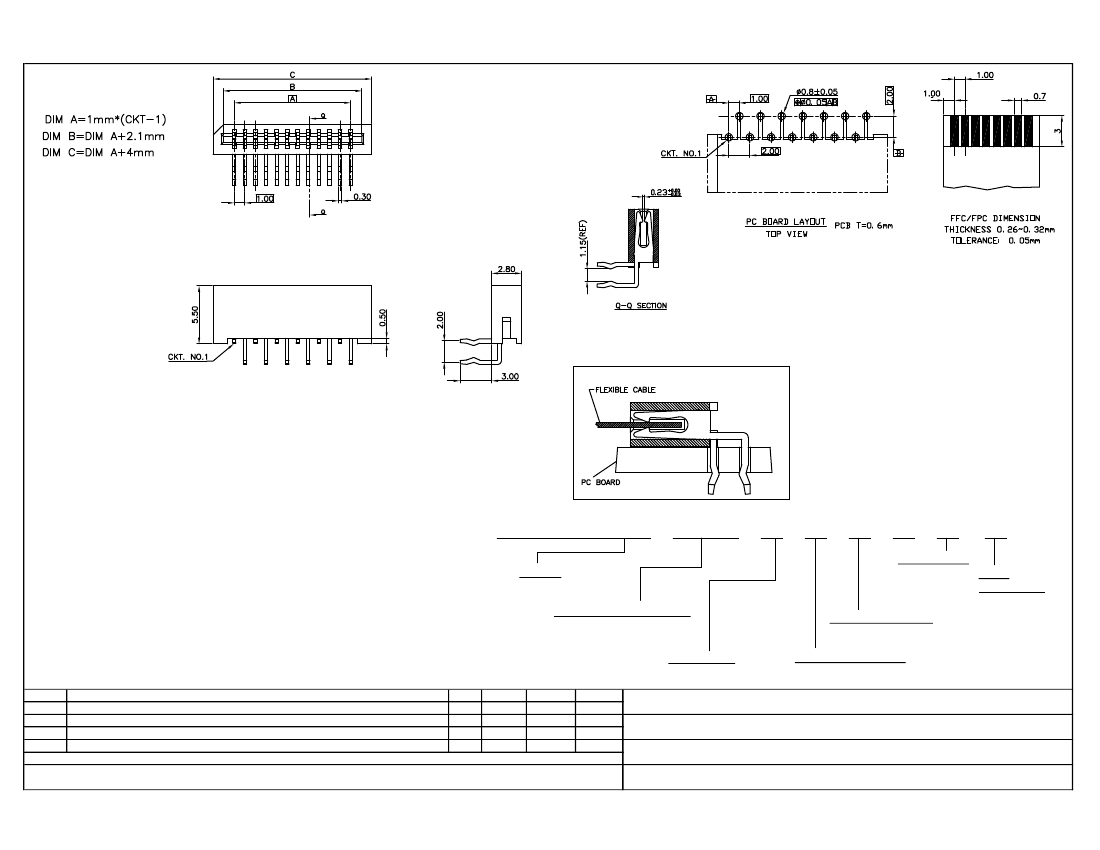

FLexible Cable Connector, LIF (FFC) Standard, 1.0mm Pitch

P/N: F203-XX12-200-Z

P g: 1

F203-0612-200-Z Related Products

	F203-0612-200-Z	F203-0812-200-Z	F203-0312-200-Z	F203-1012-200-Z
Description	Card Edge Connector, 6 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking	Card Edge Connector, 8 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking	Card Edge Connector, 3 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking	Card Edge Connector, 10 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Solder Kinked Leads Terminal, Locking
Maker	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.
Reach Compliance Code	unknown	unknown	unknown	unknow
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.11 inch	0.11 inch	0.11 inch	0.11 inch
body length	0.354 inch	0.433 inch	0.236 inch	0.512 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	50VAC V	50VAC V	50VAC V	50VAC V
maximum insertion force	LIF N	LIF N	LIF N	LIF N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	6	8	3	10
Base Number Matches	1	1	1	-

Recommended Resources

Radio frequency remote control switch transmitter circuit

Utilizing triple frequency voltage speed saturation zero sequence current protection circuit

614-A2 (1kVA) AC voltage regulator circuit

Touch adjustable programmable power supply

Electronic transformer circuit

A circuit for adjusting the AC voltage level using a Lili capacitance diode
