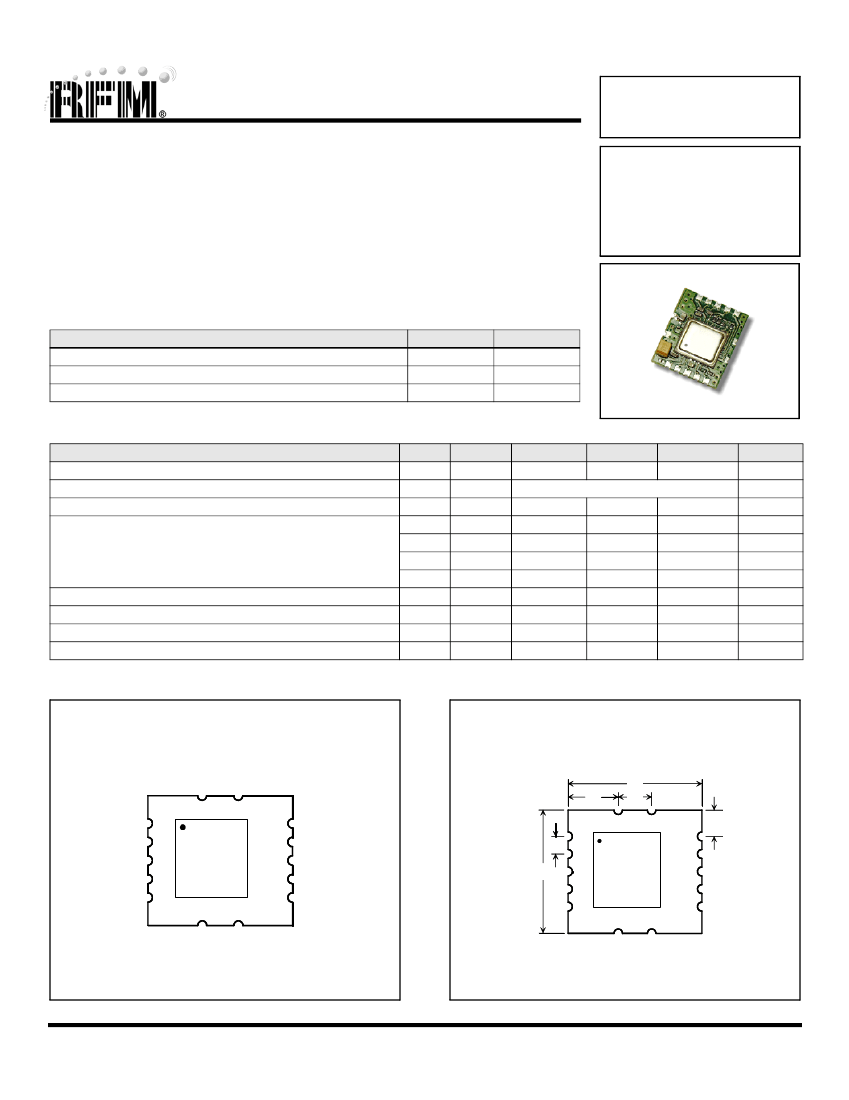

DR5100
•
•
•
•
Designed for Short-Range Wireless Data Communications
Supports up to 19.2 kbps Encoded Data Transmissions
3 V, Low Current Operation plus Sleep Mode
Ready to Use OEM Module
The DR5100 receiver module is ideal for short-range wireless data applications where robust operation, small
size and low power consumption are required. The DR5100 utilizes RFM’s RX5000 amplifier-sequenced
hybrid (ASH) architecture to achieve this unique blend of characteristics. The receiver RX5000 is sensitive
and stable. A wide dynamic range log detector provides robust performance in the presence of on-channel
interference or noise. Two stages of SAW filtering provide excellent receiver out-of -band rejection. The
DR5100 includes the RX5000 plus all configuration components in a ready-to-use PCB assembly excellent
for prototyping and intermediate volume production runs.
433.92 MHz
Receiver
Module
Absolute Maximum Ratings
Rating
Power Supply and All Input/Output Pins
Non-Operating Case Temperature
Soldering Temperature (10 seconds)
Value
-0.3 to +4.0
-50 to +100
230
Units
V
°C
°C
Characteristic
Operating Frequency
Modulation Type
Data Rate
Receiver Performance (OOK @ 2.4 kbps)
Input Current, 3 Vdc Supply
Input Signal for 10
-4
Rejection, ±30 MHz
Sleep Mode Current
Power Supply Voltage Range
Operating Ambient Temperature
BER, 25 C
Sym
fO
Notes
Minimum
433.72
Typical
OOK
2.4
Maximum
434.12
19.2
1.8
Units
MHz
kbps
mA
dBm
dB
µs
I
R
-100
R
REJ
tSR
IS
VCC
T
A
2.7
-20
3
55
200
Sleep to Receive Switch Time(100 ms sleep, -85 dBm signal)
5
3.5
+65
µA
Vdc
°C
DR5100 Pin Out
RF
GND
14
AGC/VCC
PK DET
RX BBO
RX DATA
TX IN
1
2
3
4
5
6
7
RFIO
DR5100 Outline Drawing
.80
.20
.165
.10
.70
.30
13
12
11
10
9
8
CTR0
CTR1
GND
VCC
LPF ADJ
www.RFM.com
E-mail: info@rfm.com
©2008 by RF Monolithics, Inc.
Page 1 of 4
DR5100 - 4/8/08
Pin Desciptions
Pin
Name
Description
This pin is connected directly to the receiver AGCCAP pin. To disable AGC operation, this pin is tied to VCC. To enable AGC
operation, a capacitor is placed between this pin and ground. This pin controls the AGC reset operation. A capacitor between
this pin and ground sets the minimum time the AGC will hold-in once it is engaged. The hold-in time is set to avoid AGC chat-
tering. For a given hold-in time t
AGH
, the capacitor value C
AGC
is:
C
AGC
= 19.1* t
AGH
, where t
AGH
is in µs and C
AGC
is in pF
A ±10% ceramic capacitor should be used at this pin. The value of C
AGC
given above provides a hold-in time between t
AGH
and
2.65* t
AGH
, depending on operating voltage, temperature, etc. The hold-in time is chosen to allow the AGC to ride through the
longest run of zero bits that can occur in a received data stream. The AGC hold-in time can be greater than the peak detector
decay time, as discussed below. However, the AGC hold-in time should not be set too long, or the receiver will be slow in
returning to full sensitivity once the AGC is engaged by noise or interference. The use of AGC is optional when using OOK
modulation with data pulses of at least 30 µs. Active or latched AGC operation is required for ASK modulation and/or for data
pulses of less than 30 µs. The AGC can be latched ON once engaged by connecting a 150 K resistor between this pin and
ground, instead of a capacitor. AGC operation depends on a functioning peak detector, as discussed below. The AGC capacitor
is discharged in the receiver power-down (sleep) mode. Note that provisions are made on the circuit board to install a jumper
between this pin and the junction of C2 and L3. Installing the jumper allows either this pin or Pin 9 to be used for the Vcc supply
when AGC operation is not required.
This pin is connected directly to the receiver PKDET pin. This pin controls the peak detector operation. A capacitor between
this pin and ground sets the peak detector attack and decay times, which have a fixed 1:1000 ratio. For most applications, the
attack time constant should be set to 6.4 ms with a 0.027 µF capacitor to ground. (This matches the peak detector decay time
constant to the time constant of the 0.1 µF coupling capacitor C3.) A ±10% ceramic capacitor should be used at this pin. The
peak detector is used to drive the "dB-below-peak" data slicer and the AGC release function. The AGC hold-in time can be
extended beyond the peak detector decay time with the AGC capacitor, as discussed above. Where low data rates and OOK
modulation are used, the "dB-below-peak" data slicer and the AGC are optional. In this case, the PKDET pin can be left uncon-
nected, and the AGC pin can be connected to VCC to reduce the number of external components needed. The peak detector
capacitor is discharged in the receiver power-down (sleep) mode. See the description of Pin 3 below for further information.
This pin is connected directly to the receiver BBOUT pin. On the circuit board, BBOUT also drives the receiver CMPIN pin
through C3, a 0.1 µF coupling capacitor (t
BBC
= 6.4 ms). RX BBO can also be used to drive an external data recovery process
(DSP, etc.). The nominal output impedance of this pin is 1 K. The RX BBO signal changes about 10 mV/dB, with a peak-to-
peak signal level of up to 675 mV. The signal at RX BBO is riding on a 1.1 Vdc value that varies somewhat with supply voltage
and temperature, so it should be coupled through a capacitor to an external load. A load impedance of 50 K to 500 K in parallel
with no more than 10 pF is recommended. Note the AGC reset function is driven by the signal applied to CMPIN through C3.
When the receiver is in power-down (sleep) the output impedance of this pin becomes very high, preserving the charge on the
coupling capacitor(s). The value of C3 on the circuit board has been chosen to match typical data encoding schemes at 2.4
kbps. If C3 is modified to support higher data rates and/or different data encoding schemes and PK DET is being used, make
the value of the peak detector capacitor about 1/3 the value of C3.
RX DATA is connected directly to the receiver data output pin, RXDATA. This pin will drive a 10 pF, 500 K parallel load. The
peak current available from this pin increases with the receiver low-pass filter cutoff frequency. In the power-down (sleep) or
receive mode, this pin becomes high impedance. If required, a 1000 K pull-up or pull-down resistor can be used to establish a
definite logic state when this pin is high impedance (do not connect the pull-up resistor to a supply voltage higher than 3.5 Vdc
or the receiver will be damaged). This pin must be buffered to successfully drive low-impedance loads.
1
AGC/VCC
2
PK DET
3
RX BBO
4
RX DATA
5
6, 7
NC
GND
This pin is the receiver low-pass filter bandwidth adjust, and is connected directly to the receiver LPFADJ pin. R6 on the circuit
board (330 K) is connected between LPFADJ and ground will be in parallel with any external resistor connected to LPF ADJ.
The filter bandwidth is set by the parallel resistance of R6 and the external resistor (if used). The equivalent resistor value can
range from 330 K to 820 ohms, providing a filter 3 dB bandwidth f
LPF
from 4.4 kHz to 1.8 MHz. The 3 dB filter bandwidth is
determined by:
8
LPF ADJ
f
LPF
= 1445/ (330*R
LPF
/(330 + R
LPF
)), where R
LPF
is in kilohms, and f
LPF
is in kHz
A ±5% resistor should be used to set the filter bandwidth. This will provide a 3 dB filter bandwidth between f
LPF
and 1.3* f
LPF
with variations in supply voltage, temperature, etc. The filter provides a three-pole, 0.05 degree equiripple phase response. The
peak drive current available from RXDATA increases in proportion to the filter bandwidth setting. As shipped, the receiver mod-
ule is set up for nominal 2.4 kbps operation. An external resistor can be added between Pin 8 and ground to support higher
data rates. Preamble training times will not be decreased, however, unless C3 is replaced with a smaller capacitor value (see
the descriptions of Pins 2 and 3 above). Refer to sections 1.4.3, 2.5.1 and 2.6.1 in the ASH Transceiver Designer's Guide for
additional information on data rate adjustments.
www.RFM.com
E-mail: info@rfm.com
©2008 by RF Monolithics, Inc.
Page 2 of 4
DR5100 - 4/8/08
Pin
9
10
Name
VCC
GND
Description
This is the positive supply voltage pin for the module. The operating voltage range is 2.7 to 3.5 Vdc. It is also possible to use
Pin 1 as the Vcc input. Please refer to the Pin 1 description above.
This is the supply voltage return pin.
CTR1 is connected to the CNTRL1 control pin on the receiver. CTR1 and CTR0 select the transceiver operating modes. CTR1
and CTR0 both high place the unit in the receive mode. CTR1 and CTR0 both low place the unit in the power-down (sleep)
mode. CTR1 is a high-impedance input (CMOS compatible). This pin must be held at a logic level; it cannot be left uncon-
nected. At turn on, the voltage on this pin and CTR0 should rise with VCC until VCC reaches 2.7 Vdc (receive mode). Thereaf-
ter, any mode can be selected.
CTR0 is connected to the CNTRL0 control pin on the receiver CTR0 is used with CTR1 to control the operating modes of the
receiver. CTR0 is a high-impedance input (CMOS compatible). This pin must be held at a logic level; it cannot be left uncon-
nected. At turn on, the voltage on this pin and CTR1 should rise with VCC until VCC reaches 2.7 Vdc (receive mode). Thereaf-
ter, any mode can be selected.
RFIO is the RF input/output pin. A matching circuit for a 50 ohm load (antenna) is implemented on the circuit board between
this pin and the receiver SAW filter transducer.
This pin is the RF ground (return) to be used in conjunction with the RFIO pin. For example, when connecting the transceiver
module to an external antenna, the coaxial cable ground is connected this pin and the coaxial cable center conductor is con-
nected to RFIO.
11
CTR1
12
CTR0
13
14
RFIO
RF GND
2.4 kbps Application Circuit
19.2 kbps Application Circuit
3 Vdc
3 Vdc
12
13
14
1
11
10
9
8
7
6
12
13
14
1
11
10
9
8
7
6
33 k
DR5100
DR3000
2
3
4
5
DR5100
2
3
4
5
Data Out
Data Out
www.RFM.com
E-mail: info@rfm.com
©2008 by RF Monolithics, Inc.
Page 3 of 4
DR5100 - 4/8/08
