3P-SCS-PBT: Description3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, CRIMP, SOCKET; CategoryThe connector The connector; File Size97KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

3P-SCS-PBT Overview

3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, CRIMP, SOCKET

3P-SCS-PBT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	COMPACTABLE CONTACTS: SCS-41T-2.3
Body/casing type	SOCKET
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3P-SCSPBT
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	CRIMP
Total number of contacts	3
UL Flammability Code	94-HB
Base Number Matches	1

Preview

Download Datasheet

View All

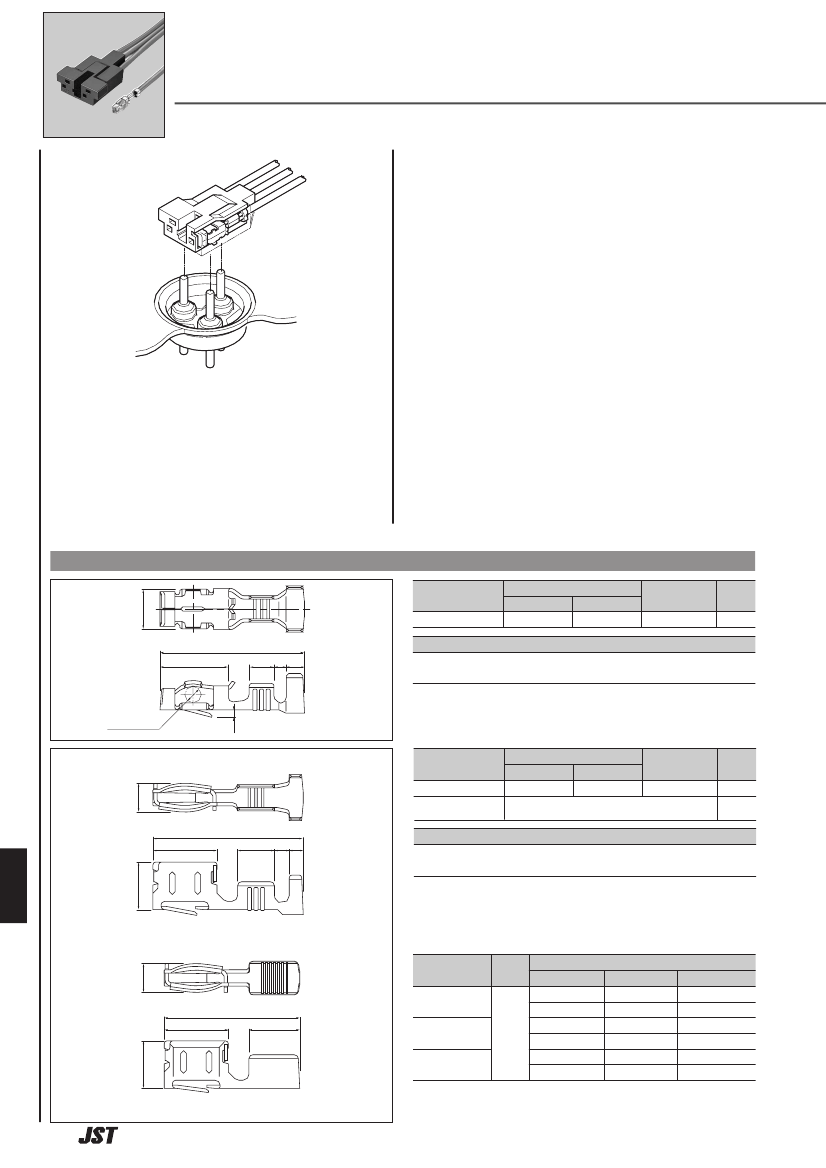

Three-pole socket for connecting cluster pins

CLUSTER SOCKET

This three circuit connector is used to

connect cluster pins (2.3mm in diameter) to

the leads of a motor hermetically sealed in

a compressor of a refrigerator or a freezer.

The contacts and housing are especially

designed and made of high-quality

materials for high heat resistance and

superior durability.

Contact

Standards ––––––––––––––––––––––

1

Certified LR20812

0

Recognized E60389

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Model No.

5.0

Applicable wire

mm

2

0.5∼1.25

AWG #

20∼16

Insulation O.D.

(mm)

1.9∼3.4

Q´ty /

reel

5,000

SCS-41T-2.3

18.0

8.3

3.0

1.5 2.2

Material and Finish

Phosphor bronze, tin-plated (reflow treatment)

RoHS compliance

0.9

Forφ2.3mm pin

Model No.

3.5

Applicable wire

mm

2

0.5∼1.25

AWG #

20∼16

Insulation O.D.

(mm)

1.9∼3.2

Q´ty /

reel

3,000

SCSN-41T-P2.3

SCSN-60T-P2.3

18.3

7.8

4.5

1.8 1.7

0.7 mm +0.7 mm∼1.05 mm +1.05 mm

Material and Finish

Phosphor bronze, tin-plated

5.8

One wire crimping

3.5

RoHS compliance

Note: 1. SCSN-60T-P2.3 is for the use of one wire crimping. Contact JST for

details of regarding applicable wires.

2. Before use, the performance of this socket must be tested with the

wire that is to be used.

Applicator

Dies

MK/SCS-41-23

−

MK/SCSN-41-23

−

MK/SCSN-60-23

−

Contact

SCS-41T-2.3

16.5

7.8

6.2

Crimping

machine Crimp applicator

MK-L

−

MKS-L

−

MKS-L

−

Crimp applicator with dies

APLMK SCS41-23

−

APLMK SCSN41-23

−

APLMK SCSN60-23

−

SCSN-41T-P2.3

AP-K2N

5.8

SCSN-60T-P2.3

522

Recommended Resources

Electronic telephone ring circuit

SHD1006 single positive pressure fan full pressure starting circuit a

A common car inverter circuit and principle

Capacitor-electromagnetic braking

Synchronous pulse generating circuit in armature checker

7MHz oscillation circuit
