2027-23-C19T1LF datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> 2027-23-C19T1LF

2027-23-C19T1LF: DescriptionSurge Protection Circuit,; CategoryWireless rf/communication Telecom circuit; File Size161KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

2027-23-C19T1LF Overview

Surge Protection Circuit,

2027-23-C19T1LF Parametric

Parameter Name	Attribute value
Maker	Bourns
package instruction	,
Reach Compliance Code	unknown
Telecom integrated circuit types	SURGE PROTECTION CIRCUIT
Base Number Matches	1

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

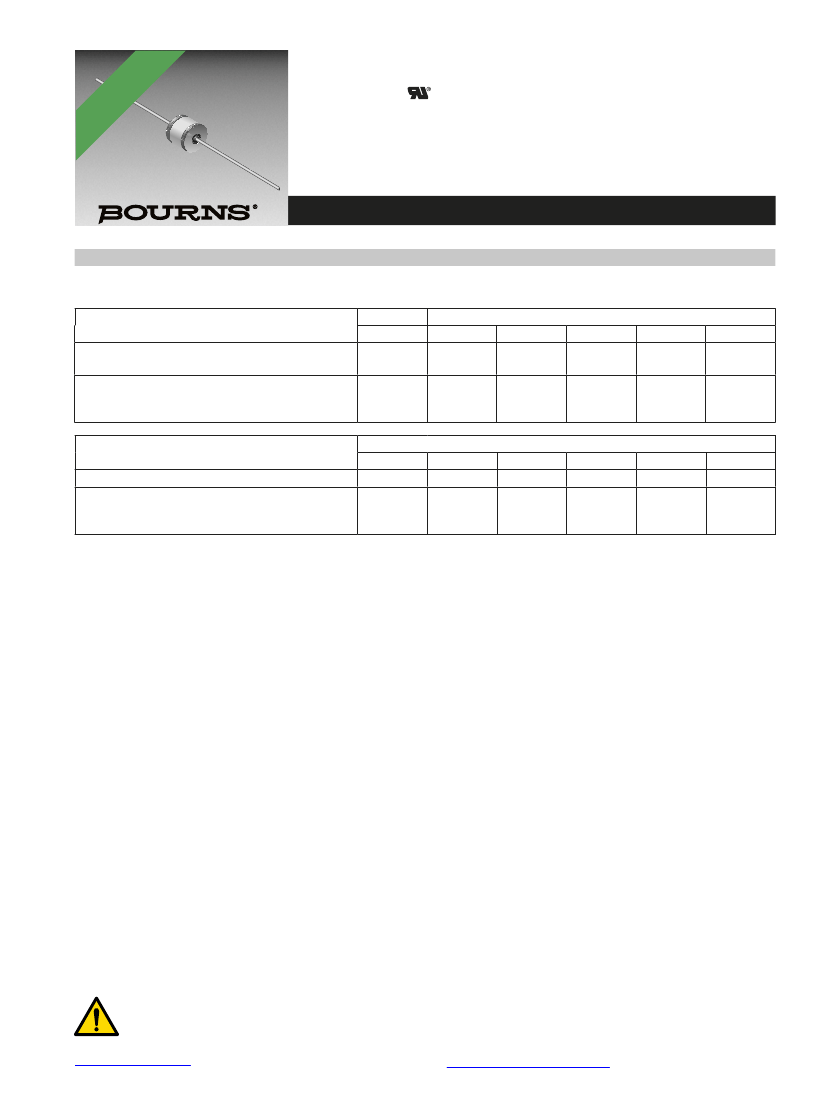

Features

■

8 mm diameter, 6 mm long

■

UL Recognized

■

Custom conﬁgurations available

■

High surge current rating

■

Stable breakdown throughout life

■

RoHS compliant* versions available

Applications

■

Telecommunications

■

Industrial electronics

■

Commercial electronics

■

Consumer electronics

■

Aircraft and military electronics

2027 Series - 2-Pole Gas Discharge Tube

Characteristics

Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards.

Model No.

2027-20

200 V

400 V

600 V

Characteristic

DC Sparkover ±15 %

(±20 % for Models 2027-07 & 2027-09) @ 100 V/s

Impulse Sparkover

(1)

100 V/μs

1000 V/μs

Characteristic

DC Sparkover ±15 % @ 100 V/s

Impulse Sparkover

(1)

100 V/μs

1000 V/μs

(1)

2027-07

75 V

300 V

500 V

2027-09

90 V

300 V

500 V

2027-15

150 V

350 V

575 V

2027-23

230 V

450 V

675 V

2027-25

250 V

475 V

700 V

2027-30

300 V

550 V

800 V

2027-35

350 V

600 V

875 V

Model No.

2027-40

2027-42

400 V

420 V

650 V

925 V

675 V

950 V

2027-47

470 V

725 V

1000 V

2027-60

600 V

850 V

1100 V

Impulse Sparkover voltage is defined as typical values of distribution.

Insulation Resistance .........................100 V (50 V for Models 2027-07 and 2027–09) ..................... > 10

Glow Voltage ......................................10 mA ..................................................................................... ~ 70 V

Arc Voltage .........................................> 1A ........................................................................................ ~ 10 V

Glow-Arc Transition Current ............................................................................................................... < 0.5 A

Capacitance........................................1 MHz ..................................................................................... < 1 pF

DC Holdover Voltage

(2)

......................135 V, (52 V for Models 2027-07 and 2027-09,

80 V for Model 2027-15) ........................................................ < 150 ms

Impulse Discharge Current .................25000 A, 8/20

μs

(3)

................................................................. 1 operation minimum

10000 A, 8/20

μs

.................................................................... > 10 operations

2500 A, 10/350

μs

.................................................................. 2 operations

500 A, 10/1000

μs

................................................................. > 400 operations

100 A, 10/1000

μs

or 10/700

μs

............................................. > 1000 operations

Alternating Discharge Current ............65 Arms, 11 cycles

(3)

.............................................................. 1 operation minimum

10 Arms, 1 s ........................................................................... > 10 operations

Operating Temperature....................................................................................................................... -55 to +125 °C

Climatic Category (IEC 60068-1)........................................................................................................ 40/90/21

Moisture Sensitivity Level .................................................................................................................. 1

ESD Classification (HBM) .................................................................................................................. 6

Notes:

• UL recognized component, UL File E153537.

• Model number marking on tube: 27-xxxV.

• Sparkover limits ±20 % after life, IR >10

(-25 %, +30 % for Models 2027-07, 2027–09 and 2027–60).

• At delivery AQL 0.65 Level II, DIN ISO 2859.

(2)

(3)

Network applied.

DC Sparkover may exceed ±20 % after discharge, but will continue to protect without venting.

WARNING Cancer and Reproductive Harm

www.P65Warnings.ca.gov

*RoHS Directive 2015/863, Mar 31, 2015 and Annex.

Speciﬁcations are subject to change without notice. Users should verify actual device performance in their speciﬁc

applications. The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the

last page of this document, and at

www.bourns.com/docs/legal/disclaimer.pdf.
