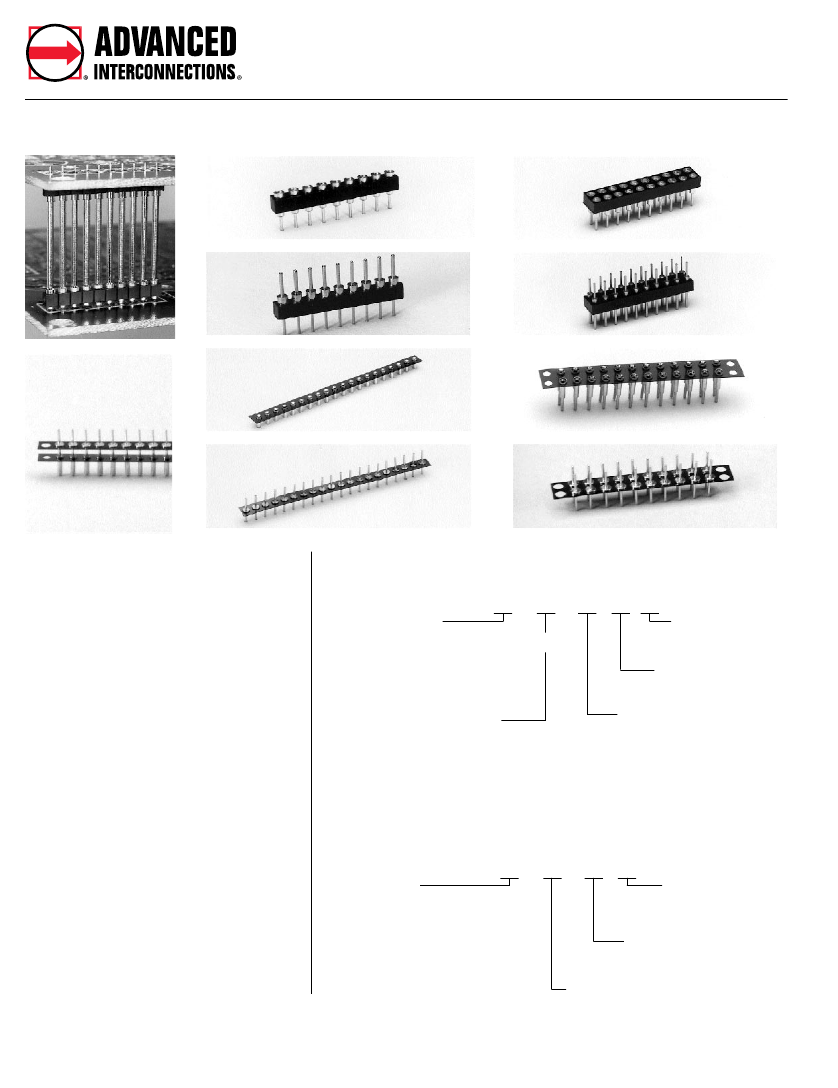

.100” (2.54mm) Pitch Board to Board Interconnections
HNB - Single Row
Molded Female
DRS - Dual Row
Molded Female
NA - Single Row
Molded Male
DRA - Dual Row
Molded Male
KSS - Single Row
Peel-A-Way
®
Female
DKS - Dual Row
Peel-A-Way
®
Female
Low Profile
Board to Board
KSA - Single Row
Peel-A-Way
®
Male
DKA - Dual Row
Peel-A-Way
®
Male
Features:
• High reliability method of interconnecting.
• Reliable mechanical support.
• Complete flexibility. If the board to board
spacing you need is not shown on pages
110 - 111 , consult factory.
How To Order
Single and Dual Row Female
NB
010
-01
T
G
Contact Plating
G - Gold
T - Tin-Lead
Terminal Plating
G - Gold
T - Tin-Lead
Terminal Type
See page 109 for available
terminal types.
Body Type
NB/LNB* - Single Row Molded
HNB/HLNB* - Single Row High Temp Molded
KSS - Single Row Peel-A-Way
®
DRS - Dual Row Molded
HDRS - Dual Row High Temp Molded
DKS - Dual Row Peel-A-Way
®
Number of Pins
NB/LNB: 3 - 32, KSS: 2 - 100
DRS: 20 - 70, DKS: 4 - 200
*NB and HNB — Terminal head above insulator
LNB and HLNB — Terminal head flush with insulator
Terminals and Contacts:
Terminal: Brass - Copper Alloy (C36000),
ASTM-B-16
Contact: Beryllium Copper - Copper Alloy
(C17200), ASTM-B-194
Plating:
Terminal: Gold over Nickel or
Tin-Lead over Nickel
Contact: Gold over Nickel or
Tin-Lead over Nickel
How To Order
Single and Dual Row Male
NA
010
-68
T
Terminal Plating
G - Gold
T - Tin-Lead
Terminal Type
See page 109 for available
terminal types.
Number of Pins
NA/HNA: 3 - 32, KSA: 2 - 100
DRA/HDRA: 20 - 70, DKA: 4 - 200
Body Type
NA - Single Row Molded
HNA - Single Row High Temp Molded
KSA - Single Row Peel-A-Way
®
DRA - Dual Row Molded
HDRA - Dual Row High Temp Molded
DKA - Dual Row Peel-A-Way
®
Body Material:
Molded -
Glass filled thermoplastic
Polyester (P.B.T.) U.L. Rated 94V-O,
-60˚C to 140˚C (-76˚F to 284˚F)
High Temp Molded -
High temp. glass
filled thermoplastic, U.L. Rated 94V-O,
-60˚C to 260˚C (-76˚F to 500˚F)
Peel-A-Way
®
-
Polyimide Film - Temp.
range -269˚C to 400˚C (-452˚F to 752˚F)
Peel-A-Way
®
covered by patent rights issued and/or pending.
Page 108
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
Board to Board
Interconnections
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com
.100” (2.54mm) Pitch Board to Board Interconnections

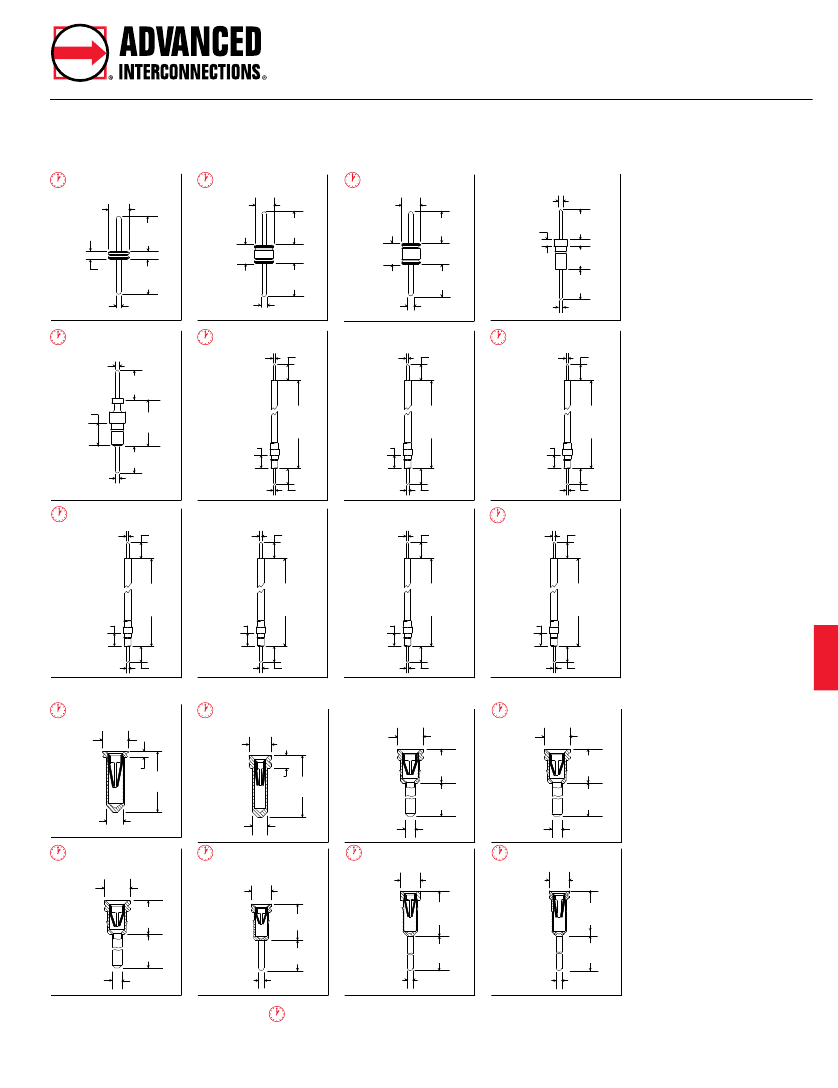

Male Terminal Information
Type -79
Peel-A-Way
.072 Dia.
(1.83)
.125
(3.18)
.070
(2.16)
.030
(.76)
.125
(3.18)
.125
(3.18)
.018 Dia.
(.46) Typ. 2
.018 Dia.
(.46) Typ. 2
®
Type -80
Peel-A-Way
.072 Dia.
(1.83)
.125
(3.18)
®
Type -81
Peel-A-Way
®
Only
.072 Dia.
(1.83)
.125
(3.18)
.085
(2.16)
.125
(3.18)
Type -444
.018 Dia.
(.46)
.125
(3.18)
Only
Only
.052
(1.32)
.103
(2.62)
.125
(3.18)
.018 Dia.
(.46)
.018 Dia.
(.46) Typ. 2
Type -68
.018 Dia.
(.46)
.125
(3.18)
.100
(2.54)
Type -43
.018 Dia.
(.46)
.125
(3.18)
Type -399
.018 Dia.
(.46)
.125
(3.18)
Type -185
.018 Dia.
(.46)
.125
(3.18)
.210
(5.33)
.335
(8.51)
.100
(2.54)
.100
(2.54)
.379
(9.63)
.100
(2.54)
.500
(12.70)
.125
(3.18)
.018 Dia.
(.46)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
Type -42
.018 Dia.
(.46)
.125
(3.18)
Type -398
.018 Dia.
(.46)
.125
(3.18)
Type -403
.018 Dia.
(.46)
.125
(3.18)
Type -71
.018 Dia.
(.46)
.125
(3.18)
.585
(14.86)
.100
(2.54)
.100
(2.54)
.679
(17.25)
.100
(2.54)
.750
(19.06)
.100
(2.54)
.835
(21.21)
BOARD TO BOARD
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
Female Terminal Information
Type -210
Peel-A-Way
®
Only
Type -85
Peel-A-Way
®
Only
.058 Dia.
(1.47)
Type -299*
.050(1.27) Molded Insulator Thickness
.072 Dia.
(1.83)
Type -49*
.072 Dia.
(1.83)
.058 Dia.
(1.47)
.015
(.38)
.155
(3.94)
.031
(.79)
.083
(2.11)
.095
(2.41)
.155
(3.94)
.082
(2.08)
.095
(2.41)
.028 Dia.
(.71)
.034 Dia.
(.86)
.038 Dia.
(.97)
.025 Dia.
(.64)
Type -04*
.072 Dia.
(1.83)
Type -51*
.072 Dia.
(1.83)
Type -01
Molded Body Only
.072 Dia.
(1.83)
Type -33
Peel-A-Way
®
Only
.072 Dia.
(1.83)
.120
(3.05)
.130
(3.30)
.165
(4.19)
.165
(4.19)
.110
(2.79)
.028 Dia.
(.71)
.020 Dia.
(.51)
.110
(2.79)
.125
(3.18)
.020 Dia.
(.51)
.125
(3.18)
.020 Dia.
(.51)
Quick turn delivery available on standard terminal types.
* These terminal types are available in either molded or Peel-A-Way
®
. Peel-A-Way
®
covered by patent rights issued and/or pending.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
Page 109
Board to Board
Interconnections
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com
.100” (2.54mm) Pitch Board to Board Interconnections

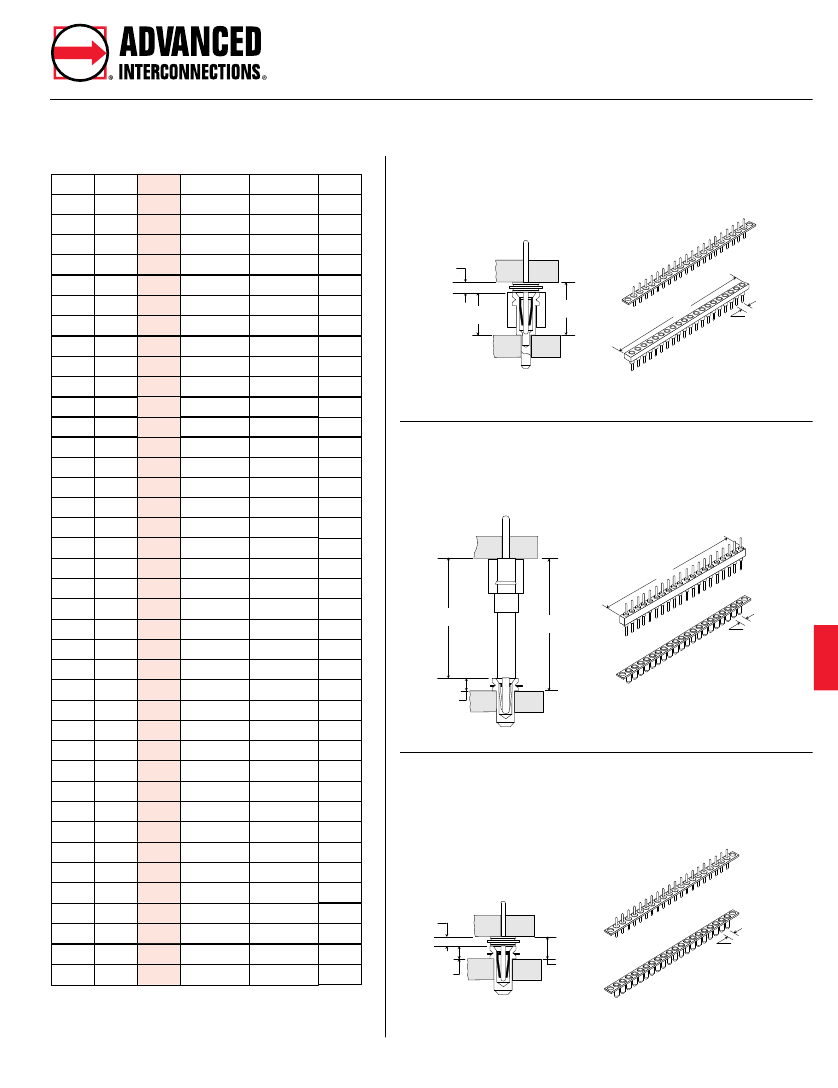

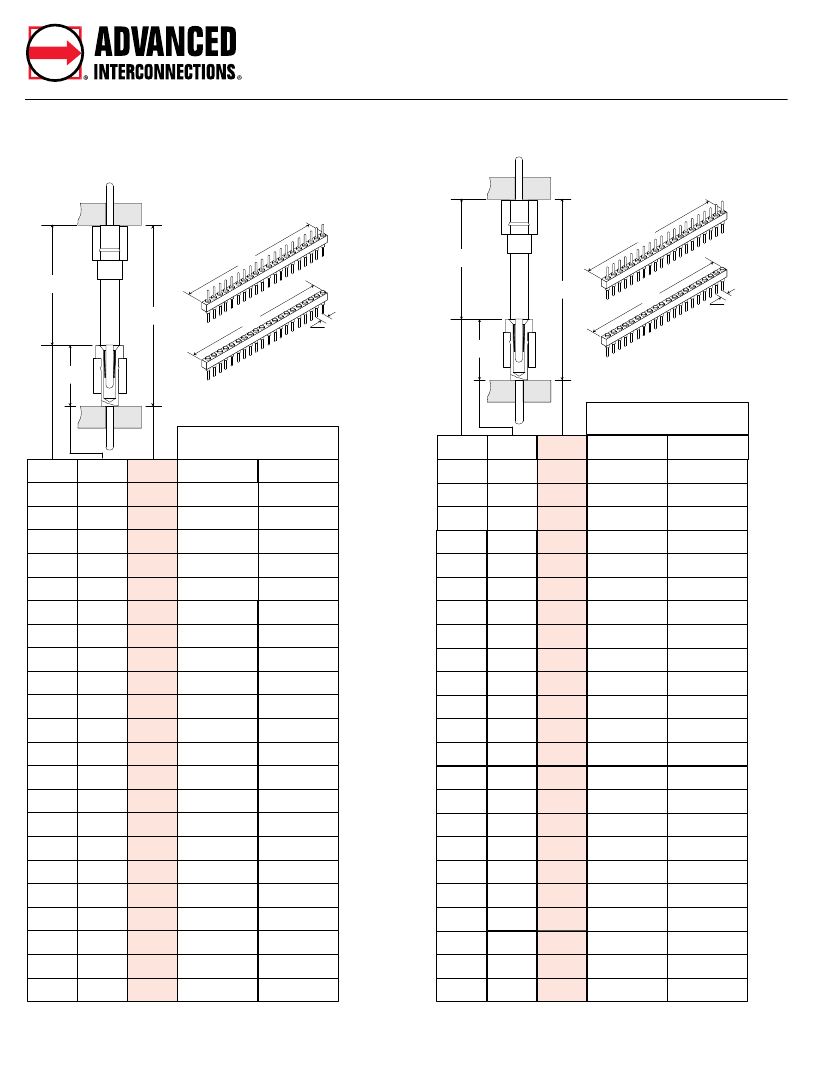

Molded Body Male & Female (32 Positions Maximum)
